User Manual for ARRI LMB-25 Three-Stage Matte Box Set Click to enlarge the picture
Contents of the user manual for the ARRI LMB-25 Three-Stage Matte Box Set
- Product category: Matte Boxes & Sunshades ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Matte Boxes & Sunshades
 |
User manual for the ARRI LMB-25 Three-Stage Matte Box Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

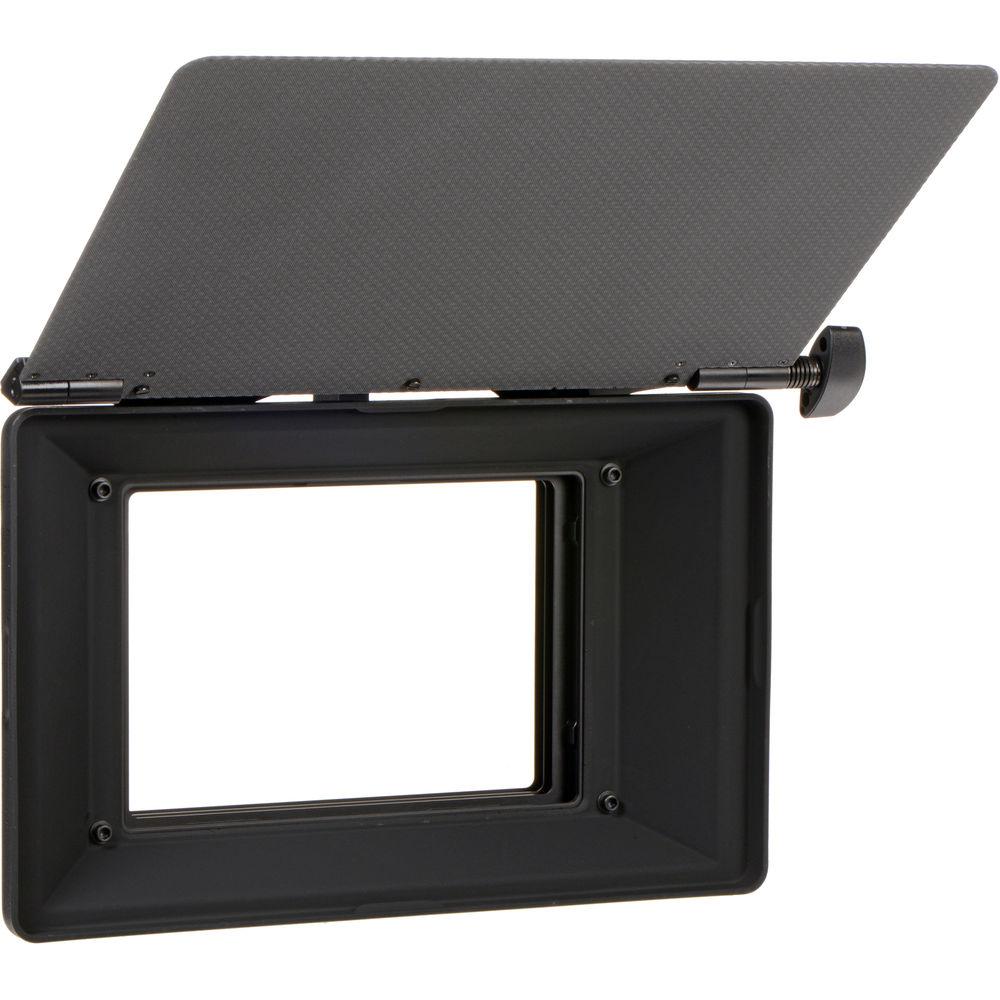

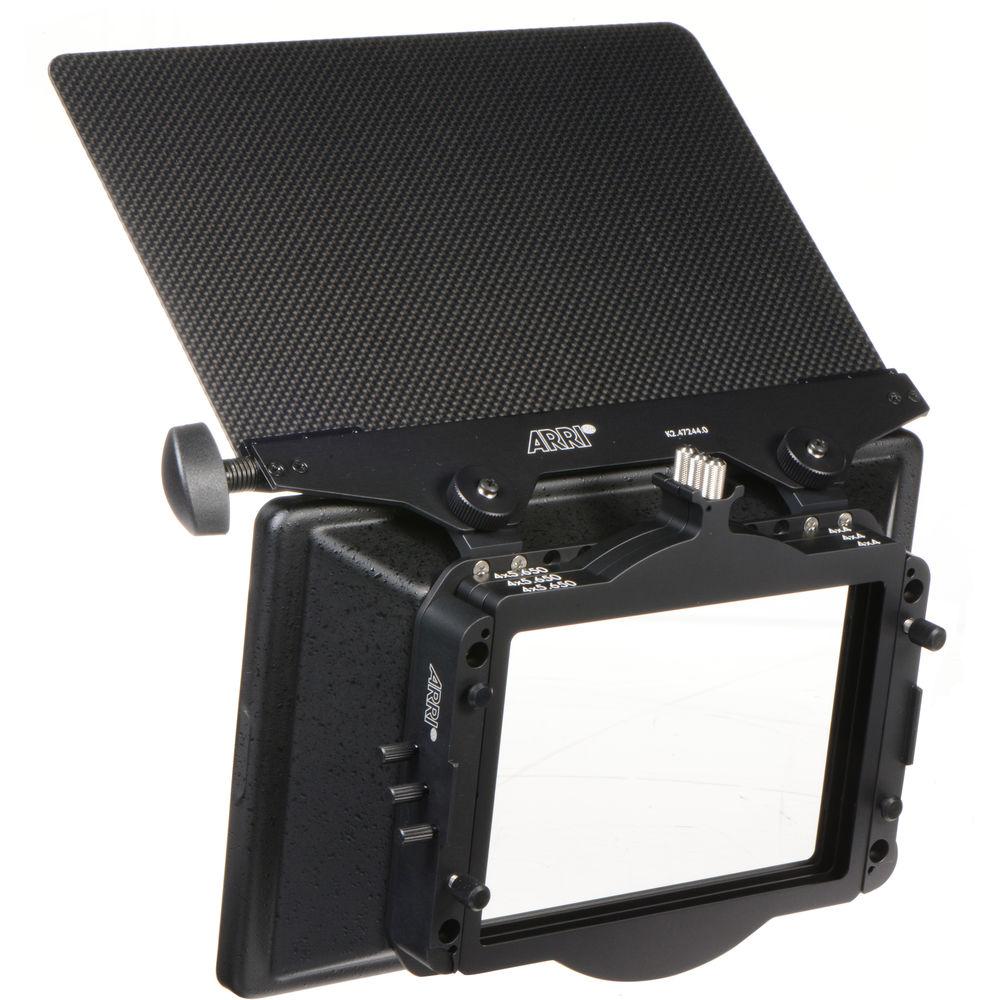

Product description This LMB-25 Three-Stage Matte Box Set from ARRI is a basic kit including the LMB-25 lightweight matte box, one three-filter stage, three 4 x 5.65" / 4 x 4" combo filter trays, and one top/bottom flag. A required lens clamp adapter is not included in this set. Lens clamp adapters are available separately in diameters up to 143mm.The LMB-25 shade includes captive screws for easy removal and attachment to its frame. The included carbon fiber flag offers extended flare protection and may be positioned at the top or bottom of the matte box depending on your shot. Additional non-geared filter trays and stages are available separately. Note: A required lens clamp adapter is not included; various clamp sizes are available separately - LMB-25 Basic Module The LMB-25 Basic Module is the main component of the ARRI LMB-25 4x5.65" Lightweight Matte Box system. This module consists of a frame with a detachable hood. Use the Basic Module with a filter stage, 4x4"/4x5.65" combo filter frames, lens clamp adapter, and other matte box accessories for a complete LMB-25 system (other components not included).This successor to the LMB-15 is compatible with all LMB-15 and LMB-5 filter frames, clamp adapters, and flags. The LMB-25 Basic Module features four captive screws for attaching the hood to its frame, eliminating the chance of losing any screws should you need remove the hood for a macro shot, etc. Lens clamp adapters up to 143mm in diameter are available separately.
Features - Core component of the modular ARRI LMB-25 lightweight 4x5" matte box system
- Uses combo 4x4" / 4x5.65" filter frames (not included)
- Frame includes four captive screws to easily attach its hood
- Use with a filter stage and a lens clamp for a complete matte box system (stage and clamp not included)
- Compatible with all LMB-15 and LMB-5 filter frames, clamp adapters, and flags
- 3-Filter Stage for LMB-25 Matte Box The 3-Filter Stage for LMB-25 Matte Box from ARRI holds up to three filters when used as a component of the LMB-25 lightweight matte box. This stage consists of two pieces that are sandwiched between the lens clamp adapter and the basic matte box module (neither included). Use the stage with up to three 4 x 4" / 4 x 5.65" combo filter frames.
Features - For use with the ARRI LMB-25 lightweight matte box
- Holds up to three 4 x 4" / 4 x 5.65" combo filter frames
- Top/Bottom Flag for LMB-25 Matte Box Designed for use with LMB-25/15/5 lightweight matte boxes, this Top/Bottom Flag from ARRI offers extended glare and flare control for your lens. Made from a sheet of carbon fiber, this lightweight flag attaches to screw-down flag holders at the top or bottom of the matte box. The flag can be folded over to physically protect the front of the lens when moving your camera rig between shots.
- Can be attached to the top or bottom of LMB-25, LMB-15, and LMB-5 matte boxes
- Provides extended flare control
- Constructed from a sheet of carbon fiber
- Folds over the matte box hood to shield the lens front while the camera is moved between shots
- F4 Combo 4 x 5.65" / 4 x 4" Filter Frame The F4 Combo 4 x 5.65" / 4 x 4" Filter Frame from ARRI holds one 4 x 5.65" or 4 x 4" filter. This frame is compatible with ARRI LMB-25, top-loaded MMB-1, MMB-2, MB-19, and MB-29 matte boxes. A recessed spring lock secures the filter within the frame.
- Holds one 4 x 5.65" or 4 x 4" filter
- Compatible with ARRI LMB-25, top-loaded MMB-1, MMB-2, MB-19, and MB-29 matte boxes
- A recessed spring lock holds the filter in the frame
In the Box Bundle Items LMB-25 Basic Module szsabvexaavecxdcwfetzrsbcyvdyyxcs 3-Filter Stage for LMB-25 Matte Box Top/Bottom Flag for LMB-25 Matte Box 3 x F4 Combo 4 x 5.65" / 4 x 4" Filter Frame
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI LMB-25 Three-Stage Matte Box Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LMB-25 Basic Module
| Dimensions (HxWxD) | 5.9 x 9.4 x 1.5" (150 x 240 x 37 mm) | | Weight | 6.1 oz (173 g) | | | | Box Dimensions (LxWxH) | 9.8 x 6.8 x 1.3" | - 3-Filter Stage for LMB-25 Matte Box
| Dimensions (WxHxD) | 2.5 x 4.3 x 0.4" (64 x 108 x 11 mm) | | Weight | 6.8 oz (194 g) | - Top/Bottom Flag for LMB-25 Matte Box
| Dimensions (HxWxD) | 10.2 x 11 x 3" (260 x 280 x 75 mm) | | Weight | 12.7 oz (360 g) | | | | Box Dimensions (LxWxH) | 11.3 x 10.3 x 3.1" | - F4 Combo 4 x 5.65" / 4 x 4" Filter Frame
| Dimensions (WxHxD) | 9.8 x 6.7 x 0.4" (250 x 170 x 10 mm) | | Weight | 1.5 oz (42 g) | | | | Box Dimensions (LxWxH) | 10.2 x 7.05 x 1.2" |
