Product description

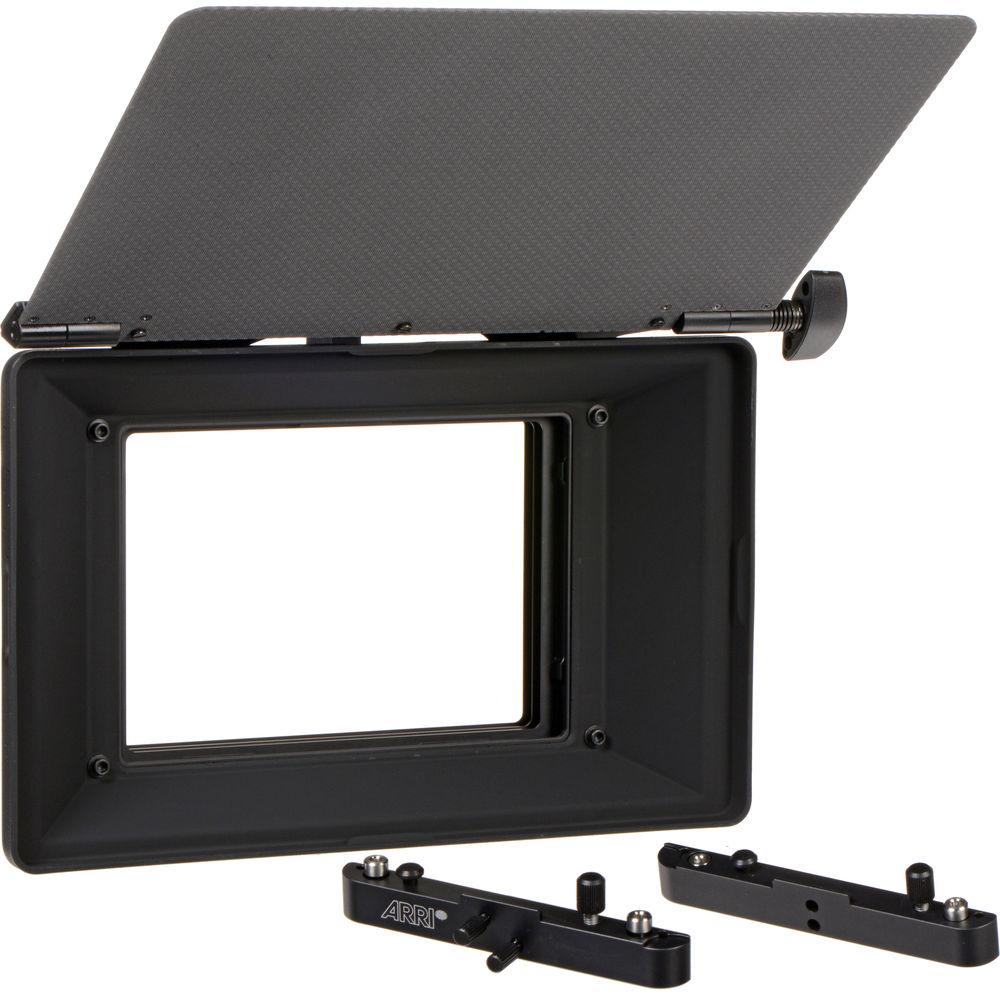

• LMB-6 Basic Module The LMB-6 Basic Module is the main component of the ARRI LMB-6 Lightweight Matte Box system. This module consists of a detachable 6.6 x 6.6" hood and its frame. Combine the Basic Module with a filter stage, lens clamp adapter, and other matte box accessories for a complete LMB-6 system (other components not included). When used with an ARRI ALEXA (ANSI 35mm), the LMB-6 Basic Module can cover lenses as wide as the ARRI/Zeiss Ultra Prime 8R. The module handily features captive screws, eliminating the chance of losing any screws should you need to reattach the hood to its frame. Lens clamp adapters up to 162mm in diameter are available separately.

  Features

  • Main component of the ARRI LMB-6 lightweight 6.6 x 6.6" matte box system
  • When used with an ALEXA (ANSI 35mm), will accommodate lenses as wide as the ARRI/Zeiss Ultra Prime 8R
  • Shade includes captive screws for easy attachment to its frame
  • Use with a filter stage and a lens clamp for a complete matte box system (stage and clamp not included)
• 2-Filter Stage Guide for LMB-6 Matte Box The 2-Filter Stage Guide from ARRI holds up to two filters when used as a component of the LMB-6 lightweight matte box. Constructed of machined aluminum, this guide consists of two pieces that are sandwiched between the lens clamp adapter and the matte box hood (neither included). It may be combined with another 2- or 3-filter stages to accommodate additional filters. The 2-Filter Stage Guide has independent locks for each filter frame, making it easier to remove the frames one at a time if so desired.Besides 6.6 x 6.6" filter frames, the 2-Filter Stage Guide may also be used with 5.65 x 5.65" frames, and 4" x 5.65" reducer frames. Check for vignetting when using the smaller-sized filters with wider lenses. This stage does not accept geared filter frames.
  • Accepts up to two non-geared filter frames
  • For 6.6 x 6.6", 5.65 x 5.65", and 4 x 5.65" reducer frames
  • Independent locks securely hold each frame
  • Sturdy machined aluminum construction
• 3-Filter Stage Guide for LMB-6 Matte Box The 3-Filter Stage Guide from ARRI holds up to three filters when used as a component of the LMB-6 lightweight matte box. Constructed of machined aluminum, this guide consists of two pieces that are sandwiched between the lens clamp adapter and the matte box hood (neither included). It may be combined with another 2- or 3-filter stages to accommodate additional filters. The 3-Filter Stage Guide has independent locks for each filter frame, making it easier to remove the frames one at a time if so desired.Besides 6.6 x 6.6" filter frames, the 3-Filter Stage Guide may also be used with 5.65 x 5.65" frames, and 4" x 5.65" reducer frames. Check for vignetting when using the smaller-sized filters with wider lenses. This stage does not accept geared filter frames.
  • Accepts up to three non-geared filter frames
  • For 6.6 x 6.6", 5.65 x 5.65", and 4 x 5.65" reducer frames
  • Independent locks securely hold each frame
  • Sturdy machined aluminum construction
• 6.6 x 6.6" F1 Filter Frame The 6.6 x 6.6" F1 Filter Frame from ARRI holds one 6.6 x 6.6" filter. This frame is compatible with ARRI LMB-4A and LMB-6 lightweight matte boxes. A recessed spring lock holds the filter within the frame.
  • Holds one 6.6 x 6.6" filter
  • Designed for ARRI LMB-4A and LMB-6 lightweight matte boxes
  • A recessed spring lock holds the filter in the frame
• Top/Bottom Flag for LMB-6 Matte Box Designed for use with the LMB-6 lightweight matte box, this Top/Bottom Flag from ARRI offers extended glare and flare control for your lens. Made from a sheet of carbon fiber, this lightweight flag attaches to screw-down flag holders at the top or bottom of the matte box. The flag can be folded over to physically protect the front of the lens when moving your camera rig between shots.
  • Can be attached to the top or bottom of an LMB-6 matte box
  • Provides extended flare control
  • Constructed from a sheet of carbon fiber
  • Folds over the matte box hood to shield the lens front while the camera is moved between shots
• Tray Catcher for LMB-25/LMB-6 Matte Box This Tray Catcher for LMB-25/LMB-6 Matte Box from ARRI provides additional security for the matte box's filter trays. The catcher screws onto the bottom of the matte box, fixing the trays in place. Use the catcher for additional security when your camera is mounted on a crane or otherwise moving. The Tray Catcher is compatible with LMB-25/15/5 and LMB-6 matte boxes.
  • Fixes filter trays in place, adding security when the camera is moving on a crane, etc.
  • Compatible with ARRI LMB-25/15/5 and LMB-6 lightweight matte boxes
• 3/8"-16 Accessory Shoe for LMB-25/LMB-6 Matte Box Use this 3/8"-16 Accessory Shoe from ARRI to add a mounting option to your LMB-25 or LMB-6 matte box. The shoe screws onto the matte box, giving you one 3/8"-16 threaded mounting hole. This adapter is particularly handy for mounting rangefinders or other measuring devices.

  Features

  • Compatible with LMB-25 and LMB-6 matte boxes
  • Adds one 3/8"-16 accessory mounting point
• Top/Bottom Flag Holders for LMB-25/LMB-6 Matte Box (Pair) Use the pair of Top/Bottom Flag Holders from ARRI to attach a Top/Bottom flag to your LMB-25 or LMB-6 matte box. This pair of holders screw onto the top or bottom of the matte box. Each holder has a thumbscrew knob to fasten the flag in place.

  Features

  • Compatible with LMB-25 and LMB-6 matte boxes
  • Pair of holders fastens the flag to top or bottom of the matte box

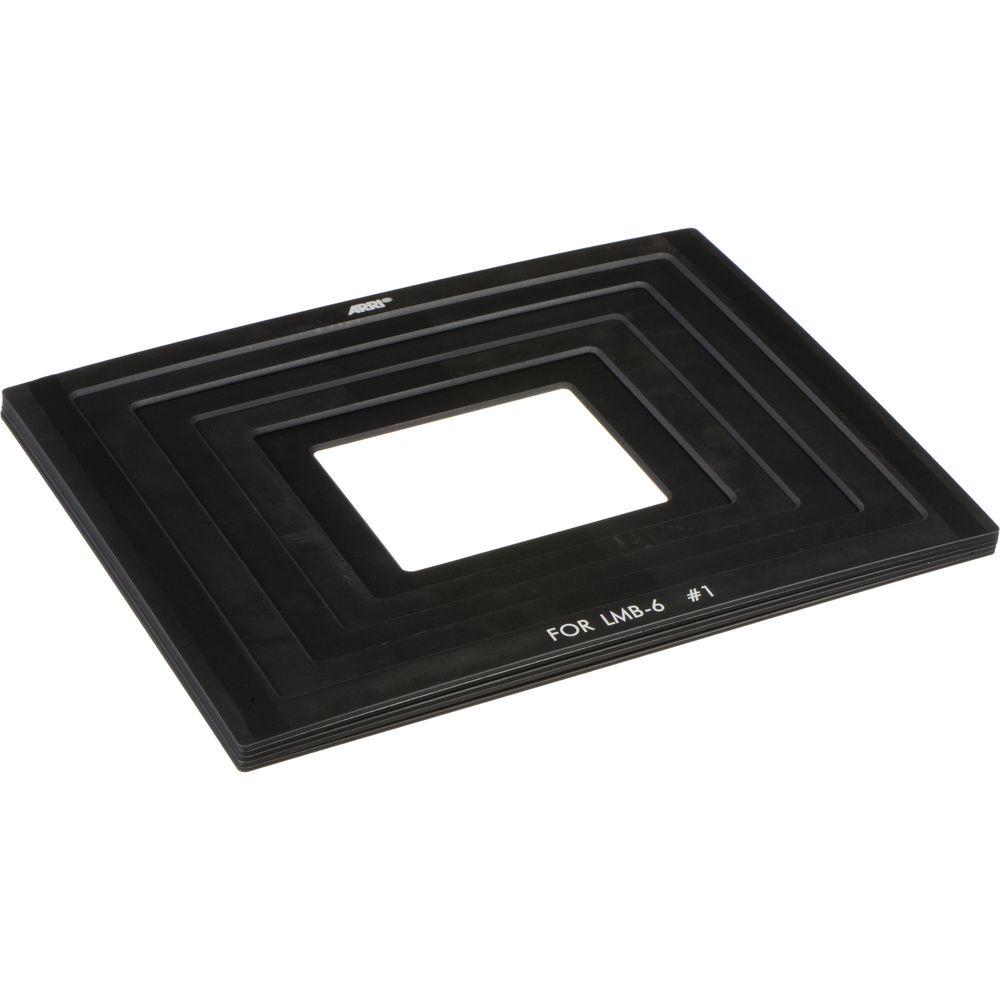

• Set of Mattes for LMB-6 Matte Box (5-Pack) Provided by third party: The LMB-6 has its own set of five mattes that can be clipped onto the hood.

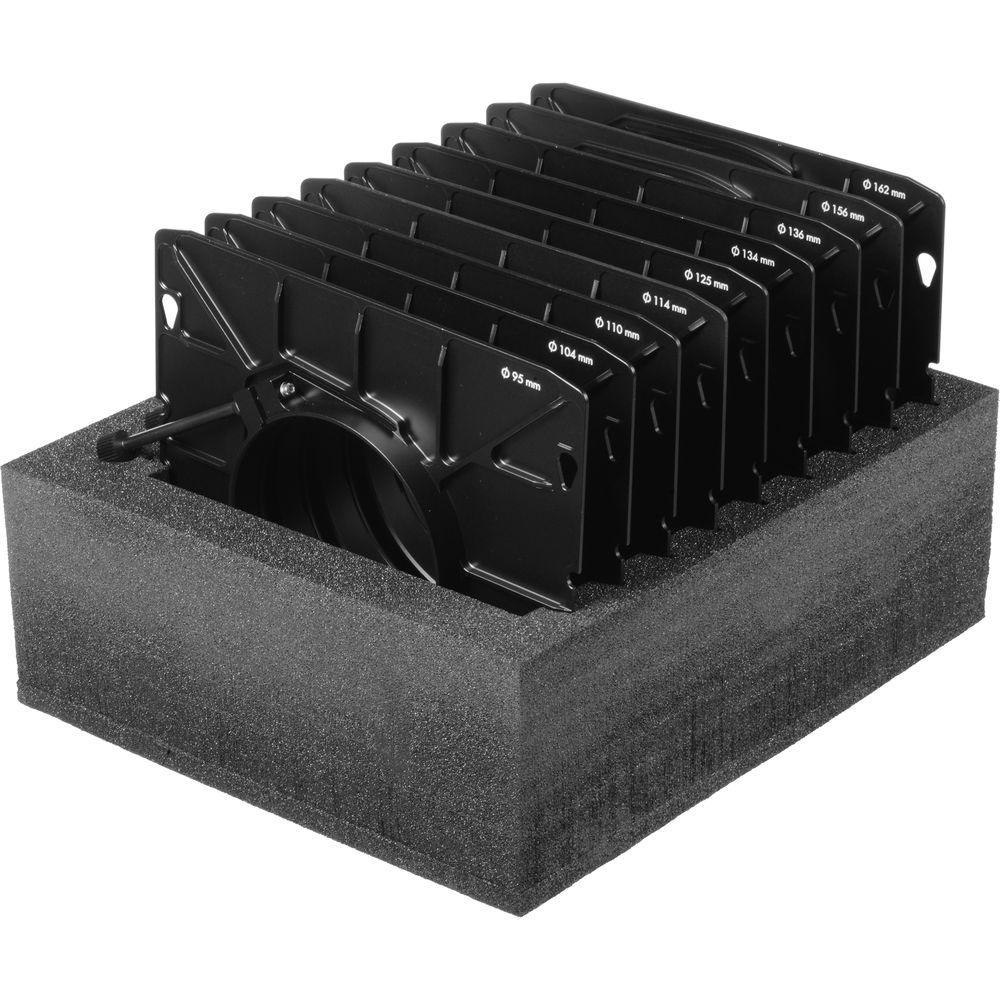

• Clamp Adapter Set for LMB-6 Matte Box This Clamp Adapter Set for LMB-6 Matte Box from ARRI provides a range of nine adapters for use with different-sized outer lens barrels. Used to attach the matte box to the lens, the adapter fastens to the lens via its screw-on clamp center and attaches to the matte box using its keyhole-type slots. These adapters are compatible with LMB-6 6.6 x 6.6" lightweight matte boxes. Designed to coordinate with many larger cine-style lenses, this set includes 162, 156, 136, 134, 125, 114, 110, 104, and 95mm clamps. Each adapter has a rectangular outer shape and a circular inner design.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 162mm Clamp Adapter for LMB-6 Matte Box

• 156mm Clamp Adapter for LMB-6 Matte Box

• 136mm Clamp Adapter for LMB-6 Matte Box

• 134mm Clamp Adapter for LMB-6 Matte Box

• 125mm Clamp Adapter for LMB-6 Matte Box

• 114mm Clamp Adapter for LMB-6 Matte Box

• 110mm Clamp Adapter for LMB-6 Matte Box

• 104mm Clamp Adapter for LMB-6 Matte Box

• 95mm Clamp Adapter for LMB-6 Matte Box

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LMB-6 Basic Module

  Dimensions (HxWxD)	8.9 x 11.6 x 1.7" (225 x 295 x 42 mm)
  Weight	11.2 oz (318 g)

• 2-Filter Stage Guide for LMB-6 Matte Box

  Material of Construction	Aluminum
  Weight	3.8 oz (110 g)
  Dimensions	Not specified by manufacturer

• 3-Filter Stage Guide for LMB-6 Matte Box

  Material of Construction	Aluminum
  Weight	5.3 oz (151 g)
  Dimensions	Not specified by manufacturer

• 6.6 x 6.6" F1 Filter Frame

  Dimensions (WxHxD)	6.9 x 8.2 x 0.3" (175 x 209 x 7 mm)
  Weight	2.3 oz (65 g)

  Box Dimensions (LxWxH)	7.8 x 6.7 x 1.0"

• Top/Bottom Flag for LMB-6 Matte Box

  Dimensions (HxWxD)	Not specified by manufacturer
  Weight	8.5 oz (242 g)

• Tray Catcher for LMB-25/LMB-6 Matte Box

  Dimensions (WxHxD)	0.9 x 1.4 x 0.7" (2.3 x 3.6 x 1.8 cm)
  Weight	0.5 oz (13 g)

  Box Dimensions (LxWxH)	4.4 x 3.0 x 0.5"

• 3/8"-16 Accessory Shoe for LMB-25/LMB-6 Matte Box

  Dimensions (WxHxD)	0.8 x 1.4 x 0.8" (2.1 x 3.6 x 2.0 cm)
  Weight	0.4 oz (11 g)

  Box Dimensions (LxWxH)	5.0 x 3.9 x 0.4"

• Top/Bottom Flag Holders for LMB-25/LMB-6 Matte Box (Pair)

  Dimensions (WxHxD)	0.8 x 1.1 x 0.8" (21 x 27 x 20 mm)
  Weight	0.4 oz (12 g)

• Set of Mattes for LMB-6 Matte Box (5-Pack)

  Accessory Type	Matte box accessory kit

  Intended For	Matte box

  Kit Content	(5) x mattes

• Clamp Adapter Set for LMB-6 Matte Box
