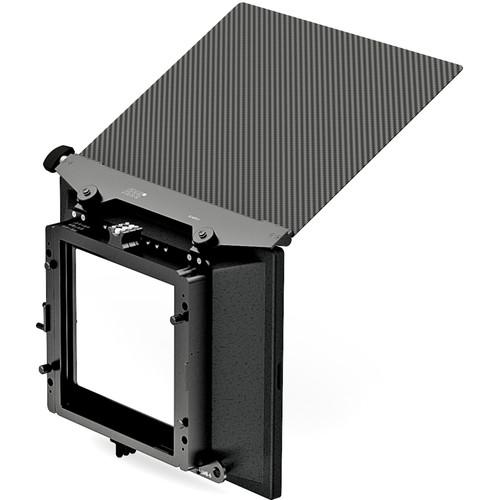

Product description This LMB-6 Three-Stage Matte Box Set from ARRI is a basic kit including the LMB-6 lightweight matte box, one three-filter stage, three 6.6 x 6.6" filter trays, and one top/bottom flag. A required lens clamp adapter is not included in this set. The LMB-6 is a 6.6 x 6.6" clamp-on matte box designed for lenses as wide as the ARRI/Zeiss Ultra Prime 8R. Lens clamp adapters are available separately in diameters up to 162mm.The LMB-6 shade includes captive screws for easy removal and attachment to its frame. The carbon fiber flag offers extended flare protection and may be positioned at the top or bottom of the matte box depending on your shot. This set includes three 6.6 x 6.6" filter trays for use in the three-filter stage guide. Additional non-geared filter trays and stages are available separately. Note: A required lens clamp adapter is not included; various clamp sizes are available separately - LMB-6 Basic Module The LMB-6 Basic Module is the main component of the ARRI LMB-6 Lightweight Matte Box system. This module consists of a detachable 6.6 x 6.6" hood and its frame. Combine the Basic Module with a filter stage, lens clamp adapter, and other matte box accessories for a complete LMB-6 system (other components not included). When used with an ARRI ALEXA (ANSI 35mm), the LMB-6 Basic Module can cover lenses as wide as the ARRI/Zeiss Ultra Prime 8R. The module handily features captive screws, eliminating the chance of losing any screws should you need to reattach the hood to its frame. Lens clamp adapters up to 162mm in diameter are available separately.
Features - Main component of the ARRI LMB-6 lightweight 6.6 x 6.6" matte box system
- When used with an ALEXA (ANSI 35mm), will accommodate lenses as wide as the ARRI/Zeiss Ultra Prime 8R
- Shade includes captive screws for easy attachment to its frame
- Use with a filter stage and a lens clamp for a complete matte box system (stage and clamp not included)
- 3-Filter Stage Guide for LMB-6 Matte Box The 3-Filter Stage Guide from ARRI holds up to three filters when used as a component of the LMB-6 lightweight matte box. Constructed of machined aluminum, this guide consists of two pieces that are sandwiched between the lens clamp adapter and the matte box hood (neither included). It may be combined with another 2- or 3-filter stages to accommodate additional filters. The 3-Filter Stage Guide has independent locks for each filter frame, making it easier to remove the frames one at a time if so desired.Besides 6.6 x 6.6" filter frames, the 3-Filter Stage Guide may also be used with 5.65 x 5.65" frames, and 4" x 5.65" reducer frames. Check for vignetting when using the smaller-sized filters with wider lenses. This stage does not accept geared filter frames.
- Accepts up to three non-geared filter frames
- For 6.6 x 6.6", 5.65 x 5.65", and 4 x 5.65" reducer frames
- Independent locks securely hold each frame
- Sturdy machined aluminum construction
- 6.6 x 6.6" F1 Filter Frame The 6.6 x 6.6" F1 Filter Frame from ARRI holds one 6.6 x 6.6" filter. This frame is compatible with ARRI LMB-4A and LMB-6 lightweight matte boxes. A recessed spring lock holds the filter within the frame.
- Holds one 6.6 x 6.6" filter
- Designed for ARRI LMB-4A and LMB-6 lightweight matte boxes
- A recessed spring lock holds the filter in the frame
- Top/Bottom Flag for LMB-6 Matte Box Designed for use with the LMB-6 lightweight matte box, this Top/Bottom Flag from ARRI offers extended glare and flare control for your lens. Made from a sheet of carbon fiber, this lightweight flag attaches to screw-down flag holders at the top or bottom of the matte box. The flag can be folded over to physically protect the front of the lens when moving your camera rig between shots.
- Can be attached to the top or bottom of an LMB-6 matte box
- Provides extended flare control
- Constructed from a sheet of carbon fiber
- Folds over the matte box hood to shield the lens front while the camera is moved between shots
In the Box Bundle Items LMB-6 Basic Module crtexvurutdzzessrdysvfysbduwwxeucfbu 3-Filter Stage Guide for LMB-6 Matte Box crtexvurutdzzessrdysvfysbduwwxeucfbu 3 x 6.6 x 6.6" F1 Filter Frame Top/Bottom Flag for LMB-6 Matte Box Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI LMB-6 Three-Stage Matte Box Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LMB-6 Basic Module
| Dimensions (HxWxD) | 8.9 x 11.6 x 1.7" (225 x 295 x 42 mm) | | Weight | 11.2 oz (318 g) | - 3-Filter Stage Guide for LMB-6 Matte Box
| Material of Construction | Aluminum | | Weight | 5.3 oz (151 g) | | Dimensions | Not specified by manufacturer | - 6.6 x 6.6" F1 Filter Frame
| Dimensions (WxHxD) | 6.9 x 8.2 x 0.3" (175 x 209 x 7 mm) | | Weight | 2.3 oz (65 g) | | | | Box Dimensions (LxWxH) | 7.8 x 6.7 x 1.0" | - Top/Bottom Flag for LMB-6 Matte Box
| Dimensions (HxWxD) | Not specified by manufacturer | | Weight | 8.5 oz (242 g) |
