ARRI LMB 6x6 19mm Studio 3-Stage

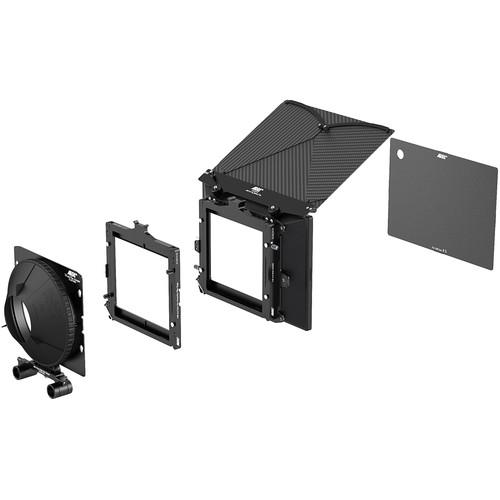

User Manual for ARRI LMB 6x6 19mm Studio 3-Stage Set

• Product category: Matte Boxes & Sunshades ARRI
• Brand: ARRI
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ARRI Matte Boxes & Sunshades

Product description

• LMB 6x6 Basic Module The ARRI LMB 6x6 Basic Module is the core of the highly modular, lightweight LMB 6x6 matte box system. This module includes two 6.6 x 6.6" filter trays, a sunshade, a backplate with filter guides, two top flag holders, and a #0 matte.The included #0 matte can be quickly snapped into the sunshade to protect your lens from dirt and dust while repositioning your camera or during a break in filming. This module features tray catchers for precisely holding the frames in place.This adaptable LMB 6x6 Basic Module can be used with separately available lens clamp-on rings or mounted using 15 or 19mm rod supports. Components like a Swing-Away Tilt Module, top flag, mattes, and extra filter stages are available separately, enabling you to configure the system in as minimal or complete a configuration as needed. The LMB 6x6 Basic Module comes packed in a foam insert made to fit into a Pelican Case 1637.

  Features

  • Includes two 6.6 x 6.6" filter frames
  • Tray catchers hold the filter frames precisely in place
  • The included matte can be quickly snapped onto the matte box to protect your lens
  • Mounts via separately available lens adapter clamps or 15mm/19mm rod support
  • Configure as needed with separately available components
  • Includes a foam insert to hold the matte box components in a Pelican 1637 case
• LMB 6x6 Extra Non-Rotatable Filter Stage The ARRI LMB 6x6 Extra Non-Rotatable Filter Stage holds one 6.6 x 6.6" filter frame. Use this LMB 6x6 stage by itself as an ultralight filtering option for gimbal, stabilizer, or drone use, or add it to a two-filter stage to hold a third filter. This filter stage incorporates tray catchers for precisely securing a filter frame, and it can mount the LMB 6x6 sunshade directly onto its front. No tools are needed for mounting; the stage is attached using two integrated thumbscrews.

  Features

  • Holds one 6.6 x 6.6" filter frame
  • Offers single-filter mounting for gimbal, stabilizer, or drone use
  • Designed for ARRI LMB 6x6 lightweight matte box
  • Can directly support the LMB 6x6 sunshade
• LMB 6x6 Top, Bottom Flag Compatible with the LMB 6x6 lightweight matte box, the ARRI LMB 6x6 Top, Bottom Flag provides flare control for your lens, preventing a loss in image quality caused by stray light.The lightweight flag incorporates two extendable wings and can be used at the top or bottom of the matte box. This flag can also be used to physically protect the front of the lens when moving your camera rig between shots or during a break in recording.

  Features

  • Can be attached to the top or bottom of the LMB 6x6 matte box
  • Two built-in wings for extended flare control
  • Carbon fiber construction
  • Can be used to shield the lens front between shots or during breaks
• LMB 19mm Studio Rod Adapter The ARRI LMB Studio Rod Adapter adds 19mm studio rod support to one of several components used with the LMB 4x5 or LMB 6x6 matte box. This adapter features thumb-lever rod locks and a toolless, screw-in design for quick mounting.

  Compatibility

  • LMB 4x5 15mm Lightweight Console
  • LMB 4x5 swing Away Tilt Module
  • LMB 6x6 Clamp Adapter 143mm
  • LMB 6x6 Clamp Adapter 156mm
  • LMB 6x6 Tilt and Flex Adapter
• LMB 6x6 Tilt and Flex Adapter 80-156mm ARRI's LMB 6x6 Tilt and Flex Adapter 80-156mm can be used to bridge any gap between extending front elements on your lens and an LMB 6x6 matte box. This adapter is compatible with lenses incorporating a front outer diameter between 80 and 156mm.The Tilt and Flex Adapter will also compensate for the tilting angle created when using a Swing-Away Tilt Module with the LMB 6x6 matte box. An interface at the bottom of the adapter can accommodate either the LMB 15mm or LMB 19mm Studio Rod Adapter.

  Features

  • Fits lenses with diameters between 80 and 156mm
  • Bridges gap created by a lens with extending front elements or by a Swing-Away Tilt Module
  • Integrated rod interface for 15 or 19mm rods

• Sunshade

• Backplate with Filter Guides

• 2 x 6.6 x 6.6" Filter Frame

2 x
• LMB Flag Holders

• Matte #0

• Foam Insert for Pelican Case 1637

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LMB 6x6 Basic Module

  Filter Size	6.6 x 6.6"
  Filter Stages	2
  Dimensions (WxHxD)	11.8 x 9.1 x 2.8" / 300 x 230 x 70 mm
  Weight	1.4 lb / 0.6 kg

• LMB 6x6 Extra Non-Rotatable Filter Stage

  Dimensions (WxHxD)	8.7 x 8.7 x 1.2" / 220 x 220 x 30 mm
  Weight	6.3 oz / 178 g

• LMB 6x6 Top, Bottom Flag

  Dimensions (HxWxD)	11.8 x 10.6 x 1.2" / 300 x 270 x 30 mm
  Weight	2.1 oz / 61 g

• LMB 19mm Studio Rod Adapter

  Rod Standard	19 mm Studio
  Dimensions	5.9 x 2 x 1.6" / 150 x 50 x 40 mm
  Weight	3.7 oz / 106 g

  Box Dimensions (LxWxH)	6.7 x 5.95 x 1.5"

• LMB 6x6 Tilt and Flex Adapter 80-156mm

  Material of Construction	Rubber Aluminum
  Lens Diameter	80 to <156mm
  Dimensions	7.9 x 7.9 x 2.8" / 200 x 200 x 70 mm
  Weight	7.5 oz / 213 g
