User Manual for ARRI LMB 6x6 Basic Module Click to enlarge the picture
Contents of the user manual for the ARRI LMB 6x6 Basic Module
- Product category: Matte Boxes & Sunshades ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Matte Boxes & Sunshades
|
User manual for the ARRI LMB 6x6 Basic Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

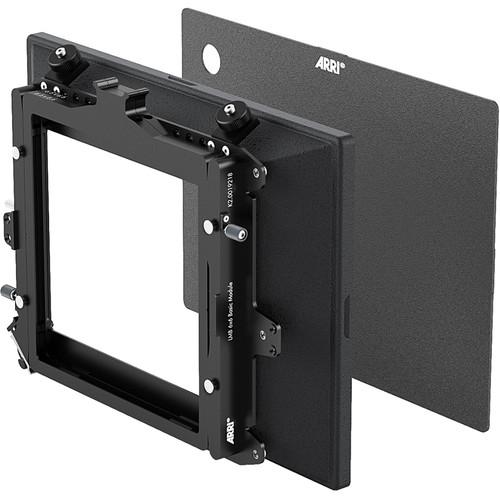

Product description The ARRI LMB 6x6 Basic Module is the core of the highly modular, lightweight LMB 6x6 matte box system. This module includes two 6.6 x 6.6" filter trays, a sunshade, a backplate with filter guides, two top flag holders, and a #0 matte.The included #0 matte can be quickly snapped into the sunshade to protect your lens from dirt and dust while repositioning your camera or during a break in filming. This module features tray catchers for precisely holding the frames in place.This adaptable LMB 6x6 Basic Module can be used with separately available lens clamp-on rings or mounted using 15 or 19mm rod supports. Components like a Swing-Away Tilt Module, top flag, mattes, and extra filter stages are available separately, enabling you to configure the system in as minimal or complete a configuration as needed. The LMB 6x6 Basic Module comes packed in a foam insert made to fit into a Pelican Case 1637. Features - Includes two 6.6 x 6.6" filter frames
- Tray catchers hold the filter frames precisely in place
- The included matte can be quickly snapped onto the matte box to protect your lens
- Mounts via separately available lens adapter clamps or 15mm/19mm rod support
- Configure as needed with separately available components
- Includes a foam insert to hold the matte box components in a Pelican 1637 case
In the Box ARRI LMB 6x6 Basic Module Sunshade Backplate with Filter Guides 2 x 6.6 x 6.6" Filter Frame 2 x LMB Flag Holders Matte #0 Foam Insert for Pelican Case 1637 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI LMB 6x6 Basic Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LMB 6x6 Specs | Filter Size | 6.6 x 6.6" | | Filter Stages | 2 | | Dimensions (WxHxD) | 11.8 x 9.1 x 2.8" / 300 x 230 x 70 mm | | Weight | 1.4 lb / 0.6 kg |
