Product description

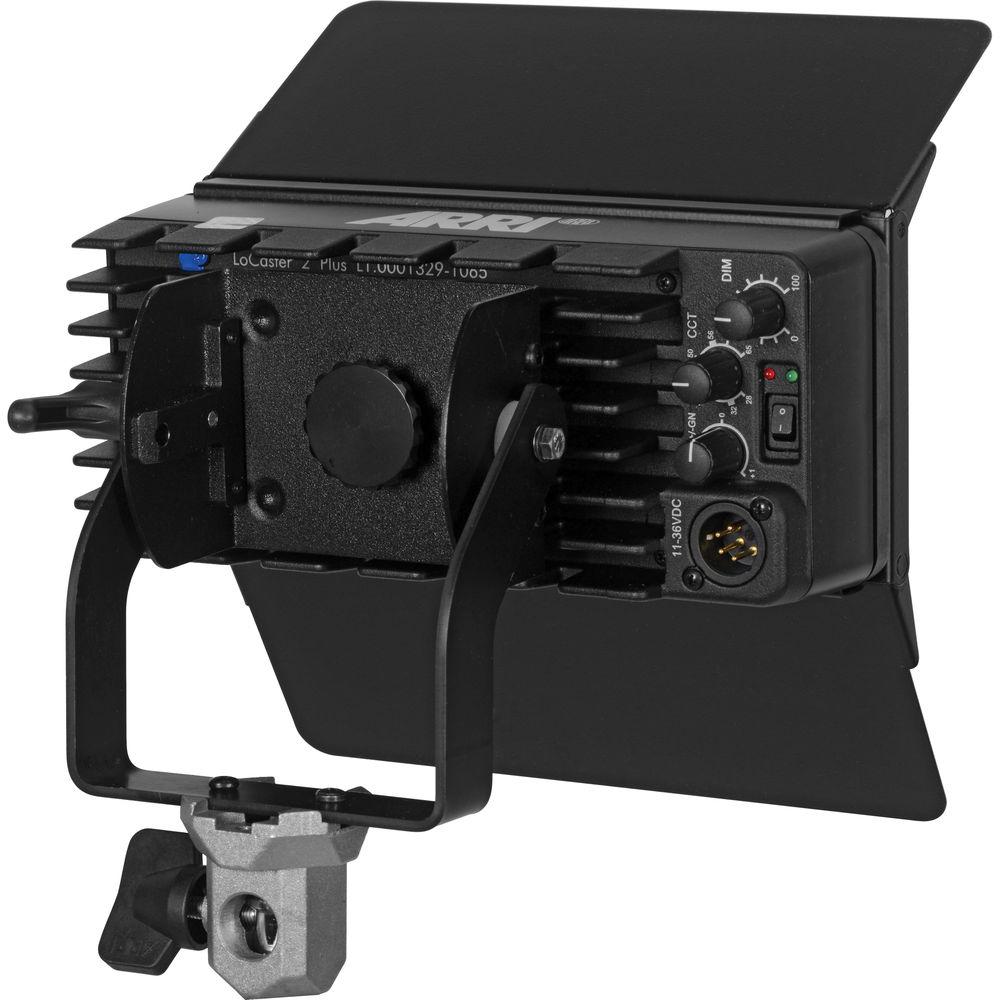

• LoCaster 2 Plus LED Panel with Stirrup Building on the foundation of the original LoCaster, ARRI's LoCaster 2 Plus LED Panel with Stirrup features 35% greater brightness, adjustable color temperature, light weight, full dimming and the AC and battery options sought after by location shooters. ARRI uses a 8.58 x 3.77 x 2.75", 35W LED array with a prismatic homogenizing lens to produce a 63-degree beam angle that performs like a single source luminaire without the multiple shadows that plague some other fixtures.The LoCaster 2 Plus offers a substantial amount of control as compared to other lights and adjustments are executed with simple knobs on its back panel. Color temperature is variable from 2800 to 6500K, and you can tweak the full minus and full plus green as well, taking care of most of your filtration preferences without taping a single gel to the unit. Dimming from 0-100% is just as easy using another knob. The LEDs are virtually heat-free, eliminating worries about the comfort of the talent, while the panel's rated 50,000 lamp life makes the LoCaster practically maintenance-free too.The LoCaster runs on a 100-250 VAC power supply for worldwide use or on a Caster battery pack when mains power is unavailable. The power supply, battery and charger are all purchased separately. The LoCaster 2 Plus comes with a stirrup that acts as a yoke, allows tilting adjustment, and has a built-in holder for the optional battery pack.
  Attributes and Benefits
  • More than 35% brighter than Caster 2 series
  • Optional 100-240 VAC power supply or battery pack
  • High intensity, low power consumption
  • Tunable white light from tungsten to daylight from 2800-6500K
  • CRI (Color Rendering Index) of 94 renders colors more vivid on film or digital media
  • Single source-type shadow rendering
  • Superior color temperature and intensity stability due to ARRI True Match LED Technology
  • 0-100% dimming as well as color temperature is controllable on the panel via simple knobs
  • Small size (8.58 x 3.77 x 2.75") and light weight (2.8 lb) make for easy portability and handling
  • Optional battery power
  Photometrics
  • At 3200K
    1035 lux / 96 fc at 3.3' (1.0 m)
    115 lux / 11 fc at 9.8' (3.0 m)
    41 lux / 4.0 fc at 16.4' (5.0 m)
    21 lux / 2.0 fc at 23' (7.0 m)
    At 5600K
    1044 lux / 97 fc at 3.3' (1.0 m)
    116 lux / 11 fc at 9.8' (3.0 m)
    42 lux / 4.0 fc at 16.4' (5.0 m)
    21 lux / 2.0 fc at 23' (7.0 m)

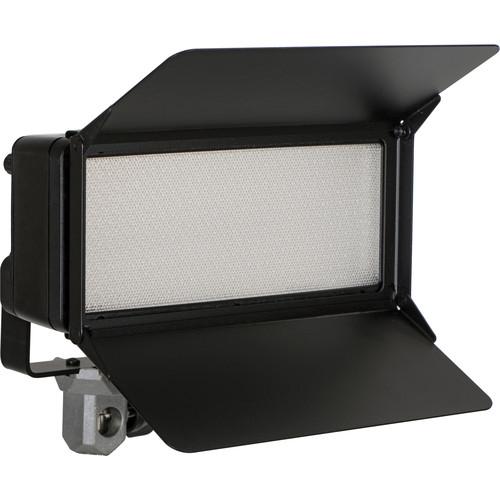

• 2-Leaf Barndoor Set for LoCaster/BroadCaster This is the ARRI 2-Leaf Barndoor Set for LoCaster/BroadCaster lights. These lights are part of the LED Caster Series and offer continuous dimming, choice of color temperature, and superior digital rendition. LoCaster is the on-location model while the BroadCaster, designed for more control, is the in-studio model.

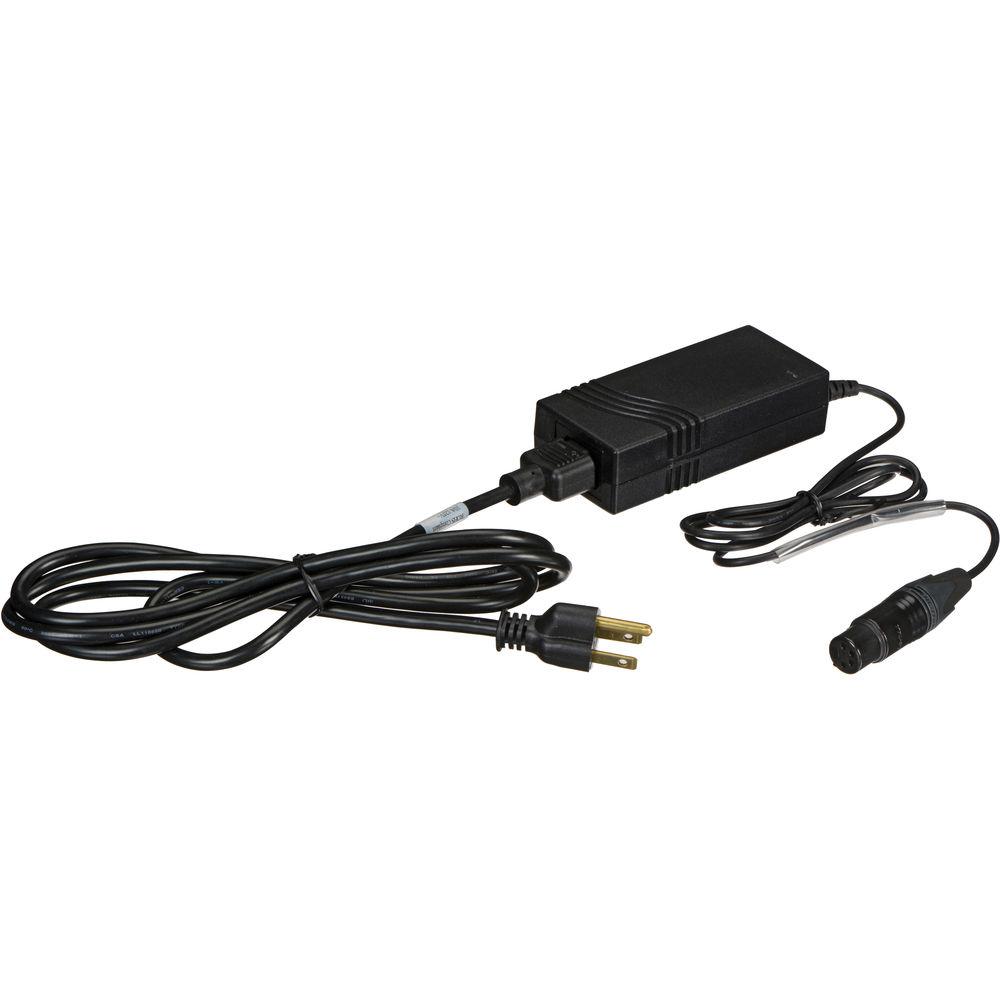

• Power Supply for LoCaster (100-240V) The Arri LoCaster Power Supply accepts input voltages from 100-240VAC, 50/60Hz and outputs 24VDC, with a maximum of 2.5A. Extremely small and lightweight, it powers a single LoCaster panel via a 4-pin connection.
  • AC power supply accepts 100-240VAC input and powers a single LoCaster head.
  • Weighs only 0.6 lbs (0.3 kg) and is only 4.7" (12 cm) long.

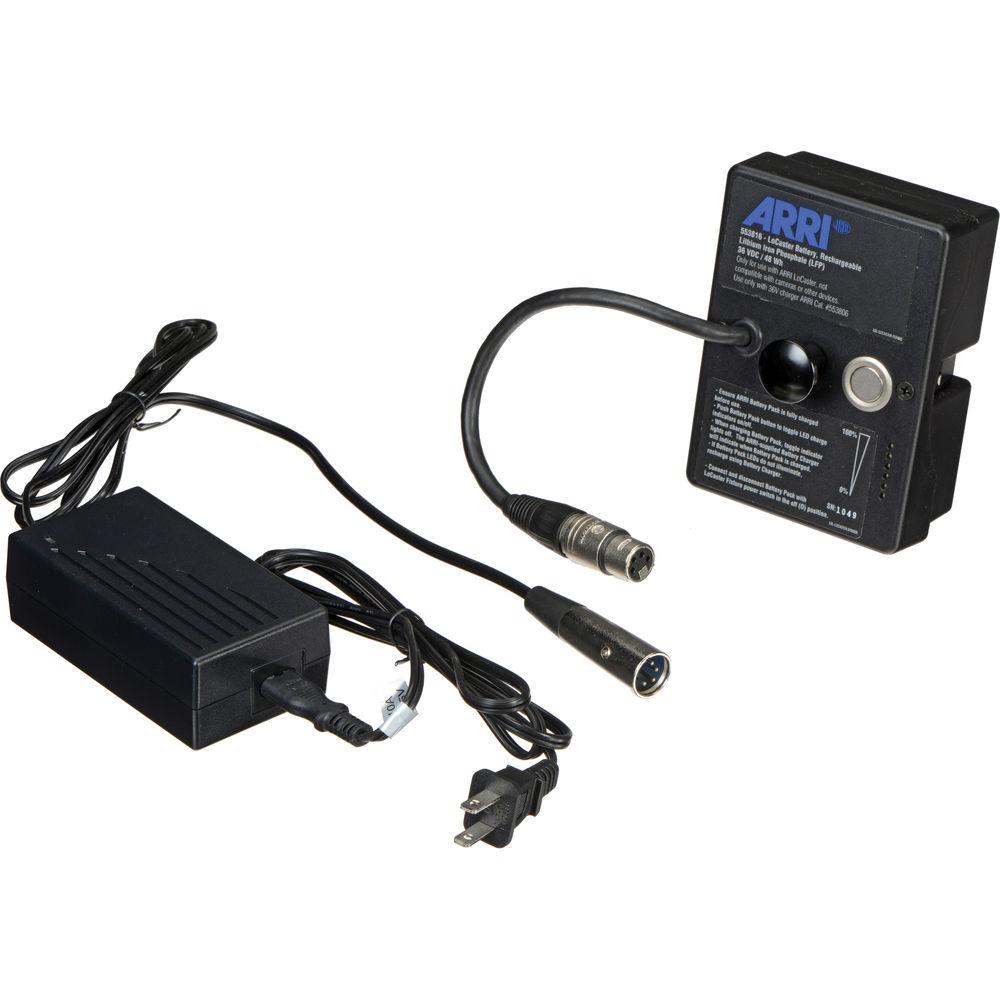

• LoCaster Battery w/Charger (30 VDC) The ARRI LoCaster Battery w/Charger (30 VDC) is a dedicated battery that can power a Locaster single LED panel for approximately 1.6 hours. The battery has a built-in capacity status check button to monitor the remaining running time available.
  • Battery powers a LoCaster single LED panel for approximately 1.6 hours
  • Mounts onboard in stirrup
  • Built-in capacity status check button to monitor remaining run time
  • Weighs just 2.6 lb (1.17 kg)
• Baby Pin (5/8") with 3/8" Thread for LoCaster This Baby Pin (5/8") with 3/8" Thread for LoCaster is a 5/8" (16 mm) male stud adapter with 3/8" thread for using the LoCaster LED light with telescoping hangers.

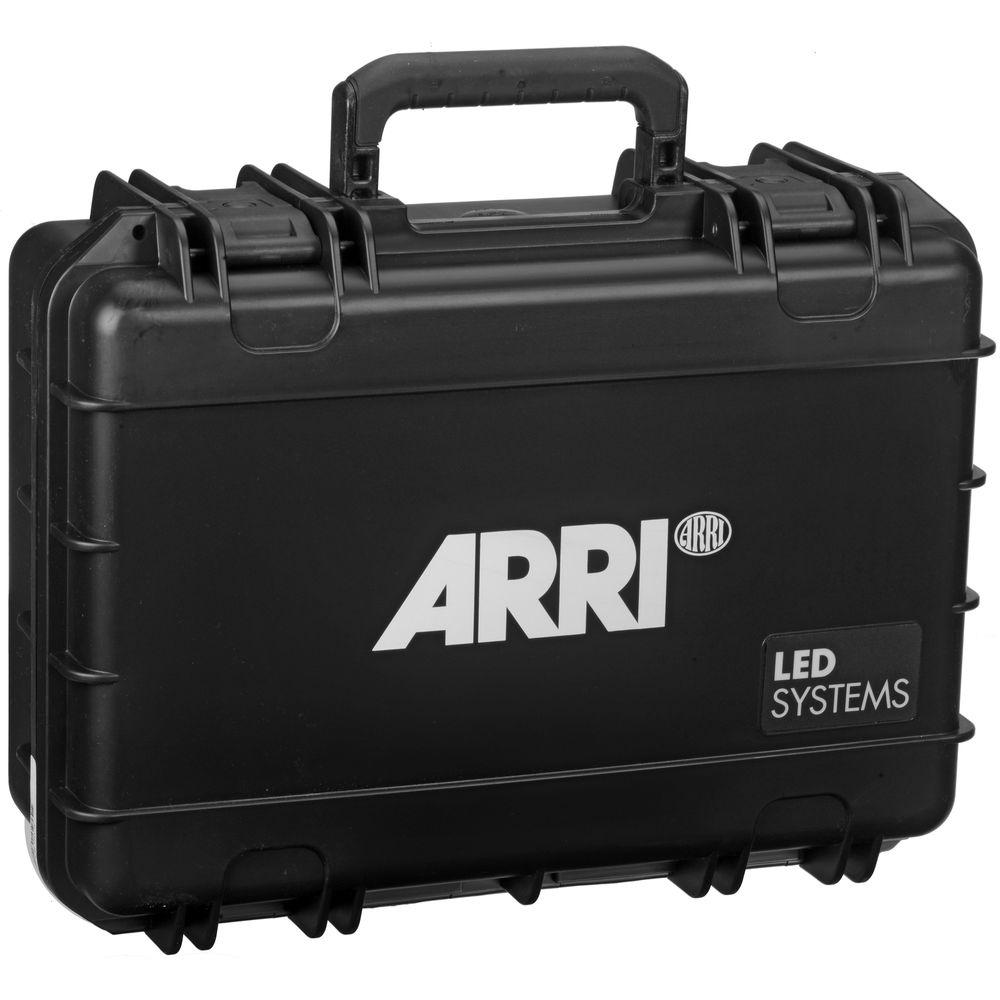

• Case for LoCaster LED Panel This is the Arri Case for LoCaster LED Panel. It is fabricated from black, high-impact ABS plastic. The SKB-style case features metal reinforcement and molded foam interior in a briefcase design. The case as shipped will hold a LoCaster panel, Power Supply, Stirrup and up to 4 batteries. In situations where impact protection is not an issue, a block of foam may be removed from the case making room for 2 Locaster panels, 2 Power Supplies, 2 Stirrups and 4 batteries. UPC: 789270171152

• LoCaster 2 Plus LED Panel

• Stirrup for LED BroadCaster/LoCaster/Battery

• Limited 1-Year Warranty

• 1 Year Manufacturer's Warranty

• Limited 1-year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LoCaster 2 Plus LED Panel with Stirrup

  Optical System	Prismatic homogenizing lens
  Beam Angle	63º half peak angle
  Light Source	LED, 50,000 hour estimated lamp life
  Light Intensity	1000 cd
  Color Range	2800-6500K continuously variable CCT +/- 100K (nominal), +/- 1/8 Green-Magenta (nominal), continuously adjustable Estimated color shift over lifetime: < 200K
  CRI	94
  Power Requirements	100-250 VAC, 50/60 Hz 11-36 VDC
  Power Consumption	35 W
  Dimming	0-100% continuous
  Control	On-board
  Cable	4-pin XLR
  DMX	No
  Protection Class	III/IP 20
  Operating Temperature	-4 to +95ºF / 20 to +35ºC
  Mount	3/8" / 9.5 mm (female thread) Stirrup with 5/8" (16 mm) receiver and built-in battery pack holder
  Adjustments	+/- 30°
  Certifications	CE
  Dimensions	8.58 x 3.77 x 2.75" / 218 x 96 x 70 mm
  Weight	Without Stirrup: 2.1 lb / 0.9 kg With Stirrup: 2.8 lb / 1.2 kg

  Box Dimensions (LxWxH)	12.95 x 9.35 x 4.6"

• 2-Leaf Barndoor Set for LoCaster/BroadCaster

  Box Dimensions (LxWxH)	8.5 x 4.0 x 1.0"

• Power Supply for LoCaster (100-240V)

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Draw	60.00 W

  Dimensions	4.7 x 2.1 x 1.4" / 12 x 5.5 x 3.5 cm
  Weight	0.7 lb / 0.3 kg

  Box Dimensions (LxWxH)	7.0 x 7.0 x 2.1"

• LoCaster Battery w/Charger (30 VDC)

  Input Voltage	Charger: 100-240 VAC
  Output	Charger: 30 VDC Battery: 30 VDC
  Capacity	Battery: 81 Wh
  Dimensions	Battery: 5.1 x 3.9 x 2.1" (13 x 10 x 5.5 cm) Charger: 5.5 x 3.9 x 1.5" (14 x 10 x 4 cm)
  Weight	Battery: 2.64 lb (1.2 kg) Charger: 0.77 lb (350 g)

  Box Dimensions (LxWxH)	8.3 x 6.4 x 4.6"

• Baby Pin (5/8") with 3/8" Thread for LoCaster

  Box Dimensions (LxWxH)	4.15 x 2.75 x 0.95"

• Case for LoCaster LED Panel

  Exterior Dimensions (W x H x D)	24 x 24 x 7" / 61 x 61 x 17.8 cm

  Box Dimensions (LxWxH)	19.0 x 15.0 x 7.5"
