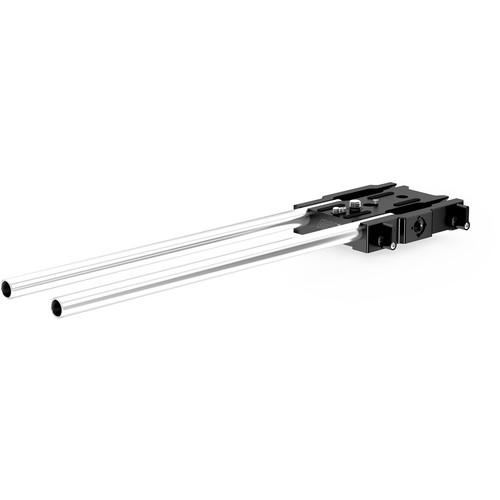

User Manual for ARRI LWS Set for Canon EOS C100 C300 C500 Cameras Click to enlarge the picture
Contents of the user manual for the ARRI LWS Set for Canon EOS
- Product category: Camcorder Supports & Rigs ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Camcorder Supports & Rigs
|
User manual for the ARRI LWS Set for Canon EOS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The LWS Set from ARRI is designed for use with Canon EOS C100, C300, and C500 cameras, and is compatible only with Cage System I. It comes with one BPA-2 Bridge Plate Adapter, one Adapter Plate for Canon EOS C100, 300, and 500 cinema cameras, and two 13.4" rods.The BPA-2 (Bridge Plate adapter) renders all generations of ALEXA models, and the plate for Canon C100/C300/C500 is compatible with ARRI cine bridge plates such as BP-8 and BP-9. The adapter plate is specifically designed for the Canon EOS C100, C300, and C500 cinema cameras, and adapts to lightweight support. It offers an interface to adapt directly to BP-12 or BP-13 Bridge Plate set. Each support rod is constructed from stainless steel and is lightweight. - BPA-2 Bridge Plate Adapter This ARRI BPA-2 Bridge Plate Adapter adds a set of centered bottom 3/8"-16 threaded mounting holes, and is compatible with optional ARRI Cine Bridge Plates such as the BP-8 and BP-9 (not included). The BPA-2 is for all ALEXA camera models except the ALEXA Studio, for which it is not necessary. The BPA-2 is also compatible with the Canon C100/300/500 cameras. When used with these cameras, if provides the correct position of the mounting screws, ensuring that the camera is centered properly for rod-mounted accessories.
- Ensures that camera is optically centered for 19 and 15mm studio support rods
- Adapter Plate for Canon EOS C100/C300/C500 The Adapter Plate from ARRI is specifically designed for Canon EOS C100, 300, and 500 cinema cameras. It adapts to lightweight support standards, and offers an interface to adapt directly to the BP-12 or BP-13 Bridge Plate set.
- 15mm Lightweight Support Rods (Pair, 13") This pair of 13" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
In the Box Bundle Items BPA-2 Bridge Plate Adapter ddawtaafywrfffdyuddxxbzxcdecdycrss Adapter Plate for Canon EOS C100/C300/C500 15mm Lightweight Support Rods (Pair, 13") Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI LWS Set for Canon EOS C100 C300 C500 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BPA-2 Bridge Plate Adapter
| | | Box Dimensions (LxWxH) | 4.25 x 2.95 x 0.85" | - Adapter Plate for Canon EOS C100/C300/C500
| Dimensions | 4.1 x 4.7 x 0.9" (105 x 120 x 25 mm) | | Weight | 12 oz (341 g) | - 15mm Lightweight Support Rods (Pair, 13")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 13.4" / 34.0 cm | | Weight | 7.3 oz / 207 g | | | | Box Dimensions (LxWxH) | 13.5 x 1.2 x 0.4" |
