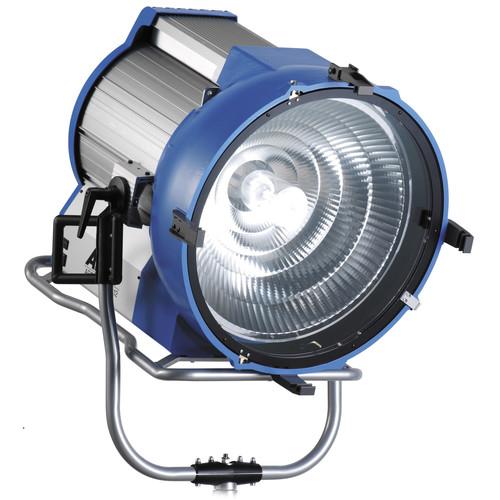

User Manual for ARRI M-Series Arrimax 18 12 HMI PAR with ALF DMX Electrical Ballast Click to enlarge the picture
Contents of the user manual for the ARRI M-Series Arrimax 18 12 HMI
- Product category: HMI & Plasma Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI HMI & Plasma Lights
|
User manual for the ARRI M-Series Arrimax 18 12 HMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The M-Series Arrimax 18/12 HMI PAR Kit from Arri includes the M-Series Arrimax 18/12 HMI PAR (220VAC), 4-Leaf Barndoor (29.1”), 50’ Head-to-Ballast/Dimmer Cable, and EB 12/18 ALF/DMX Electrical Ballast.The design of the Arrimax 18/12kW HMI PAR fixture provides an optimum choice for productions requiring maximum light output. Combining the variable beam spread of a fresnel and the light output of a PAR, the Arrimax uses a unique reflector concept for beam control which eliminates the need for spread lenses.The optical system with its 22.8" diameter specular, flatted reflector is adjustable and provides continuous focus from 15 to 50°. Because the Arrimax does not require a set of spread lenses, the shadow quality is sharper and easily cut. This fixture will provide well over 3000 foot-candles from a distance of 100', when fitted with a 12000W HMI lamp.The 50' Head- to-Ballast Cable for 18/12kW HMI Fresnel and Arrimax 18/12kW connects the 18/12kW HMI Fresnel and Arrimax 18/12kW PAR to its ballast.The 4-Leaf Barndoor Set is designed for use with the huge T24 Fresnel. Barndoors attach to the front of a light and are used to restrict light from areas of a set. They have either four or eight leaves that can be adjusted. The barndoors are heat-resistant and rotatable.The 12/18kW Electronic Ballast is a dual wattage electronic ballast with DMX remote dimming capabilities and an Active Line Filter for Power Factor Correction. ALF provides a higher power factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. ALF also minimizes the current carried back on the neutral leg of the power systems. - Arrimax 18/12Kw HMI PAR (220 VAC) The design of the Arrimax 18/12Kw HMI PAR fixture provides an optimum choice for productions requiring maximum light output. Combining the variable beam spread of a Fresnel and the light output of a PAR, the Arrimax uses a unique reflector concept for beam control which eliminates the need for spread lenses. The optical system with its 580mm (22.8") diameter specular, flatted reflector is adjustable and provides continuous focus from 15 - 50°. Because the Arrimax does not require a set of spread lenses, the shadow quality is sharper and easily cut. Although exact specifications are not available, this fixture will provide well over 3,000 footcandles from a distance of 100', when fitted with a 12,000 watt HMI lamp.
- Efficient
- 50% brighter than a 12kW PAR.
- Optional Light Shapers
- Optional accessories are barndoors, 29" diameter scrims and a motorized stirrup.
- Hanging or Stand Mount
- Aluminum yoke mounts to a Junior (1-1/8") socket.
- Sturdy, Sure Lamp Mount
- A sturdy, locking GX51 lamp base alleviates mechanical stress from the lamp pins. GX38 lamp bases may also be used.
- Optional Electronic Ballast
- A flicker-free 12-18kW electronic, dimming ballast is available separately.
- Extra Touches
- Illuminated On/Off Switch, hour use counter.
- Safety
- Interlock micro-switch on front door for safely disconnecting all power-load connections.
Protective class I, protective rate IP 23.
Arri eXtreme cooling system - Head to Ballast Cable for ARRI 18/12Kw HMI Fresnel and ARRIMAX 18/12kW PAR - 50' This ARRI 50' Head to Ballast Cable for ARRI 18/12Kw HMI Fresnel and ARRIMAX 18/12kW connects the ARRI 18/12Kw HMI Frensel and ARRIMAX 18/12kW PAR to its ballast.
- 4 Leaf Barndoor Set for Arri T24 This is an Arri 4 Leaf Barndoor Set for the huge T24 Fresnel. Barndoors attach to the front of a light and are used to restrict light from areas of a set. They have either four or eight leaves that can be adjusted. Arri barndoors are heat resistant and rotatable.
- 12/18kW Electronic Ballast with ALF and DMX (220 VAC) This Arri 12/18kW Electronic Ballast is a dual wattage electronic ballast with DMX remote dimming capabilities and an Active Line Filter for Power Factor Correction. ALF provides a higher Power Factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. ALF also minimizes the current carried back on the neutral leg of the power systems.
- A rugged and compact design offers easy handling in the field.
- Safety circuits such as over-voltage, over-temperature and short-circuit protection gives safe and reliable operation.
- Dims to 50% of full power.
- Active Line Filter (A.L.F.) assures consistent color output, despite dimming, or mains voltage fluctuations.
In the Box Bundle Items Arrimax 18/12Kw HMI PAR (220 VAC) tsfqqtcdvdqbdattxecerxqcydxycxyfyctcu - Limited 1-Year Manufacturer's Warranty
Head to Ballast Cable for ARRI 18/12Kw HMI Fresnel and ARRIMAX 18/12kW PAR - 50' 4 Leaf Barndoor Set for Arri T24 12/18kW Electronic Ballast with ALF and DMX (220 VAC) tsfqqtcdvdqbdattxecerxqcydxycxyfyctcu Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI M-Series Arrimax 18 12 HMI PAR with ALF DMX Electrical Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Arrimax 18/12Kw HMI PAR (220 VAC)
| Rating | 12,000 - 18,000W, 220 VAC | | Socket (Lampholder) | GX51, GX38, locking | | Lens (Condenser) | Not applicable | | Mounting | Junior (1-1/8") spigot | | Weight | Not specified by manufacturer | | Dimensions | 33.5 x 30.7 x 31.8" (85.2 x 78 x 81 cm) | | | | Box Dimensions (LxWxH) | 45.0 x 41.0 x 39.0" | - Head to Ballast Cable for ARRI 18/12Kw HMI Fresnel and ARRIMAX 18/12kW PAR - 50'
| | | Box Dimensions (LxWxH) | 21.0 x 14.3 x 7.9" | - 4 Leaf Barndoor Set for Arri T24
| | | Box Dimensions (LxWxH) | 34.0 x 31.0 x 3.0" | - 12/18kW Electronic Ballast with ALF and DMX (220 VAC)
| Lamp Power | 12000 - 18000 W | | Input Voltage | 220 VAC, 50-60 Hz | | Dimmer | Full, half power | | Weight | 139 lb (63 kg) | | Dimensions | 20 x 11 x 21.5" (50.6 x 28.3 x 54.8 cm) | | | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
