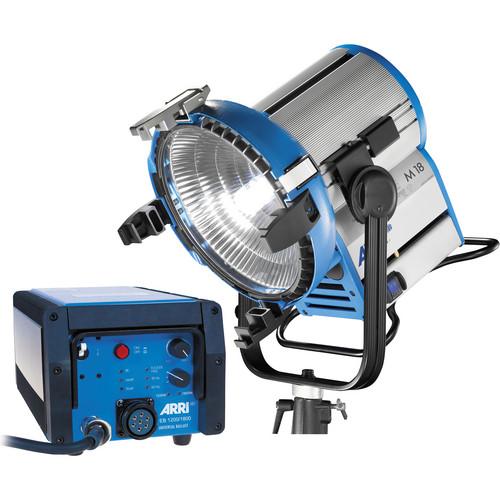

User Manual for ARRI M18 HMI Lamp Head with ALF DMX Ballast Kit Click to enlarge the picture
Contents of the user manual for the ARRI M18 HMI Lamp Head with
- Product category: HMI & Plasma Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI HMI & Plasma Lights
 |
User manual for the ARRI M18 HMI Lamp Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

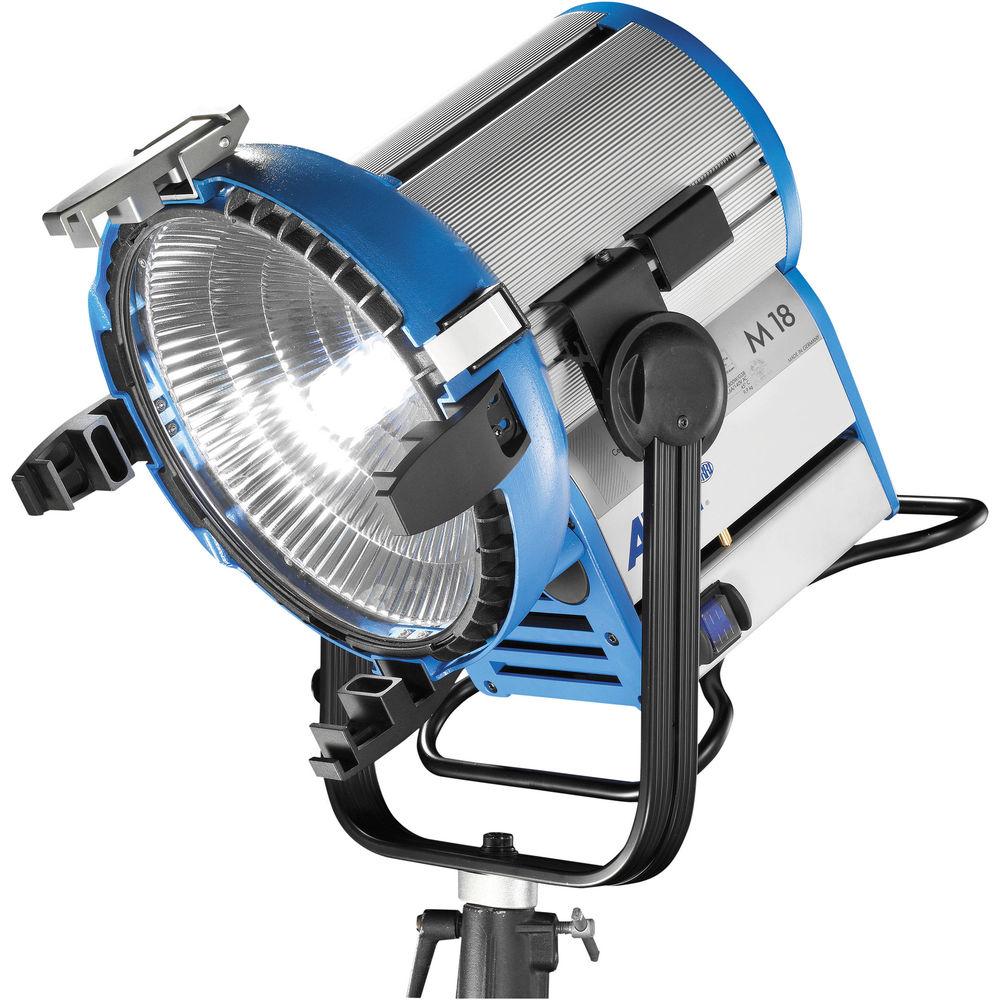

Product description ARRI's M18 HMI Lamp Head with ALF/DMX Ballast Kit is an open-face, lens-less, improved efficiency lamp head built to work with the 1800W SE HMI (not included), which has an average life of 750 hours, a luminous efficacy of 92 lumens/watt, and a Color Rendering Index (CRI) greater than 90 at 6000K. DMX control and ALF (Active Line Filter) together produce much more effective light source in an already very impressive fixture. The M18 combines the best aspects of a PAR and a Fresnel, creating diverging rays of light to produce a very crisp shadow. This fixture is supplied for use with 90-250 VAC mains voltage. This lamp head has a beam angle (HPA) of 20 to 60°, with a wide usable field angle. - M18 HMI Lamphead (110/220 VAC) ARRI's M18 HMI Lamphead (110/220 VAC) is a newly designed, more efficient lamp head built to work with a new power class of lamp: the 1800W SE HMI (not included), which has an average life of 750 hours, a luminous efficacy of 92 lumens/watt, and a Color Rendering Index (CRI) greater than 90 at 6000K. The M18 is an open-face, lensless fixture that combines the characteristics of a PAR and a Fresnel, creating diverging rays of light to produce a very crisp shadow. It can operate on a 20A circuit. This lamp has a beam angle (HPA) of 20 to 60° with a wide usable field angle. The lamphead is silver.

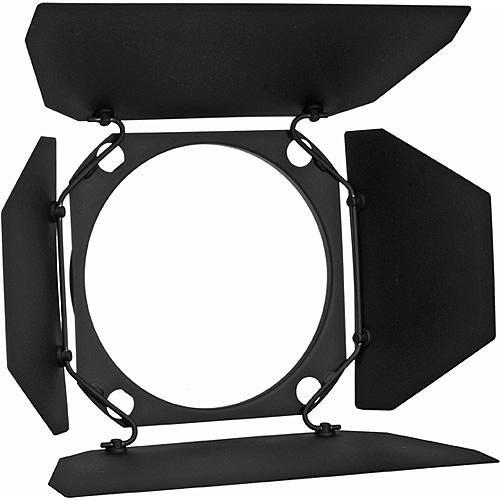

- 4-Leaf Barndoor Set for ARRI T5 & ST2 Studio Fresnel This is an ARRI 4-Leaf Barndoor Set that fits both the T5 and ST2 Fresnel fixtures. Barndoors attach to the front of a light and are used to restrict light from areas of a set. ARRI barndoors are heat resistant and rotatable.

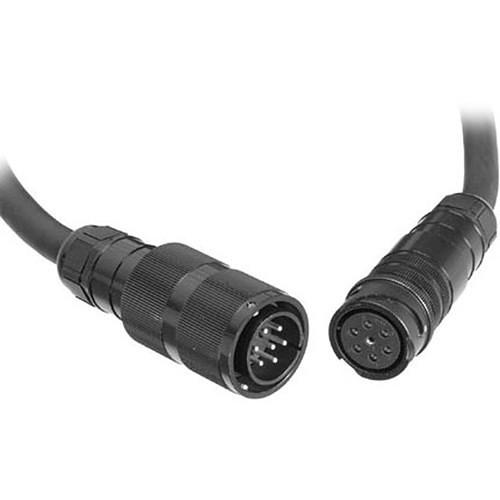

- Head to Ballast Cable 575/1200/1800W - 50' This is an ARRI Head to Ballast Cable. The 50' (15.2 m) long cable is compatible with 575, 1200 and 1800W heads such as the ARRISUN 5, 12 Plus, 18, and 40/25 heads. It's also compatible with the ARRIMAX M18, the ARRI X X5 and X12, D5 and D12 Fresnels and the Compact 575 and 1200 heads.

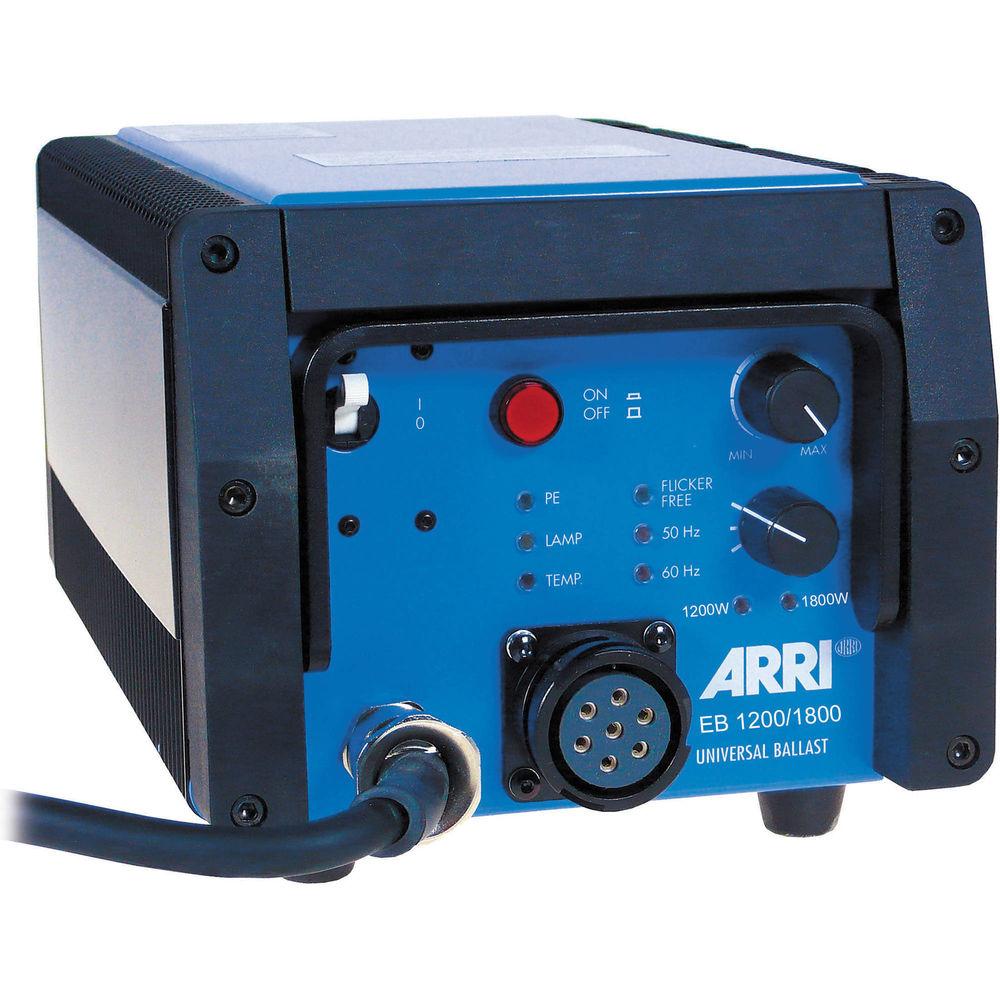

- 1200/1800W Electronic Ballast with DMX and ALF (120-220 VAC) The ARRI 1200/1800W Electronic Ballast with DMX and ALF is intended for use with the newly designed, more efficient ARRI M18 and Arrisun AS18 Fresnel lamp heads (not included). This ballast has DMX for precise remote control and ALF (Active Line Filter) which provides a higher Power Factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. The ALF also minimizes the current carried back on the neutral leg of the power systems. Cable Loss Compensation, which prevents power loss in head-to-ballast cables up to 300' (91 m) long, is also featured. The ballast has a low-noise switch and a power factor of 0.98.
- Cable Loss Compensation prevents power loss in head-to-ballast cables up to 300' (91 m) long
- Active Line Filter (ALF) increases power efficiency
- DMX 512 for precision remote control
In the Box Bundle Items M18 HMI Lamphead (110/220 VAC) ccybxyfccavytwvasez 4-Leaf Barndoor Set for ARRI T5 & ST2 Studio Fresnel Head to Ballast Cable 575/1200/1800W - 50' - One Year Manufacturer's Warranty
1200/1800W Electronic Ballast with DMX and ALF (120-220 VAC)
Also Includes - Veam Connector
- 1-Year Limited Warranty
Note: Lamp Not Included User Manual PDF 872kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI M18 HMI Lamp Head with ALF DMX Ballast Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - M18 HMI Lamphead (110/220 VAC)
| Socket (Lampholder) | G38 high voltage | | Lens (Condenser) | N/A | | Mounting | 1 1/8" / 29 mm stand mount | | Weight | 23.1 lb / 10.5 kg | | Dimensions | 27.5 x 15.25 x 12.2" / 69.85 x 38.73 x 38.73 cm | | | | Box Dimensions (LxWxH) | 22.0 x 20.0 x 20.0" | - 4-Leaf Barndoor Set for ARRI T5 & ST2 Studio Fresnel
| | | Box Dimensions (LxWxH) | 14.4 x 12.5 x 2.8" | - Head to Ballast Cable 575/1200/1800W - 50'
| | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 5.0" | - 1200/1800W Electronic Ballast with DMX and ALF (120-220 VAC)
| Lamp Power | 1200 / 1800 W | | Input Voltage | 120 - 220 VAC, 50/60 Hz | | Dimmer | Yes | | Cable | Bare leads, no plug | | Certifications & Approvals | ETL | | Dimensions | 6.1 x 7.9 x 13.2" (15.5 x 20 x 33.5 cm) | | Weight | 17.7 lb (8 kg) |
