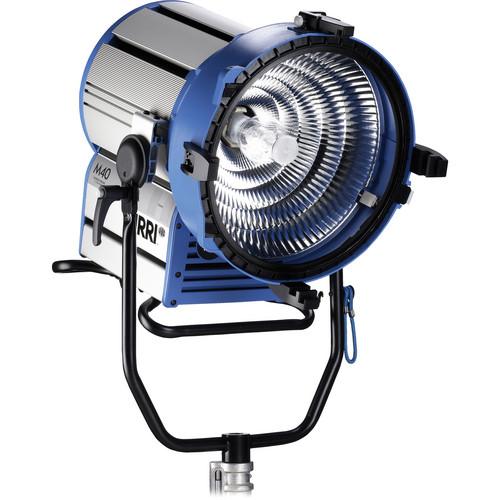

User Manual for ARRI M40 HMI Head Click to enlarge the picture
Contents of the user manual for the ARRI M40 HMI Head
- Product category: HMI & Plasma Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI HMI & Plasma Lights
|
User manual for the ARRI M40 HMI Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI M40 HMI Head is a location work horse. Whenever you need to punch light through a silk or bounce light off a reflective surface, an M40 is the ultimate answer. At the design stage, the interaction of lamp, reflector and converter lens was taken into consideration and computer simulated, resulting in unmatched performance. The M40 can be fitted with a 2,500 or 4,000W single-ended HMI lamp, making it a very versatile lighting fixture. The M40 uses lensless MAX technology to combine the characteristics of a Fresnel and PAR source. With a focus range of 18 - 52°, normally only achieved with supplementary lenses, the M40 outperforms the brightness of its predecessor, the ARRISUN 40/25 by approximately 30% while throwing an even beam with sharp shadows. Innovations include CCL, which compensates for power loss when using long cables and Cross Cooling which separates the electronics from the lamp housing, thus ensuring greater longevity of the head and lamp. Structurally, the M40 employs a robust, tubular steel yoke and disc brakes to safely lock down the head when tilting. The head weighs in 6.6 lb lighter than its predecessor due to intelligent design, while it's still able to use all of the ARRISUN 40/25's accessories. Don't worry about moist locations either; the M40 has an IP23 weather-resistant rating. - CCL
- The lamphead is equipped with a CCL module (compensation for cable loss). When operated with the ARRI EB 2.5/4 kW ballast with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output independent from cable length.
- Steel Yoke with two Disc Brakes
- In order to hold even the heaviest accessories safely in place, the M40 sports a tubular steel yoke and two disc brakes. A single, robust steel handle allows one-hand operation for tilting.
- Accessories Reusable
- The M40 has the same accessory diameter as the current ARRISUN 40/25 so that existing barndoors and scrims can be reused.
- Cross Cooling
- Like all True Blue ARRI lampheads, the 40 implements Cross Cooling and thus allows safe operation even at extreme tilt angles. The electronics housing is spaced apart from the actual lamp housing to keep temperatures down and prolong the lifetime of electronic components. It is easy to open and to maintain.
- IP 23
- For outdoor use the M40's IP23-rated weather resistance withstands even driven rain.
In the Box ARRI M40 HMI Head 1 Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI M40 HMI Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI M40 Specs | Rating | 2,500 to 4,000W | | Lamp Type | HMI 2500 or 4000 W/SE G38 | | Socket (Lampholder) | G38 | | Color Temperature | 6,000K (with optional lamp) | | Lens (Condenser) | Not specified by manufacturer | | Accessory Size | 15.8" (40.1 cm) | | Mounting | 1 1/8" (28 mm) Male stand mount | | Protection Class | IP23 | | Power Requirements | 100 - 240 VAC | | Photometrics | With 4,000W Lamp Spot 18°:
@ 16.4' (5.0 m): 77,500 lux with a beam diameter of 5.2' (1.6 m)
@ 32.8' (10 m): 19,375 lux with a beam diameter of 10.5' (3.2 m)
@ 49.2' (15 m): 8,611 lux with a beam diameter of 15.7' (4.8 m)
Medium: 30°:
@ 16.4' (5.0 m): 25,800 lux with a beam diameter of 8.8' (2.7 m)
@ 32.8' (10 m): 6,450 lux with a beam diameter of 17.7' (5.4 m)
@ 49.2' (15 m): 2,867 lux with a beam diameter of 26.2' (8.0 m)
Flood: 52°:
@ 16.4' (5.0 m): 10,900 lux with a beam diameter of 16' (4.9 m)
@ 32.8' (10 m): 2,725 lux with a beam diameter of 32.1' (9.8 m)
@ 49.2' (15 m): 1,211 lux with a beam diameter of 47.9' (14.6 m) | | Certifications | NRTL-US-C, CE, TÜV GS, CB | | IP Rating | IP23 - weather resistant | | Weight | 75 lb (34 kg) | | Dimensions | 29 x 20.1 x 18.4" (734 x 511 x 468 cm) | | | | Package Weight | 52.5 lb | | Box Dimensions (LxWxH) | 26.0 x 26.0 x 23.5" |
