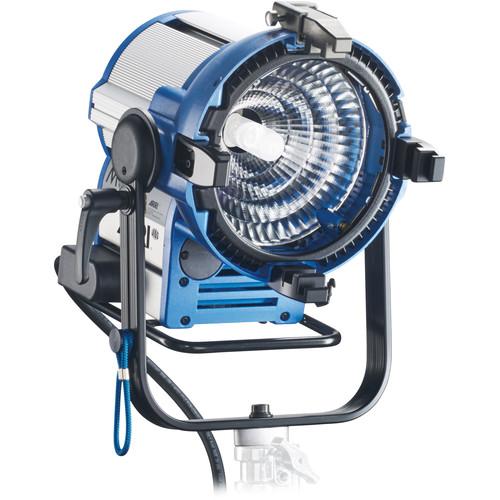

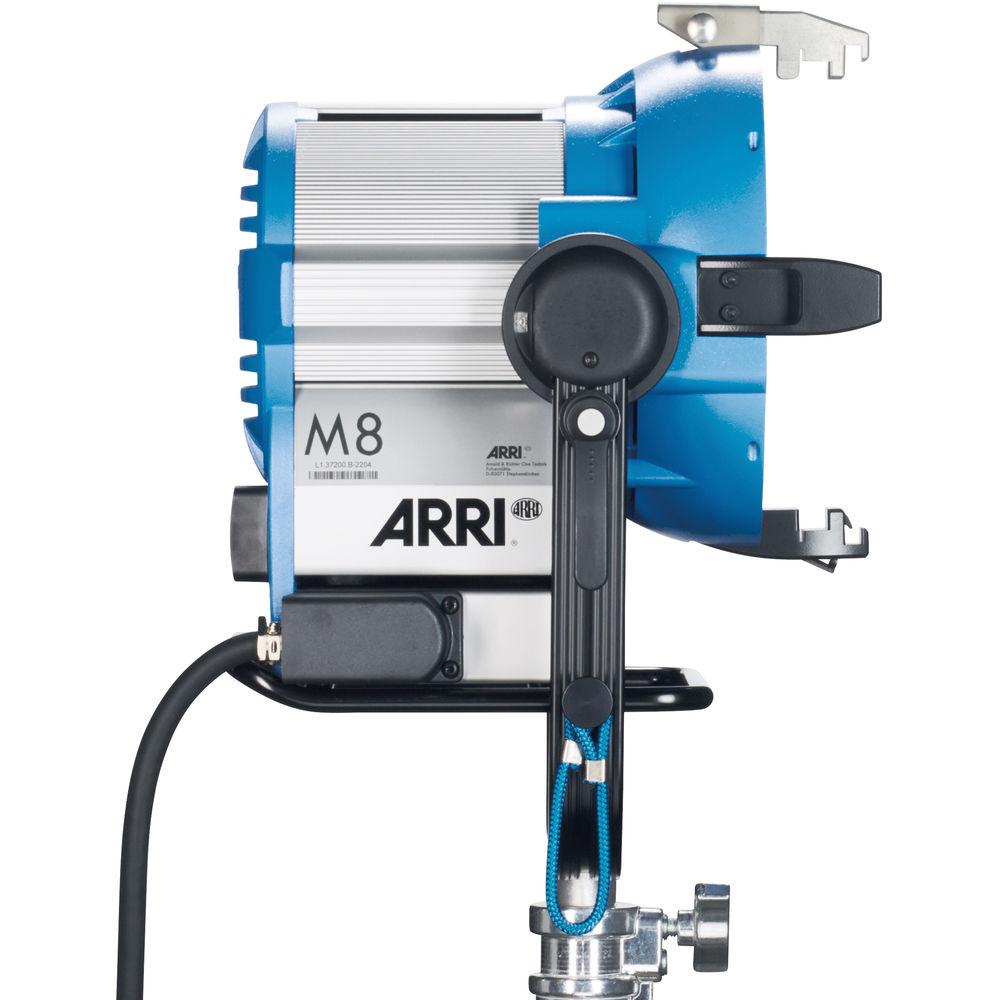

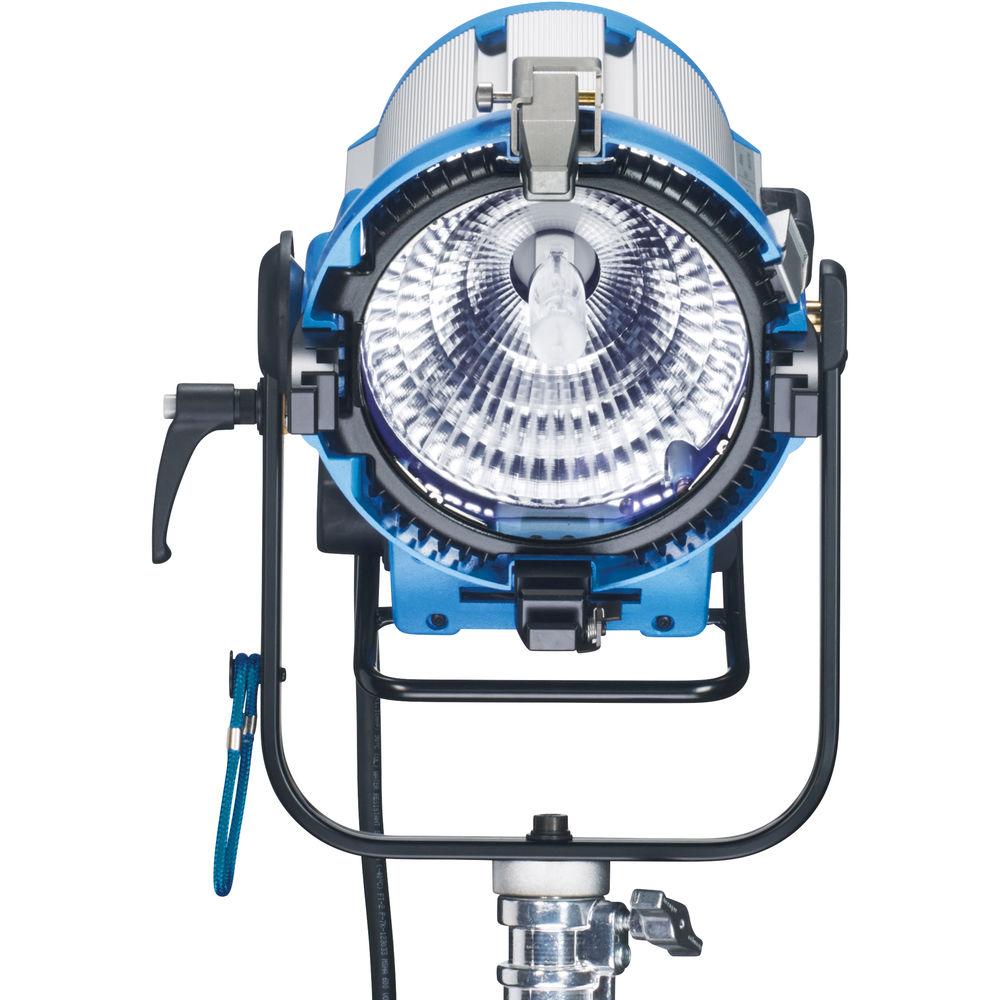

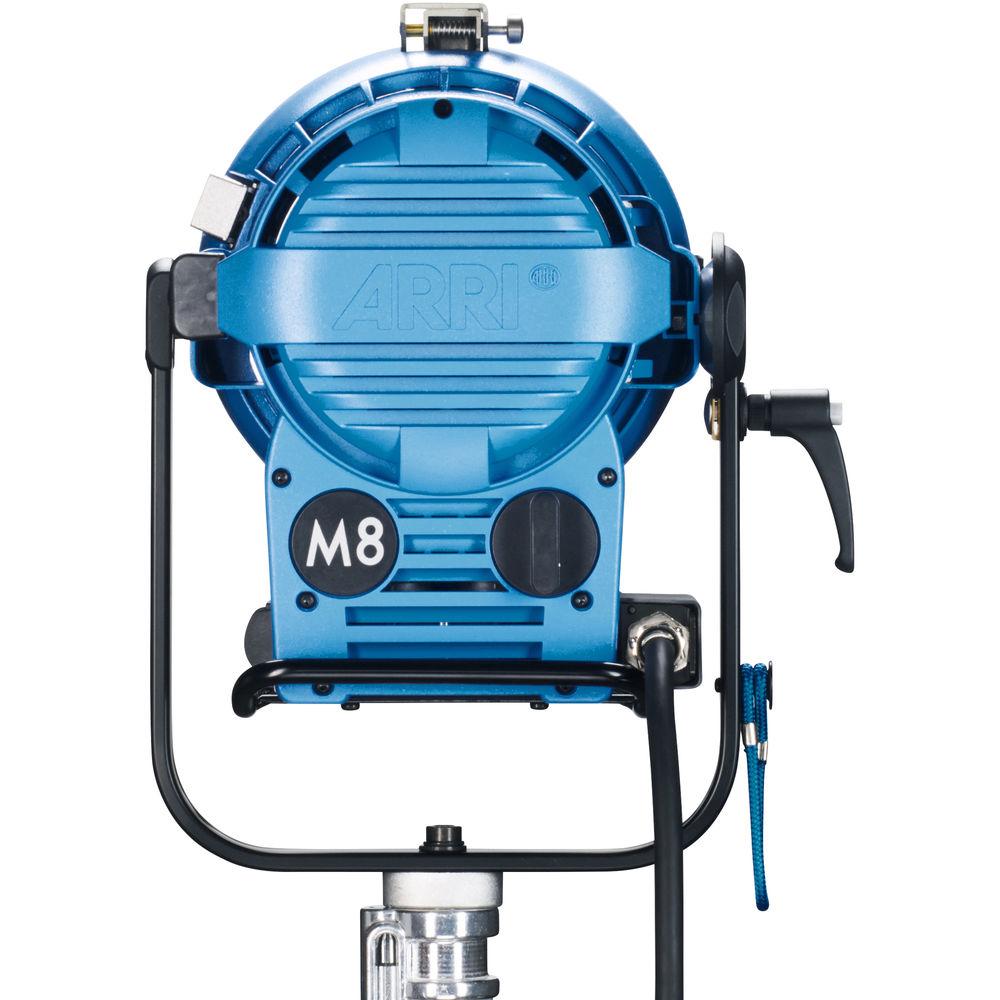

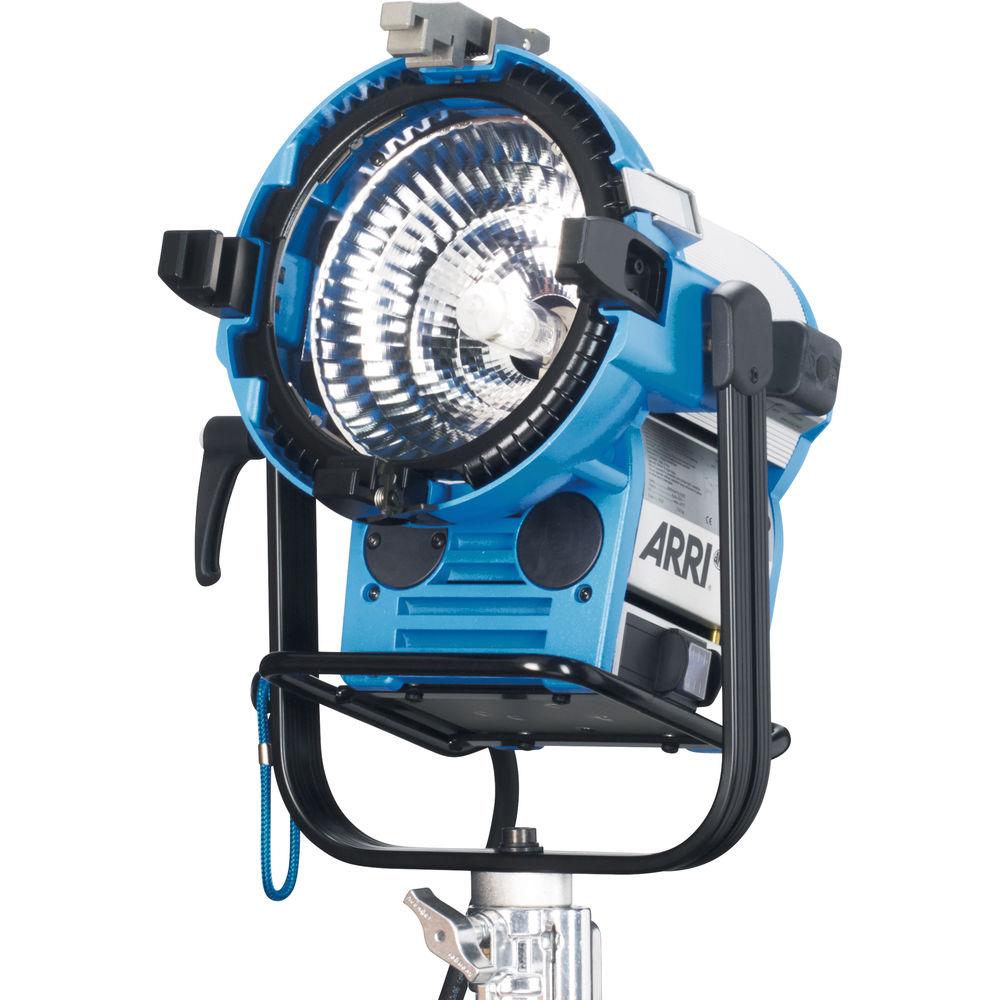

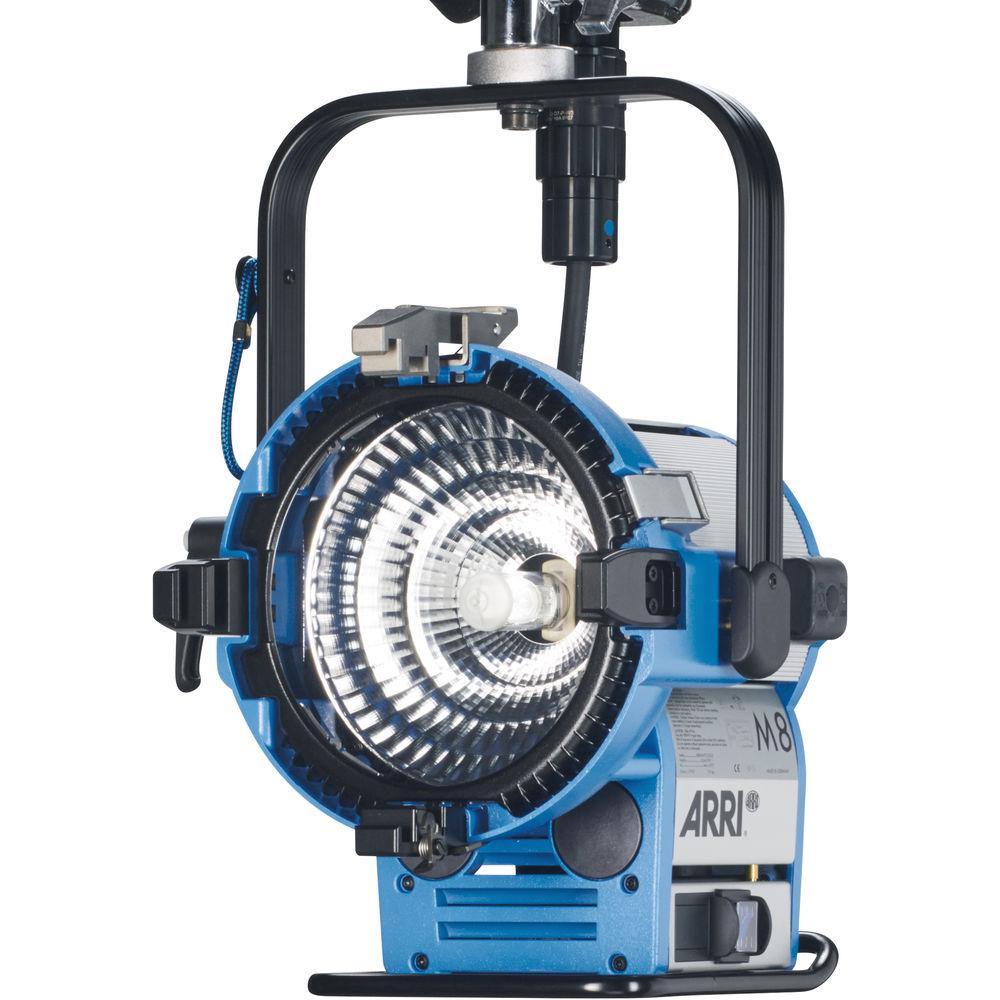

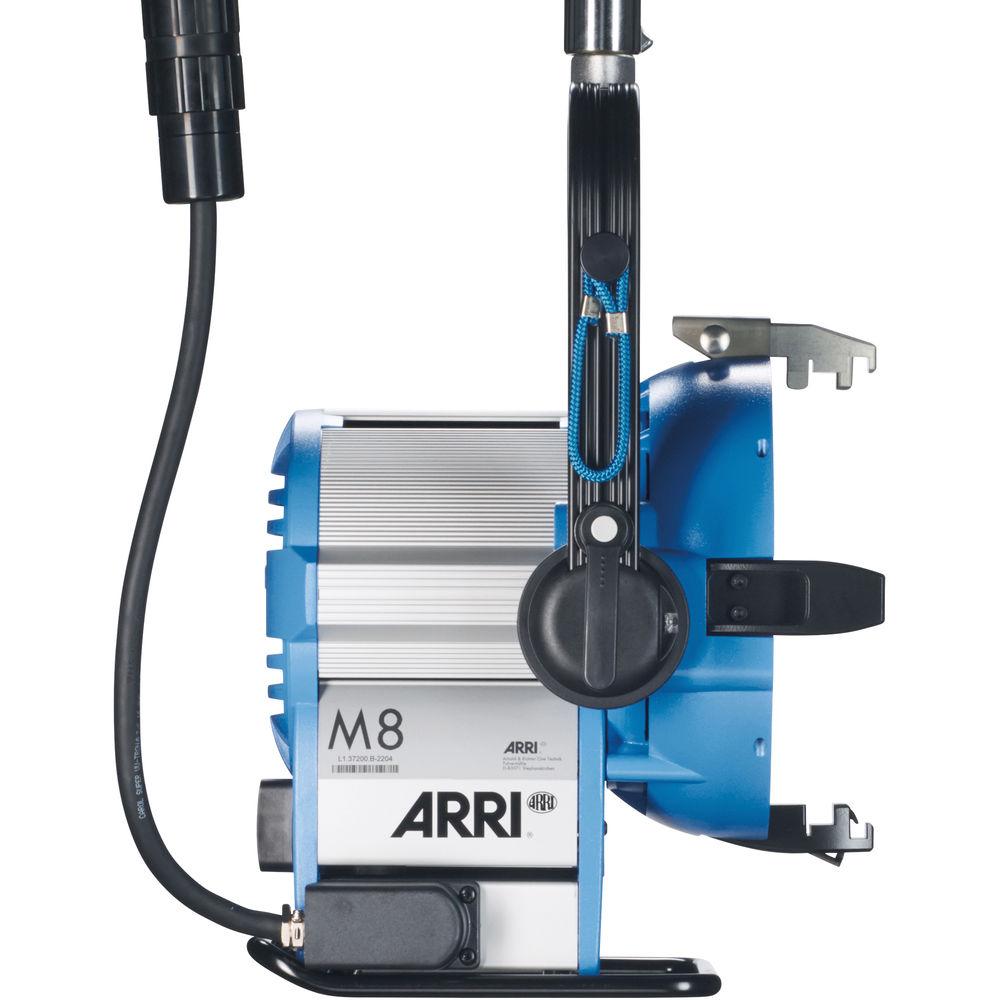

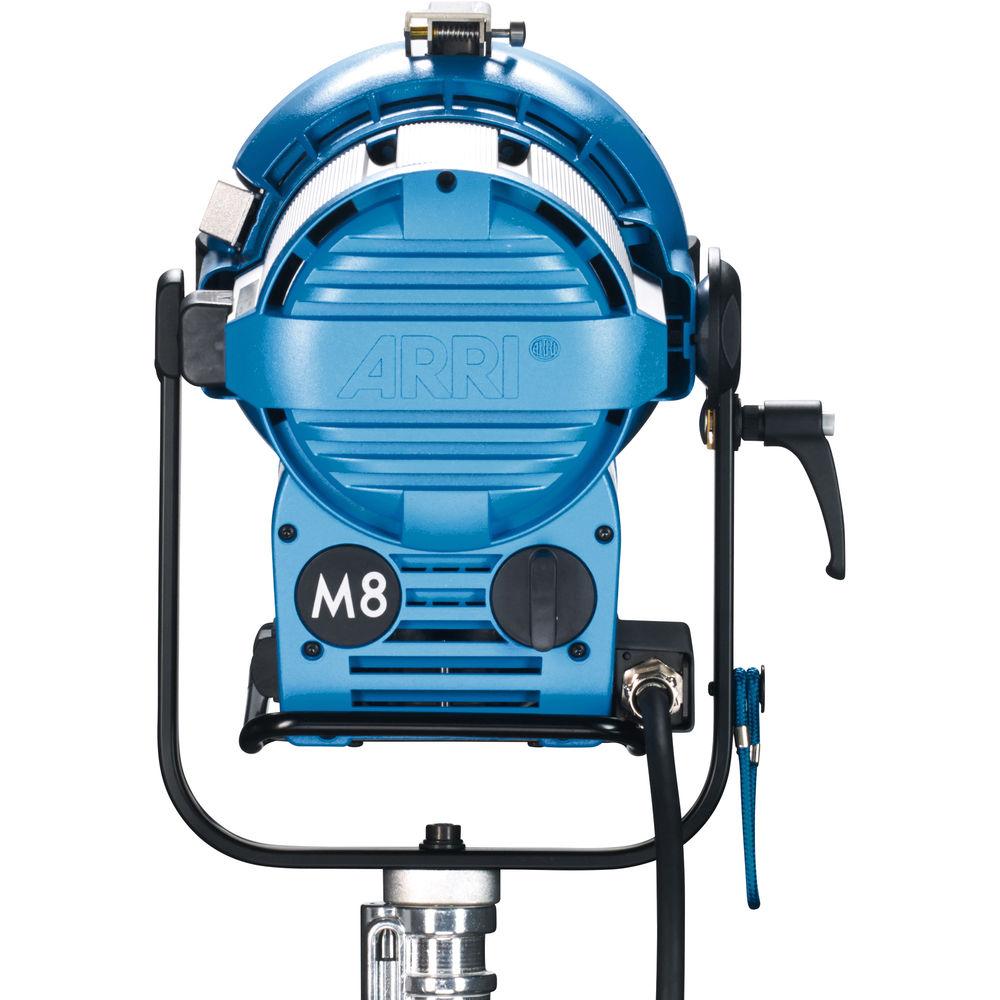

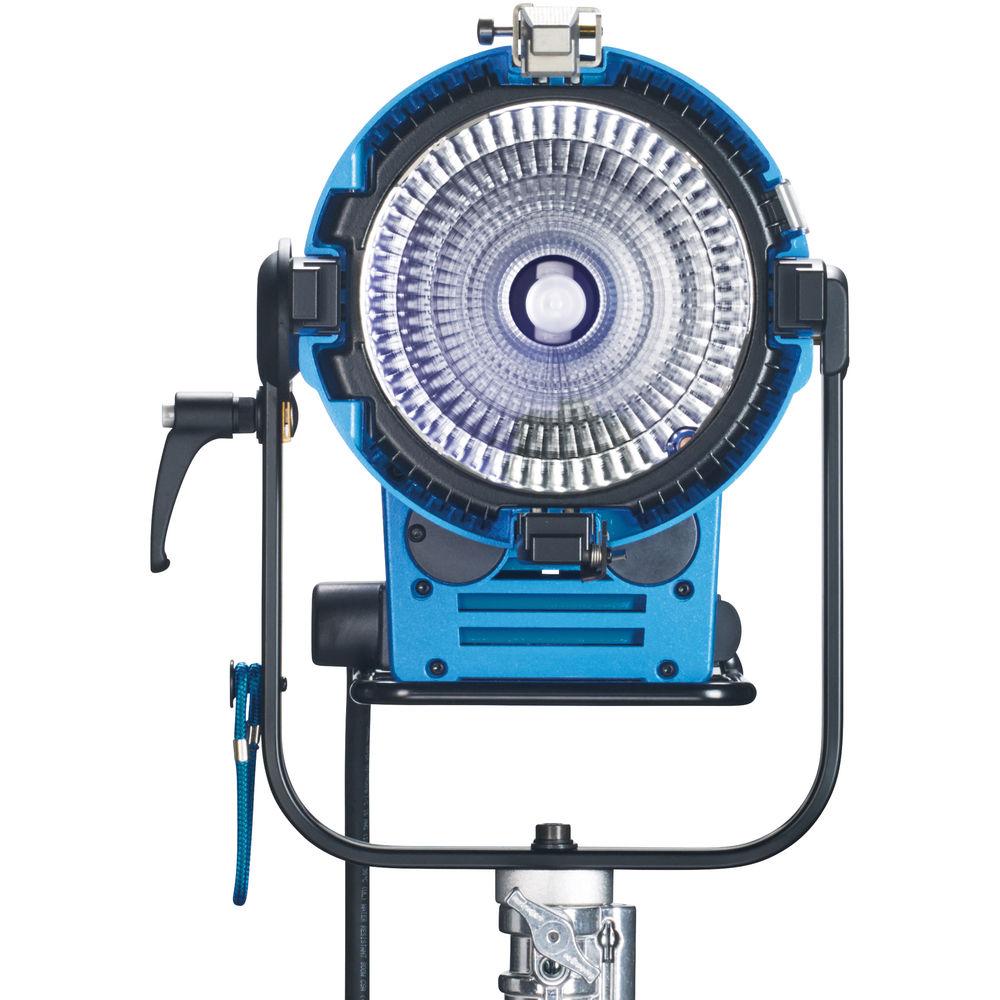

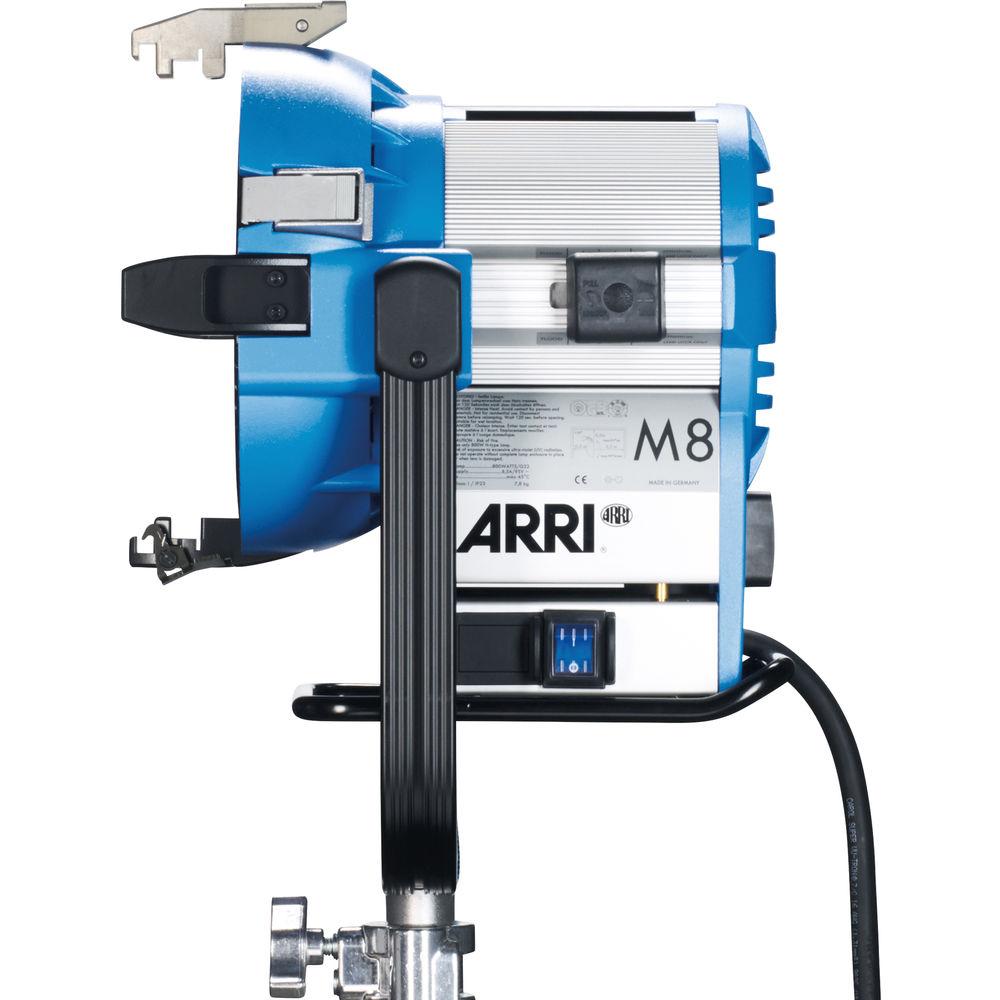

Product description The smallest and lightest fixture in the M-Series, the M8 HMI Lamp Head from ARRI uses lensless MAX technology to combine the characteristics of a Fresnel and PAR source. With a focus range of 15-62°, normally only achieved with supplementary lenses, the M8's output more closely resembles that of a 1000W or 1200W HMI Fresnel but with a far more compact form factor. That translates to more light output with less physical labor and heavy breakable glass. Innovations include CCL, which compensates for power loss when using long cables and Cross Cooling which separates the electronics from the lamp housing and allows safe tilting of the head up to 90 degrees. Structurally, the M8 employs a robust, tubular steel yoke and disc brakes to safely lock down the 17.2 lb head when tilting. There's no need to worry about moist locations; the M8 has an IP23 weather-resistant rating. -
- Lensless MAX Technology: lighter weight, easy to use
- Light output comparable to 1200W fixture
- Smallest lamp head in MAX line
- Highly mobile for a wide range of uses
- Focusable between 15° and 62°
- Cross cooling allows safe operation even at 90° tilt
- Uses existing 245 mm / 230 mm ARRI True Blue D12 and Chimera accessories
- Uses existing 575/1200/1800W cables
- Weather protection class IP23
- Tilt locks to hold heavy accessories securely
In the Box ARRI M8 HMI Lamp Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI M8 HMI Lamp Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI M8 Specs | Rating | 800 W | | Lamp Type | Metal Halide 800 W/SE | | Socket (Lampholder) | GX22 | | Color Temperature | 6000K with optional lamp and ballast | | Lens (Condenser) | No, high output MAX reflector | | Accessory Size | 9.06" / 30 mm
UV Glass Diameter: 7.87" / 200 mm | | Mounting | 1 1/8" / 28 mm pin | | Protection Class | IP23 | | Power Consumption | 800 W | | Cable | VEAM, Schaltbau options | | Certifications | CE, CB, GS, cNRTL | | IP Rating | IP23 weather resistant | | Dimensions | 18 x 13.5 x 12.2" / 458 x 344 x 311 mm | | Weight | 17.2 lb / 7.8 kg | | | | Package Weight | 23.8 lb | | Box Dimensions (LxWxH) | 18.5 x 16.4 x 15.5" |
