User Manual for ARRI M8 HMI System I with High Speed Ballast Click to enlarge the picture
Contents of the user manual for the ARRI M8 HMI System I with
- Product category: HMI & Plasma Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI HMI & Plasma Lights
 |
User manual for the ARRI M8 HMI System I with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

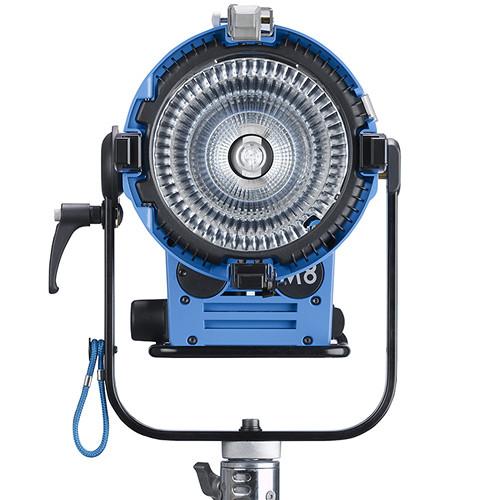

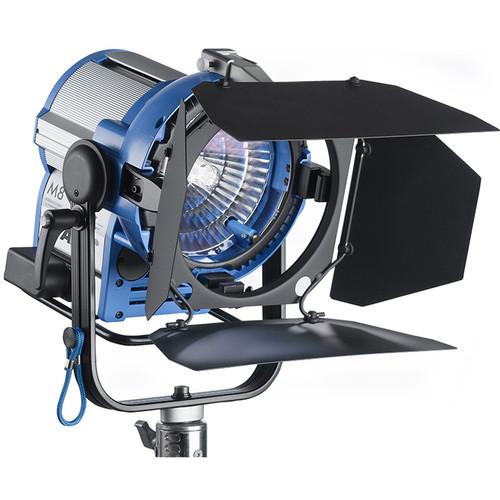

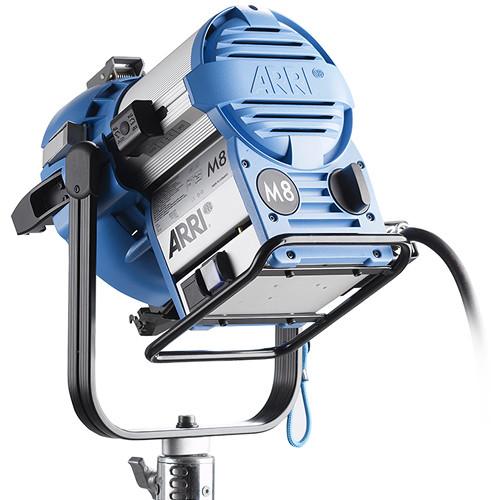

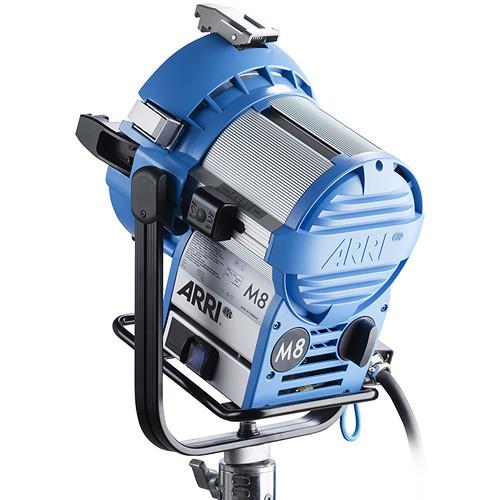

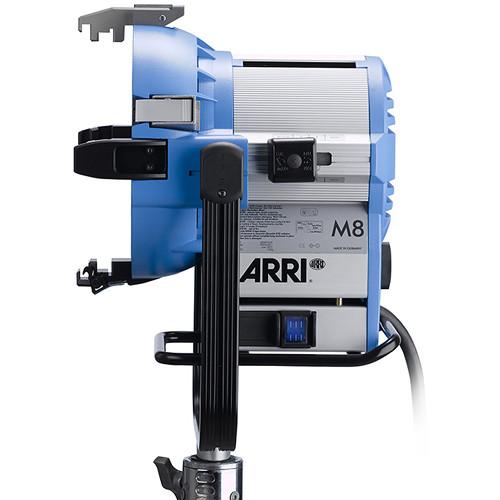

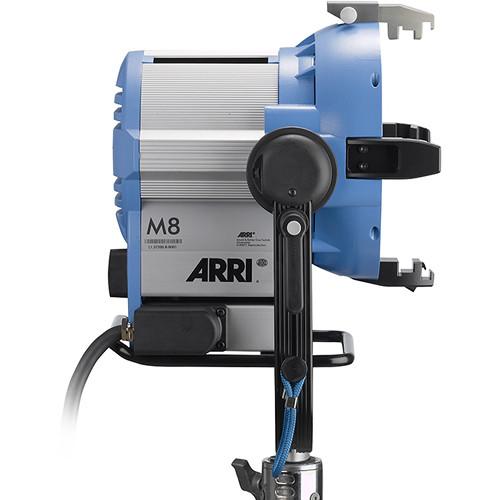

Product description The M8 HMI System I with High Speed Ballast from ARRI provides everything you'll need but an optional lamp, to get up and running on-set with dynamic high speed technology. The kit includes an M8 lamp head with MAX technology, the EB 575/800W 1000Hz High Speed Ballast, a 50' head to ballast cable, and a 4-way barndoor set. The M8 HMI High Speed Head uses lensless MAX technology to combine the characteristics of a Fresnel and PAR source. With a focus range of 14.7-16° normally only achieved with supplementary lenses, the M8's output more closely resembles that of a 1000W or 1200W HMI Fresnel but with a far more compact form factor. That translates to more light output with less physical labor and heavy breakable glass. Innovations include CCL, which compensates for power loss when using long cables and cross cooling which separates the electronics from the lamp housing and allows safe tilting of the head up to 90 degrees. The EB 575/800W 1000Hz High Speed Ballast powers the ground-breaking M8 lamp head with MAX reflector technology, offering 1000Hz capability for frame rates of 1000 fps and beyond. The EB 575/800W allows flicker-free high speed shooting of sports events, industrial applications, automotive, component testing, and ballistics or material testing. This versatile power source has been streamlined and packed with features like CCL to compensate for power loss over long cable runs and Active Line Filter to counter electromagnetic interference. For complete specs on the items included in this kit please click on the links below: M8 800W HMI High Speed Headyexfbszzwt
4-Way Barndoor Set
50' Head to Ballast Cable

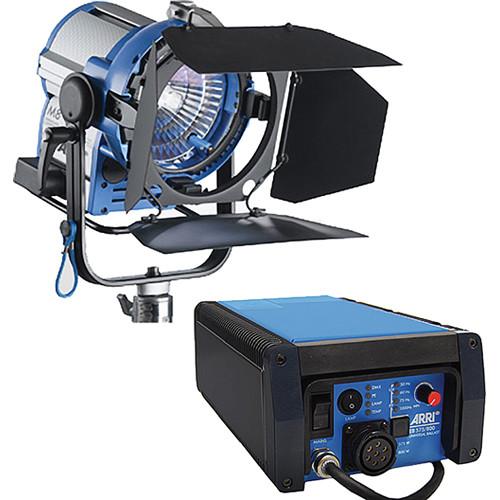

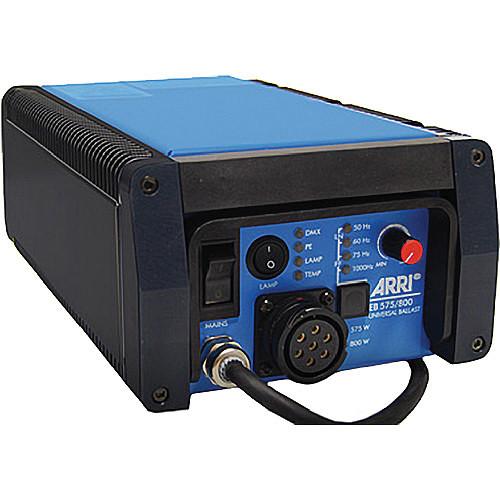

575/800W High Speed Ballast In the Box ARRI M8 HMI System I with High Speed Ballast M8 HMI Lamp Head 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures Head to Ballast Cable 575/1200/1800W - 50' 575/800 High Speed Ballast with ALF and DMX for M8 Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI M8 HMI System I with High Speed Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI M8 Specs | | | Package Weight | 67.0 lb | | Box Dimensions (LxWxH) | 27.0 x 19.0 x 17.0" |
