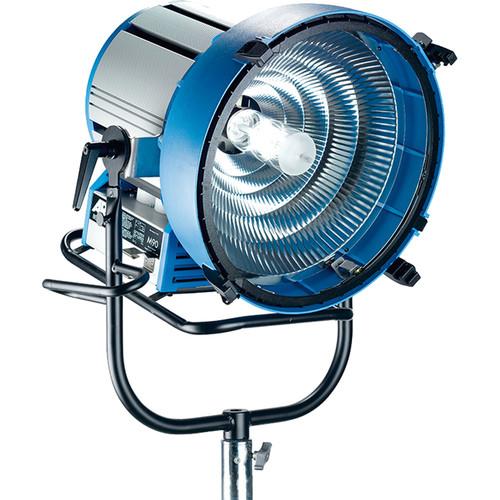

Product description With power that positions it between the M40 and the ARRIMAX 18/12, the M90 HMI Lamp Head from ARRI employs faceted MAX Reflector Technology that focuses from 15 to 49 degrees, combining the best qualities of a Fresnel and PAR fixture to produce an output similar to a 12,000W light from a 9,000W lamp.The IP23 weather-resistant M90 ships with a yoke with a 1-1/8" Junior mounting pin. Tilt lock levers on both sides of the light firmly secure the weighty 88 lb fixture.The M90 requires a ballast for use and 2 are available. Both units employ CCL (Compensation of Cable Losses) to maintain power with long cable runs independent of their length. They also feature a power-saving Active Line Filter (ALF) and built-in DMX for remote operation from a console. The standard EB 6/9 operates at 50, 60 and 75 Hz while the 1000 Hz high speed version allows up to 1,000 flicker-free frames per second. -
- 5-Year extended warranty
- Light output nearly matches a 12K PAR (with lens)
- As small and lightweight as a 6K PAR
- Can also be used with 6,000W (120V nominal) lamps and ballasts
- Tilt locks on both sides support heavy accessories
- Easy maintenance
- Weather resistant IP23
- Suitable for high frame rate images
In the Box ARRI M90 HMI Head Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI M90 HMI Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI M90 Specs | Rating | 6,000 or 9,000 W | | Lamp Type | HMI | | Socket | GX38 | | Color Temperature | 6,000K (with optional lamp) | | Lens | No, High output MAX reflector | | Mounting | 1-1/8" (28 mm) Junior pin | | Protection Class | IP23 weather resistant | | Ballast | EB 6/9 ballast required | | Power Requirements | 120 - 230 VAC depending on ballast used | | Photometrics | With 9,000 W Lamp Spot 16°:
@ 33' (10 m): 51,000 lux with a beam diameter of 8.7' (2.6 m)
@ 66' (20 m): 12,750 lux with a beam diameter of 17' (5.22 m)
@ 99' (30 m): 5,670 lux with a beam diameter of 26' (8.0 m)
Medium: 30°:
@ 33' (10 m): 14,450 lux with a beam diameter of 17' (5.2 m)
@ 66' (20 m): 3,610 lux with a beam diameter of 34' (10.35 m)
@ 99' (30 m): 1,600 lux with a beam diameter of 51' (15.5 m)
Flood: 49°:
@ 33' (10 m): 7,580 lux with a beam diameter of 27' (8.3 m)
@ 66' (20 m): 1,900 lux with a beam diameter of 54.5' (16.6 m)
@ 99' (30 m): 840 lux with a beam diameter of 82' (25 m) | | Certifications | cNRTL, CE, GS, CB | | Dimensions | 28.1 x 28.2 x 37.3" (71 x 71.6 x 94.7 cm) | | Weight | Approximately 88 lb (40 kg) | | | | Package Weight | 83.0 lb | | Box Dimensions (LxWxH) | 36.0 x 32.0 x 31.0" |
