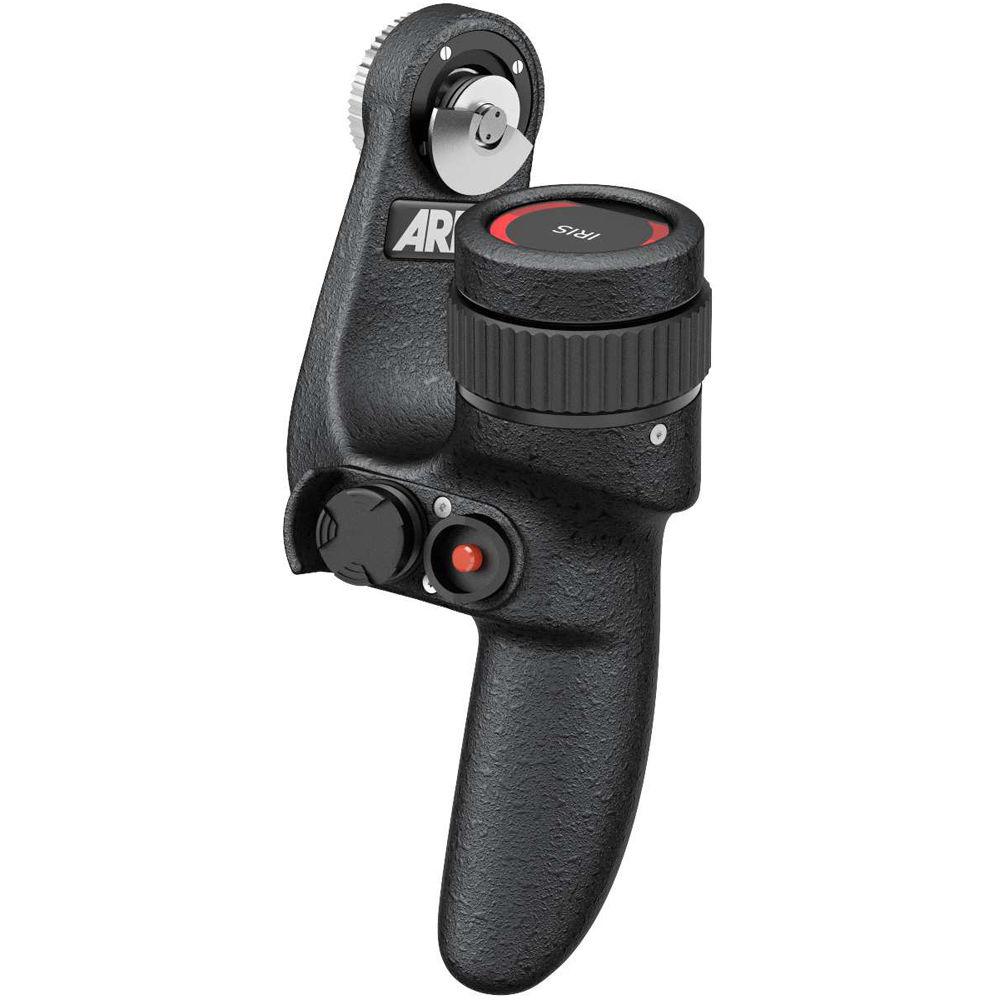

User Manual for ARRI Master Grip Zoom Set for 3rd-Party Cameras Click to enlarge the picture
Contents of the user manual for the ARRI Master Grip Zoom Set for
- Product category: Zoom & Focus Controls ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Zoom & Focus Controls
 |
User manual for the ARRI Master Grip Zoom Set for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

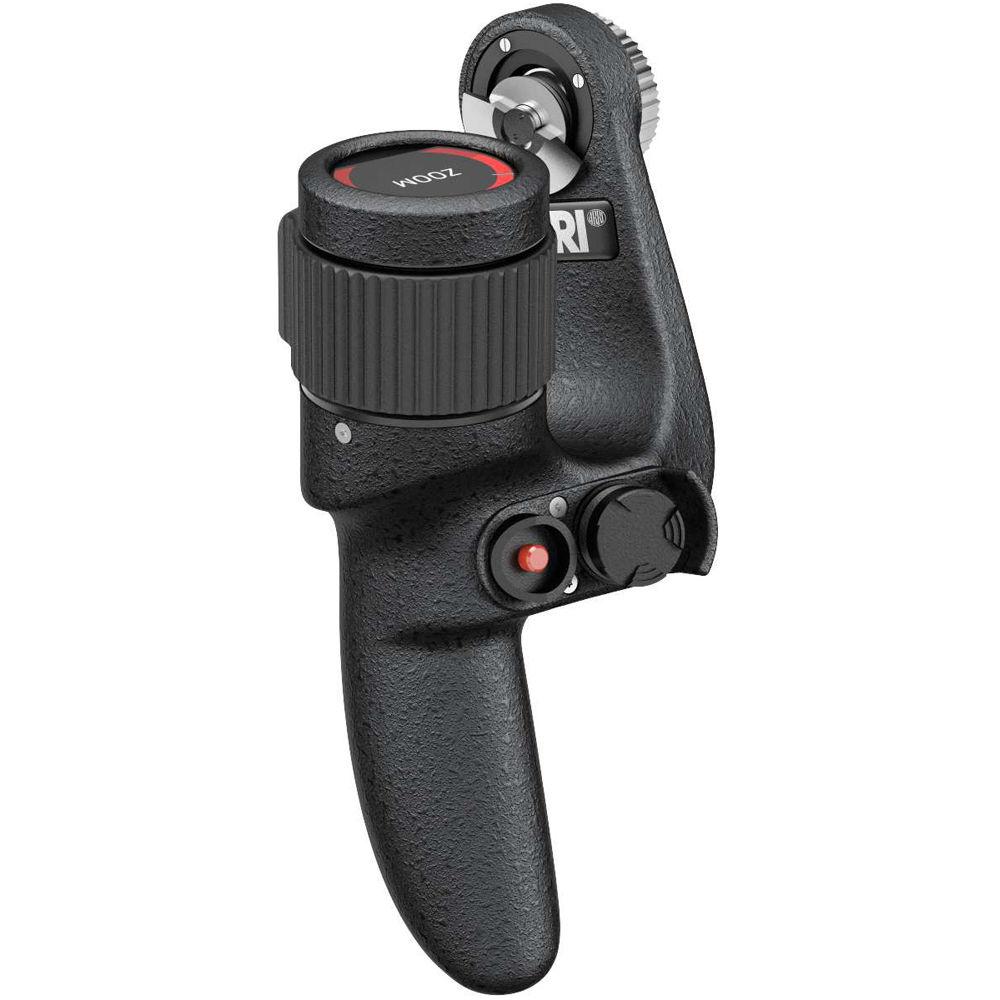

Product description The ARRI Master Grip Zoom Set for 3rd-Party Cameras is designed for controlling zoom lenses on a variety of third-party (non-ARRI) cameras. Both LCUBE CUB-1 and CUB-2 signal converters, and an assortment of cables for third-party cameras are included with the set. This Master Grip combination puts a rocker-style zoom control in your right hand, and a wheel-style focus/iris control in your left. The ARRI Master Grips offer handheld camera stabilization with handgrip control of focus, iris, and zoom settings; end limits can be set for easier single-user F/I/Z moves. Camera controls include the REC function, a 5-way joystick, and assignable user buttons. This set includes one MRR-1 Master Grip Right Rocker, one MLW-1 Master Grip Left Wheel, signal converters, accessories, and cables. A hard-shell case with custom-cut foam cradles the components when transporting and storing the set. Note: Lens motors, respective cables, and 15mm rods/supporting hardware not included - MRR-1 Master Grip (Right-Hand Rocker) The ARRI MRR-1 Master Grip (Right-Hand Rocker) combines handheld camera stabilization with comprehensive lens and camera control. With a form factor based on the classic ARRI handgrips, the Master Grips add flexible and responsive fingertip control for handheld shooting. Aimed at ALEXA, AMIRA, and third-party camera operators, the Master Grips can also be mounted on tripod pan handles, and on pedestal heads for controlling cameras in studio or multi-cam setups. A pair of Master Grips provide full control of focus, iris, and zoom settings on cine-style lenses, and offer comfortable control of integrated servo motors on ENG- and EF-type lenses. Focus, iris, and zoom speeds are adjustable, and end limits can be set for easier single-user moves. Camera controls include the REC function, and access to user buttons for both ARRI and third-party cameras. A separately-available LCUBE CUB-1 is required for third-party camera control. The ergonomic design of the Master Grips reduces strain, enabling extended handheld operating; an "eyebrow"-type shield protects against accidental triggering and doubles as a finger rest. This right-handed rocker is one of four available Master Grip options that can be combined in right- or left-handed pairs. The rocker grips enable super-smooth zooming, while the thumb wheels are suited for focusing or iris, or adjustments. An integrated touchscreen and a 5-way joystick each offer easy setup of the ARRI Master Grips.
- Compatible Cameras
- ALEXA, AMIRA, and third-party cameras
Features - Comprehensive lens and camera control; LCUBE CUB-1 is required for third-party camera control (available separately)
- Setup via touchscreen interface or 5-way joystick
- Two LBUS ports for camera and lens connections
- Adjustable-speed rocker grip enables super-smooth zooming
- Shield protects against accidental triggering and acts as a finger rest
- MLW-1 Master Grip (Left-Hand Wheel) The ARRI MLW-1 Master Grip (Left-Hand Wheel) combines handheld camera stabilization with comprehensive lens and camera control. With a form factor based on the classic ARRI handgrips, the Master Grips add flexible and responsive fingertip control for handheld shooting. Aimed at ALEXA, AMIRA, and third-party camera operators, the Master Grips can also be mounted on tripod pan handles, and on pedestal heads for controlling cameras in studio or multi-cam setups. A pair of Master Grips provide full control of focus, iris, and zoom settings on cine-style lenses, and offer comfortable control of integrated servo motors on ENG- and EF-type lenses. Focus, iris, and zoom speeds are adjustable, and end limits can be set for easier single-user moves. Camera controls include the REC function, and access to user buttons for both ARRI and third-party cameras. A separately-available LCUBE CUB-1 is required for third-party camera control. The ergonomic design of the Master Grips reduces strain, enabling extended handheld operating; an "eyebrow"-type shield protects against accidental triggering and doubles as a finger rest. This left-handed wheel is one of four available Master Grip options that can be combined in right- or left-handed pairs. The rocker grips enable super-smooth zooming, while the thumb wheels are suited for focusing or iris, or adjustments. An integrated touchscreen and a 5-way joystick each offer easy setup of the ARRI Master Grips.
- Compatible Cameras
- ALEXA, AMIRA, and third-party cameras
Features - Comprehensive lens and camera control; LCUBE CUB-1 is required for third-party camera control (available separately)
- Setup via touchscreen interface or 5-way joystick
- Two LBUS ports for camera and lens connections
- Adjustable-speed thumb wheel for focus pulling, and iris adjustments
- Shield protects against accidental triggering and acts as a finger rest

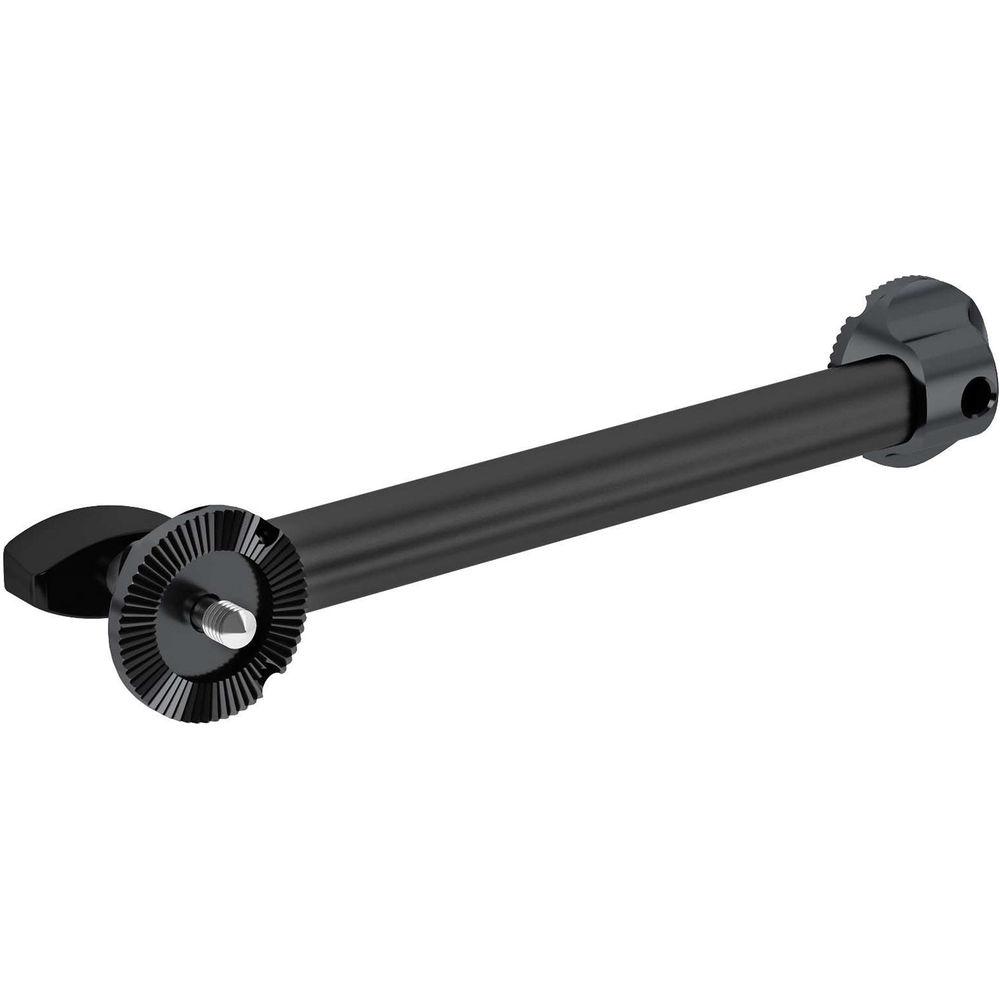

- Handgrip Extension (6.3") The black, 6.3" tubular ARRI Handgrip Extension fits between an ARRI Master Grip or handgrip, and your camera or rig base. Use the extension to position the grip comfortably based on your rig configuration. This rosette-based extension is constructed from stainless steel, and is the middle length of three available versions.The Handgrip Extension's notched rosette design ensures a stable fit, fastening with an integrated, winged screw.
Features - Compatible with ARRI standard rosettes
- Constructed of stainless steel

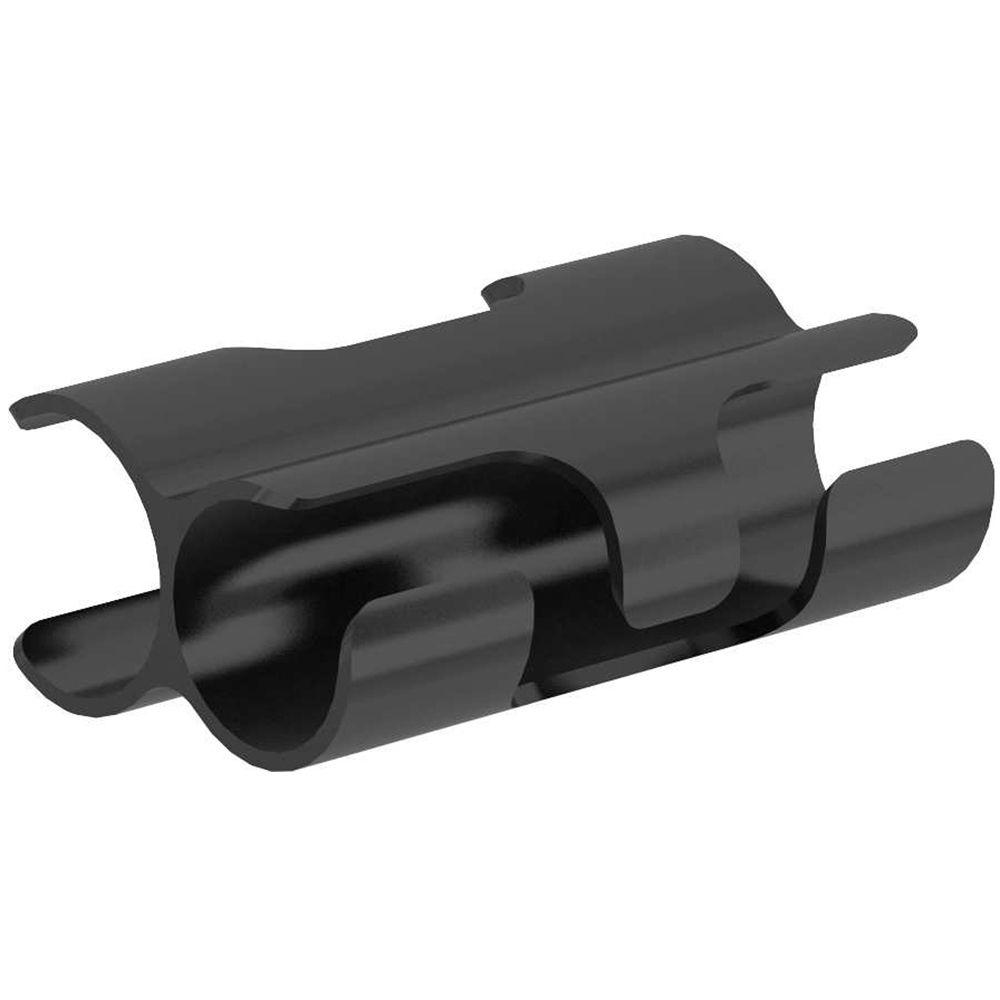

- Cable Clip (15mm) Provided by third party: Facilitates cable management around Master Grips and lens motors Clips on 15mm camera rods and Master Grips extensions.

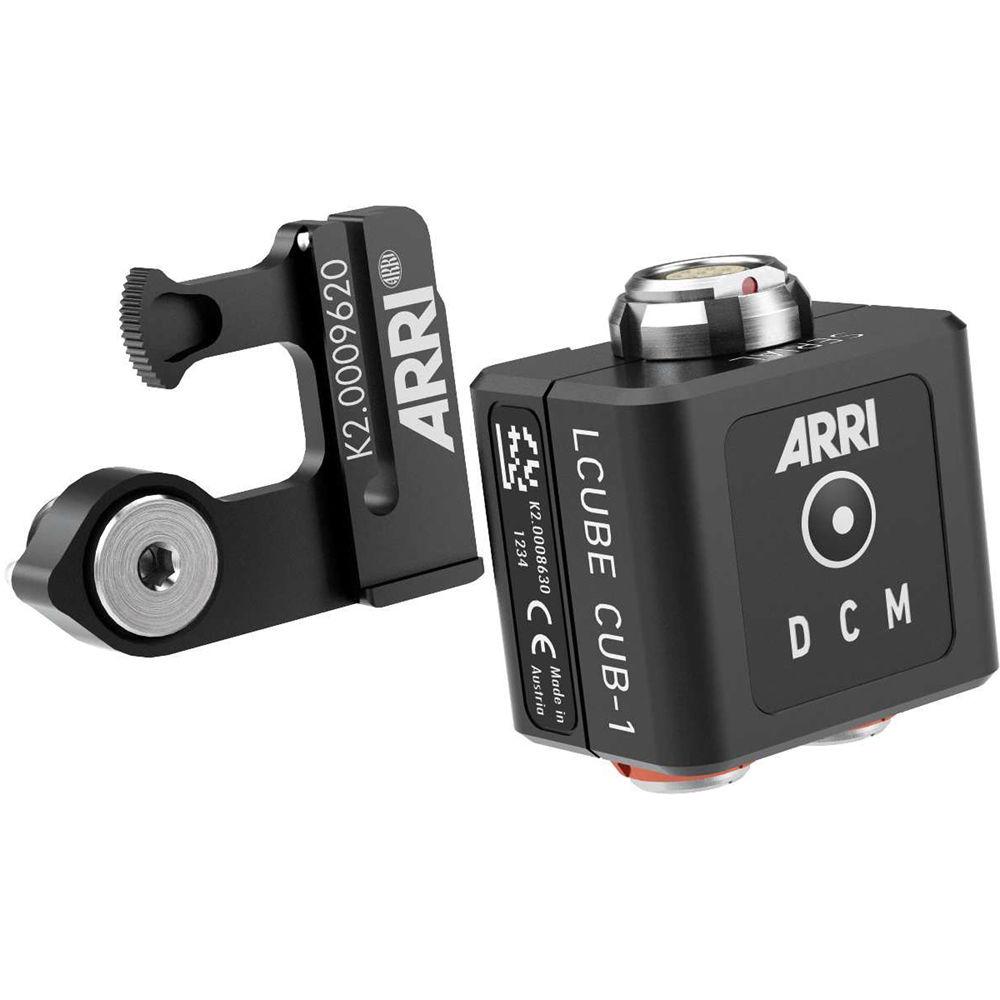

- LCUBE CUB-1 LBUS to Serial Converter with Bracket The ARRI LCUBE CUB-1 Serial Converter changes LBUS protocols to serial protocols and vice versa. This multi-purpose protocol converter can be used for different functions in various camera setups. Use the CUB-1 and one or more cforce motors (not included) to connect a UDM-1 Distance Measure to an ALEXA Mini. The CUB-1 will also enable ARRI electronic control system accessories such as Master Grips to communicate with select 3rd-party cameras. A vari-colored LED indicates the status of the CUB-1's SETUP button. A quick-release bracket with a 3/8"-16 screw is included with the converter. The CUB-1 does not include an LBUS cable (available separately).
Features - Converts serial protocol (RS232, RS485, RS422) to LBUS and vice versa
- Use for 3rd-party cameras and ARRI Master Grips
- Lightweight and compact form factor
- Vari-colored LED status button
Compatibility - Distance-Measuring Devices
- ARRI UDM-1 Ultrasonic Distance Measure
Cinematography Electronics CTM CINE TAPE MEASURE - Cameras
- Including but not limited to:
ALEXA Mini: Distance measure
Sony F5/F55: REC start/stop

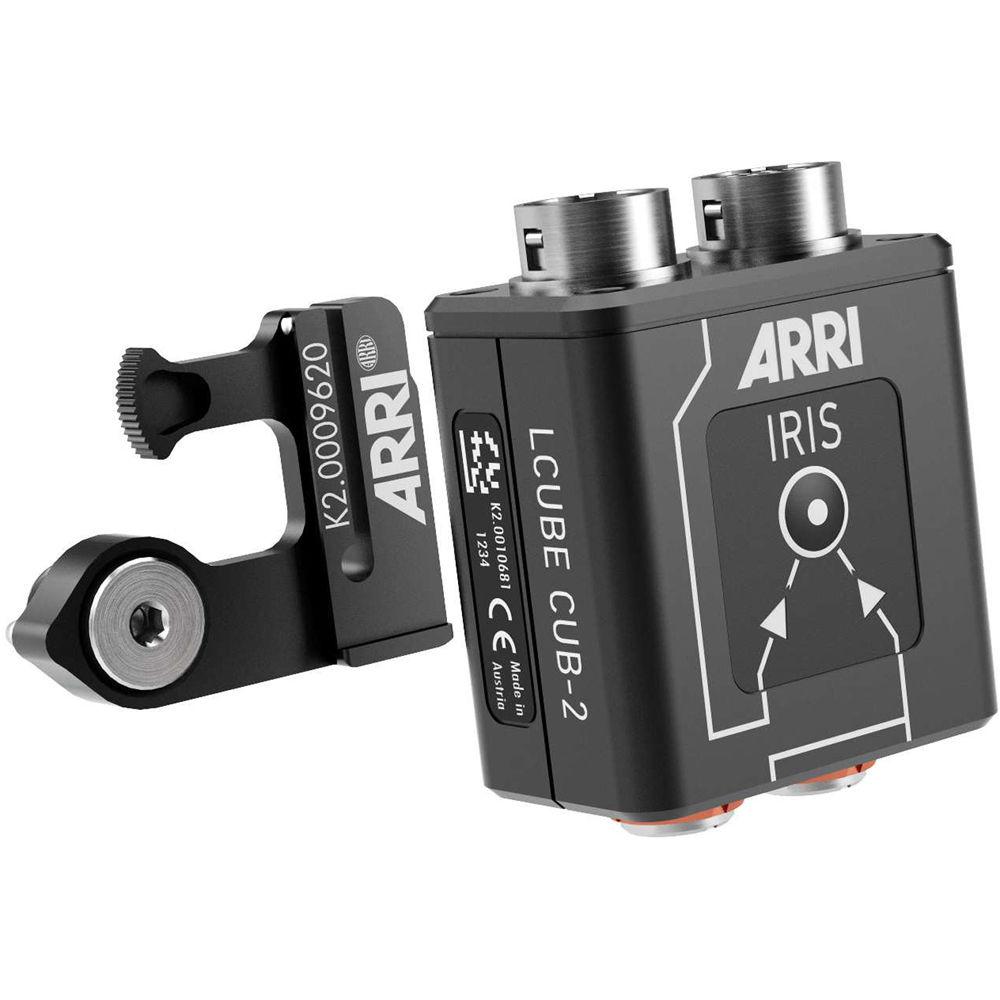

RED Epic/Dragon: REC start/stop, user buttons - LCUBE CUB-2 LBUS to 12-Pin Hirose-Type Converter with Bracket Use the ARRI LCUBE CUB-2 Converter to extend Master Grip focus, iris, and zoom control to servo-type (ENG) zoom lenses. The flexible CUB-2 Converter includes a switch to select between camera-based or Master Grip–based iris control. An integrated dovetail enables the CUB-2 to be mounted to the included LCUBE bracket or to the CLM-5/cforce mini 19/15mm bracket (available separately).
Features - Use for servo-type (ENG) zoom lenses and ARRI Master Grips
- Switch between camera-based or Master Grip-based iris control
- Lightweight and compact form factor
- Includes CUB-2 to 12-pin Hirose-style cable, and LCUBE mounting bracket

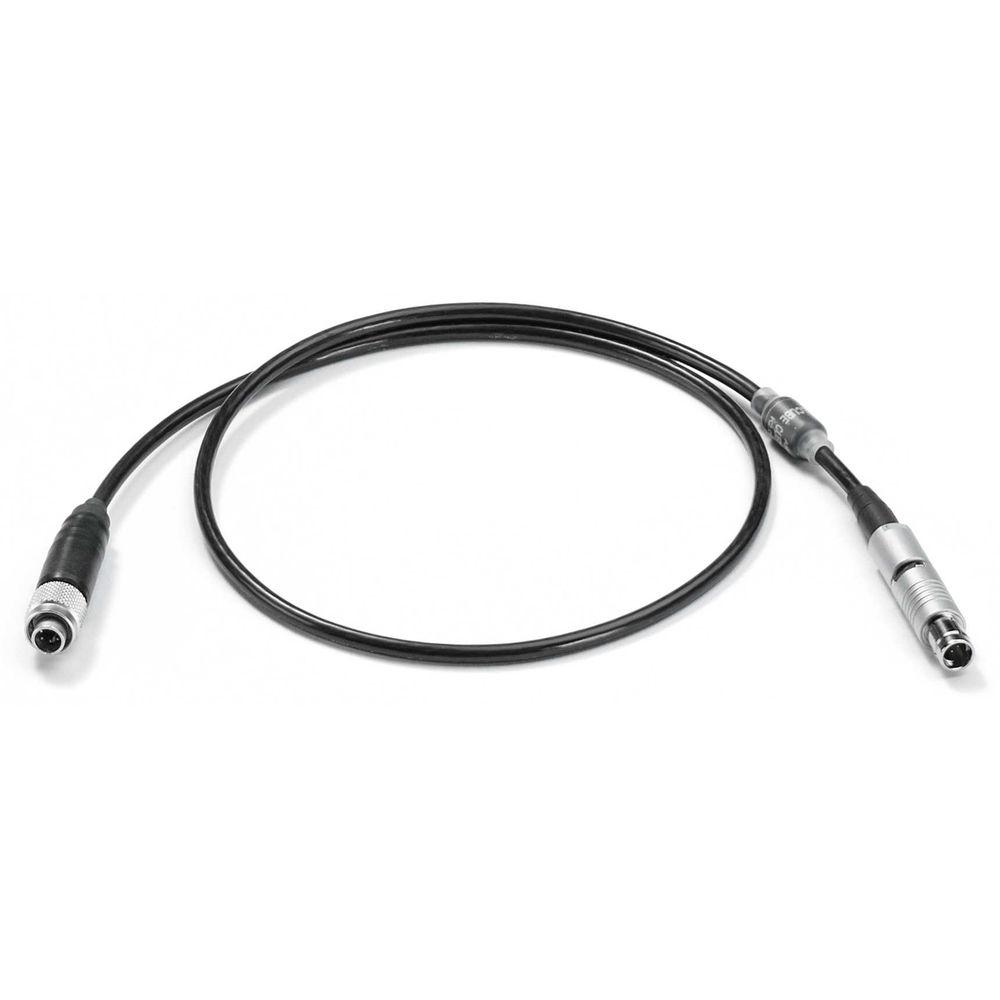

- CUB-1 to F5/55 Cameras Cable (1.3') The 1.3' CUB-1 Cable from Arri allows you to connect the LCUBE CUB-1 Signal Converter to Sony F5/F55 cameras.
- CUB-1 to RED Cameras Cable (1.3') The 1.3' CUB-1 Cable from Arri allows you to connect the LCUBE CUB-1 SERIAL to RED CTRL connector.
- CUB-1 to LANC Cable (1.3') The 1.3' CUB-1 Cable from Arri allows you to connect the LCUBE CUB-1 SERIAL connector to LANC connectors (Canon, Blackmagic Design).
- Master Grip Case The ARRI Master Grip Case is designed to hold a complete set of the Master Grip electronic-control components. Store and transport one right and one left Master Grip, two handgrip extensions and one extension tube, three motors, two LCUBE signal converters with brackets, and corresponding cables. This hard-shell case's custom-cut foam interior snugly cradles the Master Grip set items.

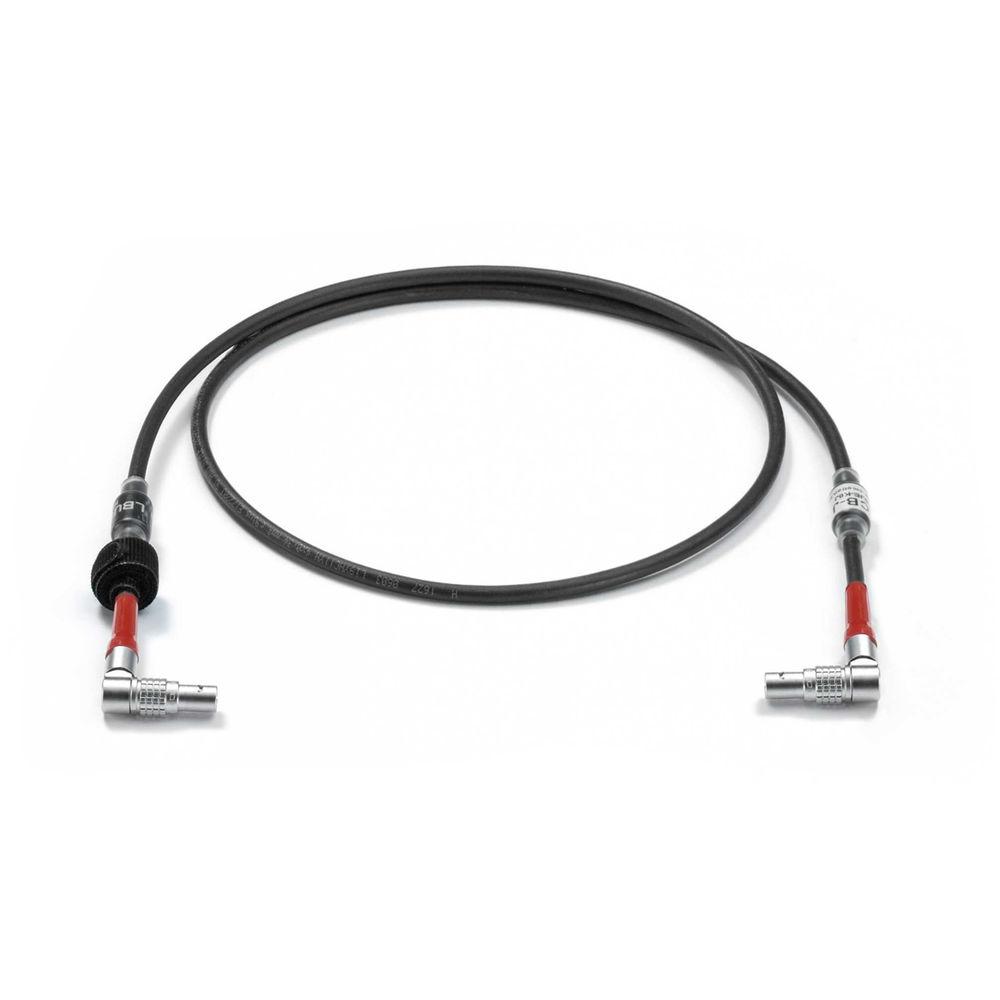

- Angled LBUS to Angled LBUS Cable (2')
- LCUBE CUB-2 to 12-Pin Hirose Lens Cable (1.6')

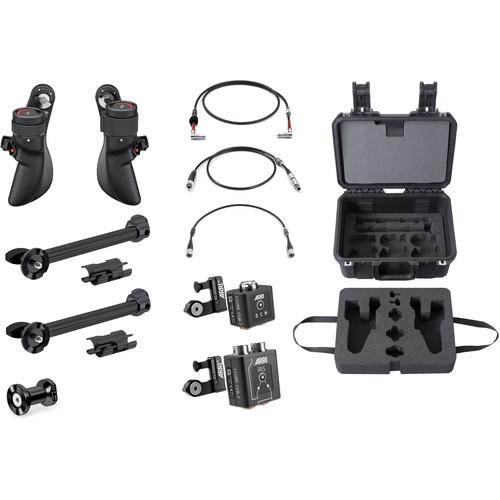

In the Box Bundle Items MRR-1 Master Grip (Right-Hand Rocker) yfwbuqtvxczxuwstrxzaq MLW-1 Master Grip (Left-Hand Wheel) 2 x Handgrip Extension (6.3") 2 x Cable Clip (15mm) yfwbuqtvxczxuwstrxzaq LCUBE CUB-1 LBUS to Serial Converter with Bracket LCUBE CUB-2 LBUS to 12-Pin Hirose-Type Converter with Bracket yfwbuqtvxczxuwstrxzaq - LCUBE CUB-2 to 12-Pin Hirose Lens Cable (1.6')
Angled LBUS to Angled LBUS Cable (2') CUB-1 to F5/55 Cameras Cable (1.3') CUB-1 to RED Cameras Cable (1.3') CUB-1 to LANC Cable (1.3') LCUBE CUB-2 to 12-Pin Hirose Lens Cable (1.6') Master Grip Case
Also Includes - Offset Handgrip Extension Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Master Grip Zoom Set for 3rd-Party Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MRR-1 Master Grip (Right-Hand Rocker)
| Interface (Bus) Type | 2 x LBUS | | Supply Voltage | 12-34 V | | Current Consumption | 15 mAh at 24 V | | Material of Construction | Cast magnesium, steel | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions | 6.8 x 4 x 3.2" (172 x 102 x 81 mm) | | Weight | 14.8 oz (420 g) | | | | Box Dimensions (LxWxH) | 9.9 x 6.7 x 4.9" | - MLW-1 Master Grip (Left-Hand Wheel)
| Interface (Bus) Type | 2 x LBUS | | Supply Voltage | 12-34 V | | Current Consumption | 30 mAh at 24 V | | Material of Construction | Cast magnesium, steel | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions | 6.8 x 4 x 3.2" (172 x 101 x 81 mm) | | Weight | 13.4 oz (380 g) | | | | Box Dimensions (LxWxH) | 9.9 x 6.8 x 5.2" | - Handgrip Extension (6.3")
| Material of Construction | Stainless steel | | Dimensions | Overall: 2 x 1.6 x 7.9" / 50 x 40 x 200 mm
Length Between Rosettes: 6.3" / 160 mm | | Weight | 6.7 oz / 190 g | | | | Box Dimensions (LxWxH) | 7.7 x 1.3 x 1.1" | - Cable Clip (15mm)
| | | Accessory Type | Cable clip | | | | Intended For | 15 mm rod | | Packaged Qty | 2 | | | | Box Dimensions (LxWxH) | 4.3 x 3.0 x 0.8" | - LCUBE CUB-1 LBUS to Serial Converter with Bracket
| Serial Interfaces | RS232, RS422, RS485 | | Connectors | 2 x 4-pin LBUS
1 x 7-pin serial | | Supply Voltage | 12 to 34 V | | Current Consumption | 18 mA @ 24 V | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions (W x H) | 1.3 x 1.5 x 0.9" (32 x 37.3 x 24 mm) | | Weight | CUB-1: 1.66 oz (47 g)
LCUBE Bracket: 0.46 oz (13 g) | | | | Box Dimensions (LxWxH) | 6.95 x 5.0 x 2.6" | - LCUBE CUB-2 LBUS to 12-Pin Hirose-Type Converter with Bracket
| Connectors | 2 x 4-pin LBUS (female)
1 x 12-pin Hirose-type (male)
1 x 12-pin Hirose-type (female) | | Dimensions and Weight | Not specified by manufacturer | - Angled LBUS to Angled LBUS Cable (2')
| | | Cable Type | Camera control cable | | Length | 2 ft | | Recommended Use | Camera | | | | CONNECTOR | LBUS - angled | | Connector (Second End) | LBUS - angled | | | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 0.6" | - CUB-1 to F5/55 Cameras Cable (1.3')
- CUB-1 to RED Cameras Cable (1.3')
- CUB-1 to LANC Cable (1.3')
- Master Grip Case
| Dimensions and Weight | Not specified by manufacturer | - LCUBE CUB-2 to 12-Pin Hirose Lens Cable (1.6')
