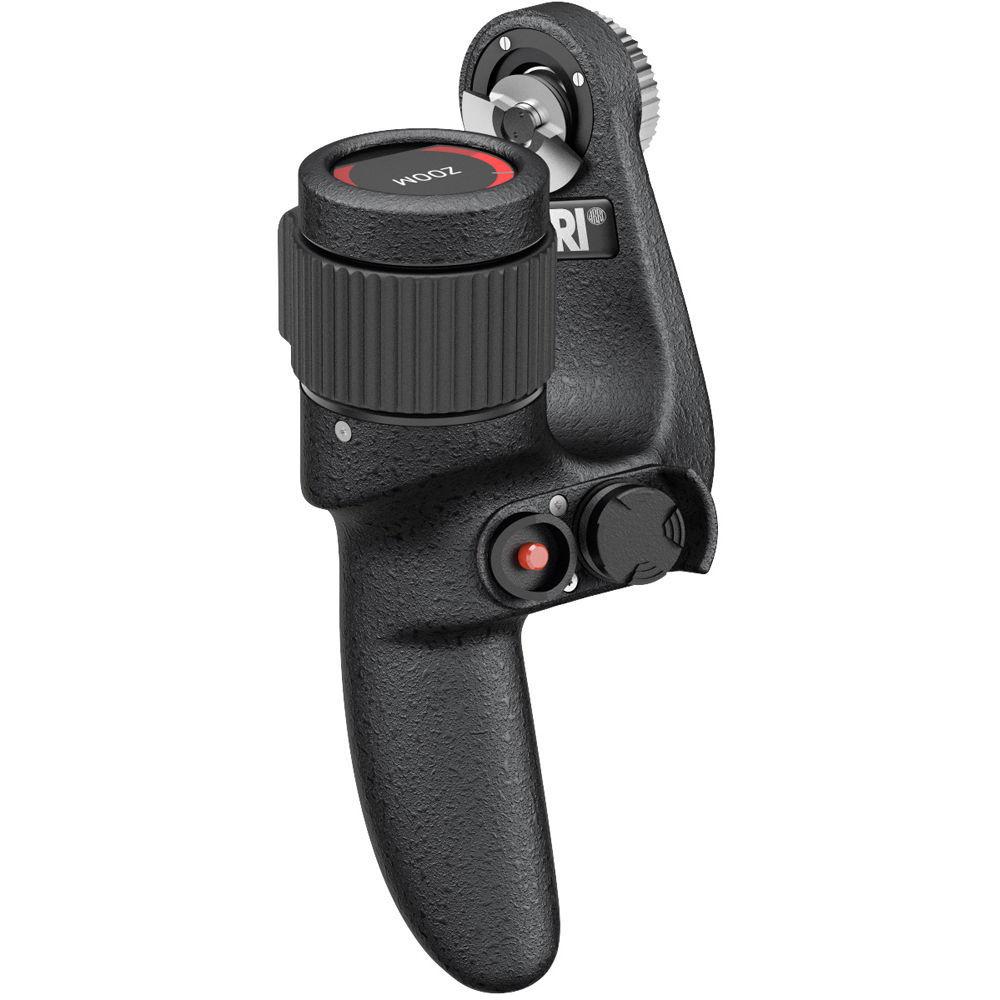

Product description The ARRI Master Grip Zoom Set for ALEXA is pre-configured for controlling zoom lenses on any ALEXA/Plus camera. This set puts a rocker-style zoom control in your right hand, and a wheel-style focus/iris control in your left. The ARRI Master Grips offer handheld camera stabilization with handgrip control of focus, iris, and zoom settings; end limits can be set for easier single-user F/I/Z moves. Camera controls include the REC function, a 5-way joystick, and assignable user buttons. This set includes one MRR-1 Master Grip Right Rocker, one MLW-1, Master Grip Left Wheel, accessories, and cables. A hard-shell case with custom-cut foam cradles the components when transporting and storing the set. Note: Lens motors, respective cables, and 15mm rods/supporting hardware not included - MRR-1 Master Grip (Right-Hand Rocker) The ARRI MRR-1 Master Grip (Right-Hand Rocker) combines handheld camera stabilization with comprehensive lens and camera control. With a form factor based on the classic ARRI handgrips, the Master Grips add flexible and responsive fingertip control for handheld shooting. Aimed at ALEXA, AMIRA, and third-party camera operators, the Master Grips can also be mounted on tripod pan handles, and on pedestal heads for controlling cameras in studio or multi-cam setups. A pair of Master Grips provide full control of focus, iris, and zoom settings on cine-style lenses, and offer comfortable control of integrated servo motors on ENG- and EF-type lenses. Focus, iris, and zoom speeds are adjustable, and end limits can be set for easier single-user moves. Camera controls include the REC function, and access to user buttons for both ARRI and third-party cameras. A separately-available LCUBE CUB-1 is required for third-party camera control. The ergonomic design of the Master Grips reduces strain, enabling extended handheld operating; an "eyebrow"-type shield protects against accidental triggering and doubles as a finger rest. This right-handed rocker is one of four available Master Grip options that can be combined in right- or left-handed pairs. The rocker grips enable super-smooth zooming, while the thumb wheels are suited for focusing or iris, or adjustments. An integrated touchscreen and a 5-way joystick each offer easy setup of the ARRI Master Grips.
- Compatible Cameras
- ALEXA, AMIRA, and third-party cameras
Features - Comprehensive lens and camera control; LCUBE CUB-1 is required for third-party camera control (available separately)
- Setup via touchscreen interface or 5-way joystick
- Two LBUS ports for camera and lens connections
- Adjustable-speed rocker grip enables super-smooth zooming
- Shield protects against accidental triggering and acts as a finger rest

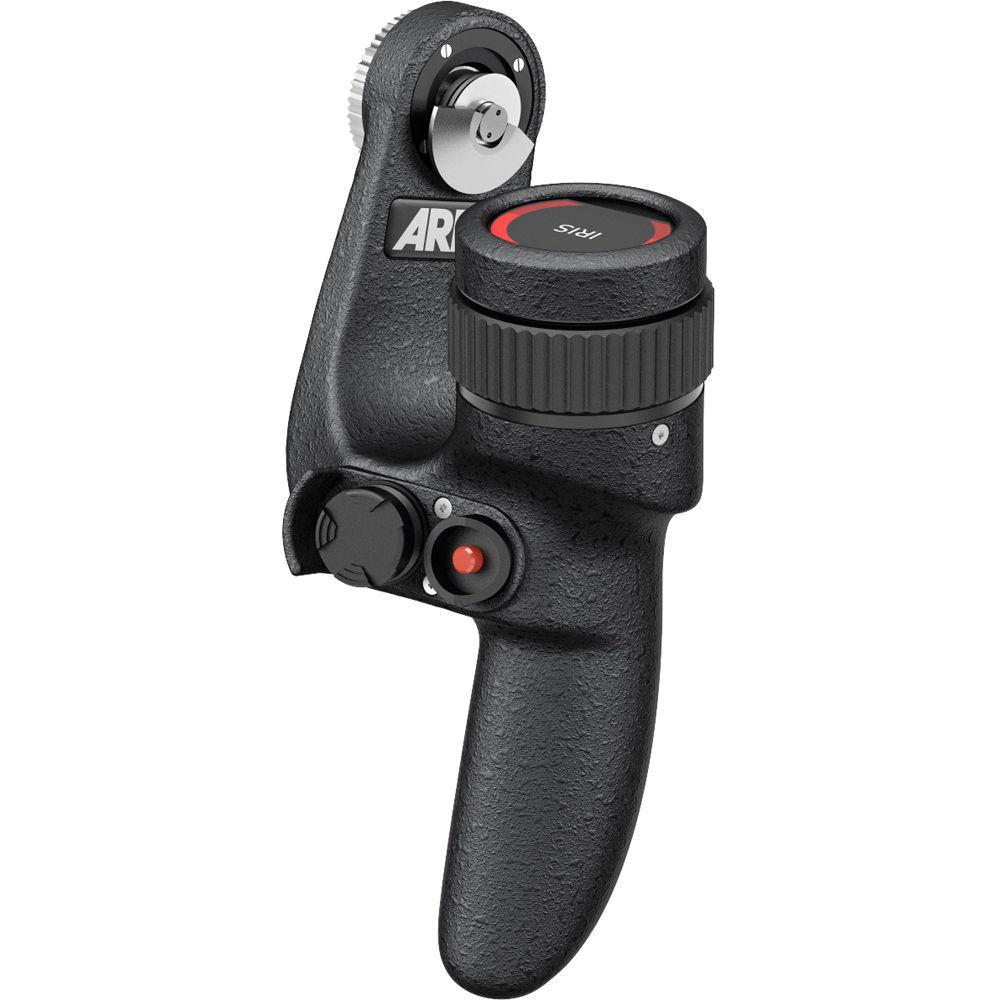

- MLW-1 Master Grip (Left-Hand Wheel) The ARRI MLW-1 Master Grip (Left-Hand Wheel) combines handheld camera stabilization with comprehensive lens and camera control. With a form factor based on the classic ARRI handgrips, the Master Grips add flexible and responsive fingertip control for handheld shooting. Aimed at ALEXA, AMIRA, and third-party camera operators, the Master Grips can also be mounted on tripod pan handles, and on pedestal heads for controlling cameras in studio or multi-cam setups. A pair of Master Grips provide full control of focus, iris, and zoom settings on cine-style lenses, and offer comfortable control of integrated servo motors on ENG- and EF-type lenses. Focus, iris, and zoom speeds are adjustable, and end limits can be set for easier single-user moves. Camera controls include the REC function, and access to user buttons for both ARRI and third-party cameras. A separately-available LCUBE CUB-1 is required for third-party camera control. The ergonomic design of the Master Grips reduces strain, enabling extended handheld operating; an "eyebrow"-type shield protects against accidental triggering and doubles as a finger rest. This left-handed wheel is one of four available Master Grip options that can be combined in right- or left-handed pairs. The rocker grips enable super-smooth zooming, while the thumb wheels are suited for focusing or iris, or adjustments. An integrated touchscreen and a 5-way joystick each offer easy setup of the ARRI Master Grips.
- Compatible Cameras
- ALEXA, AMIRA, and third-party cameras
Features - Comprehensive lens and camera control; LCUBE CUB-1 is required for third-party camera control (available separately)
- Setup via touchscreen interface or 5-way joystick
- Two LBUS ports for camera and lens connections
- Adjustable-speed thumb wheel for focus pulling, and iris adjustments
- Shield protects against accidental triggering and acts as a finger rest

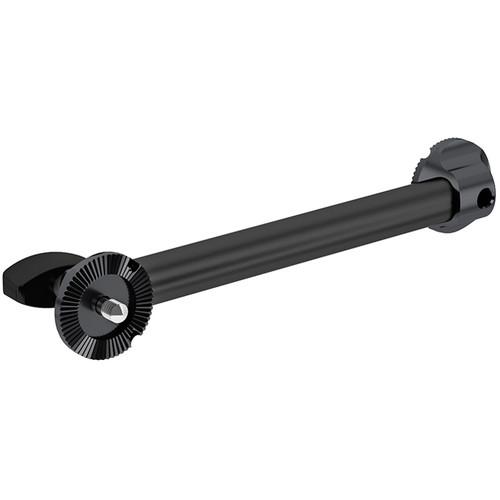

- Handgrip Extension (6.3") The black, 6.3" tubular ARRI Handgrip Extension fits between an ARRI Master Grip or handgrip, and your camera or rig base. Use the extension to position the grip comfortably based on your rig configuration. This rosette-based extension is constructed from stainless steel, and is the middle length of three available versions.The Handgrip Extension's notched rosette design ensures a stable fit, fastening with an integrated, winged screw.
Features - Compatible with ARRI standard rosettes
- Constructed of stainless steel

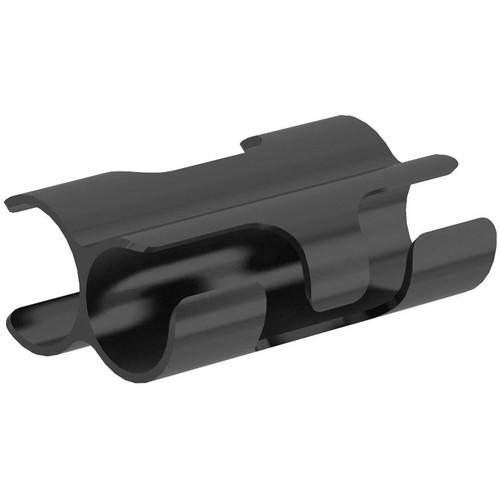

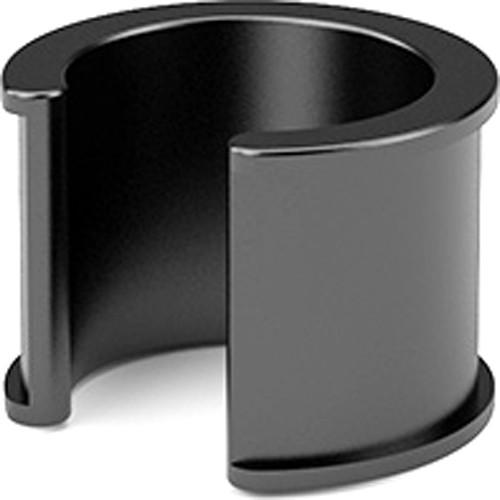

- Cable Clip (15mm) Provided by third party: Facilitates cable management around Master Grips and lens motors Clips on 15mm camera rods and Master Grips extensions.

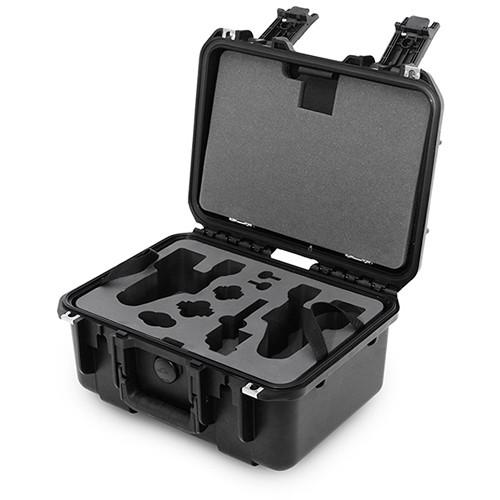

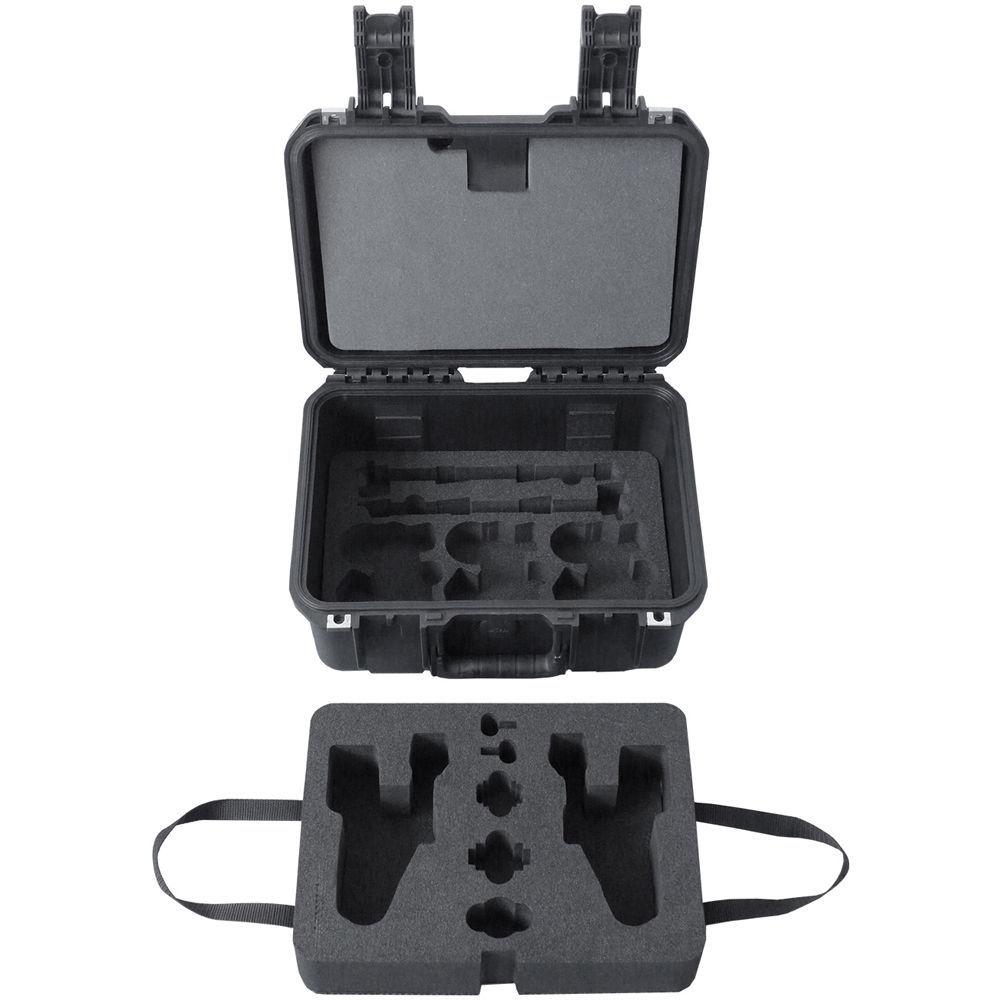

- Master Grip Case The ARRI Master Grip Case is designed to hold a complete set of the Master Grip electronic-control components. Store and transport one right and one left Master Grip, two handgrip extensions and one extension tube, three motors, two LCUBE signal converters with brackets, and corresponding cables. This hard-shell case's custom-cut foam interior snugly cradles the Master Grip set items.
- Angled LBUS to LCS Cable (2.6')
- Angled LBUS to Angled LBUS Cable (2')

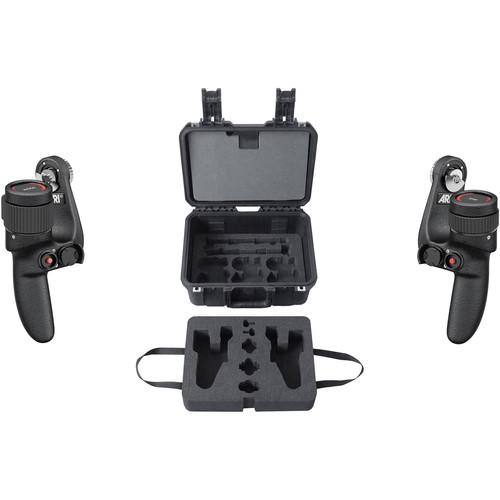

In the Box Bundle Items MRR-1 Master Grip (Right-Hand Rocker) uwbzbbbbcaxbyqtbefebcyxaxvsdubysxu MLW-1 Master Grip (Left-Hand Wheel) 2 x Handgrip Extension (6.3") 2 x Cable Clip (15mm) Angled LBUS to LCS Cable (2.6') Angled LBUS to Angled LBUS Cable (2') Master Grip Case
Also Includes - Offset Handgrip Extension Tube
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Master Grip Zoom Set for ALEXA Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MRR-1 Master Grip (Right-Hand Rocker)
| Interface (Bus) Type | 2 x LBUS | | Supply Voltage | 12-34 V | | Current Consumption | 15 mAh at 24 V | | Material of Construction | Cast magnesium, steel | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions | 6.8 x 4 x 3.2" (172 x 102 x 81 mm) | | Weight | 14.8 oz (420 g) | | | | Box Dimensions (LxWxH) | 9.9 x 6.7 x 4.9" | - MLW-1 Master Grip (Left-Hand Wheel)
| Interface (Bus) Type | 2 x LBUS | | Supply Voltage | 12-34 V | | Current Consumption | 30 mAh at 24 V | | Material of Construction | Cast magnesium, steel | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions | 6.8 x 4 x 3.2" (172 x 101 x 81 mm) | | Weight | 13.4 oz (380 g) | | | | Box Dimensions (LxWxH) | 9.9 x 6.8 x 5.2" | - Handgrip Extension (6.3")
| Material of Construction | Stainless steel | | Dimensions | Overall: 2 x 1.6 x 7.9" / 50 x 40 x 200 mm
Length Between Rosettes: 6.3" / 160 mm | | Weight | 6.7 oz / 190 g | | | | Box Dimensions (LxWxH) | 7.7 x 1.3 x 1.1" | - Cable Clip (15mm)
| | | Accessory Type | Cable clip | | | | Intended For | 15 mm rod | | Packaged Qty | 2 | | | | Box Dimensions (LxWxH) | 4.3 x 3.0 x 0.8" | - Angled LBUS to LCS Cable (2.6')
| | | Cable Type | Camera control cable | | Length | 2.6 ft | | Recommended Use | Camera | | | | CONNECTOR | LBUS - 90
