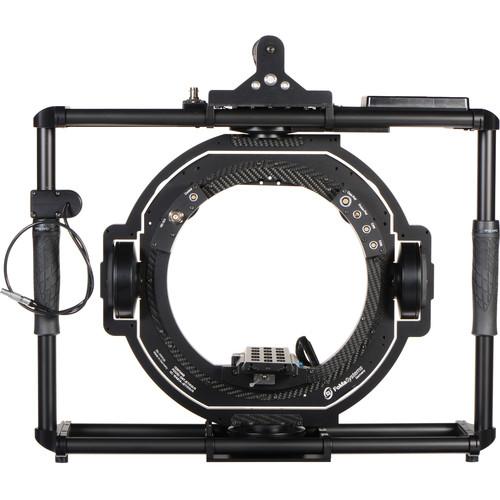

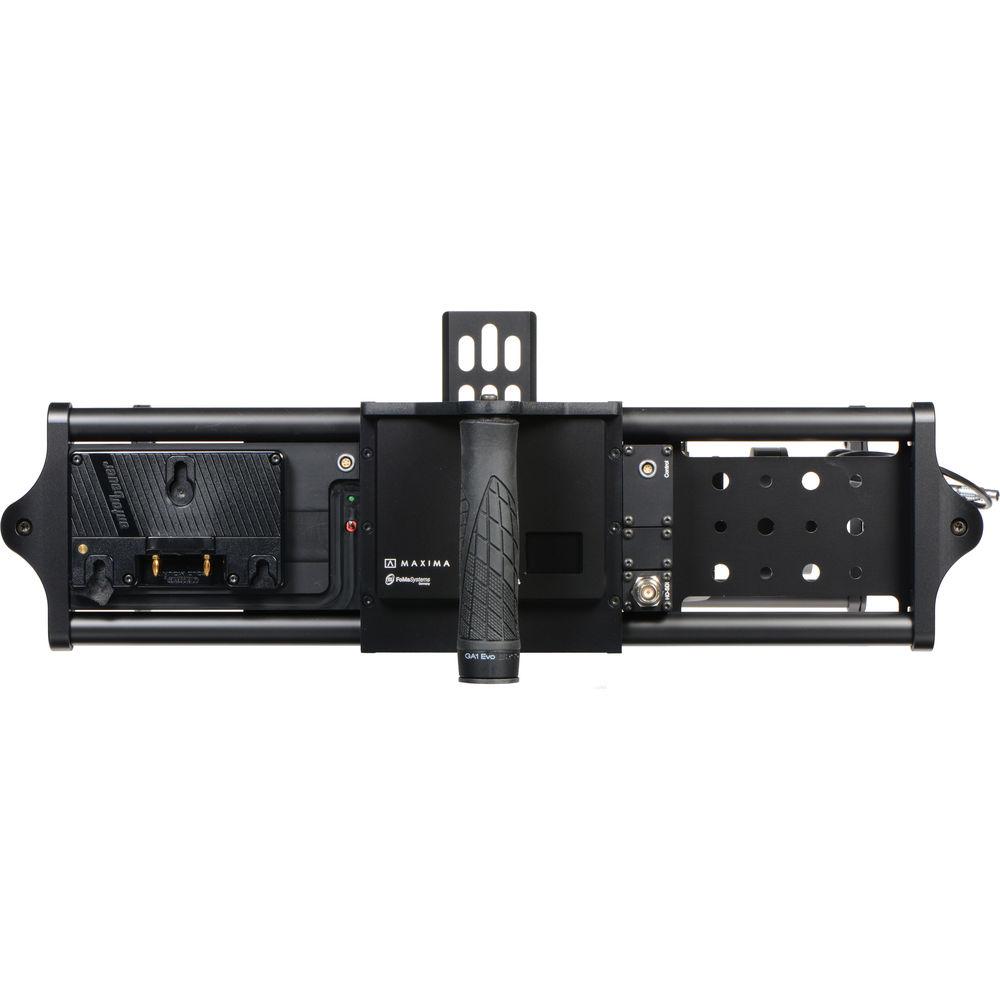

User Manual for ARRI Maxima MX30 3-Axis Gimbal with Anton Bauer Gold Mount Click to enlarge the picture
Contents of the user manual for the ARRI Maxima MX30 3-Axis Gimbal with
- Product category: See All Gimbal Stabilizers ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI See All Gimbal Stabilizers
 |
User manual for the ARRI Maxima MX30 3-Axis Gimbal with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

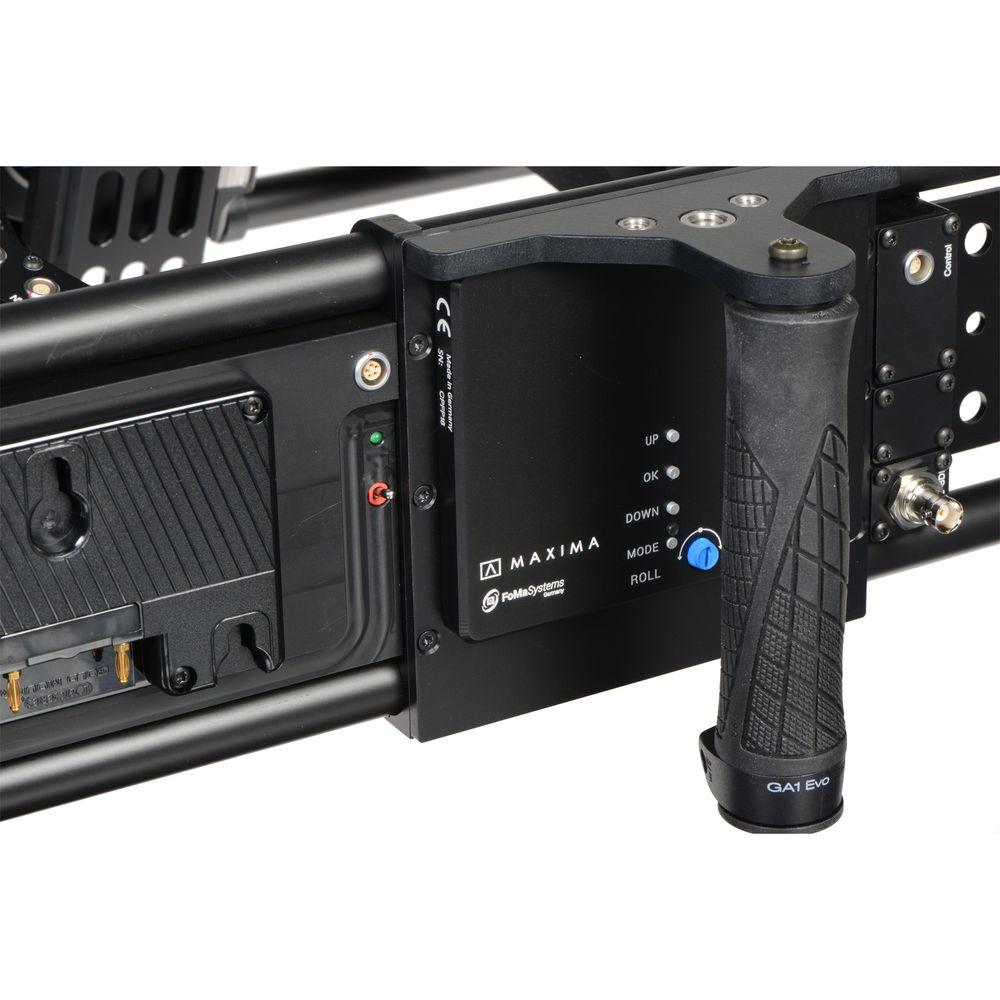

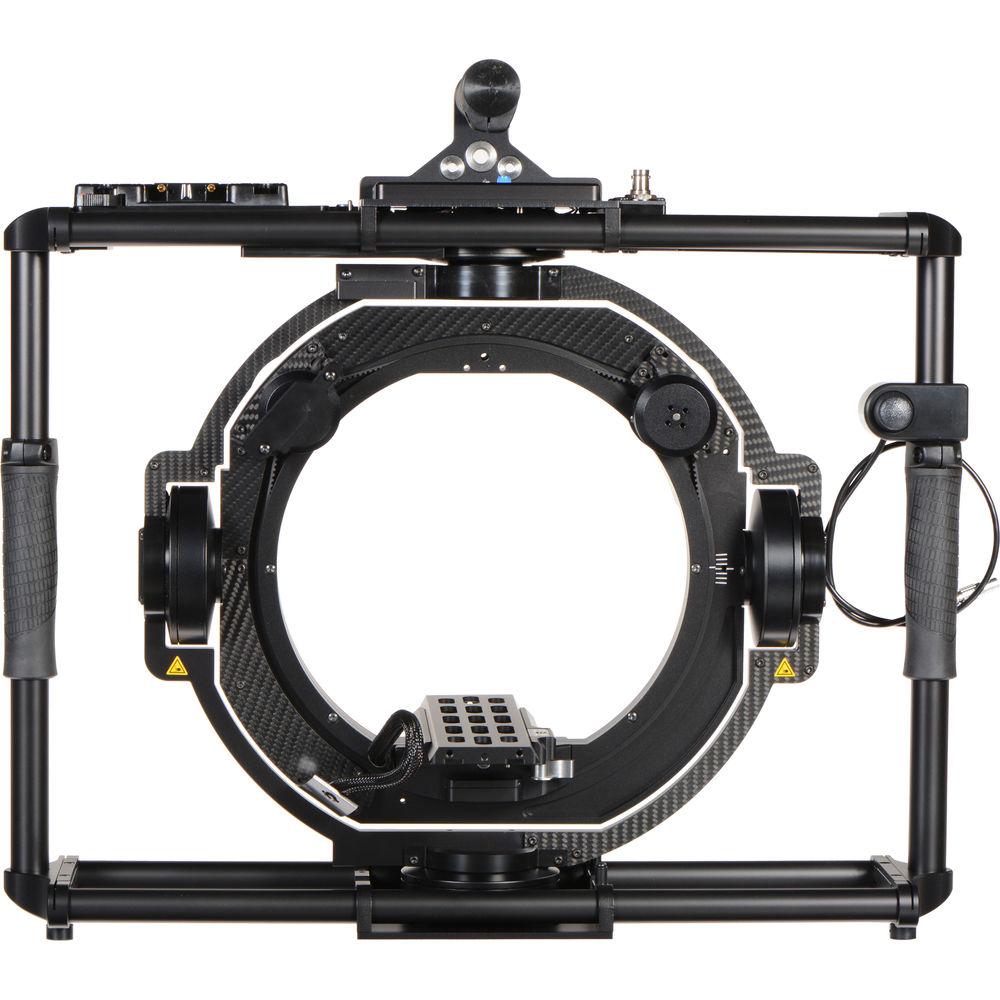

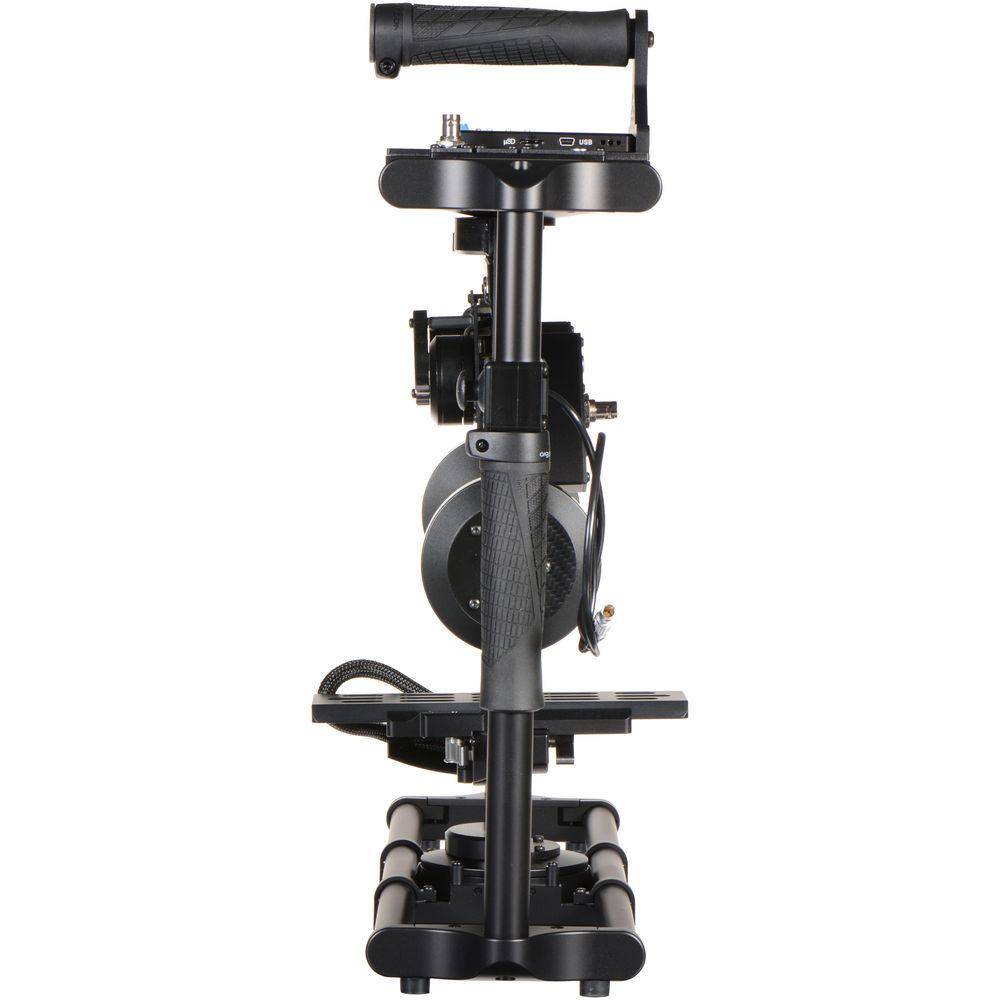

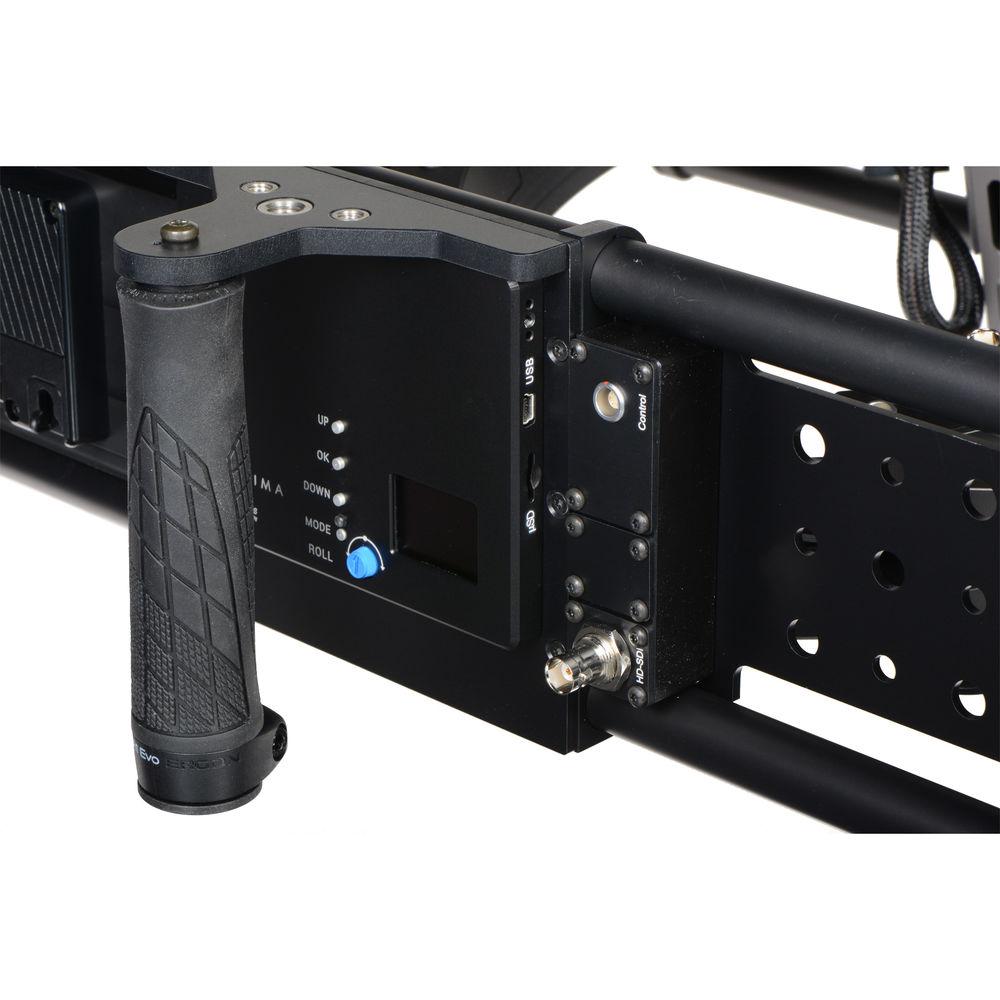

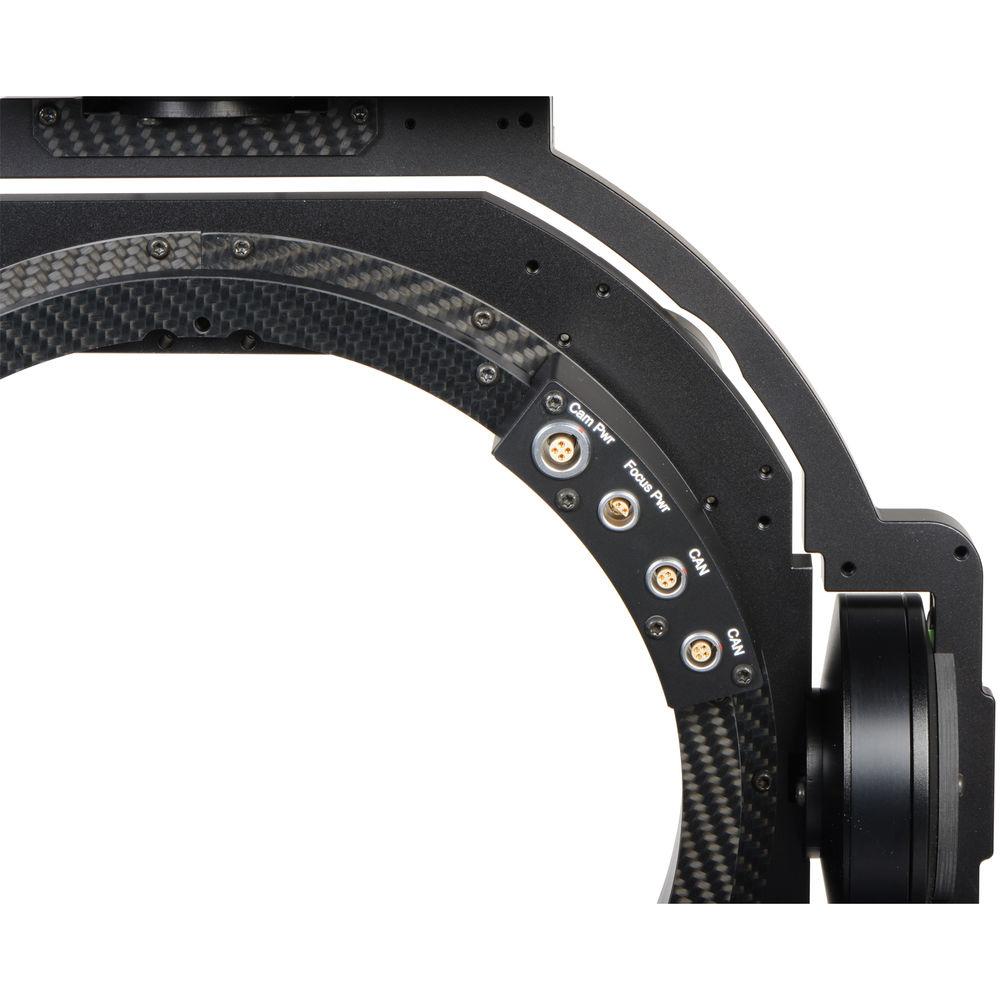

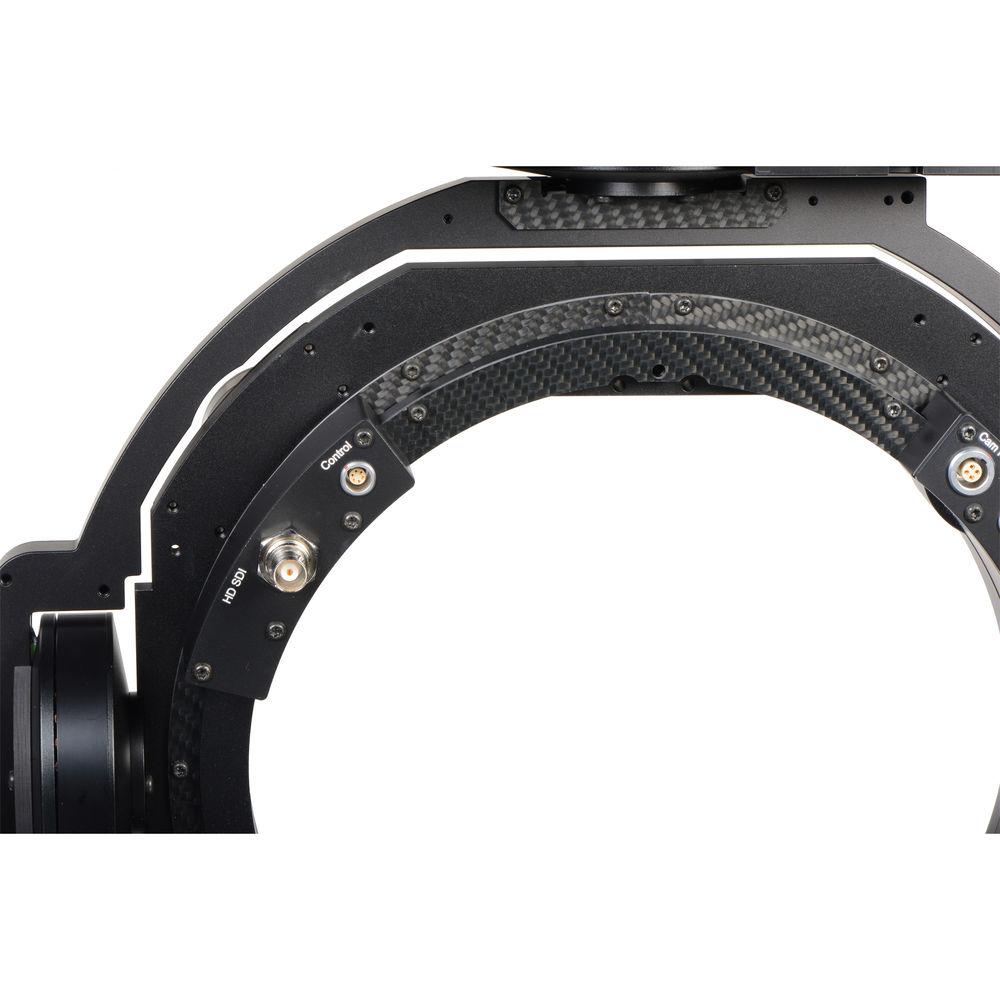

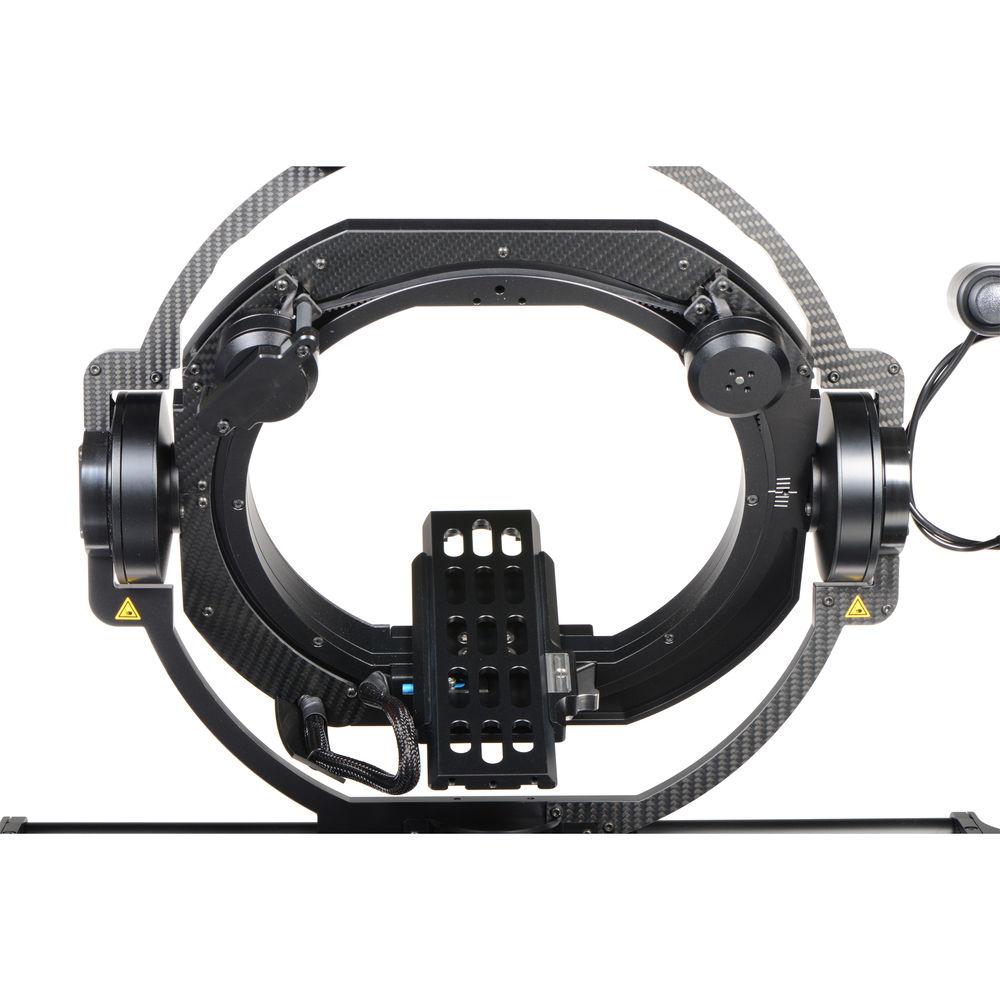

Product description The Maxima MX30 3-Axis Gimbal from Arri is a 3-axis electronically stabilized gimbal, suitable for a wide range of users. It offers a stable center of gravity and supports camera systems up to 66.1 lb. The gimbal features a durable ball bearing roll cage and brushless motors. Direct and intuitive handling of this gimbal is managed by a 32-bit multiprocessor and an additional slave RISC processor support ensures processing of multi-sensor data without any losses. The gimbal offers a maximum angular deviation of 0.05° and features a variety of pre-configured profiles with support for customized profiles.The 1.5” OLED screen allows users to keep track of the operating mode and battery status, and to quickly toggle between different profiles. On-the-fly configuration of software setups and changes between the five customized camera settings can be done via the smart GUI. Additionally, bigger setup alterations and software updates can be implemented via USB.The outer frame of the gimbal features a joystick (located close to the handles) that helps you to shoot from different angles. An optional bidirectional 2.4 GHz wireless remote control is also available for tilt, pan, and roll movements. In addition, the gimbal offers vertical swivels of up to 90°. - Separate sensors for camera and frame position
- Additional rotating position sensors for pan and tilt axes
- Thumb-controlled joystick for tilt and pan
- Supports various mounting and support brackets

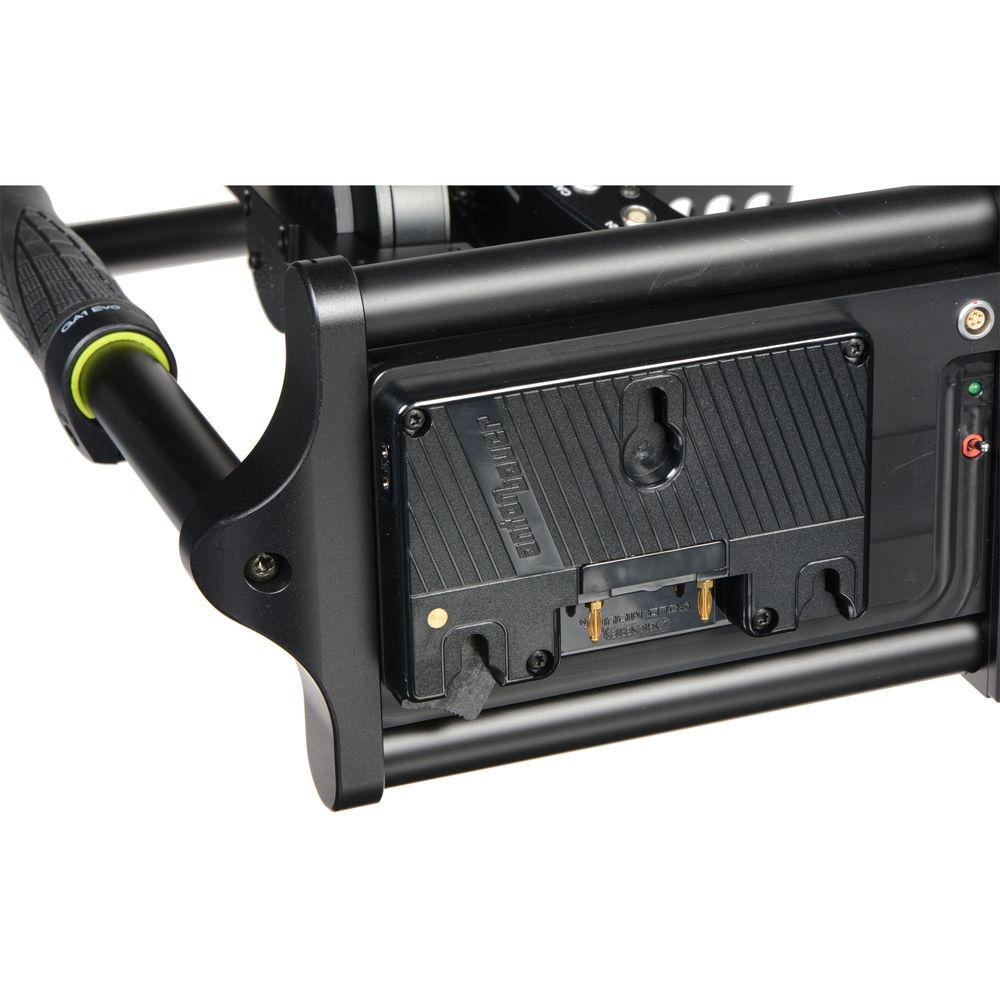

- Anton Bauer Gold mount power supply
In the Box ARRI Maxima MX30 3-Axis Gimbal with Anton Bauer Gold Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Maxima MX30 3-Axis Gimbal with Anton Bauer Gold Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI MX30 Specs | Payload | 66.1 lb (30 kg) | | Positioning Accuracy | 0.017° | | Rotation Range | Maximum Rotation Range
Pan Axis: Up to 160°
Tilt Axis: +/- 150°
Roll Axis: +/- 40° | | Positioning | Positioning Speed
Pan Axis: 160°/s
Tilt Axis: 200°/s
Roll Axis: 90°/s | | Camera Dimensions | Depth from COG: 19.6" (500 mm)
Height from Mounting Plate: 8.2" (210 mm)
Width: 8.8" (225 mm) | | Operating Temperature | 5 to 122°F (-15 to 50°C) | | Power Supply | Anton Bauer Gold mount | | Dimensions (W x H x D) | 21.2 x 20.3 x 5.3" (540 x 518 x 137 mm) | | Weight | 14.7 lb (6.7 kg) | | | | Package Weight | 23.05 lb | | Box Dimensions (LxWxH) | 25.827 x 10.63 x 5.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
