User Manual for ARRI Maxima MX30 QL 3-Axis Motorized Gimbal Pro Set Click to enlarge the picture
Contents of the user manual for the ARRI Maxima MX30 QL 3-Axis Motorized
- Product category: See All Gimbal Stabilizers ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI See All Gimbal Stabilizers
 |
User manual for the ARRI Maxima MX30 QL 3-Axis Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

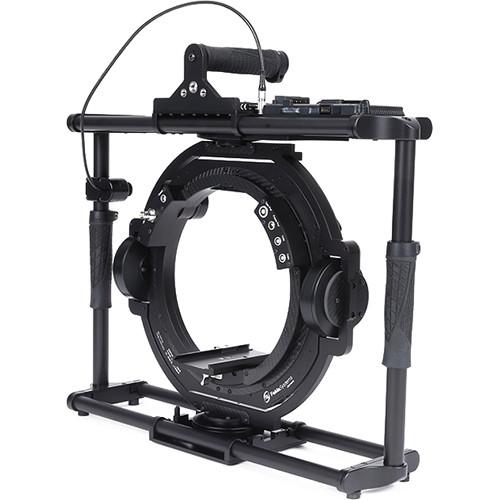

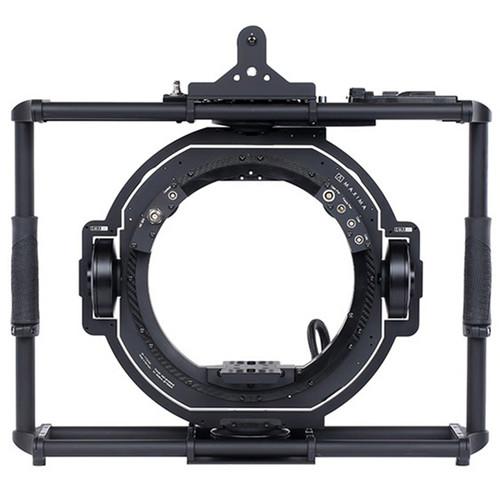

Product description The ARRI MAXIMA MX30 QL Gimbal Pro Set (V-Mount) includes the ring-style, electronically stabilized, 3-axis camera gimbal, a wireless remote, and three camera-power cables. Use this high-end gimbal on its own to create fluid handheld moves, or as an integrated component of TRINITY - ARRI's 5-axis hybrid camera stabilizer. With a maximum payload of up to 66 pounds, and an open-ended mount, the MAXIMA is ready to roll, pan, and tilt with almost any cine or broadcast–style HD or film camera. Power cables are included for the ALEXA, ALEXA Mini, and for a 12V XLR-compatible camera. Its solid build, high torque, durable ball-bearing roll cage, 32-bit ARM–based multi-processor, and brushless motors counteract unwanted movement, enabling an operator to shoot freely. Control the MAXIMA using its joystick or the included 2.4GHz wireless remote control; both preset and customized profiles are available. Precision components and software minimize angular deviation and offer seamless, reliable operation with tilt moves up to 90°. For ease of use, the included joystick may be mounted at various positions on the MAXIMA's handheld frame.
When switching between configurations, mount and detach your camera from the gimbal using the tool-free Quick Lock Camera Plate. A top-mounted handle and two side handgrips offer multiple options for handheld use. Long-lasting V-Mount batteries can be attached to the MAXIMA MX30 QL's integrated battery plate for powering the gimbal and camera. Features - Use with almost any cine-style HD camera or film camera rig weighing up to 66 pounds
- Controllable by the operator using the mountable joystick, or by a camera assistant with the included wireless remote control

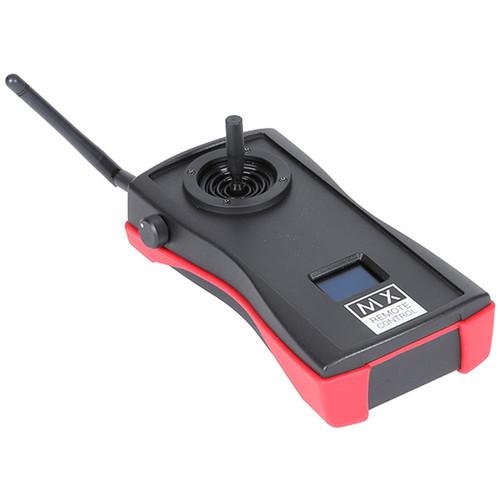

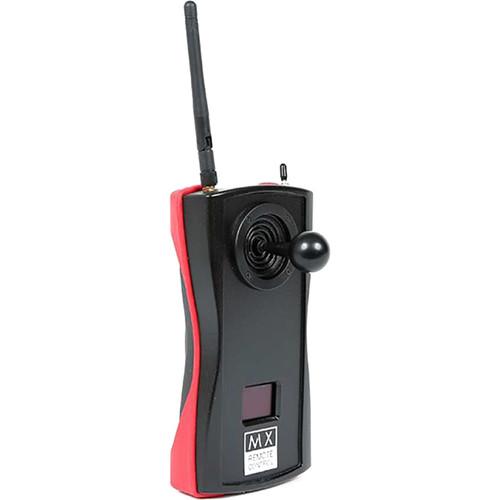

- Bi-directional, 2.4 GHz remote control with 1.5" OLED screen
- Handheld, ring-style gimbal can be used alone or with ARRI's TRINITY stabilizer
- 32-Bit ARM stabilization, ball-bearing roll cage, and high torque enable precise, reliable moves
- Integrated quick-lock camera plate and V-Mount battery plate

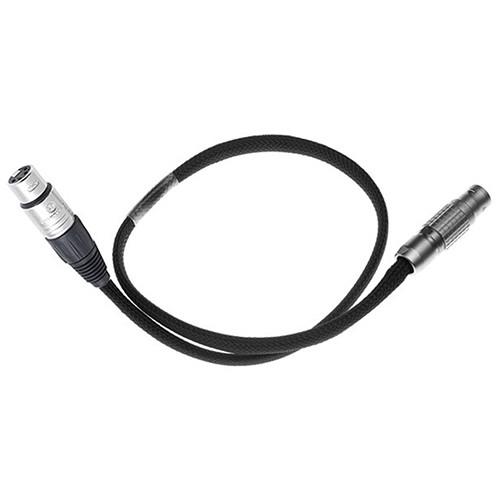

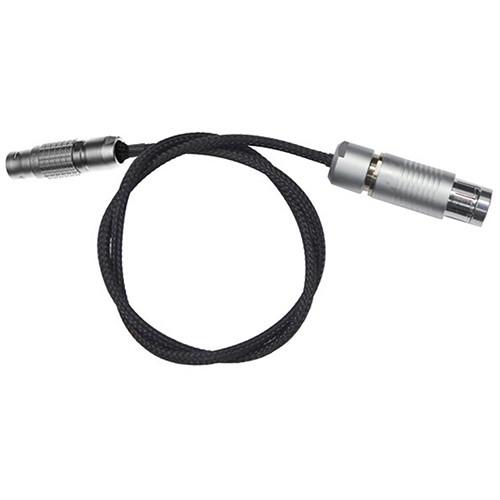

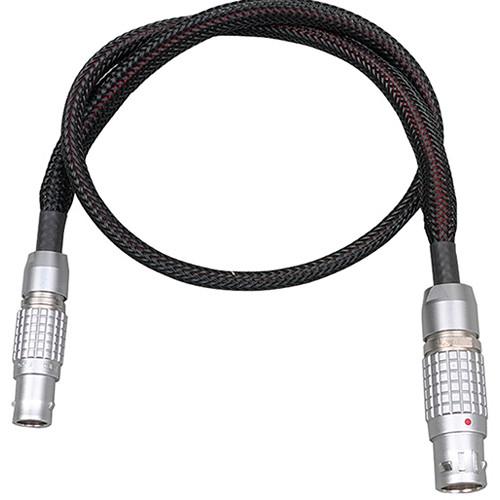

- Includes ALEXA, ALEXA Mini, and 12V XLR camera power cables

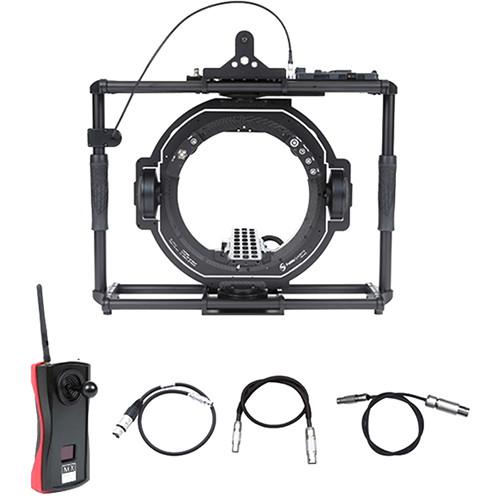

In the Box ARRI Maxima MX30 QL 3-Axis Motorized Gimbal Pro Set (V-Mount) Wireless Remote (2.4 GHz) 12V ALEXA Power Cable 12V ALEXA Mini Power Cable 12V XLR Power Cable Quick-Lock Camera Plate Joystick Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Maxima MX30 QL 3-Axis Motorized Gimbal Pro Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI MX30 Specs | Maximum Capacity | 66 lb (30 kg) | | Maximum Angular Deviation | 0.05° | | Vertical Tilt | Up to 90° | | Processor | 32-bit | | Wireless Remote | Type: Bi-directional, 2.4 GHz
OLED display: 1.5" (38 mm)
Range: 820' (250 m) | | Dimensions (WxHxD) | Gimbal: 21.3 x 20.4 x 5.4" (540 x 518 x 137 mm)
Wireless Remote: 3.1 x 4.3 x 7.9" (80 x 110 x 200 mm) | | Weight | Gimbal: 16.5 lb (7.5 kg)
Wireless Remote: 1.1 lb (0.5 kg) | | | | Package Weight | 32.6 lb | | Box Dimensions (LxWxH) | 25.0 x 24.0 x 17.0" |
