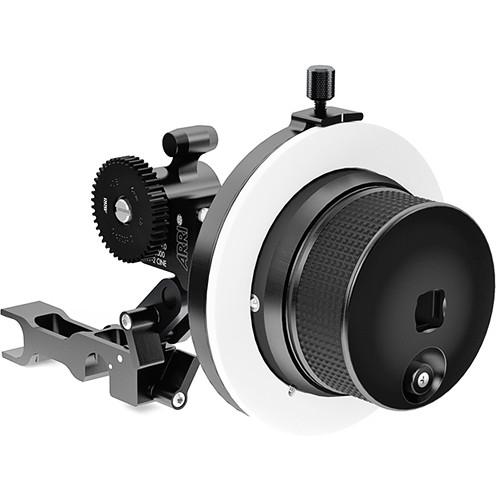

User Manual for ARRI Mini Follow Focus MFF-2 Cine 2-Speed Set Click to enlarge the picture
Contents of the user manual for the ARRI Mini Follow Focus MFF-2 Cine
- Product category: Follow Focus Systems ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Follow Focus Systems
|
User manual for the ARRI Mini Follow Focus MFF-2 Cine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI Mini Follow Focus MFF-2 Cine 2-Speed Set assembles to create a lightweight follow focus unit that can mount on either side of your camera. The focus knob features a 2-speed design that allows you to push in or pull out the knob to change the gear ratios without having to switch drive gears. This allows you to change the speed of your focus pulls without changing your hand speed, and is useful for working with lenses with long focus throws.
The Cine Base snaps onto 15mm LWS rods and features a double-hinged mechanism that allows you to adjust the drive unit to match the diameter of your lens. The focus knob features a hard stop, marking disk, and has a built-in accessory socket. The included 0.8 MOD drive gear, is 6mm thick and has 43 teeth, all of which make the unit well suited for use with larger prime and 35mm format zoom lenses. - Mini Follow Focus MFF-2 Cine Base The Mini Follow Focus MFF-2 Cine Base from ARRI is a main building block of the MFF-2 follow focus system. This sturdy, single-sided unit snaps onto any 15mm rod lightweight support (not included). The Cine Base is designed with a 2:1 knob-to-gear ratio for quick but smooth focus pulls on cine-style lenses, with their typically large range of focus barrel rotation. The base's reversing feature can be used to maintain the standard direction of the focusing knob when using Nikon and Leica lenses.The modular design of the MFF-2 enables you to build the follow focus to suit your needs. A choice of three compatible ARRI focus knobs is available—standard, two-speed, or hard-stop (all left-sided). Gears come in various sizes and pitches to work with different lens barrel sizes and gear ring pitches. Focus knobs and lens gears are not included with the MFF-2 Cine Base.
Features - 2:1 knob-to-gear ratio is designed for cine-style lenses' large range of focus barrel rotation
- Single-sided (left) unit snaps onto lightweight 15mm rods
- Works with ARRI standard, two-speed, or hard-stop focus knobs (knob not included)
- Compatible with ARRI lens gears of various sizes and pitches (gear not included)
- Reversing function to maintain standard knob direction when used with Nikon and Leica lenses
- Follow Focus Gear (0.8 Mod, 43 Teeth) This ARRI Follow Focus Gear can be used with all ARRI follow focus systems. The 43-tooth, 0.8 mod gear is designed for use with larger prime lenses and 35mm format zoom lenses that have 32 pitch gear rings. Its gear face width measures a relatively slim 6mm.
- Follow focus gear meshes with a lens ring to enable focus adjustments
- 0.8 mod, 43-tooth, 32 pitch gear with a face width of 6mm
- For larger prime lenses and 35mm format zoom lenses with standard 32-pitch gear rings
- Two-Speed Knob with Flat Marking Disk for Select Lens (Left Side)
In the Box Bundle Items Mini Follow Focus MFF-2 Cine Base eerqffdvwwwbfvttuft Two-Speed Knob with Flat Marking Disk for Select Lens (Left Side) Follow Focus Gear (0.8 Mod, 43 Teeth) Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Mini Follow Focus MFF-2 Cine 2-Speed Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mini Follow Focus MFF-2 Cine Base
| Dimensions (HxWxD) | 3.3 x 4.1 x 1.2" (8.5 x 10.5 x 3.0 cm) | | Weight | 8 oz (226 g) | - Follow Focus Gear (0.8 Mod, 43 Teeth)
| Number of Gear Teeth | 43 | | Face Width | 0.2" (6 mm) | | Dimensions | Not specified by manufacturer | | Weight | 0.3 oz (8 g) | | | | Box Dimensions (LxWxH) | 2.8 x 1.2 x 0.7" | - Two-Speed Knob with Flat Marking Disk for Select Lens (Left Side)
