Product description The ARRI MLW-1 Master Grip Left Wheel Basic Set for ALEXA Mini provides left-handed lens and camera control when using prime lenses on an ARRI ALEXA Mini camera. This Master Grip combination includes an MLW-1 Master Grip Left Wheel, an SGR-1 Standard Right Grip (non-electronic), handgrip accessories, and an LBUS cable. The ARRI Master Grips offer handheld camera stabilization with handgrip control of focus, iris, and zoom (where applicable) settings; end limits can be set for easier single-user F/I/Z moves.Camera controls include the REC function, a five-way joystick, and assignable user buttons. A hard-shell case with custom-cut foam cradles the components when transporting and storing the set. Note: Lens motors, respective cables, and 15mm rods/supporting hardware not included. - Standard Grip Right SGR-1 The ARRI Standard Grip Right SGR-1 is a lightweight, non-electronic handgrip. With basically the same ergonomic design as the ARRI Master Grips, the SGR-1 will comfortably complement a Master Grip Left Rocker or Wheel.
The SGR-1 incorporates a standard ARRI rosette for attaching to a handgrip extension, rod bridge support, or directly to the camera body. - Designed to complement an ARRI Master Wheel Left Rocker or Wheel
- Standard 360° ARRI rosette connector

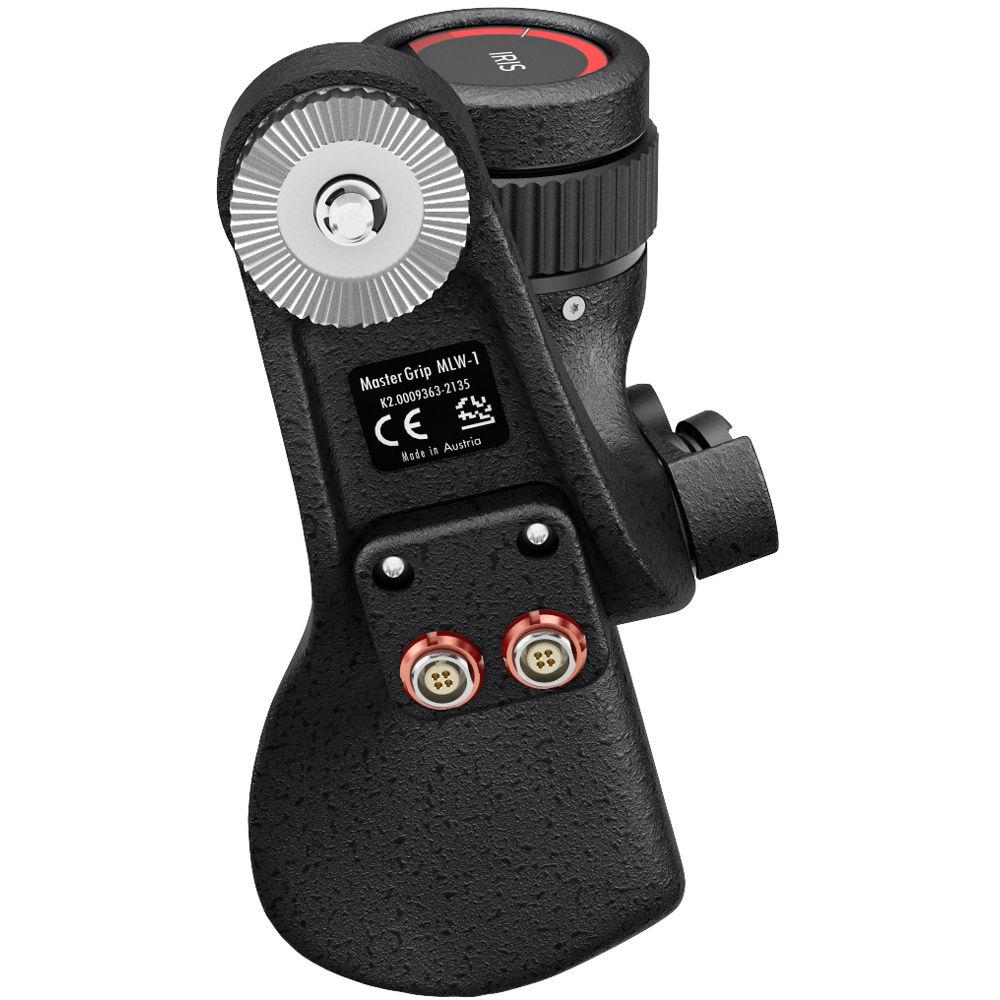

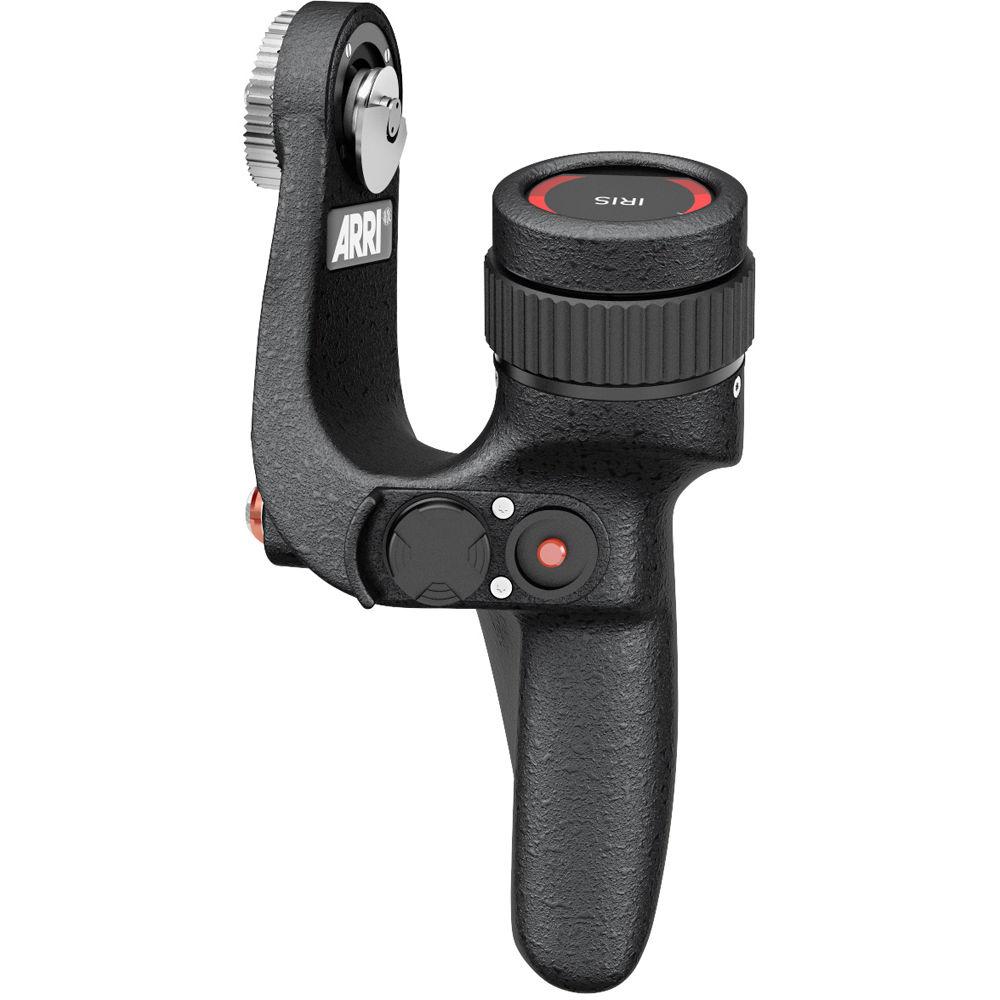

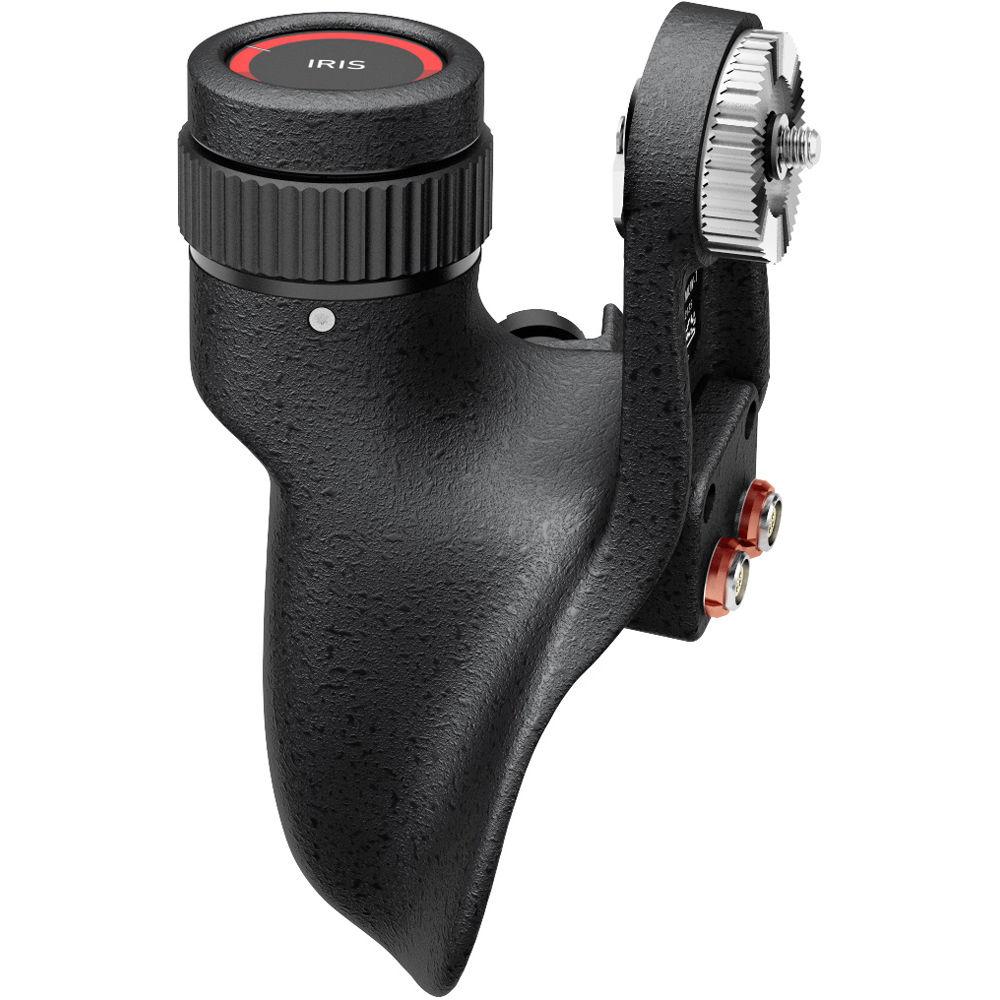

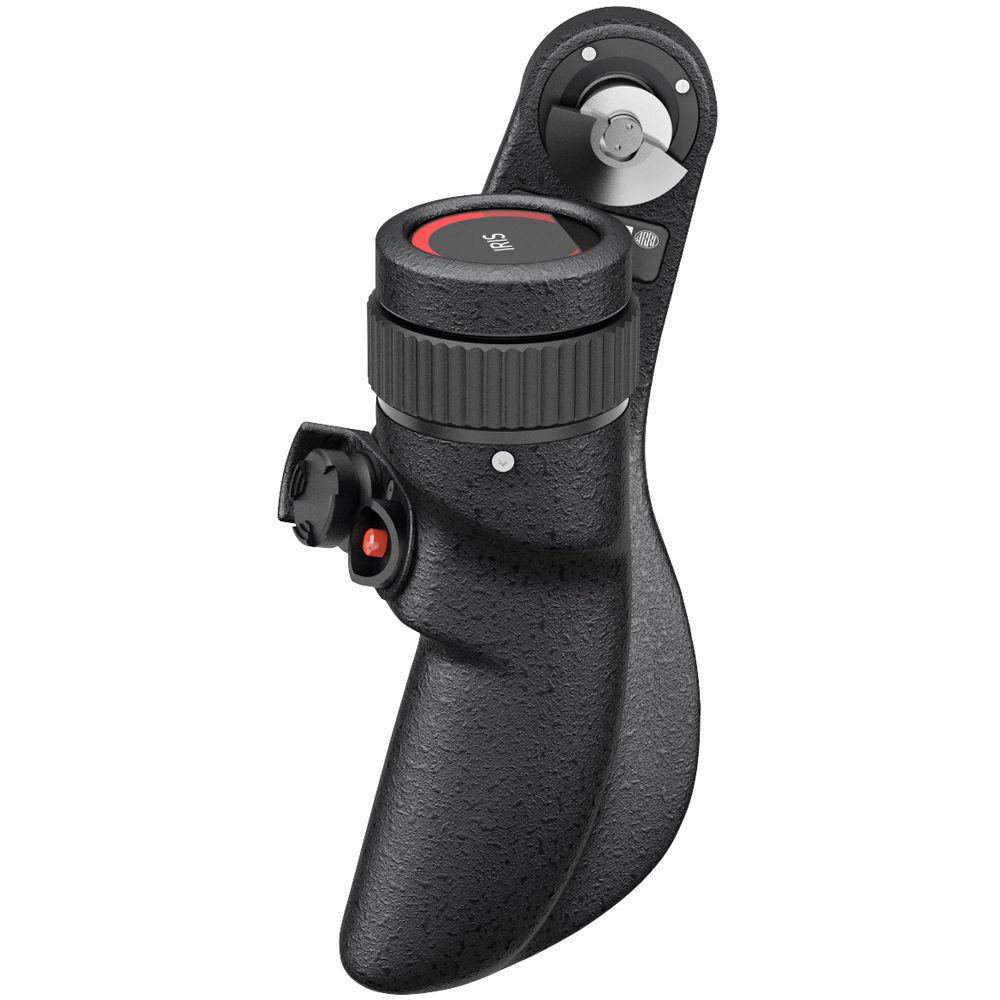

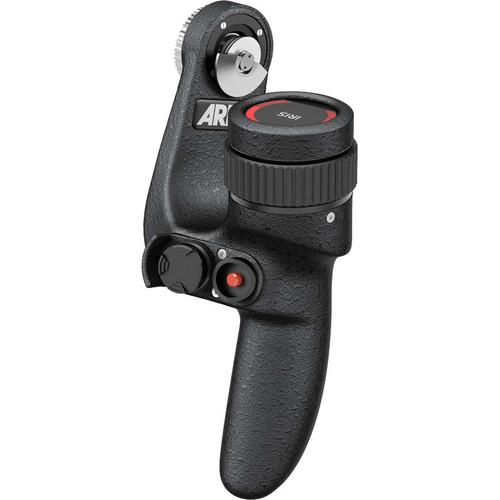

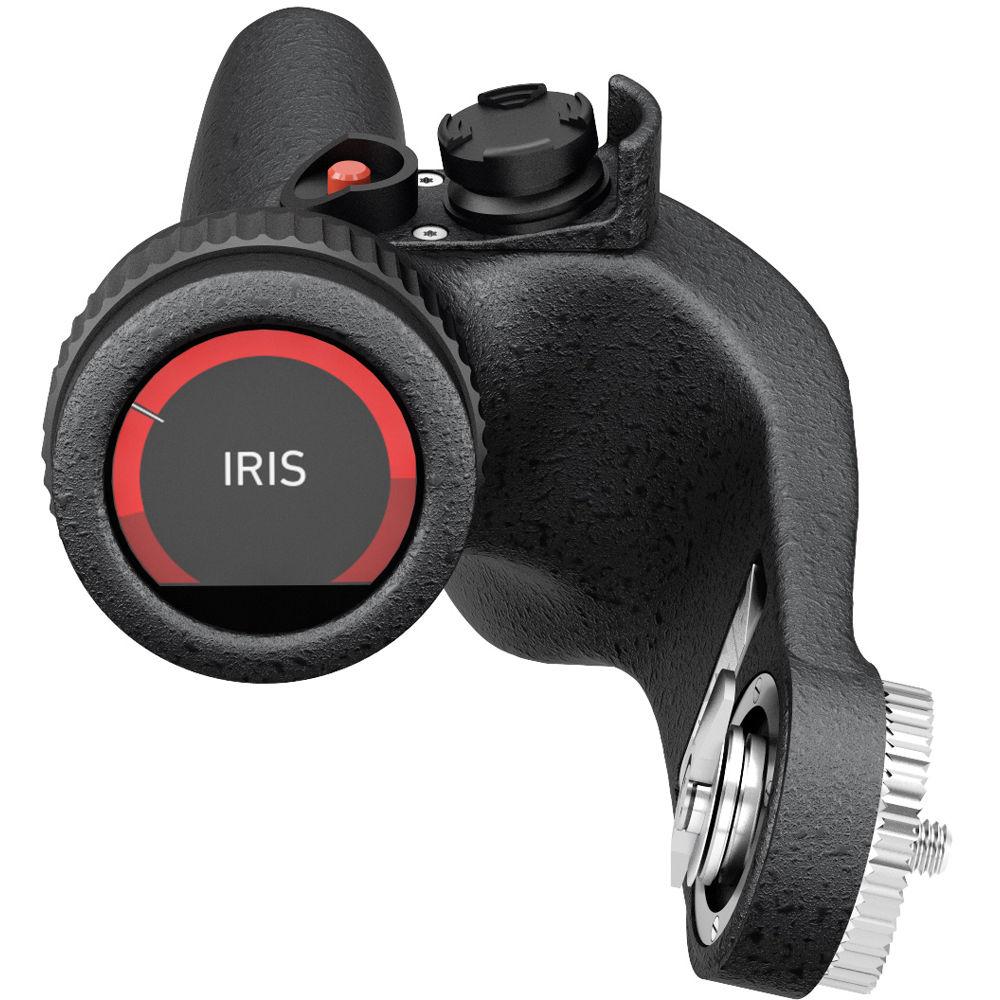

- MLW-1 Master Grip (Left-Hand Wheel) The ARRI MLW-1 Master Grip (Left-Hand Wheel) combines handheld camera stabilization with comprehensive lens and camera control. With a form factor based on the classic ARRI handgrips, the Master Grips add flexible and responsive fingertip control for handheld shooting. Aimed at ALEXA, AMIRA, and third-party camera operators, the Master Grips can also be mounted on tripod pan handles, and on pedestal heads for controlling cameras in studio or multi-cam setups. A pair of Master Grips provide full control of focus, iris, and zoom settings on cine-style lenses, and offer comfortable control of integrated servo motors on ENG- and EF-type lenses. Focus, iris, and zoom speeds are adjustable, and end limits can be set for easier single-user moves. Camera controls include the REC function, and access to user buttons for both ARRI and third-party cameras. A separately-available LCUBE CUB-1 is required for third-party camera control. The ergonomic design of the Master Grips reduces strain, enabling extended handheld operating; an "eyebrow"-type shield protects against accidental triggering and doubles as a finger rest. This left-handed wheel is one of four available Master Grip options that can be combined in right- or left-handed pairs. The rocker grips enable super-smooth zooming, while the thumb wheels are suited for focusing or iris, or adjustments. An integrated touchscreen and a 5-way joystick each offer easy setup of the ARRI Master Grips.
- Compatible Cameras
- ALEXA, AMIRA, and third-party cameras
Features - Comprehensive lens and camera control; LCUBE CUB-1 is required for third-party camera control (available separately)
- Setup via touchscreen interface or 5-way joystick
- Two LBUS ports for camera and lens connections
- Adjustable-speed thumb wheel for focus pulling, and iris adjustments
- Shield protects against accidental triggering and acts as a finger rest

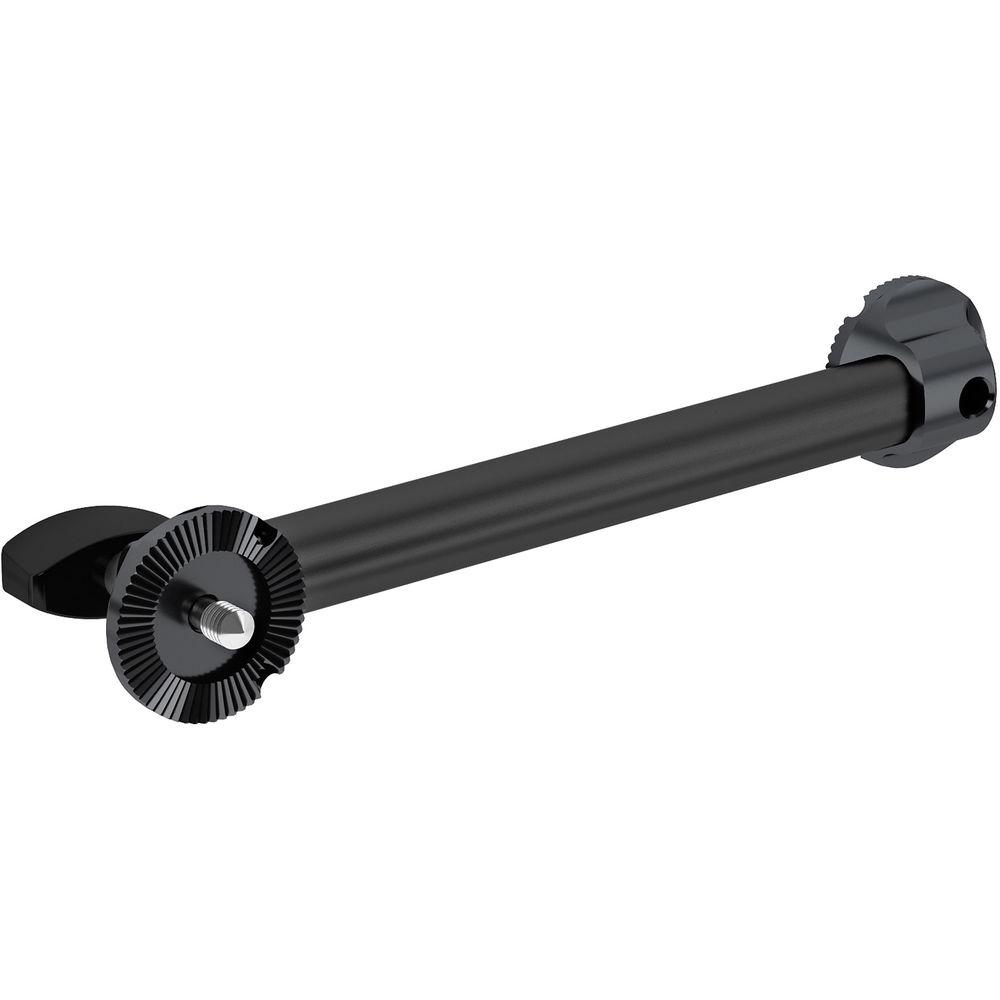

- Handgrip Extension (6.3") The black, 6.3" tubular ARRI Handgrip Extension fits between an ARRI Master Grip or handgrip, and your camera or rig base. Use the extension to position the grip comfortably based on your rig configuration. This rosette-based extension is constructed from stainless steel, and is the middle length of three available versions.The Handgrip Extension's notched rosette design ensures a stable fit, fastening with an integrated, winged screw.
Features - Compatible with ARRI standard rosettes
- Constructed of stainless steel
- Cable Clip (15mm) Provided by third party: Facilitates cable management around Master Grips and lens motors Clips on 15mm camera rods and Master Grips extensions.

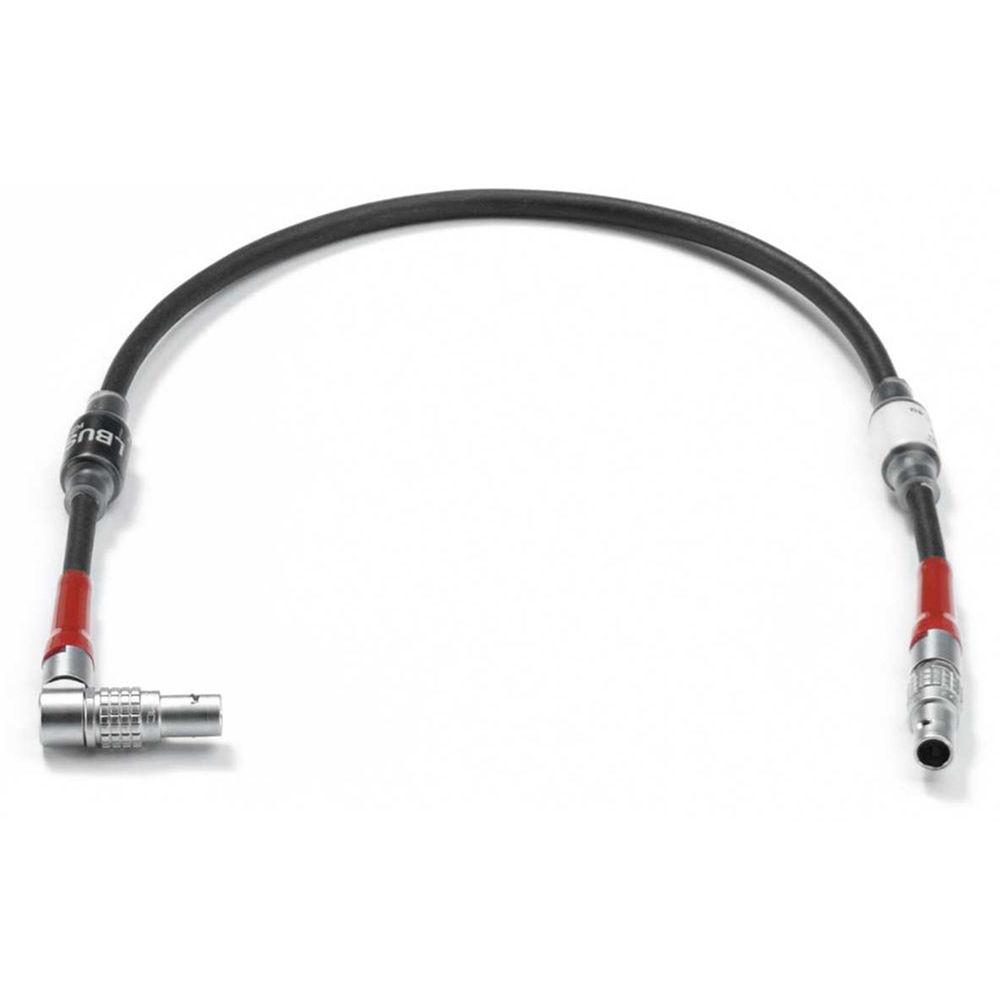

- Angled LBUS to Straight LBUS Cable (1.1') Provided by third party: Connects LBUS devices (e.g. Master Grips and cforce motors). Includes one angled LBUS connector.

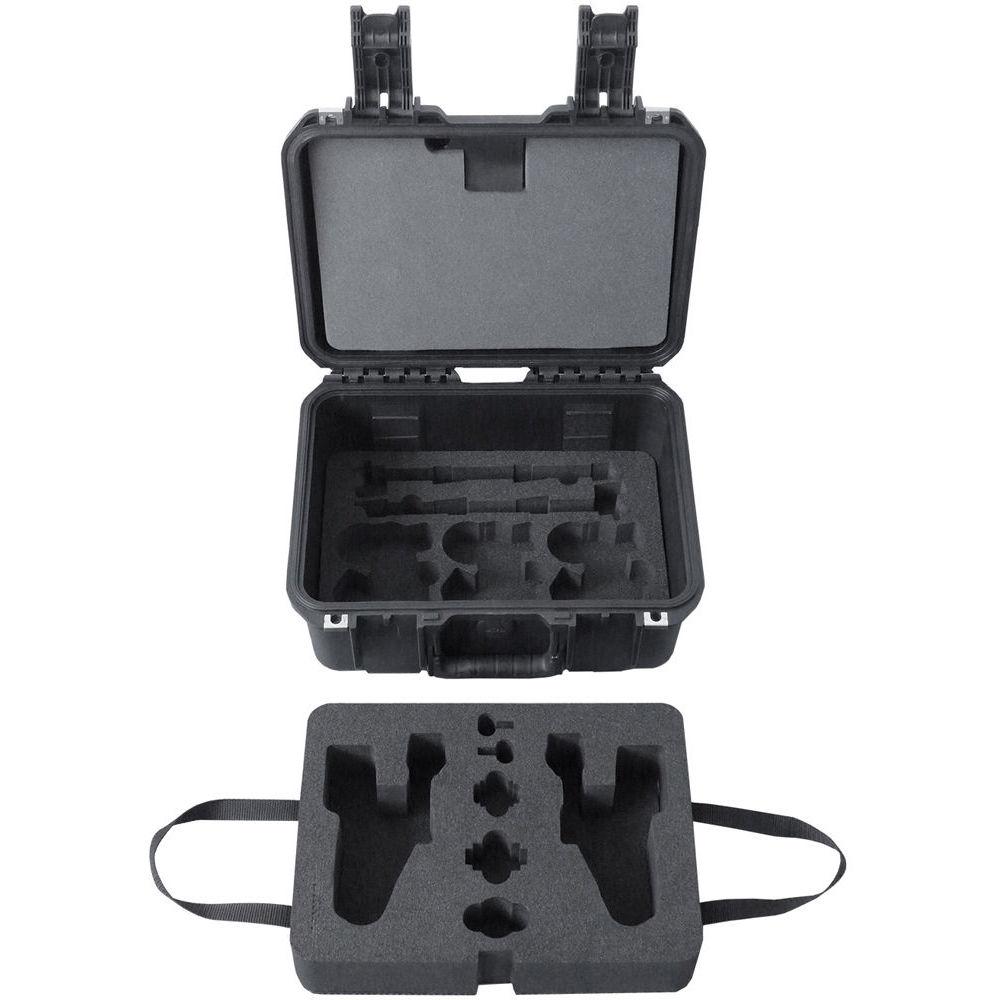

- Master Grip Case The ARRI Master Grip Case is designed to hold a complete set of the Master Grip electronic-control components. Store and transport one right and one left Master Grip, two handgrip extensions and one extension tube, three motors, two LCUBE signal converters with brackets, and corresponding cables. This hard-shell case's custom-cut foam interior snugly cradles the Master Grip set items.

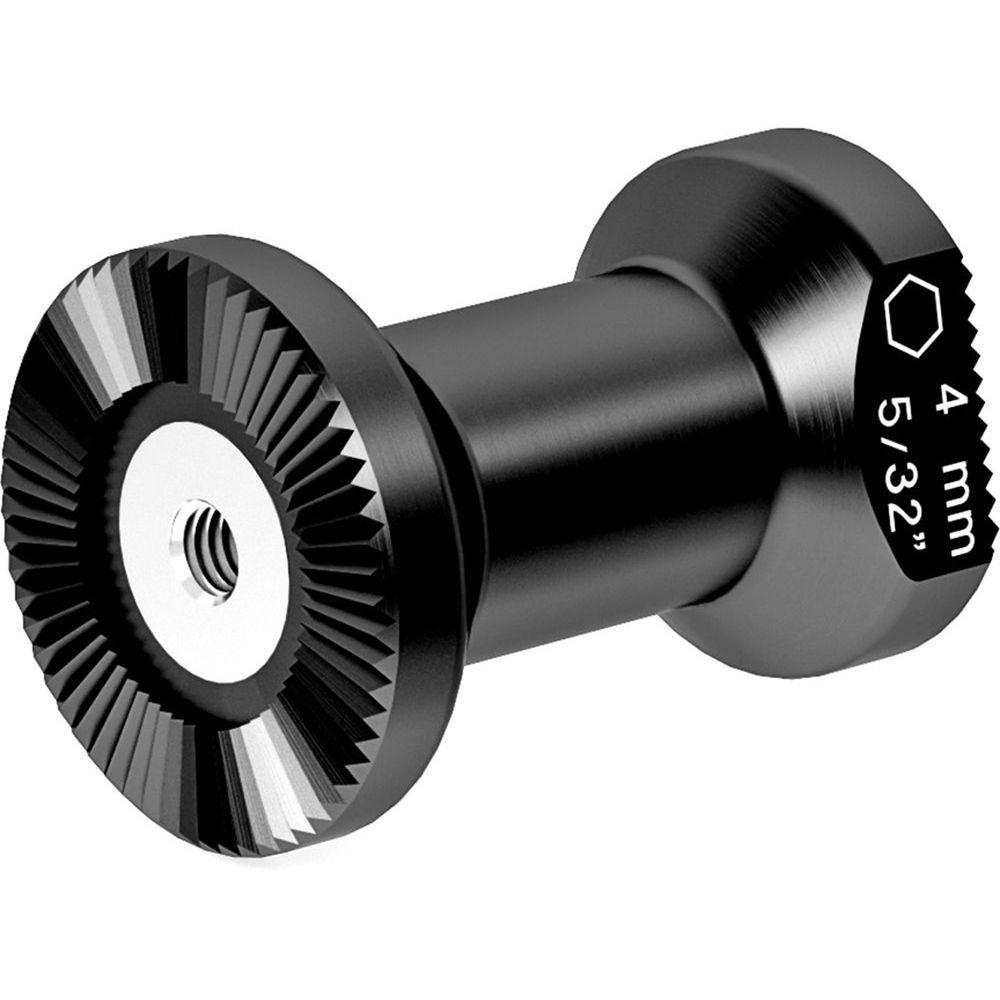

- Extension Tube for ALEXA Mini Handgrip
In the Box Bundle Items Standard Grip Right SGR-1 rffbxrftxwxveysuxtxzdwbwuazrded MLW-1 Master Grip (Left-Hand Wheel) 2 x Handgrip Extension (6.3") Cable Clip (15mm) Extension Tube for ALEXA Mini Handgrip Angled LBUS to Straight LBUS Cable (1.1') Master Grip Case Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI MLW-1 Basic Set Left for ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Standard Grip Right SGR-1
| Dimensions and Weight | Not specified by manufacturer | | Attachment | ARRI rosette | - MLW-1 Master Grip (Left-Hand Wheel)
| Interface (Bus) Type | 2 x LBUS | | Supply Voltage | 12-34 V | | Current Consumption | 30 mAh at 24 V | | Material of Construction | Cast magnesium, steel | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions | 6.8 x 4 x 3.2" (172 x 101 x 81 mm) | | Weight | 13.4 oz (380 g) | | | | Box Dimensions (LxWxH) | 9.9 x 6.8 x 5.2" | - Handgrip Extension (6.3")
| Material of Construction | Stainless steel | | Dimensions | Overall: 2 x 1.6 x 7.9" / 50 x 40 x 200 mm
Length Between Rosettes: 6.3" / 160 mm | | Weight | 6.7 oz / 190 g | | | | Box Dimensions (LxWxH) | 7.7 x 1.3 x 1.1" | - Cable Clip (15mm)
| | | Accessory Type | Cable clip | | | | Intended For | 15 mm rod | | Packaged Qty | 2 | | | | Box Dimensions (LxWxH) | 4.3 x 3.0 x 0.8" | - Extension Tube for ALEXA Mini Handgrip
| | | Accessory Type | Hand grip extender | | | | Box Dimensions (LxWxH) | 3.3 x 3.1 x 0.3" | - Angled LBUS to Straight LBUS Cable (1.1')
| | | Cable Type | Camera control cable | | Length | 1 ft | | Recommended Use | Camera | | | | CONNECTOR | LBUS - male - angled | | Connector (Second End) | LBUS - male - straight | | | | Box Dimensions (LxWxH) | 9.4 x 6.0 x 0.2" | - Master Grip Case
| Dimensions and Weight | Not specified by manufacturer |
