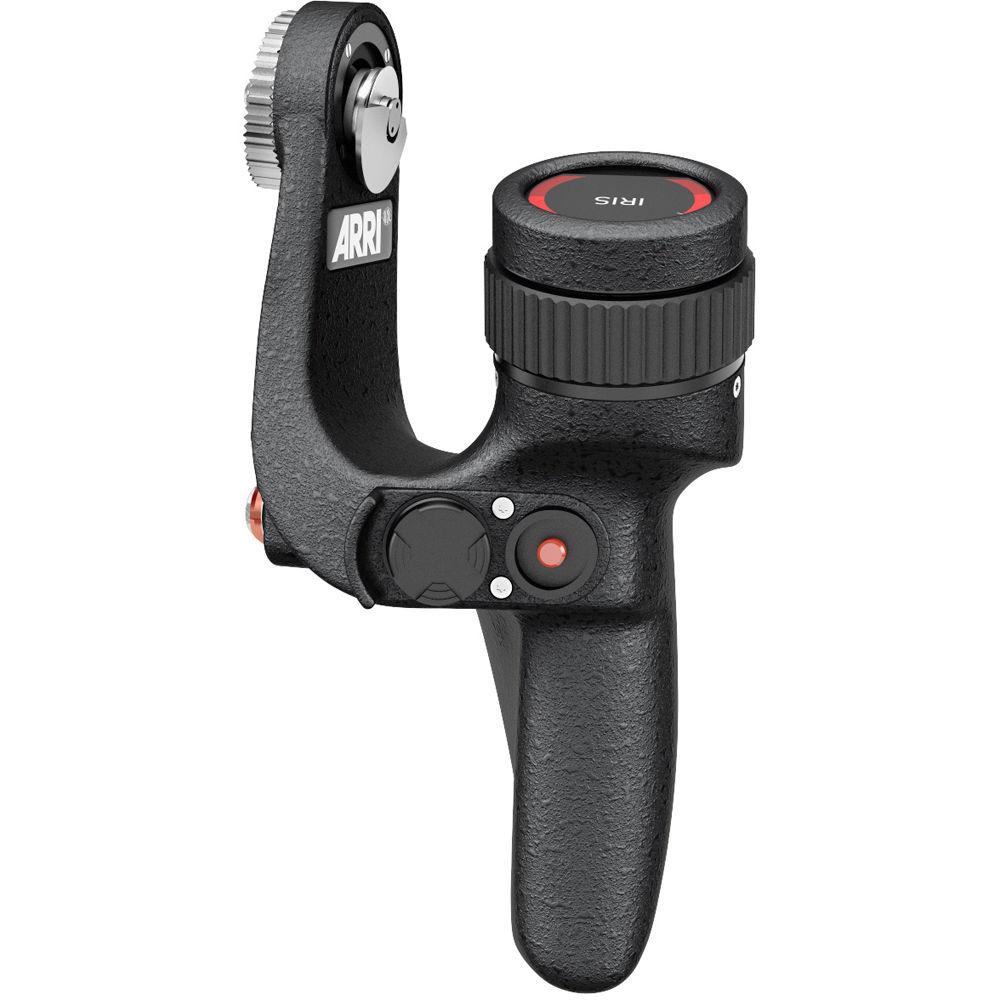

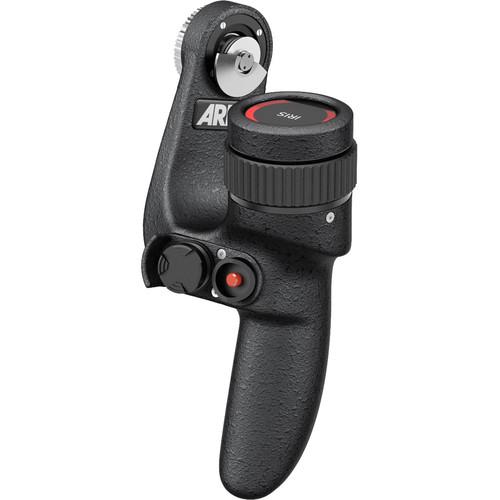

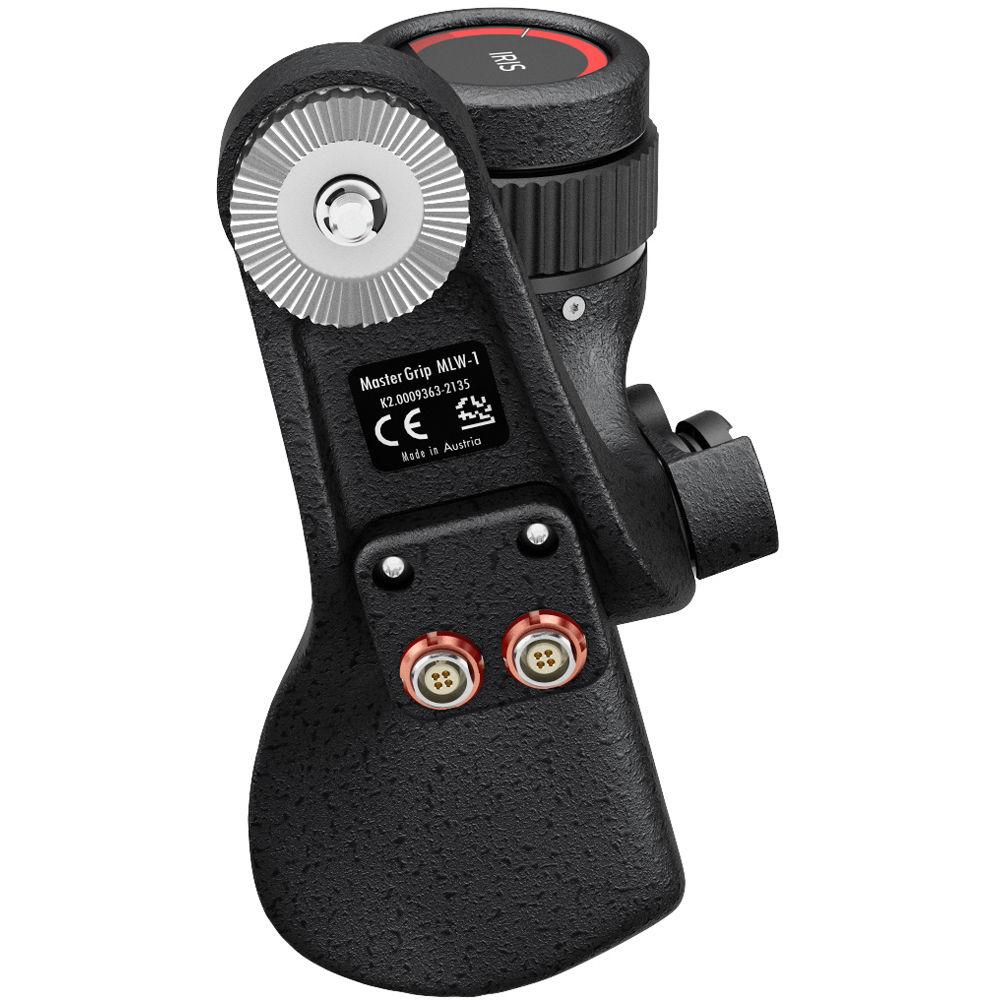

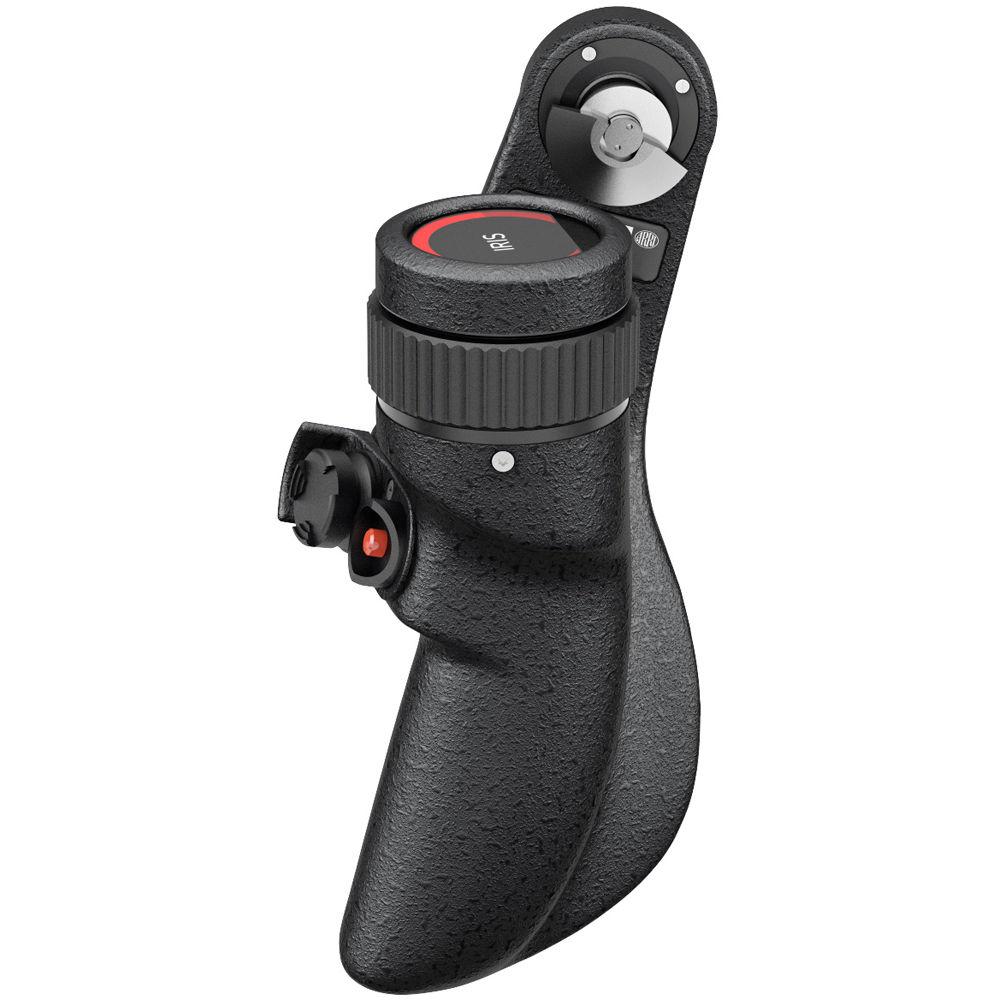

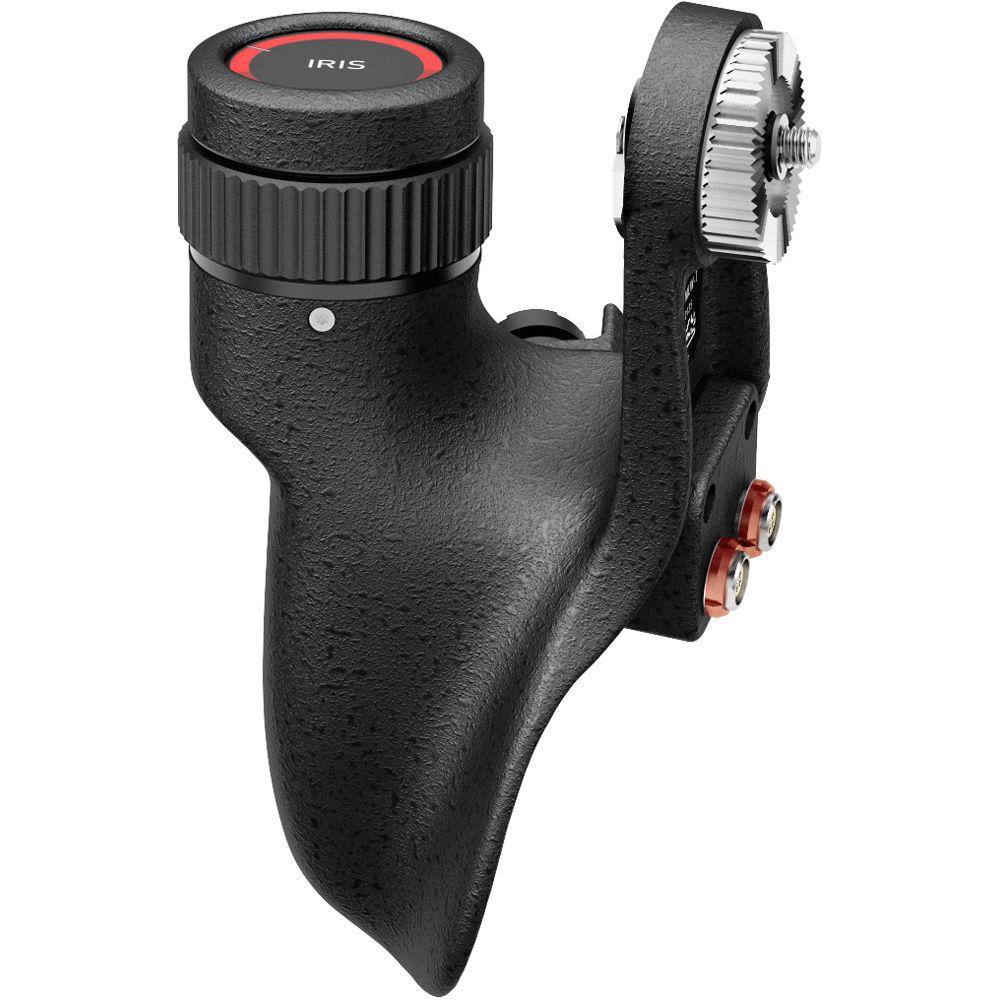

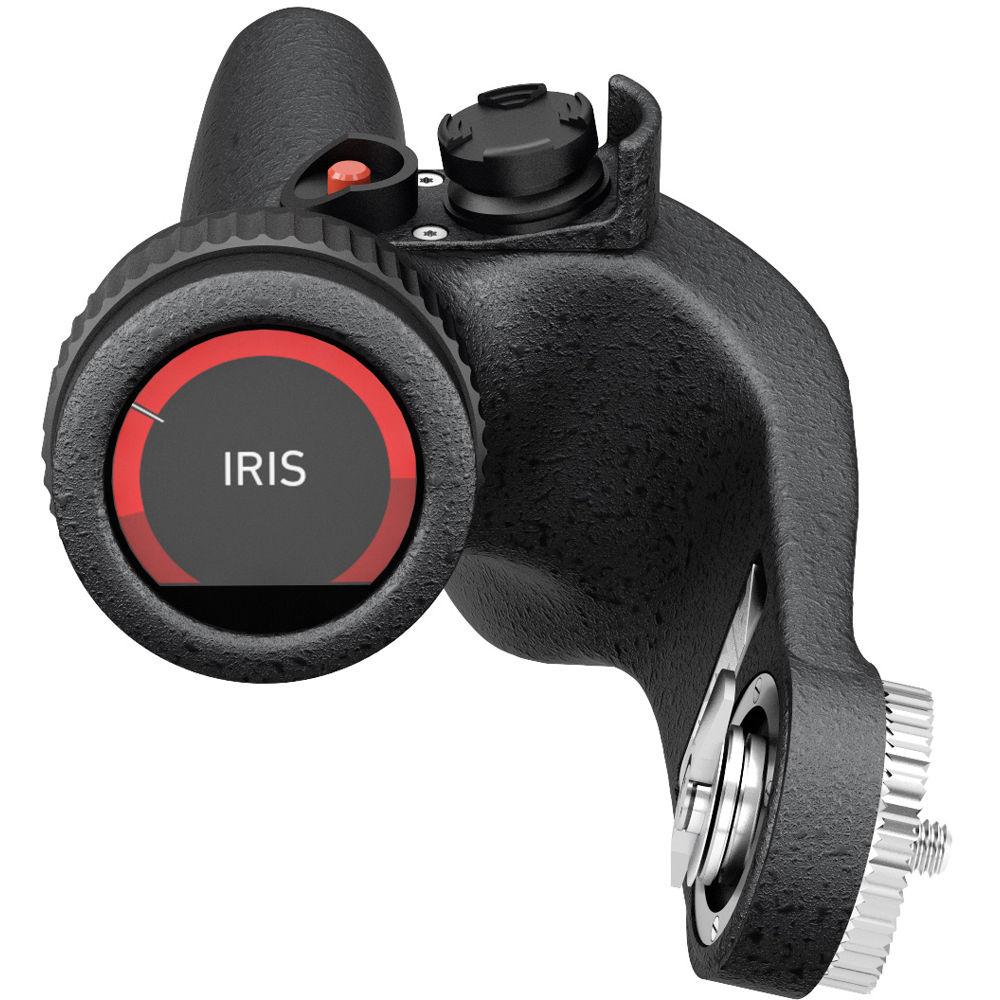

User Manual for ARRI MLW-1 Master Grip Click to enlarge the picture
Contents of the user manual for the ARRI MLW-1 Master Grip
- Product category: Zoom & Focus Controls ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Zoom & Focus Controls
 |
User manual for the ARRI MLW-1 Master Grip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI MLW-1 Master Grip (Left-Hand Wheel) combines handheld camera stabilization with comprehensive lens and camera control. With a form factor based on the classic ARRI handgrips, the Master Grips add flexible and responsive fingertip control for handheld shooting. Aimed at ALEXA, AMIRA, and third-party camera operators, the Master Grips can also be mounted on tripod pan handles, and on pedestal heads for controlling cameras in studio or multi-cam setups. A pair of Master Grips provide full control of focus, iris, and zoom settings on cine-style lenses, and offer comfortable control of integrated servo motors on ENG- and EF-type lenses. Focus, iris, and zoom speeds are adjustable, and end limits can be set for easier single-user moves. Camera controls include the REC function, and access to user buttons for both ARRI and third-party cameras. A separately-available LCUBE CUB-1 is required for third-party camera control. The ergonomic design of the Master Grips reduces strain, enabling extended handheld operating; an "eyebrow"-type shield protects against accidental triggering and doubles as a finger rest. This left-handed wheel is one of four available Master Grip options that can be combined in right- or left-handed pairs. The rocker grips enable super-smooth zooming, while the thumb wheels are suited for focusing or iris, or adjustments. An integrated touchscreen and a 5-way joystick each offer easy setup of the ARRI Master Grips. - Compatible Cameras
- ALEXA, AMIRA, and third-party cameras
Features - Comprehensive lens and camera control; LCUBE CUB-1 is required for third-party camera control (available separately)
- Setup via touchscreen interface or 5-way joystick
- Two LBUS ports for camera and lens connections
- Adjustable-speed thumb wheel for focus pulling, and iris adjustments
- Shield protects against accidental triggering and acts as a finger rest
In the Box ARRI MLW-1 Master Grip (Left-Hand Wheel) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI MLW-1 Master Grip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI K2.0009363 Specs | Interface (Bus) Type | 2 x LBUS | | Supply Voltage | 12-34 V | | Current Consumption | 30 mAh at 24 V | | Material of Construction | Cast magnesium, steel | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions | 6.8 x 4 x 3.2" (172 x 101 x 81 mm) | | Weight | 13.4 oz (380 g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.9 x 6.8 x 5.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
