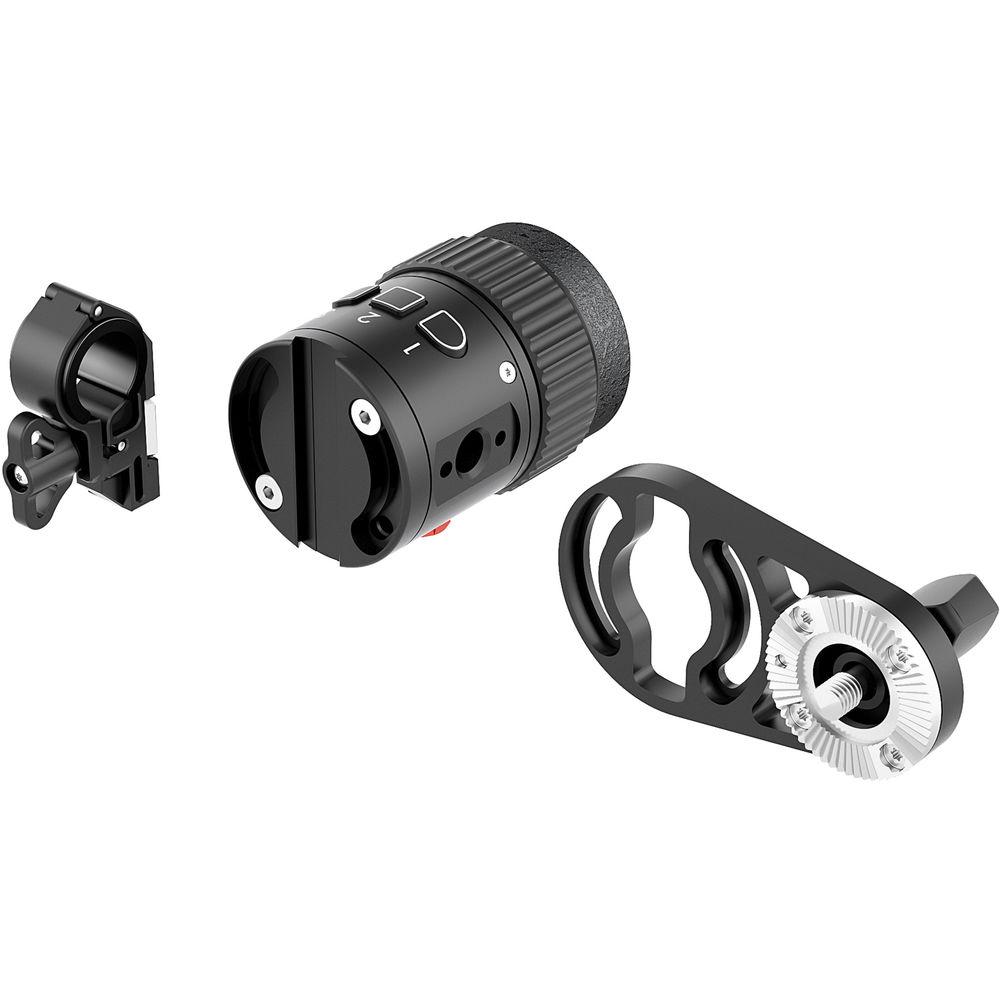

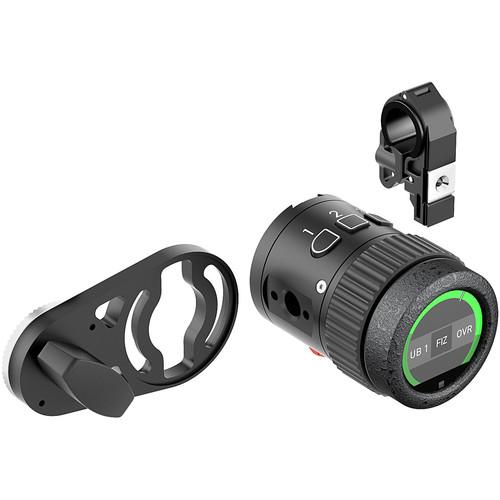

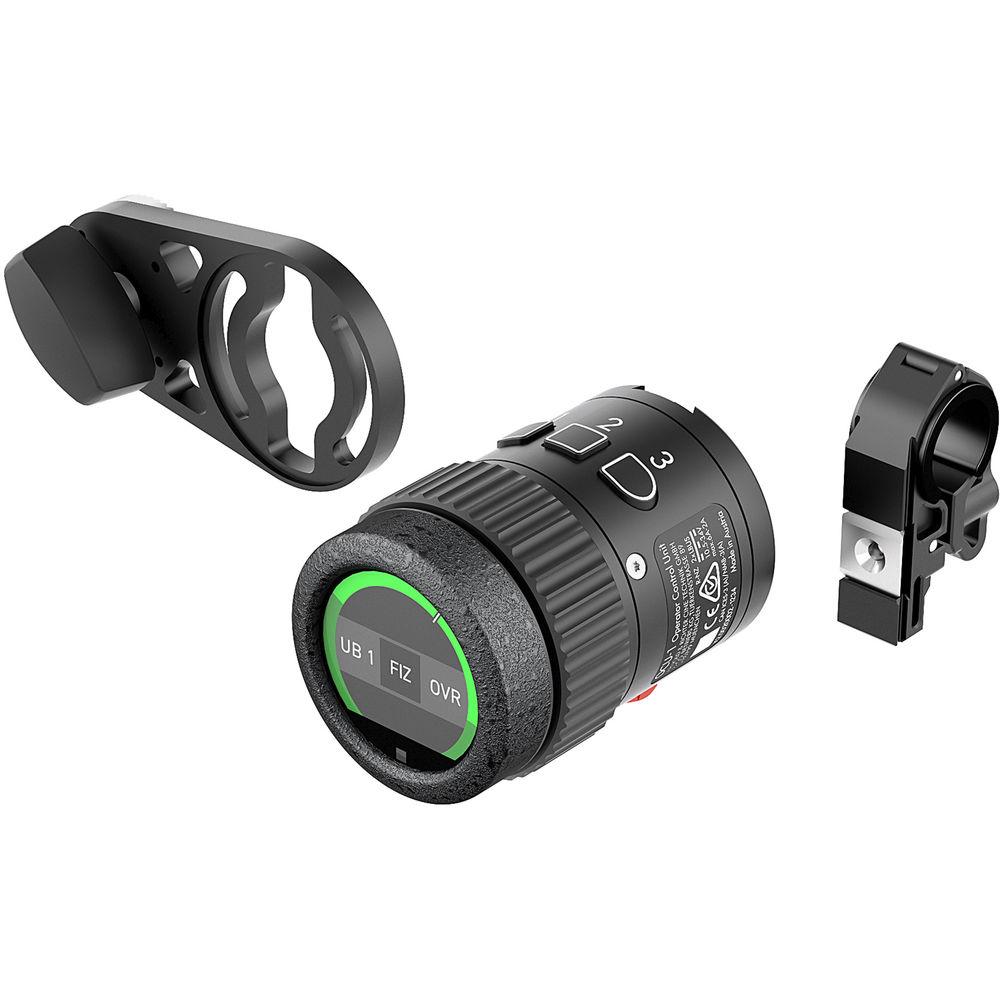

Product description The ARRI Operator Control Unit OCU-1 Extended Set adds rosette and 19/15mm rod brackets to the OCU-1 Basic Set. This compact, single-axis controller enables a camera operator to quickly assume and relinquish control of a WCU-4 system's focus, iris, and zoom axes. Note: cforce motors, WCU-4, and LBUS cables are not included. - Operator Control Unit OCU-1 Basic Set The ARRI Operator Control Unit OCU-1 Basic Set provides the means for a camera operator to quickly take over and relinquish control of a WCU-4 system's focus, iris, and zoom axes. Use this compact, single-axis FIZ controller to save time while framing shots and executing challenging focus pulls.The OCU-1 Unit can also control EF lenses on ALEXA Mini or AMIRA cameras without the use of additional motors, and can adjust the roll axis on the ARRI Stabilized Remote Head SRH-3. Mount the OCU-1 Unit onto your rig using its integrated 3/8"-16 thread, the included Dovetail Mounting Interface, or a separately available OCU-1 Rosette Bracket. Note: cforce motors, WCU-4, and LBUS cables are not included.
Features - Compact single-axis FIZ (focus, iris, zoom) control
- Enables a camera operator to override and return FIZ control when using a WCU-4 system
- Controls EF-mount lenses on the ALEXA Mini and AMIRA
- Controls the ARRI Stabilized Remote Head SRH-3's roll axis
- Mounts via an integrated 3/8"-16 thread, the included Dovetail Mounting Interface, or a separately available OCU-1 Rosette Bracket
- OCU-1 Rosette Bracket Use the ARRI OCU-1 Rosette Bracket to attach an Operator Control Unit to a standard ARRI rosette on a shoulder rig, stabilizer, or other mount. A thumb-lever screw enables you to quickly mount this bracket.
Compatibility - ARRI Operator Control Unit OCU-1
- 19/15mm Single Rod Bracket for CLM-5 or cforce mini Motor The ARRI 19/15mm Single Rod Bracket for CLM-5 or cforce mini Motor mounts the lens control motor to a single 19mm or 15mm rod. This bracket includes a 15mm rod adapter, and tightens onto the rod via its winged screw and post mechanism.
In the Box Bundle Items Operator Control Unit OCU-1 Basic Set - OCU-1 Dovetail Mounting Interface
OCU-1 Rosette Bracket 19/15mm Single Rod Bracket for CLM-5 or cforce mini Motor - CLM-5/cforce Mini 19/15mm Clamp Insert for 15mm Rod
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Operator Control Unit OCU-1 Extended Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Operator Control Unit OCU-1 Basic Set
| Mounting Thread | 3/8"-16 | | Dimensions (Ø x L) | 1.7 x 2.6" / 44 x 65 mm | | Weight | 5.4 oz / 153 g | | | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 2.6" | - OCU-1 Rosette Bracket
| Mount Compatibility | ARRI Rosette | | Dimensions (WxH) | 3.1 x 1.7" / 78 x 44 mm | | Weight | 1.9 oz / 53 g | - 19/15mm Single Rod Bracket for CLM-5 or cforce mini Motor
| Dimensions | Not specified by manufacturer | | Rod Compatibility | 15mm, 19mm | | | | Box Dimensions (LxWxH) | 3.9 x 2.8 x 0.6" |
