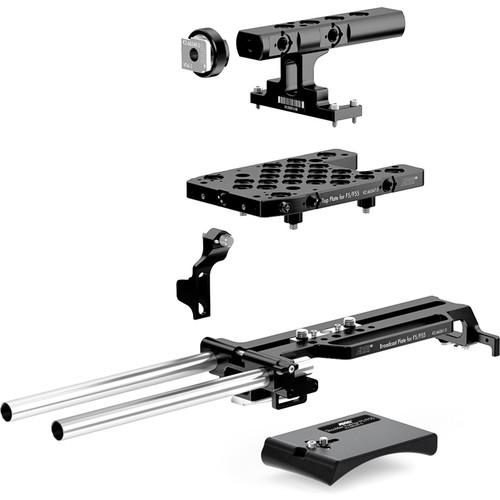

Product description The ARRI Pro Broadcast Plate Set for Sony F5/F55 provides the basic components needed to support your F5 or F55 in a VCT-style setup. The set includes a broadcast base plate, pair of 15 mm rods, shoulder pad, top cheese plate, CCH2 carrying handle, VFA-1 viewfinder adapter, and viewfinder plug. Both the top plate and handle include 3/8"-16 threaded mounts, and the top plate has a measuring tape stud lining up with the camera's "film plane."Any 15mm-rod-based accessory or lens support bracket can be mounted to the included rod pair. The Sony F5/F55 Broadcast plate is compatible with VCT-style quick release tripod adapters. The shoulder pad is secured to the camera bottom via a hand screw and can be used without a base plate. For increased viewing comfort, use the VFA-1 viewfinder adapter to attach the Sony EVF to any ARRI 3/8"-16 accessory mount. The included viewfinder plug protects the EVF interface from damage when the EVF is not attached. - Broadcast Plate for Sony F5/F55 The Sony Broadcast Plate from ARRI is specifically designed to work with PMW-F5/F55 HD cameras. The bottom of the plate takes the form of a VCT-style plate for quick and easy mounting to a head. This plate will support a pair of lightweight 15mm rods (not included), enabling you to flesh out your camera rig with rod-mounted accessories. Anti-twist pins prevent the plate from slipping askew when attached to the bottom of the camera.
Features - Integrated VCT-style plate for quick, easy mounting to a head or other support
- Enables the addition of 15mm rod-mounted accessories to your Sony F5/F55 rig
- Anti-twist pins prevent the plate from skewing off center when attached to the bottom of the camera
- Shoulder Pad for Sony PMW-F5/F55 The ARRI Shoulder Pad for Sony PMW-F5/F55 attaches to the bottom of the camera, or to an ARRI baseplate. This pad offers a comfortable rest for your camera, enabling longer shooting times. When used with an ARRI baseplate, the pad can remain mounted to the camera, saving time when switching between handheld and tripod-based shots.
- Attaches to bottom of Sony PMW-F5/F55, or to an ARRI baseplate
- Can remain attached when mounted on a tripod head when used with an ARRI baseplate
- Increases comfort when operating the camera in handheld mode
- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
- Top Plate for Sony PMW-F5/F55 Use the Sony PMW-F5/F55 Top Plate from ARRI when you're looking to trick out your camera to best suit your needs. This plate provides multiple accessory mounts for your camera, and is compatible with an optional support for a pair of 15mm LWS rods. The cheese plate adds 1/4"-20 and 3/8"-16 mounting threads on the top of the camera and is shaped to fit so that use of the original handle is maintained.
Features - Cheese plate style form is shaped to fit so that use of the original handle is maintained
- Plate is compatible with an optional support for a pair of 15mm support rods (rods not included)
- Provides multiple 3/8"-16 & 1/4"-20 threaded accessory-mounting points
- VFA-1 Viewfinder Adapter for Sony PMW-F5/F55 The ARRI VFA-1 Viewfinder Adapter is designed to mount a Sony PMW-F5 or F55 viewfinder to any ARRI 3/8"-16 interface. Used in combination with the ARRI top plate and handle, the VFA-1 enables you to configure the EVF in a more ergonomic position.
- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems
- Viewfinder Plug Protector for Sony PMW-F5/F55 Use the Viewfinder Plug Protector from ARRI to protect the EVF port on your Sony PMW-F5 or F55 camera. An ARRI Top Plate for F5/F55 (not included) is required to use this protector.
In the Box Bundle Items Broadcast Plate for Sony F5/F55 zrystwvywt Shoulder Pad for Sony PMW-F5/F55 15mm Lightweight Support Rods (Pair, 9") Top Plate for Sony PMW-F5/F55 VFA-1 Viewfinder Adapter for Sony PMW-F5/F55 CCH-2 Center Camera Handle Viewfinder Plug Protector for Sony PMW-F5/F55 Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Pro Broadcast Plate Set for Sony PMW-F5 F55 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Broadcast Plate for Sony F5/F55
| Dimensions (L x H) | 3.9 x 9.4 x 1.8" (100 x 240 x 45 mm) | | Weight | 1.1 lb (481 g) | - Shoulder Pad for Sony PMW-F5/F55
| Dimensions | Not specified by manufacturer | | Weight | 7.1 oz (202 g) | | | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 1.1" | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - Top Plate for Sony PMW-F5/F55
| Dimensions | Not specified by manufacturer | | Weight | 9.8 oz (278 g) | | | | Box Dimensions (LxWxH) | 5.6 x 4.5 x 1.2" | - VFA-1 Viewfinder Adapter for Sony PMW-F5/F55
| Mount Compatibility | ARRI 3/8"-16 accessory mount | | Weight | 3.2 oz (90 g) | | | | Box Dimensions (LxWxH) | 4.05 x 3.85 x 1.6" | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - Viewfinder Plug Protector for Sony PMW-F5/F55
| Dimensions | 1.3 x 2.8 x 0.9" (32 x 70 x 24 mm) | | Weight | 1.2 oz (33 g) | | | | Box Dimensions (LxWxH) | 4.0 x 2.9 x 0.6" |
