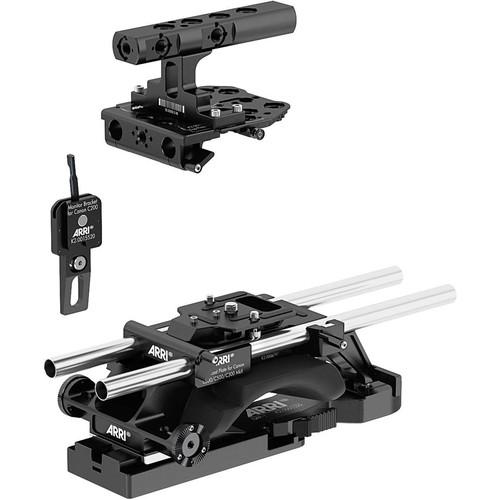

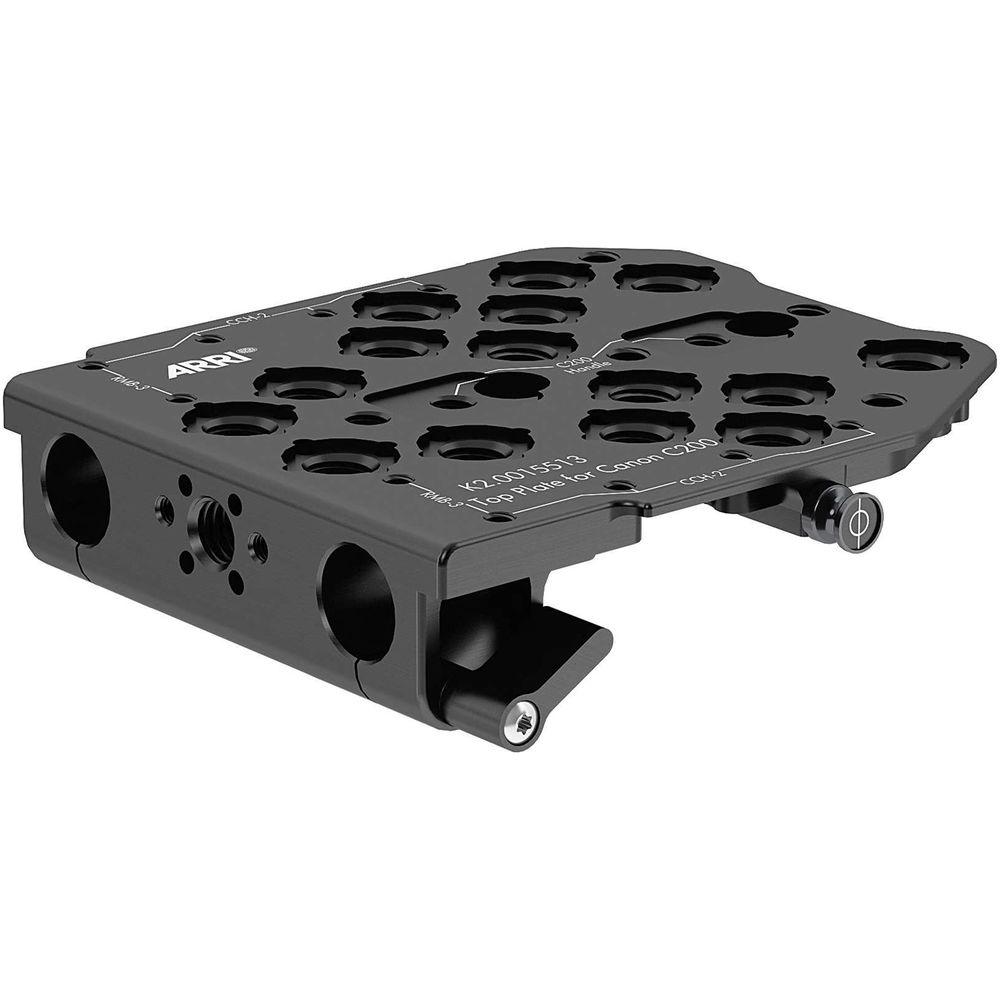

Product description The versatile ARRI Pro Broadcast Set for Canon C200 + QRP-1 offers a host of options for comfortably accessorizing your Canon EOS C200 camera. This kit offers both a VCT-style tripod base, and a shoulder mount so you can quickly switch between shooting styles. Top and bottom 15mm LWS rod support is offered, expanding your choices for attaching accessories. This lightweight support set includes a top handle, adapter plate, top (low-mode) cheeseplate, pair of 15mm rods, QRP-1 VCT-style baseplate, and broadcast plate with a curved shoulder pad. The included viewfinder mounting bracket enables you to reposition the Canon C200 LCD for more comfortable viewing. Any 15mm rod-based accessory or lens support bracket can be mounted to the included 13" pair of 15mm rods. The position of the shoulder mount can be adjusted horizontally on the broadcast plate without needing to adjust any rod-mounted accessories. - Top Plate for Canon C200 Camera Use the ARRI Top Plate for Canon C200 when you're looking to accessorize your camera to best suit your needs. This plate adds multiple accessory mounts to the top of your C200, and has built-in support for a pair of 15mm LWS rods. The cheese plate top provides both 1/4"-20 and 3/8"-16 mounting threads, and is shaped to enable the use of the original Canon handle or the ARRI CCH-2 top handle. For help in setting your focus, two measuring tape studs on the plate align with the C200's focal plane.
Features - Integrated support for a pair of 15mm support rods (rods not included)
- Provides multiple 3/8"-16 and 1/4"-20 threaded accessory-mounting points
- Low-mode style plate may be used alone or with the original Canon handle, or the ARRI CCH-2 top handle
- Tape studs on both sides for measuring focus from the camera's focal plane

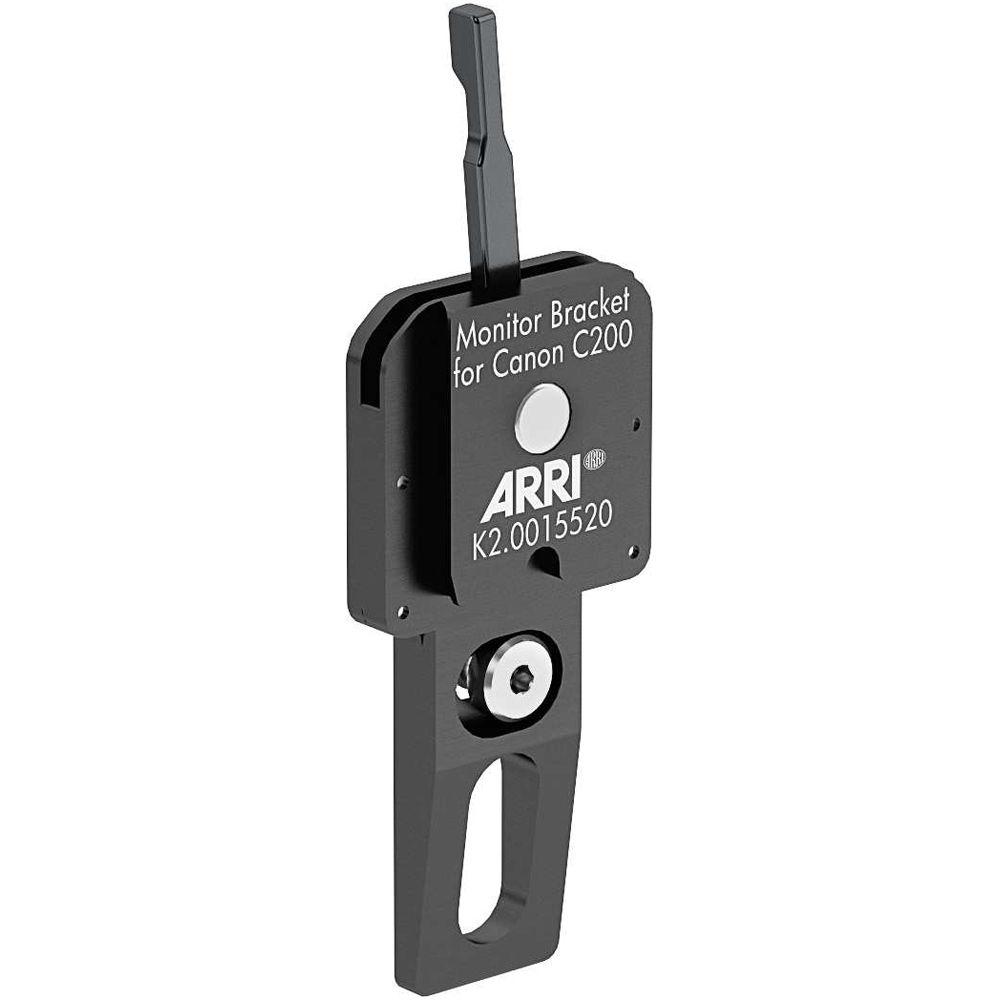

- Monitor Bracket for Canon C200 Camera The ARRI EVF Bracket for Canon C200 is a quick release plate designed to attach to the C200's LCD monitor. The LCD can then be positioned for maximum viewing comfort using the adjustable MVB-1, or other ARRI mount (not included). A lever quickly locks or releases the bracket when the EVF is not needed.
- Compatibility
- Canon EOS C200

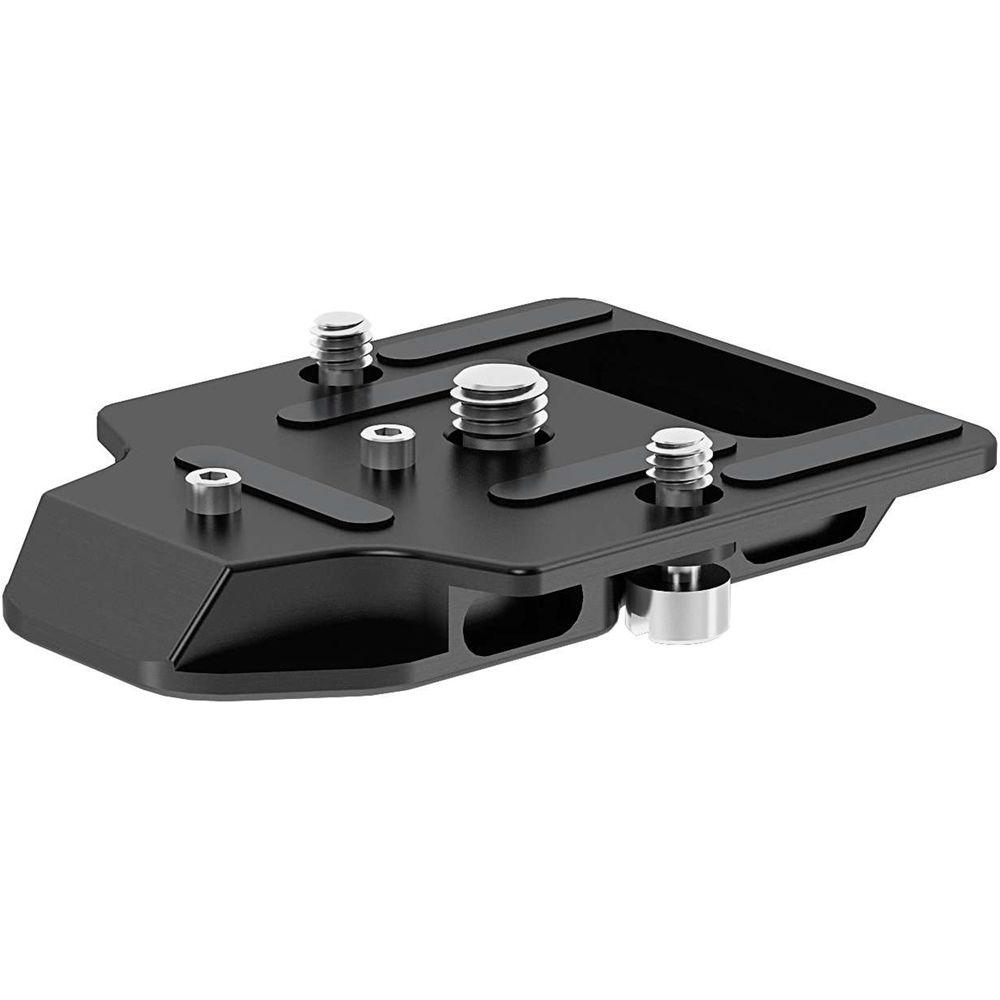

- Adapter Plate for Canon C200 The Adapter Plate for Canon C200 from ARRI is an intermediate plate that screws into the bottom of the Canon EOS C200 camera. This lightweight plate is designed for use with ARRI's Cine Plate for C300 Mk II, or Broadcast Plate for C300 Mk II. Note: An ARRI Cine or Broadcast plate for the Canon C300 Mk II is required to use this adapter plate on the Canon C200 camera.

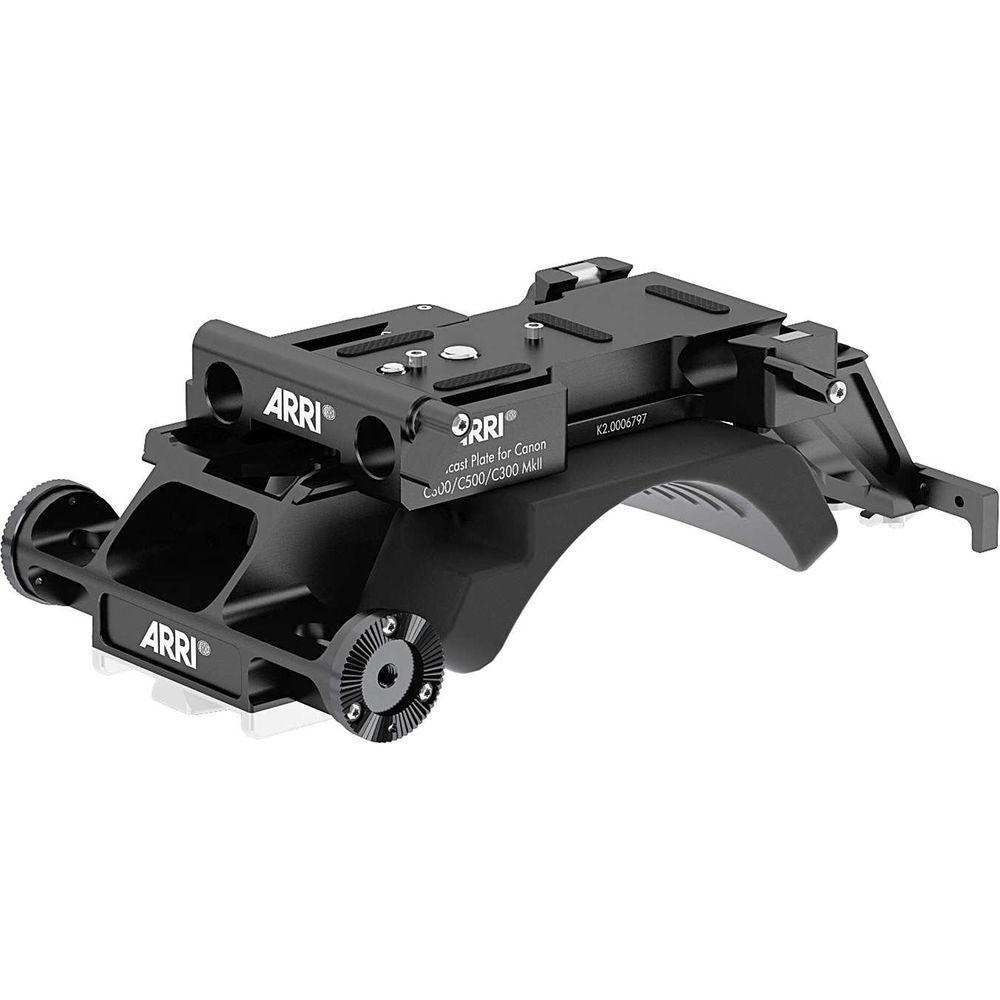

- Broadcast Plate for Canon C300 Mk II The Canon Broadcast Plate from ARRI is specifically designed to work with C300 Mk II, C300, and C500 cameras. This versatile plate is compatible with VCT-style plates for quick and easy mounting to a head, while also incorporating a shoulder mount for handheld use. The plate has front and rear holders for lightweight 15mm rods (not included), enabling you to flesh out your camera rig with rod-mounted accessories. For greater ease of use, adjustments can be made to fit the plate to your shoulder without affecting the placement of any rod-mounted accessories.Rosettes on both the right and left sides of the Canon Broadcast Plate provide points for attaching handgrips, and the built-in shoulder pad makes for more comfortable handheld operating. Anti-twist pins prevent the plate from slipping askew when attached to the bottom of the camera.
Features - Dual VCT-style plate/handheld mounting options
- Enables the addition of 15mm rod-mounted accessories to your Canon C300 Mk II, C300, or C500 rig
- Rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Contoured shoulder pad increases comfort when in handheld mode
- Anti-twist pins prevent the plate from skewing off center when attached to the bottom of the camera

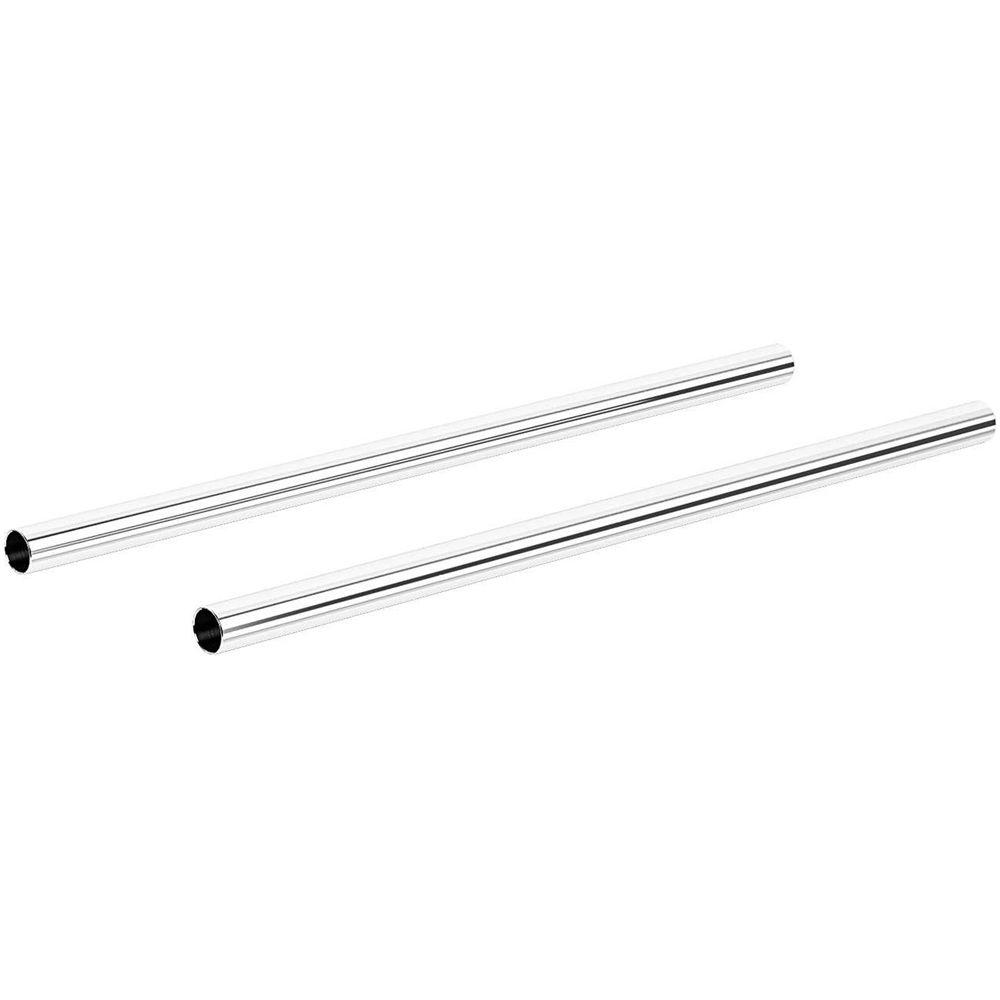

- 15mm Lightweight Support Rods (Pair, 13") This pair of 13" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

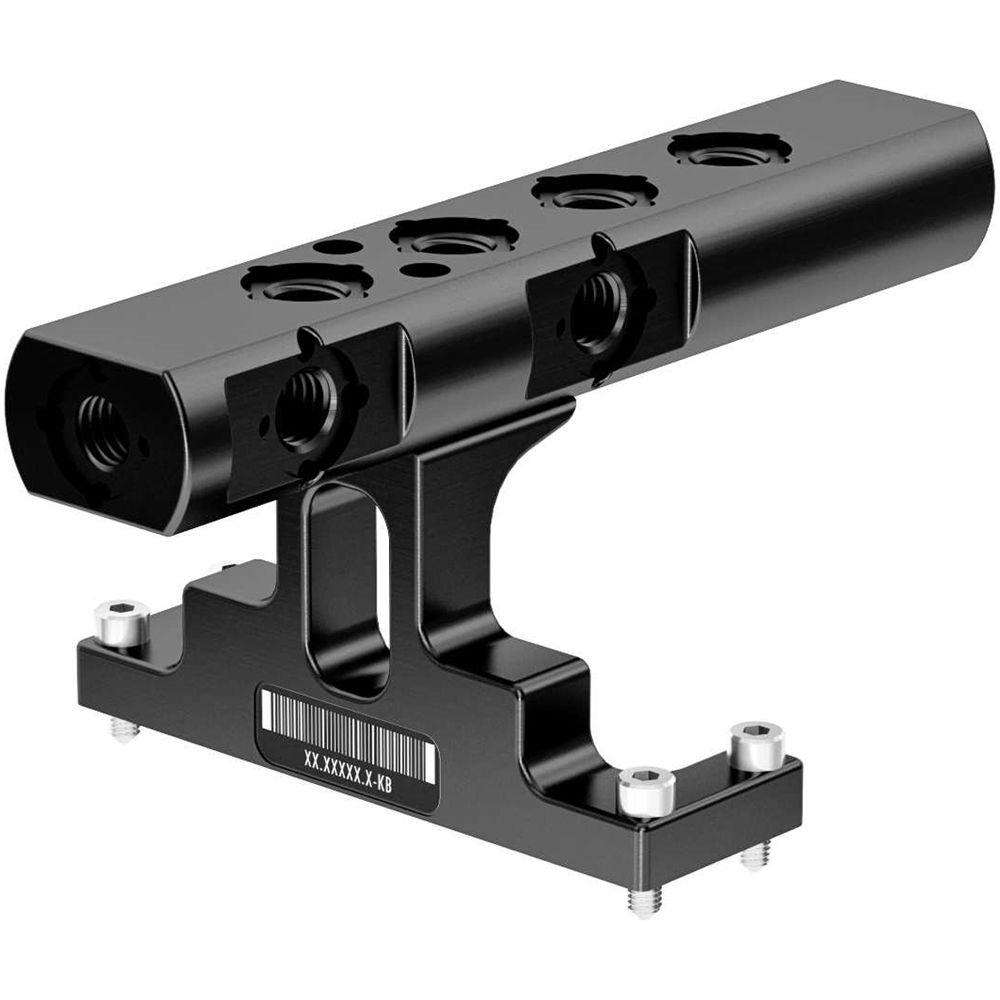

- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems

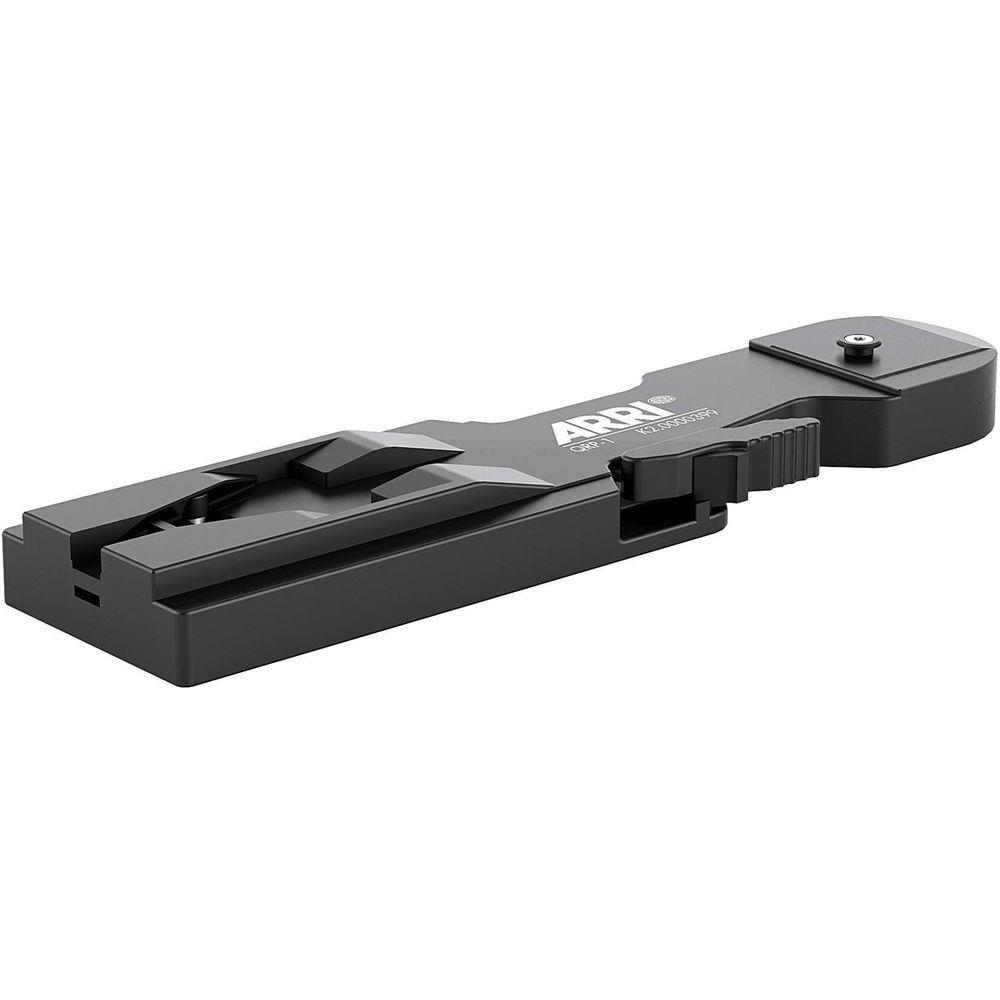

- QRP-1 Quick Release Plate The ARRI QRP-1 Quick-Release Plate is compatible with the ARRI AMIRA camera, select ARRI support systems, and many industry-standard broadcast cameras. The VCT wedge design enables you to quickly attach and remove your camera from the plate using the lever release.
Features - Quick release plate with lever release
- VCT-style plate enables quick mounting and removal of camera
- For ARRI AMIRA, select ARRI support systems, and many industry-standard broadcast cameras
In the Box Bundle Items Top Plate for Canon C200 Camera yfwbuqtvxczxuwstrxzaq Monitor Bracket for Canon C200 Camera Adapter Plate for Canon C200 Broadcast Plate for Canon C300 Mk II 15mm Lightweight Support Rods (Pair, 13") CCH-2 Center Camera Handle yfwbuqtvxczxuwstrxzaq QRP-1 Quick Release Plate

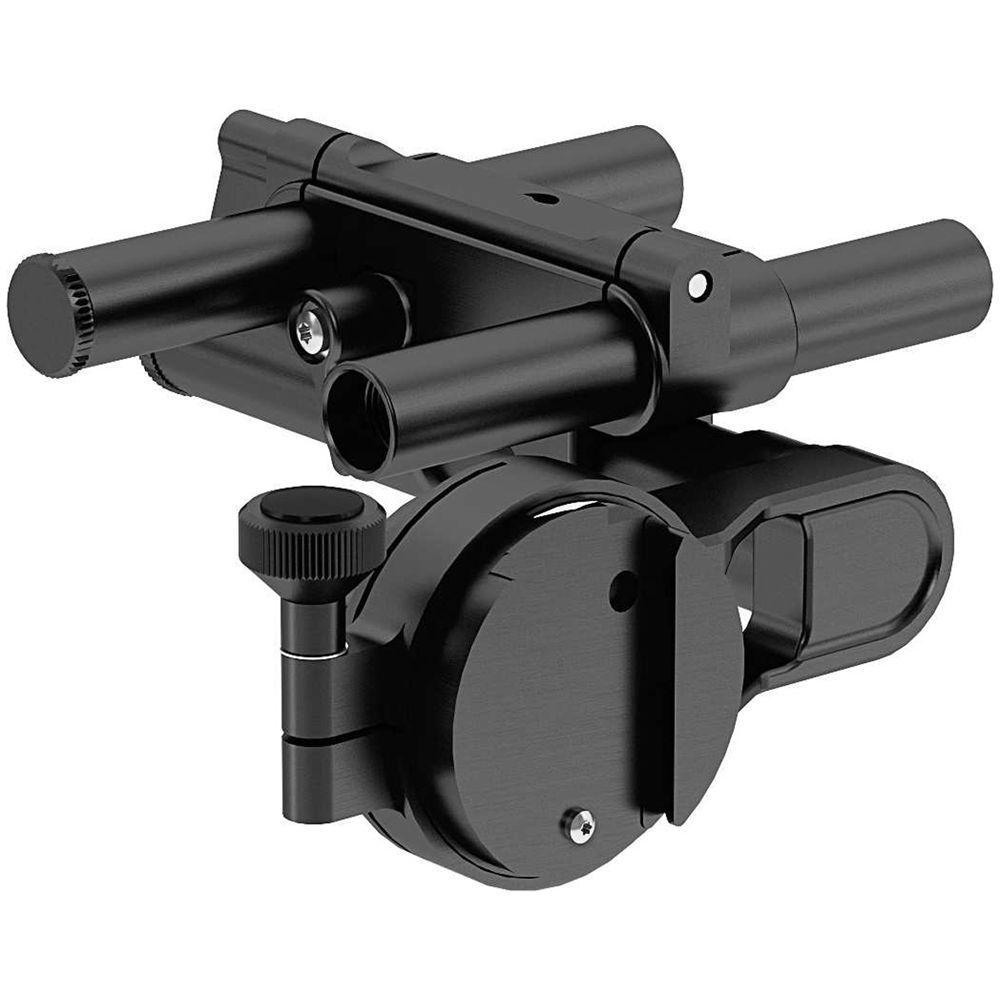

Also Includes - Mini Viewfinder Bracket MVB-1
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Pro Broadcast Set for Canon C200 QRP-1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Top Plate for Canon C200 Camera
| Dimensions | 1.2 x 4.7 x 4.7" (30 x 120 x 120 mm) | | Weight | 8.6 oz (245 g) | | | | Box Dimensions (LxWxH) | 5.7 x 4.9 x 1.3" | - Monitor Bracket for Canon C200 Camera
| Dimensions | 4.7 x 1.6 x 0.8" / 120 x 40 x 20 mm | | Weight | 2 oz / 56 g | - Adapter Plate for Canon C200
| Dimensions | 0.8 x 2.8 x 3.9" (20 x 70 x 100 mm) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.2 x 4.0 x 0.7" | - Broadcast Plate for Canon C300 Mk II
| Dimensions | 5.5 x 9.4 x 3.5" / 14.0 x 24.0 x 9.0 cm | | Weight | 2.3 lb / 1.05 kg | | | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 3.0" | - 15mm Lightweight Support Rods (Pair, 13")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 13.4" / 34.0 cm | | Weight | 7.3 oz / 207 g | | | | Box Dimensions (LxWxH) | 13.5 x 1.2 x 0.4" | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - QRP-1 Quick Release Plate
| Dimensions (WxLxD) | 3.1 x 11.4 x 1.2" / 80 x 290 x 30 mm | | Weight | 21 oz / 600 g | | | | Box Dimensions (LxWxH) | 13.4 x 4.0 x 2.2" |
