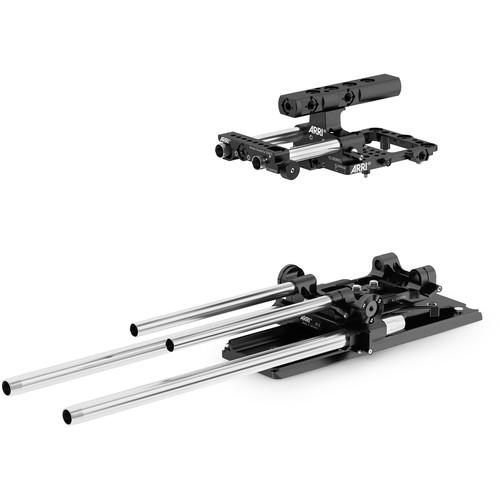

User Manual for ARRI Pro Cine Set 19mm for RED DSMC2 Click to enlarge the picture
Contents of the user manual for the ARRI Pro Cine Set 19mm for
- Product category: Camcorder Supports & Rigs ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Camcorder Supports & Rigs
|
User manual for the ARRI Pro Cine Set 19mm for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description Use the ARRI Pro Cine Set 19mm for RED DSMC2 to outfit your RED camera in a familiar, industry-standard style. This kit provides both top and bottom 15mm LWS rod accessory mounting, a top handle, a low-mode cine plate, and a BP-8 19mm bridge plate system with a pair of 17" rods. - Cine Plate for RED DSMC2 Base Expander The ARRI Cine Plate for RED DSMC2 Base Expander is compatible with studio bridge plates like the ARRI BP-8 or BP-9. This plate's features include extended right and left rosettes for attaching handgrips or other rosette-based accessories, front and rear 15mm LWS rod support, and a lightweight, solid build.
Features - Compatible with studio-style bridge plates like the ARRI BP-8 and BP-9
- Supports the addition of 15mm rod-mounted accessories in front of, or behind your RED DSMC2 rig
- Extended-width rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Lightweight, solid ARRI build
- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
- 15mm Lightweight Support Rods (Pair, 5.5") This pair of 5.5" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
- Top Plate for RED DSMC2 Base Expander ARRI's Top Plate for RED DSMC2 Base Expander is designed for use in low-mode setups. This plate shifts accessory mounts and interfaces to the top of your camera, leaving the bottom of the camera unencumbered, suiting it for low-mode Steadicam and tabletop setups. The Top Plate provides a connection with the camera's electronic interface, and a connector for a RED LEMO Adapter B. Additional plate features include multiple 3/8"-16 and 1/4"-20 accessory mounts and a tape hook for measuring focus distances.
Features - Suitable for low-mode setups; shifts accessory mounts and connectors to top of camera
- Connects to RED camera's electronic interface, and to RED LEMO Adapter B
- Provides multiple 3/8"-16 and 1/4"-20 threaded accessory-mounting points
- Tape hook for focus measuring
- Top Handle for RED DSMC2 Base Expander Use the ARRI Top Handle for RED DSMC2 Base Expander to carry, and mount accessories to, any RED camera equipped with the DSMC2 expander module. Components such as monitors, EVFs, wireless transmitters, mic holders, French flags, etc., can be attached to the handle two ways. Mount them to rods (not included) using the integrated 15mm LWS rod console, or to any of the multiple 3/8"-16 accessory mounts on this handle.
Features - Sturdy carrying handle attaches to the RED DSMC2 base expander module
- Integrated support for a pair of 15mm LWS support rods
- Multiple 3/8"-16 threaded accessory-mounting points
- Use to mount components like an EVF, wireless video transmitter, mic holder, on-board monitor, or flag
- Monitor Bracket for RED DSMC2 Base Expander Increase your camera's viewing-position options with the ARRI Monitor Bracket for RED DSMC2 Base Expander. This lightweight bracket is used to reposition your on-board monitor to top-mounted 15mm LWS rods. Features include 3/8"-16 and 1/4"-20 accessory mounts and a clamp-on design fastened via a single thumbscrew.
- Attaches monitor to top-mount 15mm rods
- Lightweight bracket clamps onto a pair of rods
- Single thumbscrew tightens bracket on a pair of rods
- Integrated 3/8"-16 and 1/4"-20 accessory-mounting holes
- BP-8 Bridge Plate Set with 12" Dovetail & 19mm Rods (17") Use ARRI's BP-8 Bridge Plate Kit to balance your camera and to support 19mm rod-based accessories. The kit consists of the BP-8 sled, a 12" bottom dovetail plate, and a 17" pair of 19mm support rods. Directly compatible with the ARRI ALEXA Studio, the Sony F65, and the Phantom Flex4K, the BP-8 Kit can be adapted for use with the ARRI ALEXA Mini, AMIRA, and many third-party cameras (adapters available separately).
In the Box Bundle Items Cine Plate for RED DSMC2 Base Expander ryfuxwsxdwyexy 15mm Lightweight Support Rods (Pair, 9") 15mm Lightweight Support Rods (Pair, 5.5") Top Plate for RED DSMC2 Base Expander Top Handle for RED DSMC2 Base Expander Monitor Bracket for RED DSMC2 Base Expander BP-8 Bridge Plate Set with 12" Dovetail & 19mm Rods (17") - Bottom Dovetail Plate (12")
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Pro Cine Set 19mm for RED DSMC2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cine Plate for RED DSMC2 Base Expander
| Dimensions (WxLxD) | 5.5 x 5.9 x 1.6" (140 x 150 x 40 mm) | | Weight | 12.4 oz (353 g) | | | | Box Dimensions (LxWxH) | 7.35 x 6.95 x 2.85" | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - 15mm Lightweight Support Rods (Pair, 5.5")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 5.5" / 14.0 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 7.15 x 1.45 x 0.75" | - Top Plate for RED DSMC2 Base Expander
| Dimensions | 4.3 x 5.5 x 1.2" (110 x 140 x 30 mm) | | Weight | 7.1 oz (201 g) | | | | Box Dimensions (LxWxH) | 6.2 x 5.65 x 1.15" | - Top Handle for RED DSMC2 Base Expander
| Rod Compatibility | 15 mm | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 3.0" | - Monitor Bracket for RED DSMC2 Base Expander
| Dimensions | 1.2 x 4.3 x 0.8" (30 x 110 x 20 mm) | | Weight | 2.3 oz (64 g) | | | | Box Dimensions (LxWxH) | 4.4 x 3.6 x 0.6" | - BP-8 Bridge Plate Set with 12" Dovetail & 19mm Rods (17")
| | | Box Dimensions (LxWxH) | 18.4 x 6.7 x 3.0" |
