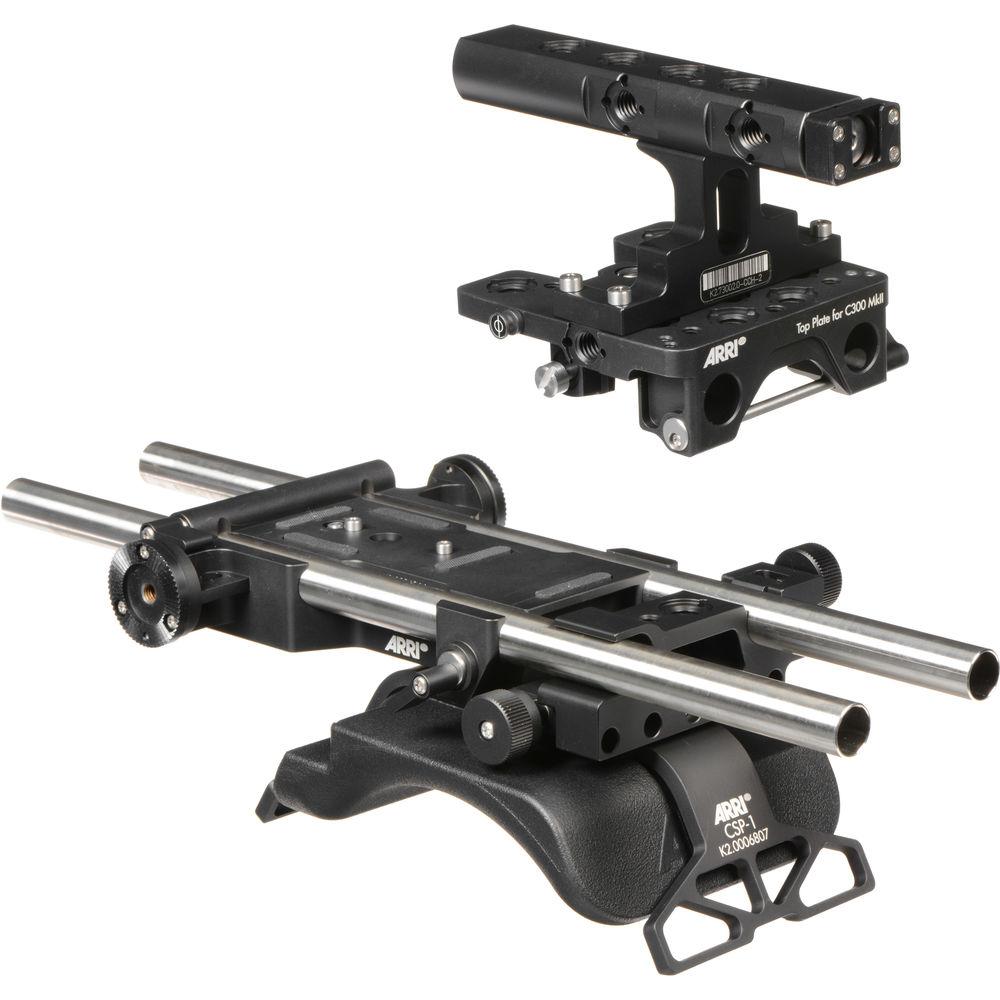

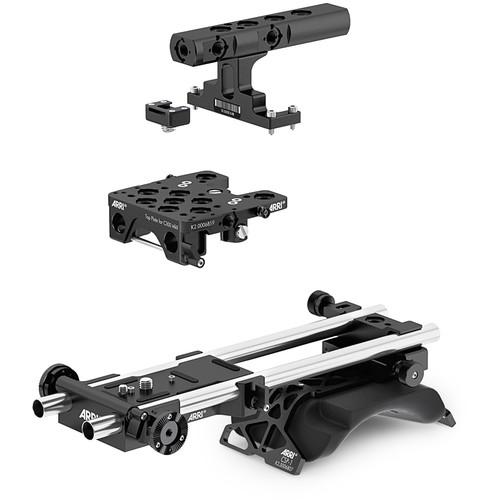

Product description The ARRI Pro Cine Set for Canon C300 Mk II is a lightweight, cine-style rig for your Canon EOS C300 Mk II, C300, or C500 camera. This set includes a cine adapter plate, pair of 15mm rods, top cheese plate, CCH2 carrying handle, 3/8"-16 accessory shoe adapter, and shoulder pad. Any 15mm rod-based accessory or lens support bracket can be mounted to the included 13" pair of 15mm rods. For maximum flexibility, the rear-mounted CSP-1 shoulder pad and the cine plate are independently adjustable.Both the top plate and the CCH-2 center handle include 3/8"-16 threaded mounts, and the top plate has measuring tape studs lining up with the camera's sensor plane. The included 3/8"-16 shoe adapter provides the option of mounting a cold shoe-based camera accessory to the rig. - Cine Plate for Canon C300 Mark II The Canon Cine Plate from ARRI is specifically designed to work with C300 Mk II, C300, and C500 cameras. This plate is directly compatible with ARRI studio bridge plates like the BP-8 and BP-9. The Canon Cine Plate has front and rear holders for lightweight 15mm rods (not included), enabling you to flesh out your camera rig with rod-mounted accessories. Both 1/4"-20 and 3/8"-16 screws are provided for mounting the plate to the camera.Rosettes on both the right and left sides of the Canon Cine Plate offer points for attaching handgrips. Anti-twist pins prevent the plate from slipping askew when attached to the bottom of your camera.
Features - Fits directly to studio bridge plates like the ARRI BP-8 and BP-9
- Integrated, lightweight 15mm rod support at the front and rear of the plate
- Enables the addition of 15mm rod-mounted accessories to your Canon C300 Mk II, C300, or C500 rig
- Rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Anti-twist pins prevent the plate from skewing off center when attached to the bottom of the camera
- 15mm Lightweight Support Rods (Pair, 13") This pair of 13" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

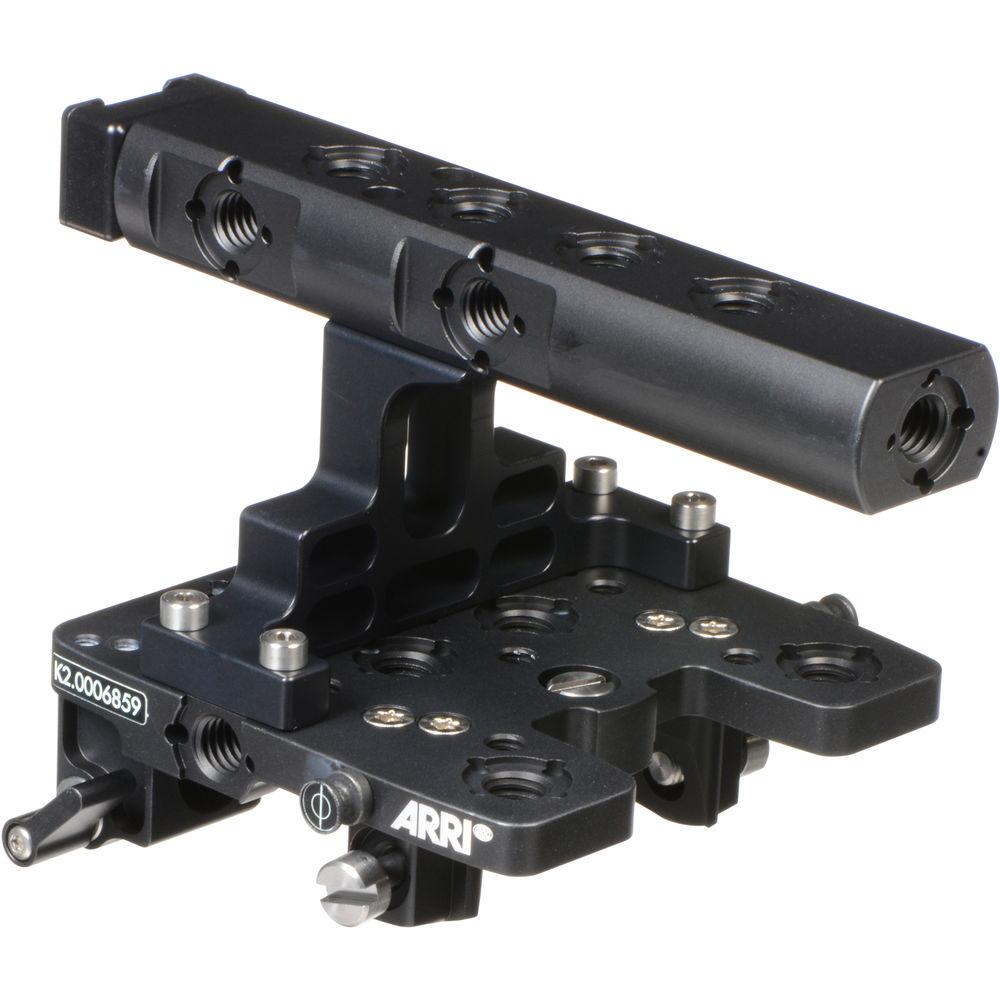

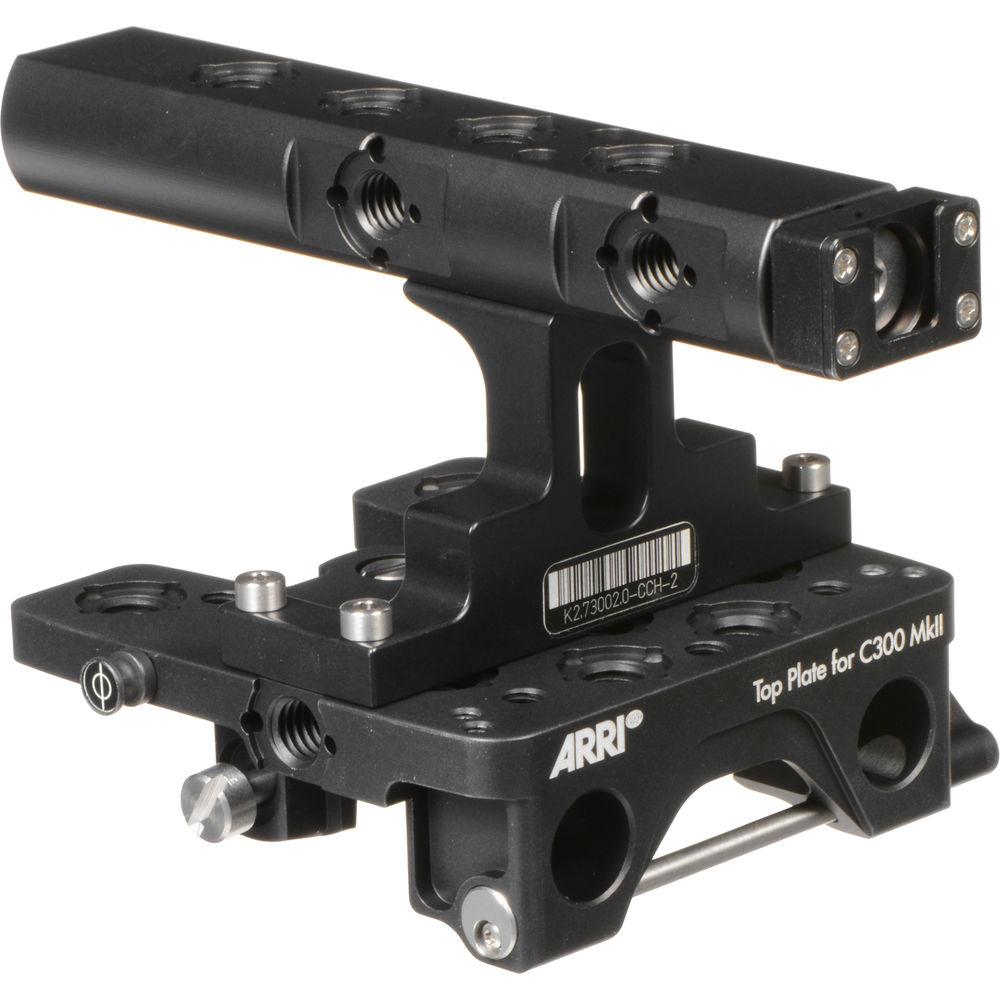

- Top Plate for Canon C300 Mk II Use the Top Plate for Canon C300 Mk II, from ARRI, when you're looking to trick out your camera to best suit your needs. This plate adds multiple accessory mounts to the top of your C300 Mk II, and has integrated support for a pair of 15mm LWS rods. The cheese plate top provides both 1/4"-20 and 3/8"-16 mounting threads, and is shaped to enable the use of the original, angled viewfinder.This low-mode style plate also features room for a detachable handle like the CCH-2 (not included), and it has two measuring tape studs that align with the C300 Mk II's focal plane.
Features - Integrated support for a pair of 15mm support rods (rods not included)
- Provides multiple 3/8"-16 and 1/4"-20 threaded accessory-mounting points
- Low-mode style plate may be used alone or with a compatible, detachable top handle like the CCH-2
- Cheese plate style form is shaped to accommodate the original, angled viewfinder
- Tape studs on both sides for measuring focus from the camera's focal plane
- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems
- Square 3/8"-16 Accessory Shoe Adapter This 3/8"-16 Accessory Shoe Adapter from ARRI enables you to attach shoe-mounted accessories to a camera cage, tripod, or other support system with an ARRI accessory mount. In addition to a standard 3/8"-16 screw, the adapter base has two locating pins that minimize the chance of the adapter working its way loose while being used.

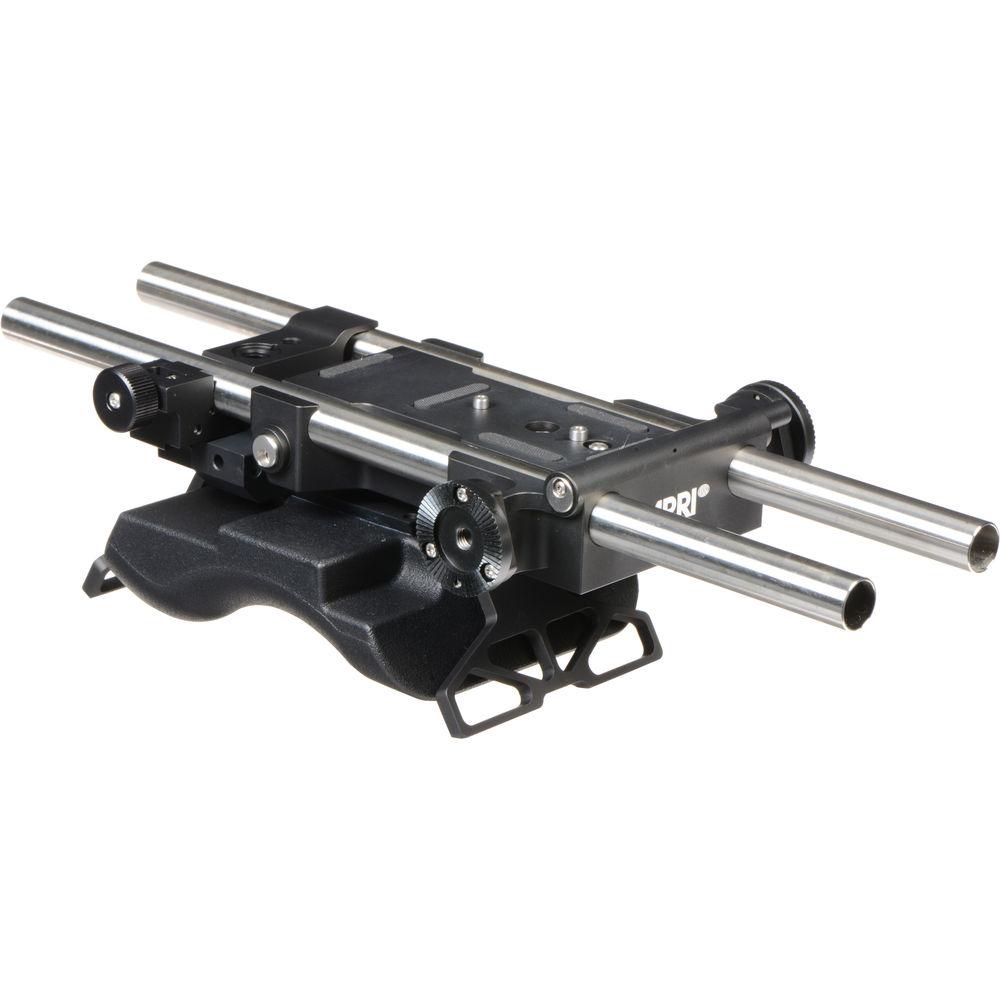

- CSP-1 Shoulder Pad for 15mm LWS Rods The ARRI CSP-1 Shoulder Pad attaches to a pair of 15mm lightweight support rods to provide a comfortable rest for your camera (rods not included). The increase in comfort gained when using a shoulder pad can translate into extended shooting time. This pad is designed such that the camera rig can rest on a flat surface without the pad itself touching the ground, diminishing wear and tear on the pad.
- Attaches to pair of 15mm rods (available separately)
- Enables the camera to rest on a flat surface without the pad itself touching the ground
- Adds comfort when operating the camera in handheld mode
In the Box Bundle Items Cine Plate for Canon C300 Mark II euarcvwrevxesfevrbxsszdtxvffdyfrtac 15mm Lightweight Support Rods (Pair, 13") Top Plate for Canon C300 Mk II CCH-2 Center Camera Handle Square 3/8"-16 Accessory Shoe Adapter CSP-1 Shoulder Pad for 15mm LWS Rods Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Pro Cine Set for Canon C300 Mk II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cine Plate for Canon C300 Mark II
| Dimensions | 5.5 x 5.5 x 1.6" (140 x 140 x 40 mm) | | Weight | 15.5 oz (440 g) | | | | Box Dimensions (LxWxH) | 10.55 x 8.6 x 5.75" | - 15mm Lightweight Support Rods (Pair, 13")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 13.4" / 34.0 cm | | Weight | 7.3 oz / 207 g | | | | Box Dimensions (LxWxH) | 13.5 x 1.2 x 0.4" | - Top Plate for Canon C300 Mk II
| Dimensions | 4.3 x 3.9 x 1.6" (110 x 100 x 40 mm) | | Weight | 8.1 oz (230 g) | | | | Box Dimensions (LxWxH) | 4.7 x 4.6 x 1.7" | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - Square 3/8"-16 Accessory Shoe Adapter
| Mounting | Female cold shoe
Male ARRI 3/8"-16 accessory mount | | Dimensions (LxW) | 0.73 x 0.73" (18.65 x 18.65 mm) | | Weight | Not specified by manufacturer | - CSP-1 Shoulder Pad for 15mm LWS Rods
| Dimensions | 5.5 x 6.7 x 3.5" (140 x 170 x 90 mm) | | Weight | 1.4 lb (656 g) | | | | Box Dimensions (LxWxH) | 9.0 x 7.5 x 3.55" |
