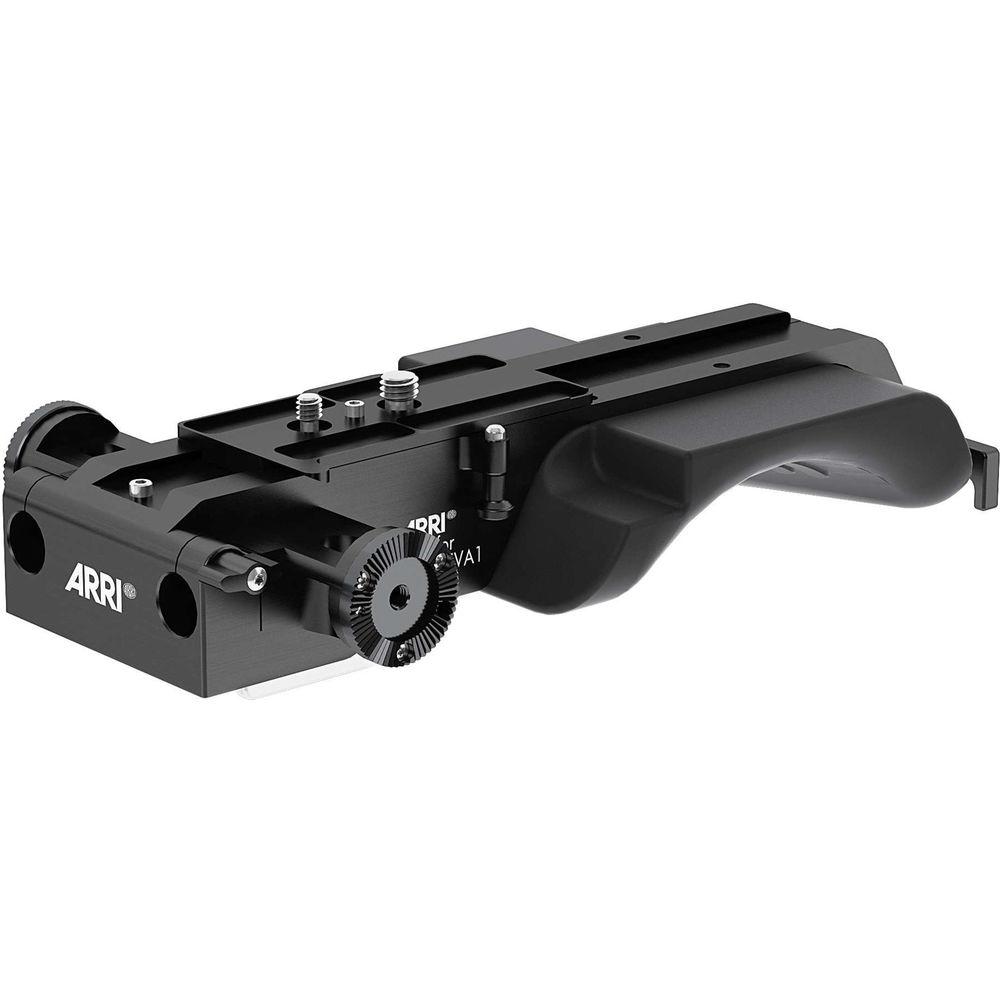

Product description The ARRI Pro Set for Panasonic AU-EVA1 is a complete support system featuring a shoulder mount baseplate, top plate, battery plate, monitor bracket, handgrip adapter, rod clamp, pair of 9" 15mm rods, and two pairs of 5.5" 15mm rods. Half of these accessories assemble into one unit that attaches to the top of the camera. - Plate for Panasonic EVA1 The ARRI Plate for Panasonic EVA1 is a 15mm LWS baseplate with an integrated shoulder pad. Featuring rosette handgrip mounts, this hybrid baseplate provides the starting point for a shoulder-mounted camera rig for your Panasonic AU-EVA1 cameras. It's compatible with ARRI BP-8 and BP-9 bridge plates, and with VCT-style tripod adapters such as the QRP-1.

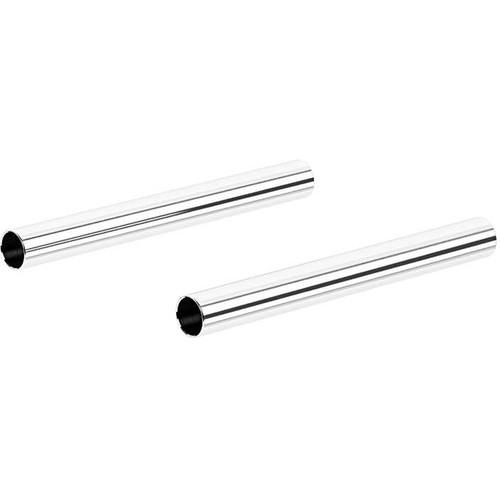

- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

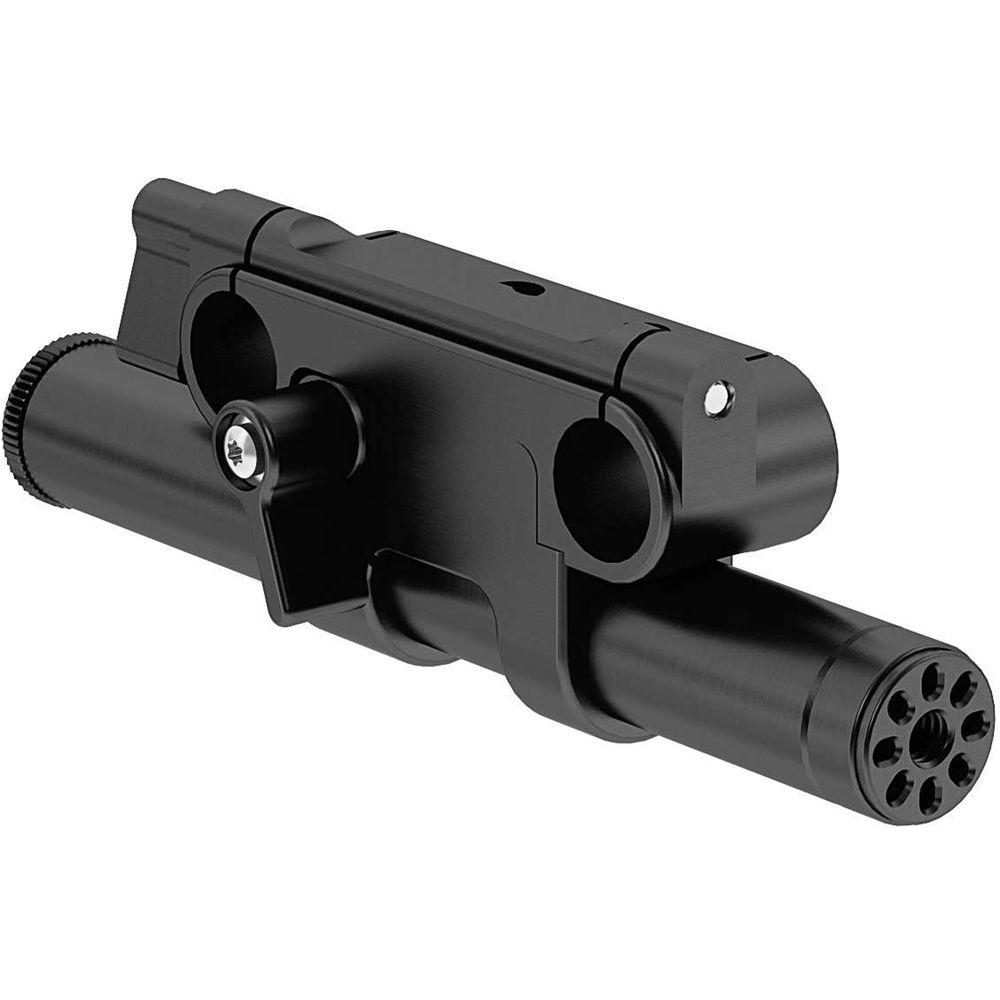

- BAP-1 Battery Adapter Plate The BAP-1 Battery Adapter Plate from ARRI is designed to use a V-Lock, Gold Mount, or other standard battery mount on a pair of 15mm rods. This ALEXA Mini accessory has pre-drilled holes for attaching the battery mount (not included) to the plate. The battery plate may be offset from the rod clamp to accommodate a camera's rear card slot or to help balance the camera rig. The BAP-1 has a semicircular clamp design that enables you to snap the plate onto the rods without necessitating the removal of other rod-mounted accessories.
- Compatible Battery Mounts
- Including, but not limited to, V-Lock, Gold Mount, etc.
- Rod Clamp
- Open design enables you to clamp the plate onto a pair of rods without having to remove other rod-mounted accessories

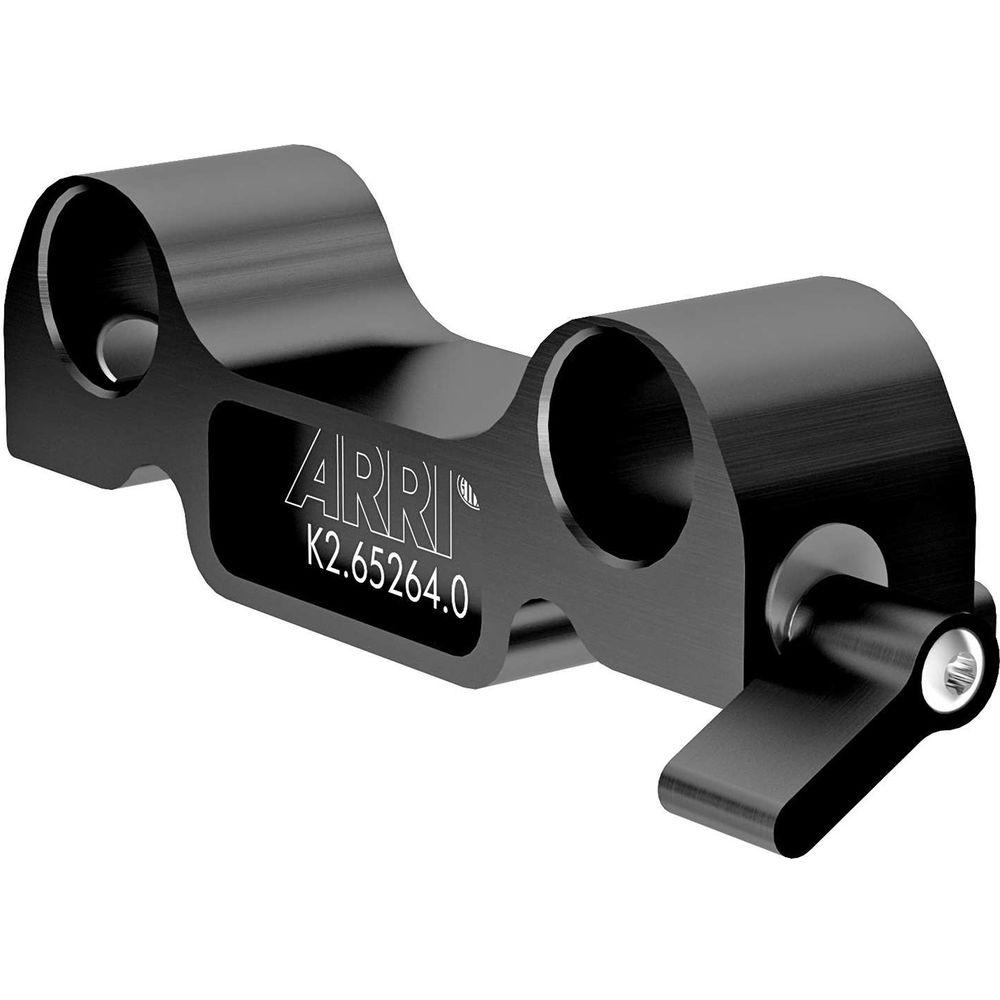

- 15mm LWS Rod Console The ARRI 15mm LWS Rod Console adds 15mm rod support to your camera rig. This component can be mounted to several ARRI support accessories such as baseplates, top plates and cheese plates. The console can be useful when you want to add extra support for long rods when using a heavy lens or accessory, or to provide rod support in a second location on your camera rig.
- Adds 15mm rod support for heavier lenses or accessories, or in an additional camera rig location
- Can be used for front, rear, or top rod support
- Compatible with several ARRI support systems
- 15mm Lightweight Support Rods (Pair, 5.5") This pair of 5.5" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

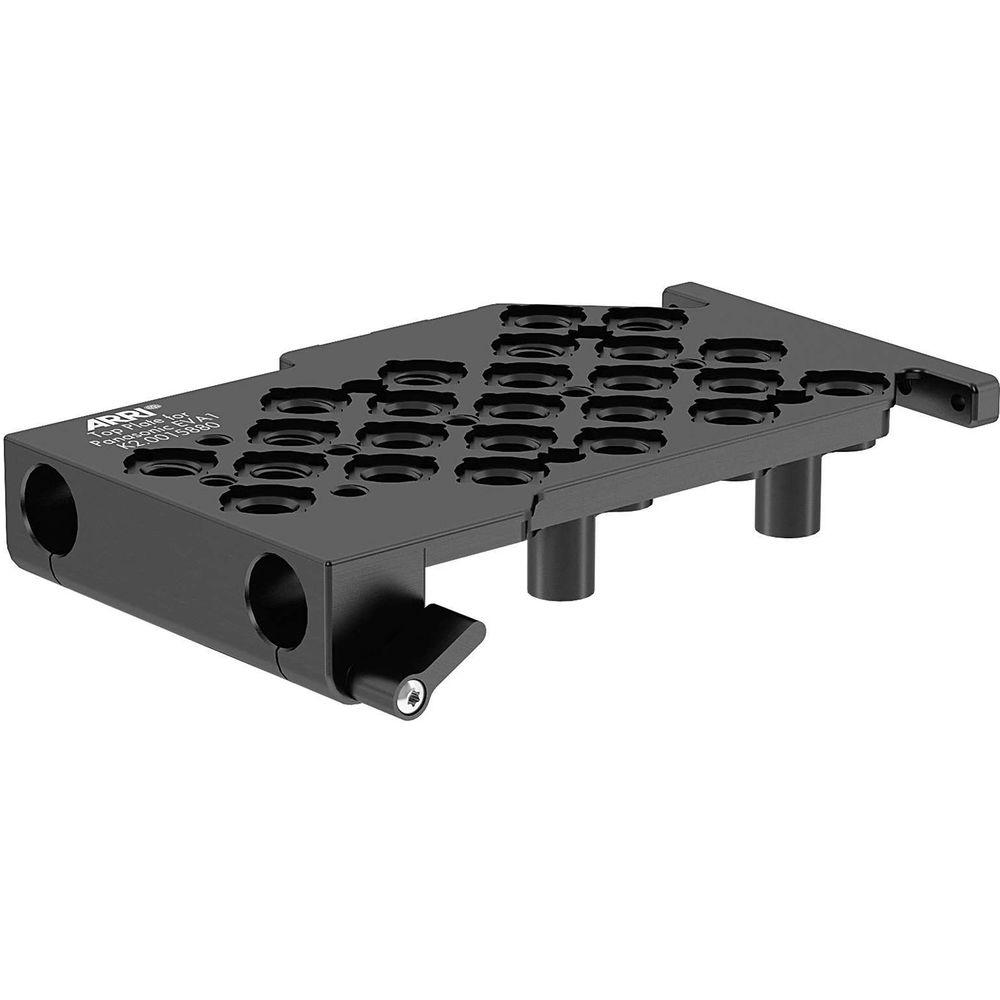

- Top Plate for Panasonic AU-EVA1
- Monitor Bracket for Panasonic AU-EVA1
- Handgrip Adapter for Panasonic AU-EVA1
In the Box Bundle Items Plate for Panasonic EVA1 edysqtrrcvefabqvwfqyrvfttqtqra Top Plate for Panasonic AU-EVA1 edysqtrrcvefabqvwfqyrvfttqtqra 15mm Lightweight Support Rods (Pair, 9") Monitor Bracket for Panasonic AU-EVA1 Handgrip Adapter for Panasonic AU-EVA1 BAP-1 Battery Adapter Plate 15mm LWS Rod Console 2 x 15mm Lightweight Support Rods (Pair, 5.5") Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Pro Set for Panasonic AU-EVA1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Plate for Panasonic EVA1
| Rod Support | 15 mm LWS | | Mount Types | Left/right rosette handgrip mounts | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - BAP-1 Battery Adapter Plate
| Dimensions (WxHxD) | 4.7 x 7.1 x 1.2" (12.0 x 18.0 x 3.0 cm) | | Weight | 8.1 oz (230 g) | | | | Box Dimensions (LxWxH) | 7.087 x 5.5 x 0.866" | - 15mm LWS Rod Console
| Dimensions | 1.6 x 3.9 x 1.6" (40 x 100 x 40 mm) | | Weight | 3.3 oz (94 g) | | | | Box Dimensions (LxWxH) | 4.1 x 3.5 x 1.2" | - 15mm Lightweight Support Rods (Pair, 5.5")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 5.5" / 14.0 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 7.15 x 1.45 x 0.75" | - Top Plate for Panasonic AU-EVA1
- Monitor Bracket for Panasonic AU-EVA1
- Handgrip Adapter for Panasonic AU-EVA1
