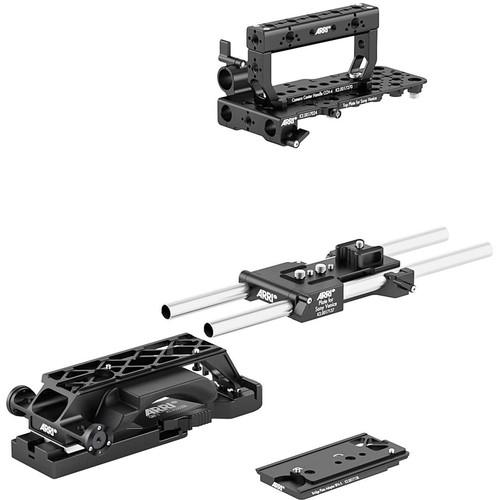

Product description Get ready to shoot with your Sony VENICE with this Pro Set from ARRI, comprising a dedicated shoulder plate, a BPA-5 bridge plate adapter, a dedicated top plate, a CCH-4 camera center handle, an RMB-3 rod-mounting bracket, a pair of 13" 15mm lightweight stainless steel rods, and a QRP-1 quick release plate.

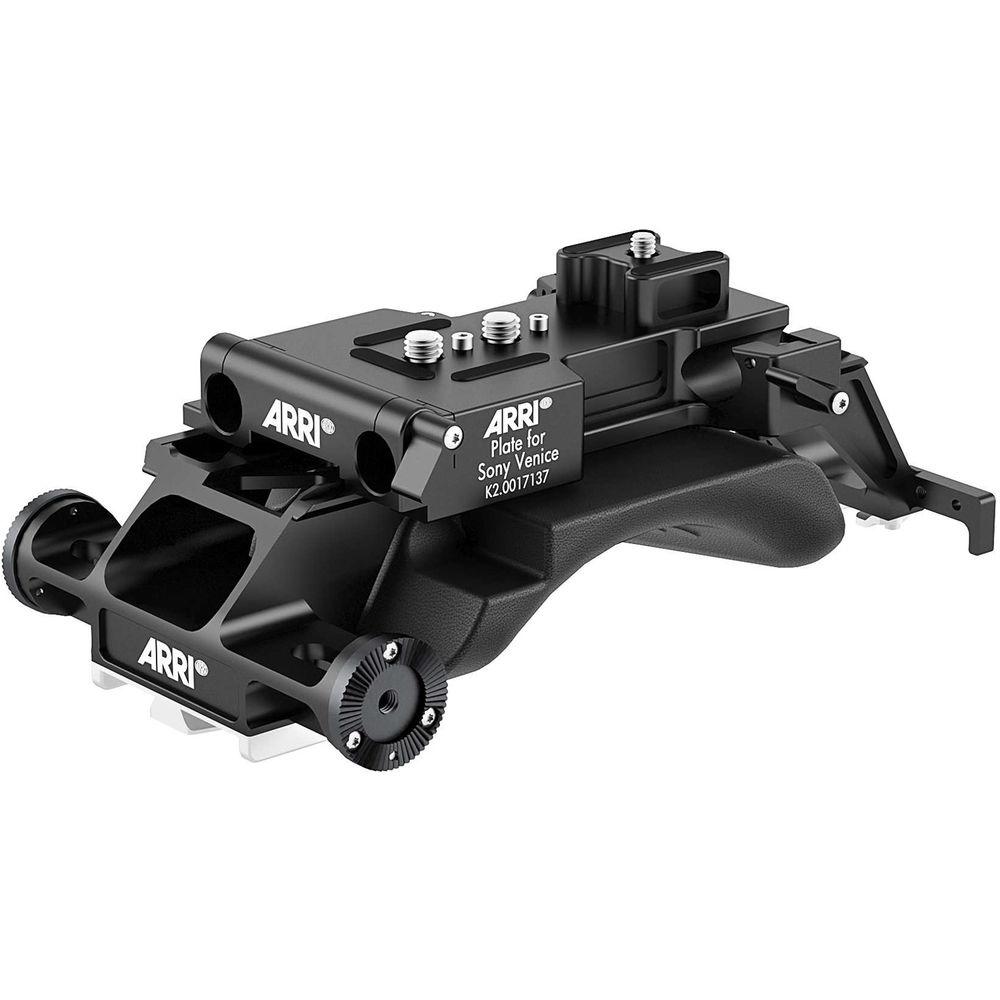

The plate features integrated front and back 15mm LWS rod clamps and an adjustable shoulder pad, and interfaces with the QRP-1 for easy attachment to a tripod. The BPA-5 bridge plate adapter allows you to quickly transfer your VENICE from the shoulder plate to a separately available cine-style bridge plate. The top plate enables low-angle shots, offers numerous accessory threads, and allows you to mount the CCH-4 center handle in one of three different positions. Lastly, the RMB-3 bracket supports a single 19mm rod, or a 15mm rod via a separately available reduction insert, and is well suited to accessories such as lens motors and lightweight viewfinder mounts. - Plate for Sony VENICE Specifically tailored to the Sony VENICE camera, this ARRI Plate features front and back 15mm LWS rod clamps and an adjustable shoulder pad. The plate is compatible with VCT-style tripod adapters such as the QRP-1 quick release plate (available separately).

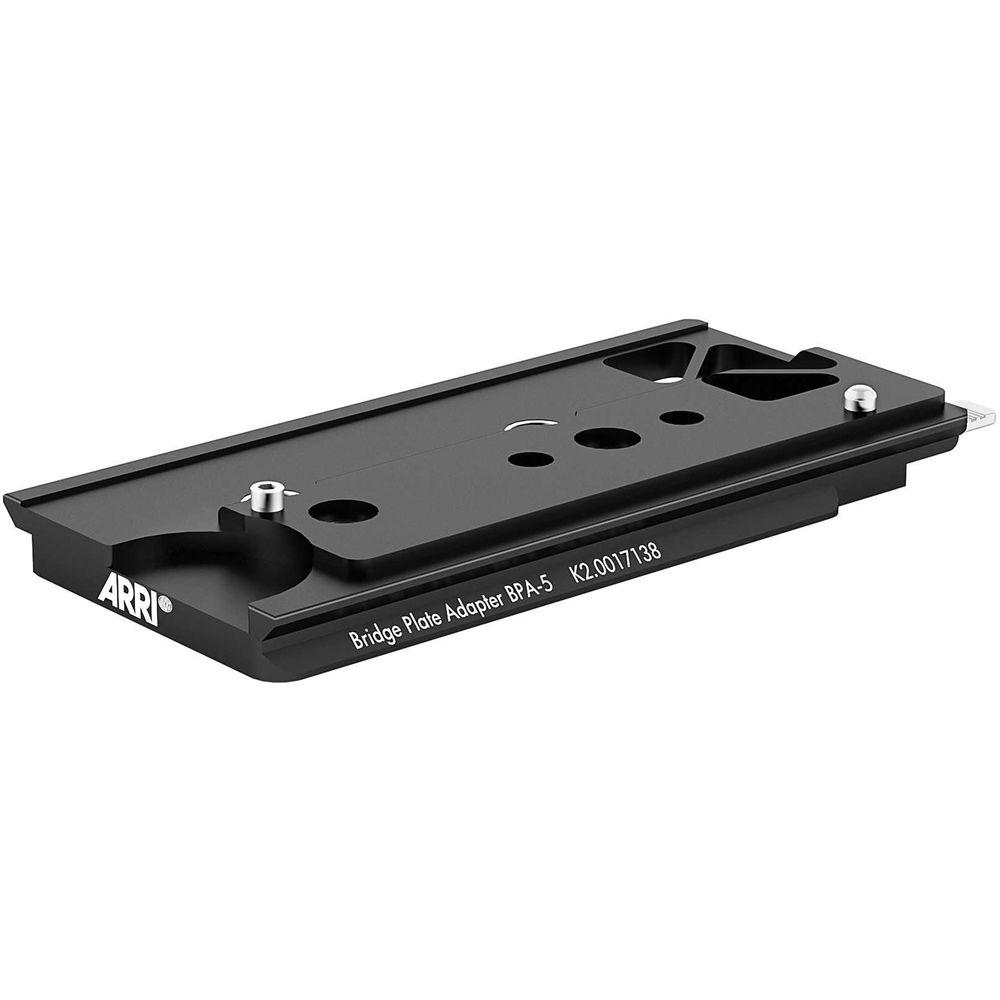

- BPA-5 Bridge Plate Adapter The BPA-5 Bridge Plate Adapter from ARRI allows you to quickly transfer your camera from a shoulder plate to a cine-style bridge plate such as the BP-8 or BP-9. The adapter is compatible with the plate for the Sony VENICE (available separately).

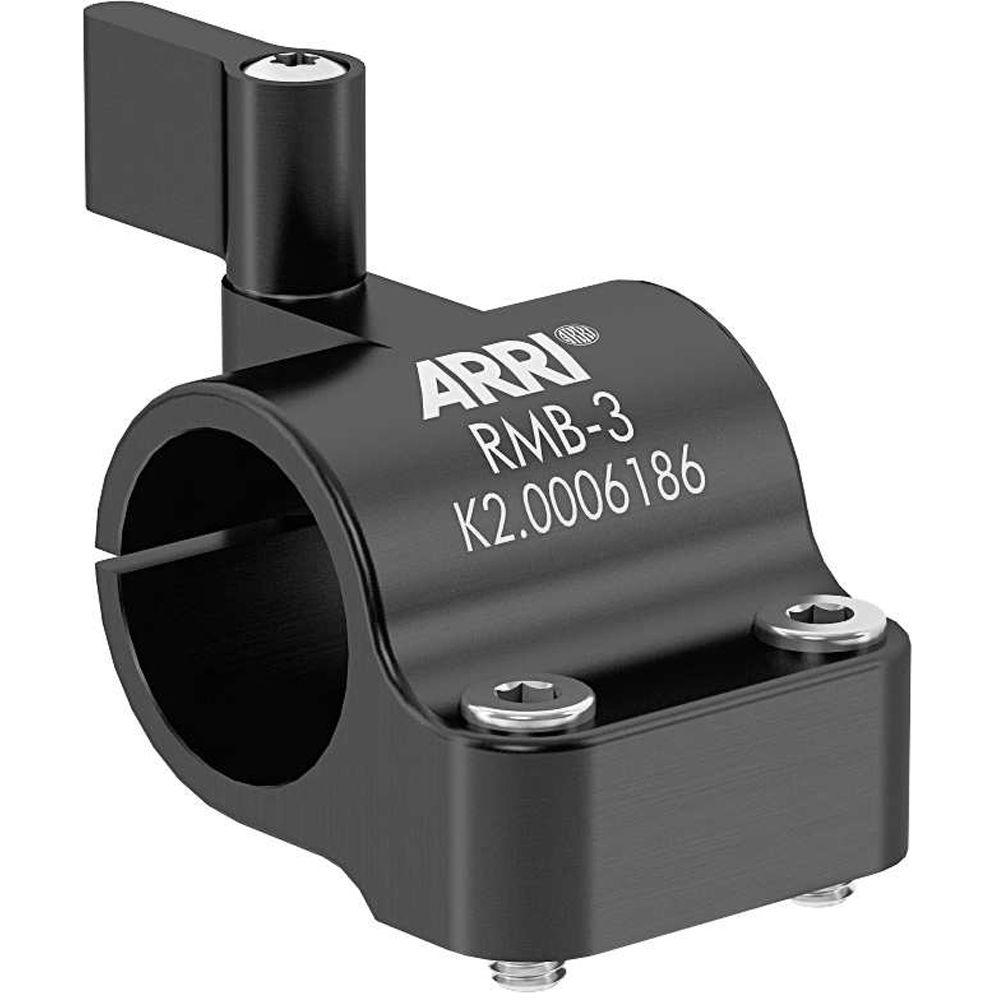

- Rod Mounting Bracket (RMB-3) Use the Rod Mounting Bracket (RMB-3) from ARRI to support a single, standard 19mm rod for mounting a lens motor, lightweight EVF bracket, etc. to your camera or cage rig. When used with a separately available insert, the RMB-3 can be used to support a 15mm rod. A mounted rod is easily secured using the thumb lever on this screw-in bracket.
- Rod Compatibility
- 19mm

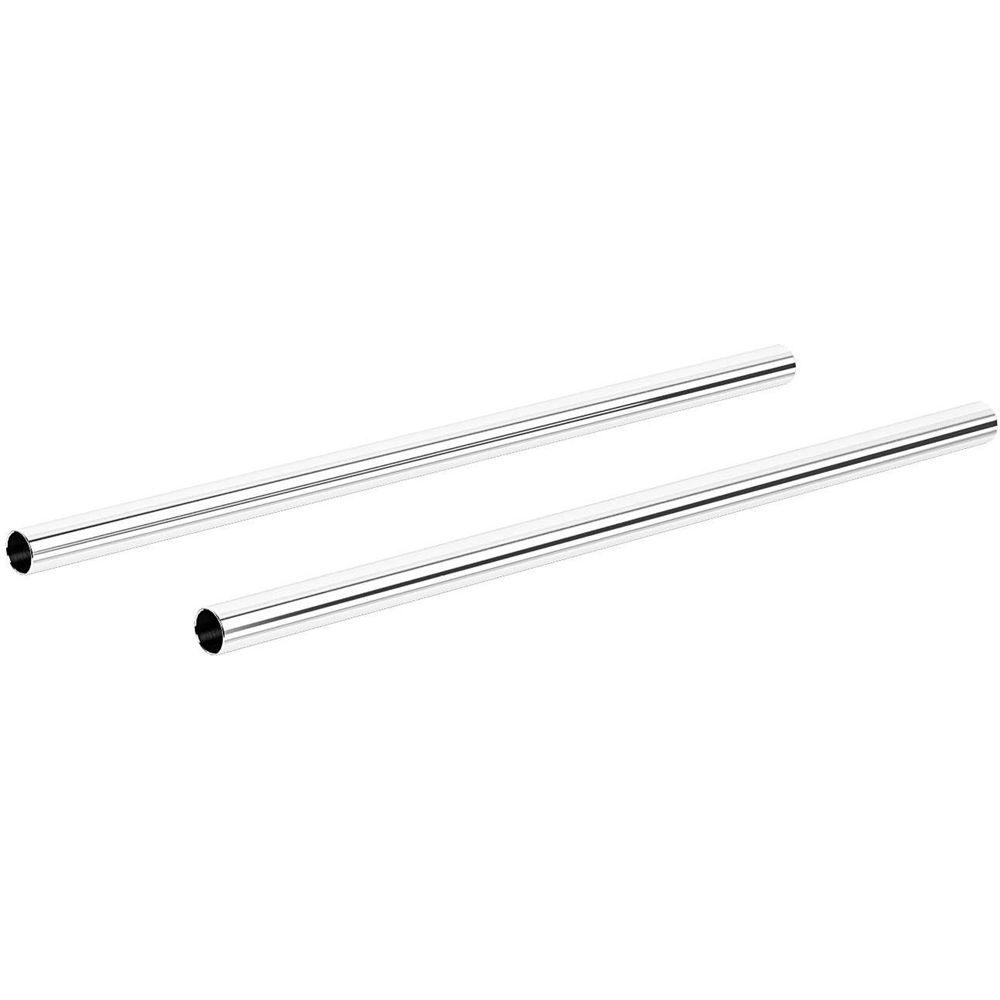

15mm (with separately available insert K2.66255.0) - 15mm Lightweight Support Rods (Pair, 13") This pair of 13" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

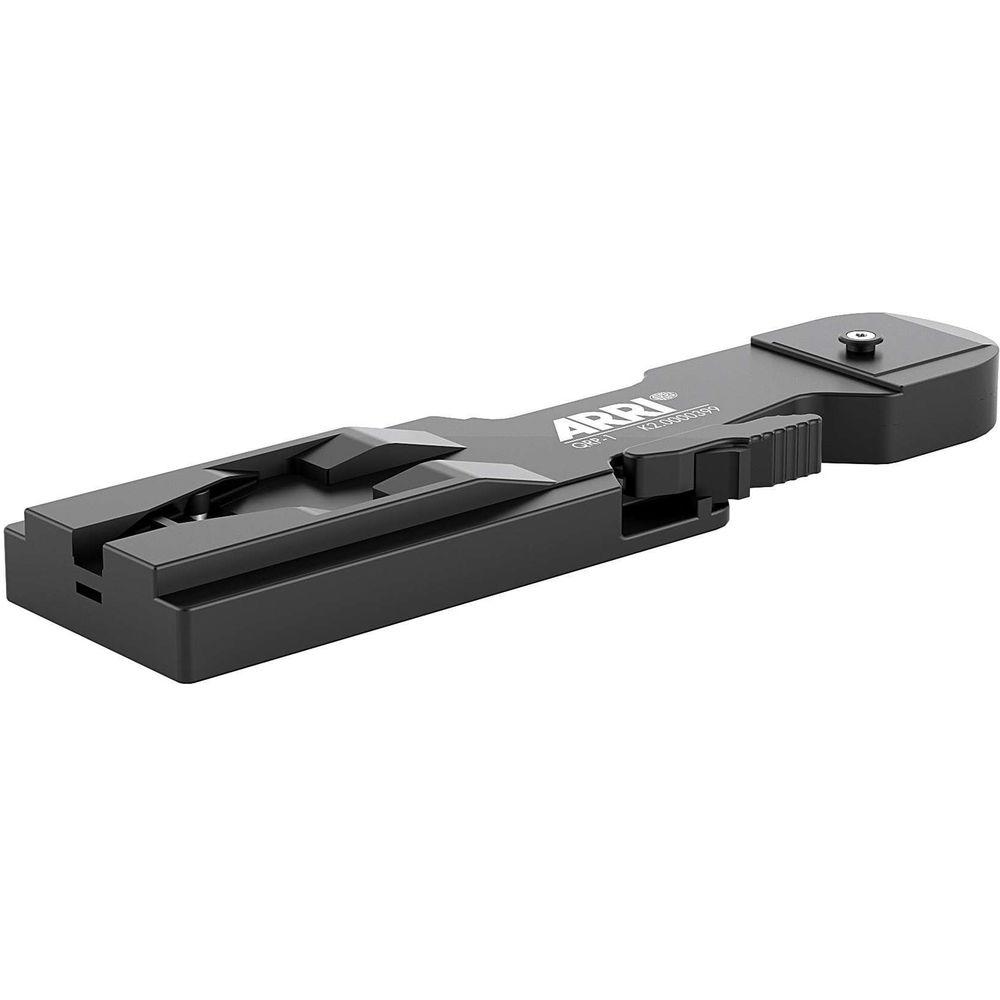

- QRP-1 Quick Release Plate The ARRI QRP-1 Quick-Release Plate is compatible with the ARRI AMIRA camera, select ARRI support systems, and many industry-standard broadcast cameras. The VCT wedge design enables you to quickly attach and remove your camera from the plate using the lever release.
Features - Quick release plate with lever release
- VCT-style plate enables quick mounting and removal of camera
- For ARRI AMIRA, select ARRI support systems, and many industry-standard broadcast cameras

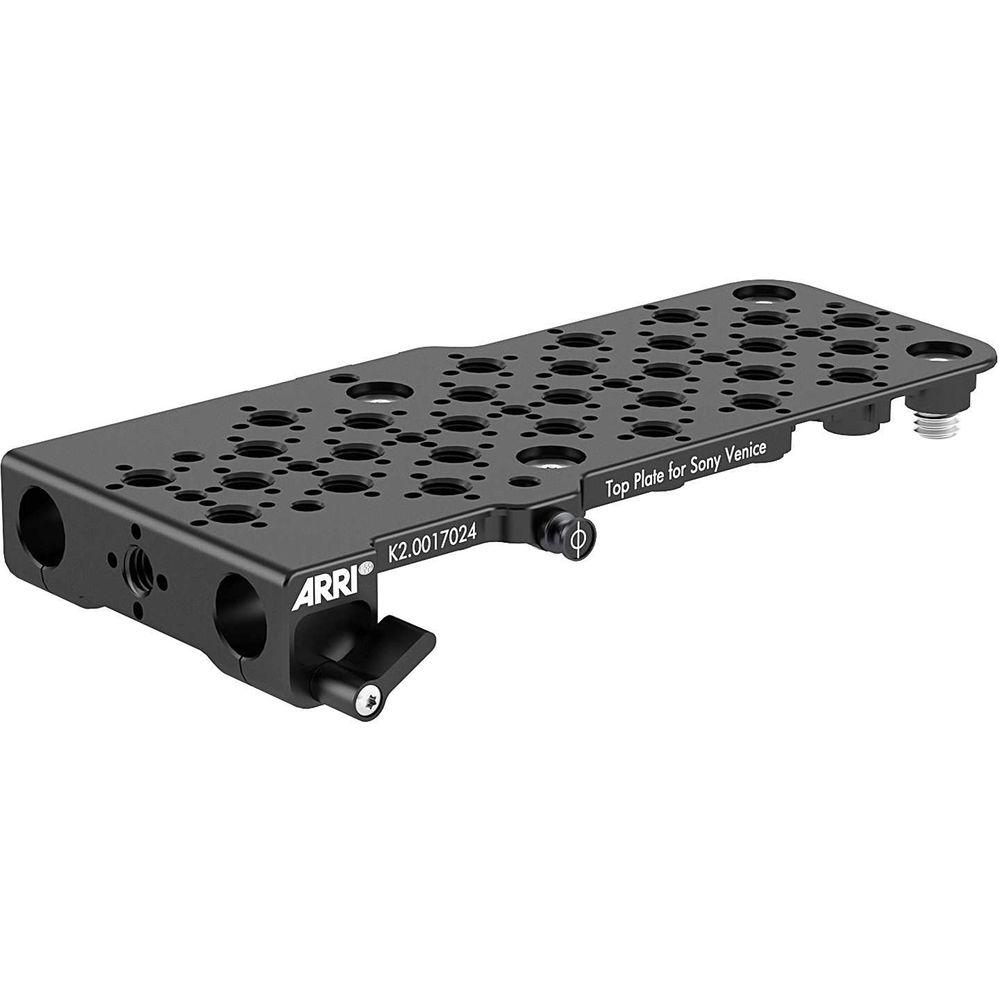

- Top Plate For Sony Venice

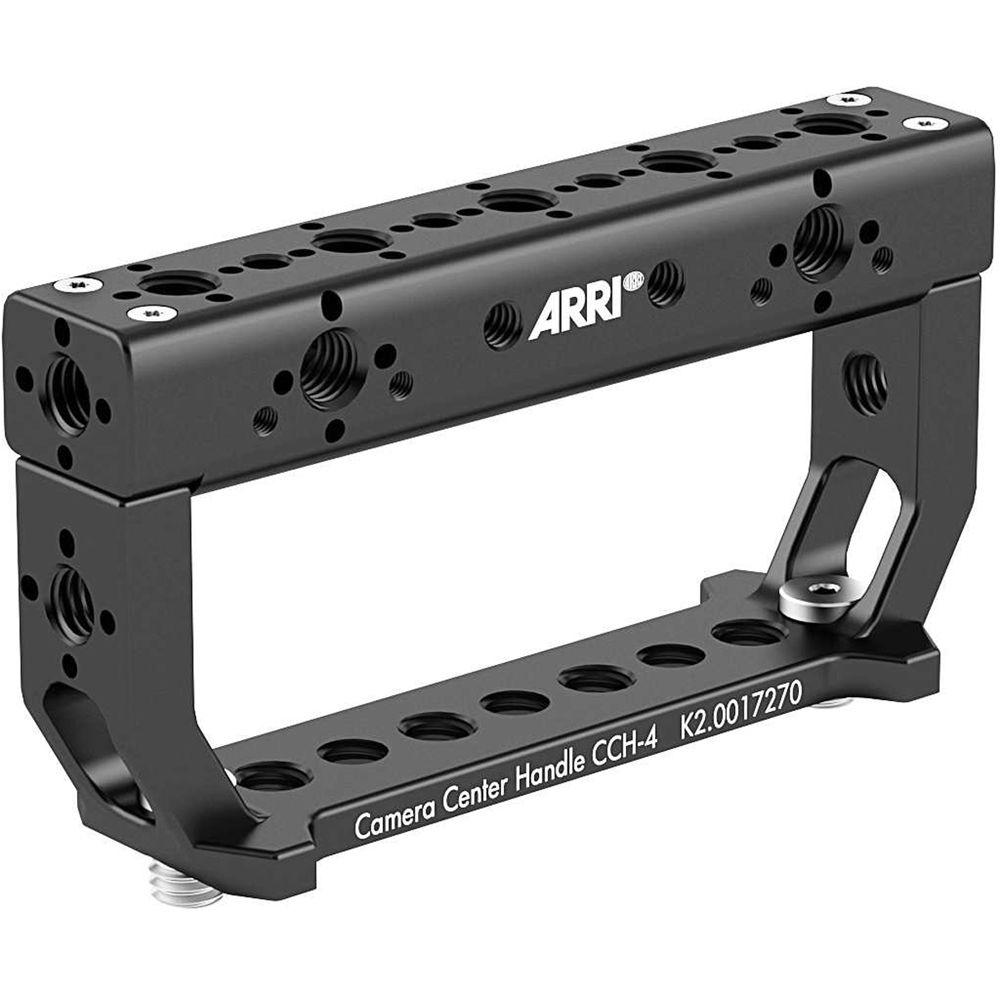

- Camera Center Handle CCH-4
In the Box Bundle Items Plate for Sony VENICE xqducfqdtzcrswqxu BPA-5 Bridge Plate Adapter Top Plate For Sony Venice xqducfqdtzcrswqxu Camera Center Handle CCH-4 Rod Mounting Bracket (RMB-3) 15mm Lightweight Support Rods (Pair, 13") QRP-1 Quick Release Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Pro Set for Sony VENICE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Plate for Sony VENICE
| Compatibility | Sony VENICE full-frame motion picture camera system | | Rod Clamps | 2 x 15 mm LWS rod clamps on front
2 x 15 mm LWS rod clamps on back | - Top Plate For Sony Venice
| | | Box Dimensions (LxWxH) | 8.0 x 6.1 x 1.15" | - Rod Mounting Bracket (RMB-3)
| Dimensions | 1.2 x 1.6 x 1.6" / 30 x 40 x 40 mm | | Weight | 1.3 oz / 38 g | | | | Box Dimensions (LxWxH) | 4.3 x 3.6 x 0.6" | - 15mm Lightweight Support Rods (Pair, 13")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 13.4" / 34.0 cm | | Weight | 7.3 oz / 207 g | | | | Box Dimensions (LxWxH) | 13.5 x 1.2 x 0.4" | - QRP-1 Quick Release Plate
| Dimensions (WxLxD) | 3.1 x 11.4 x 1.2" / 80 x 290 x 30 mm | | Weight | 21 oz / 600 g | | | | Box Dimensions (LxWxH) | 13.4 x 4.0 x 2.2" | - BPA-5 Bridge Plate Adapter
- Camera Center Handle CCH-4
