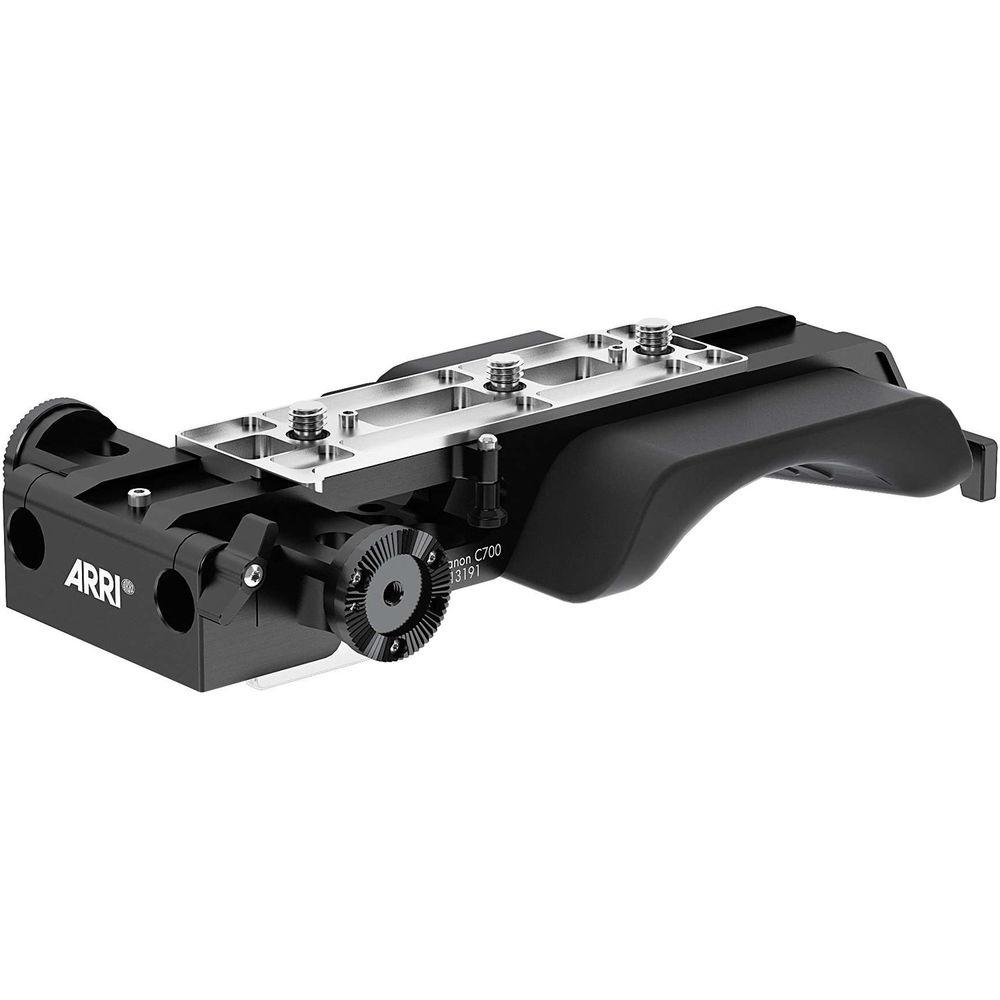

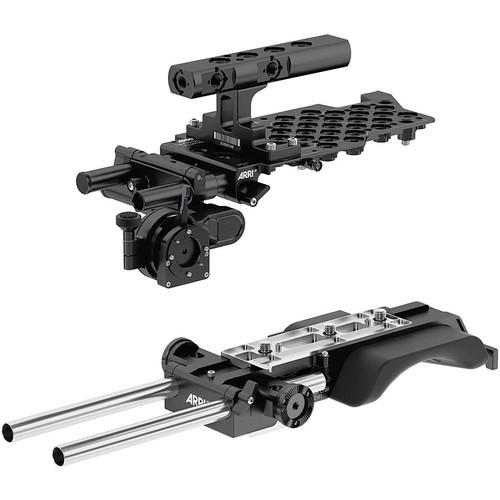

Product description ARRI's Pro Support Set for Canon C700 provides a range of support components, including 15mm lightweight rod support, for your Canon EOS C700 Cine Camera. This set includes an adapter plate with integrated shoulder pad, a pair of 15mm rods (9"), a top cheese plate, and a CCH2 carrying handle. The flexible adapter plate is compatible with both VCT-style, and studio bridge plates. The Top Plate is designed for low-mode use, adding accessory mounts and 15mm rod support above the camera. This set also includes a quick-release adapter for mounting the original Canon EVF, and an MVB-1 Mini Viewfinder Bracket for greater flexibility when positioning the EVF. - Support Plate for Canon C700 The Support Plate for Canon C700 from Arri is compatible with VCT-style base plates like the ARRI QRP-1, and with bridge plates such as the BP-8 or BP-9. This double-duty plate's features include extended right and left handgrip rosettes, 15mm LWS rod support, and an integrated, curved shoulder pad.
Features - Compatible with both studio-style bridge plates and VCT-style plates for quickly mounting to a head or other support
- Supports the addition of 15mm rod-mounted accessories to your Canon C700 rig
- Extended-width rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Curved, padded shoulder rest for increased comfort while operating handheld

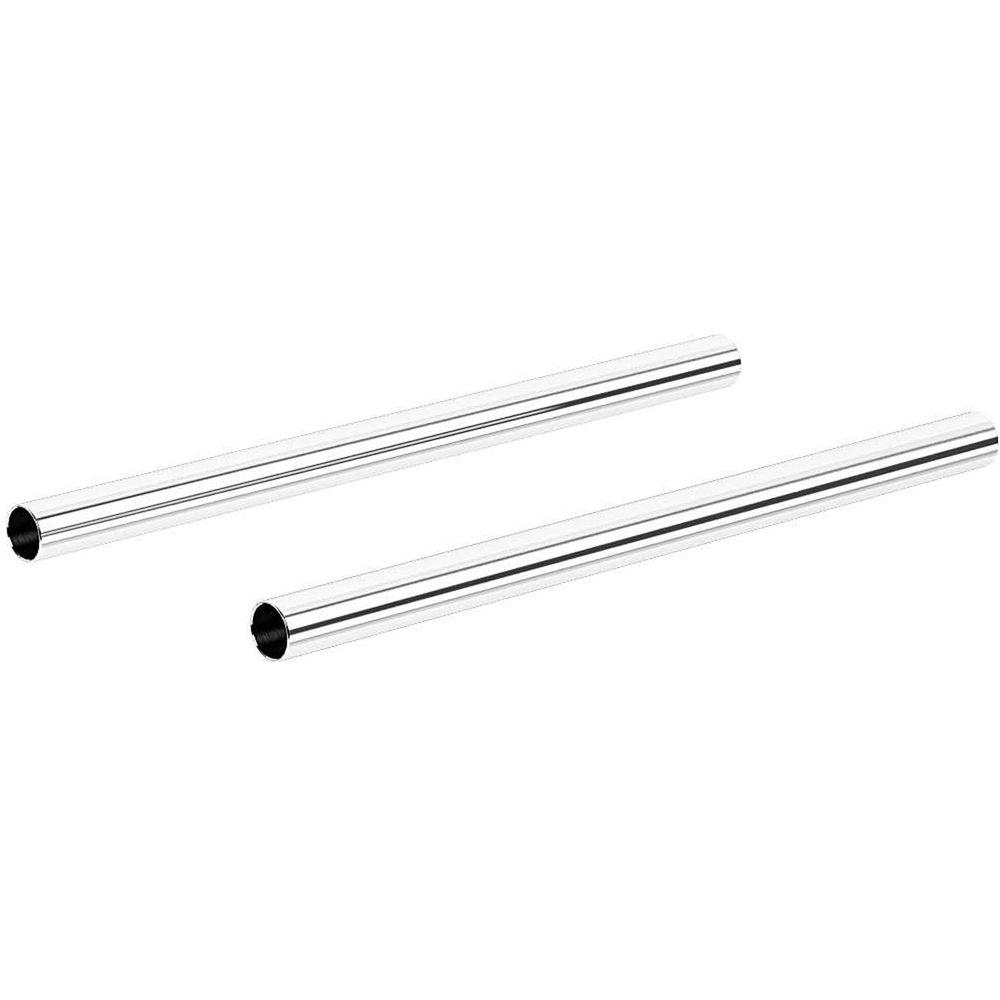

- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

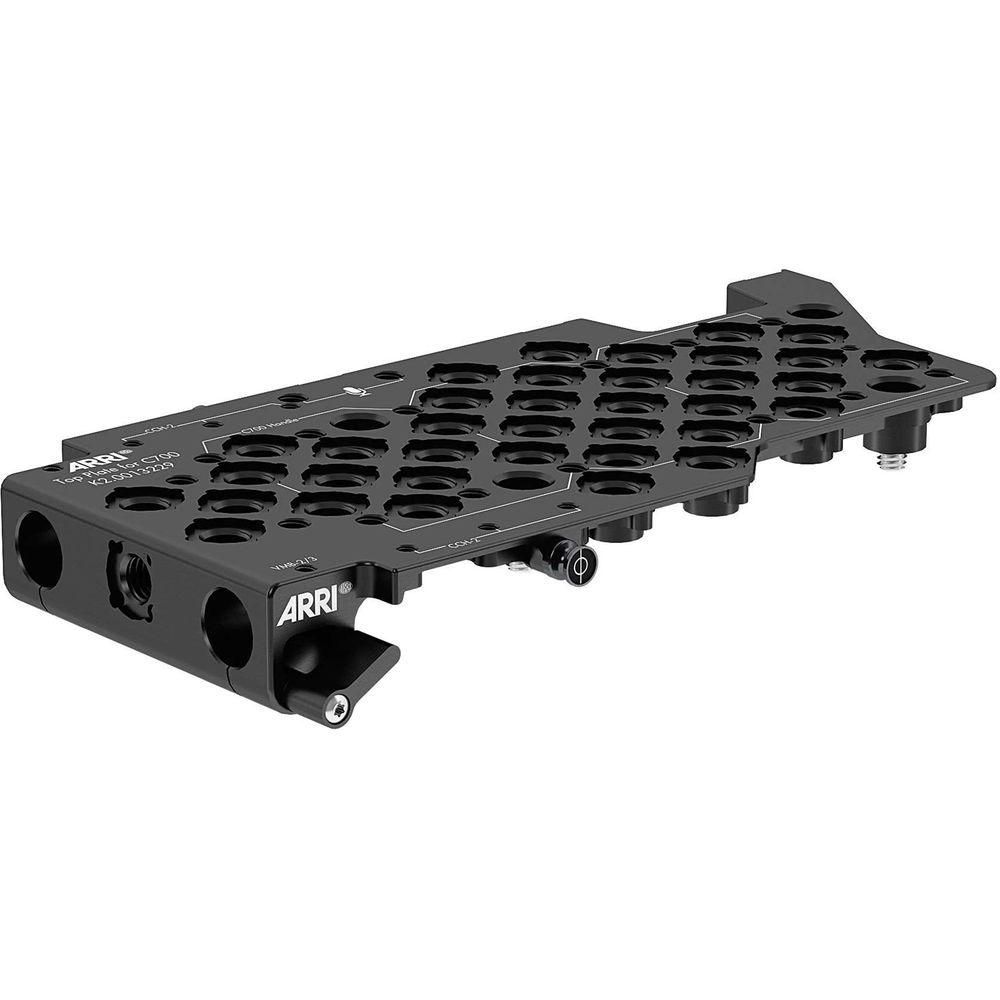

- Top Plate with Rod Support for Canon EOS C700 ARRI's Top Plate with Rod Support for Canon EOS C700 is designed for use in low-mode setups. This plate adds 15mm LWS rod support to the top of your camera, leaving the bottom of the camera unencumbered and suited for low-mode Steadicam and tabletop setups. The screw-on Top Plate also features multiple 3/8"-16 and 1/4"-20 accessory mounts and a tape hook for measuring focus distances.
Features - Suitable for low-mode setups; provides 15mm LWS rod support and accessory mounts on top of camera
- Provides multiple 3/8"-16 and 1/4"-20 threaded accessory-mounting points
- Integrated tape hook for focus measuring

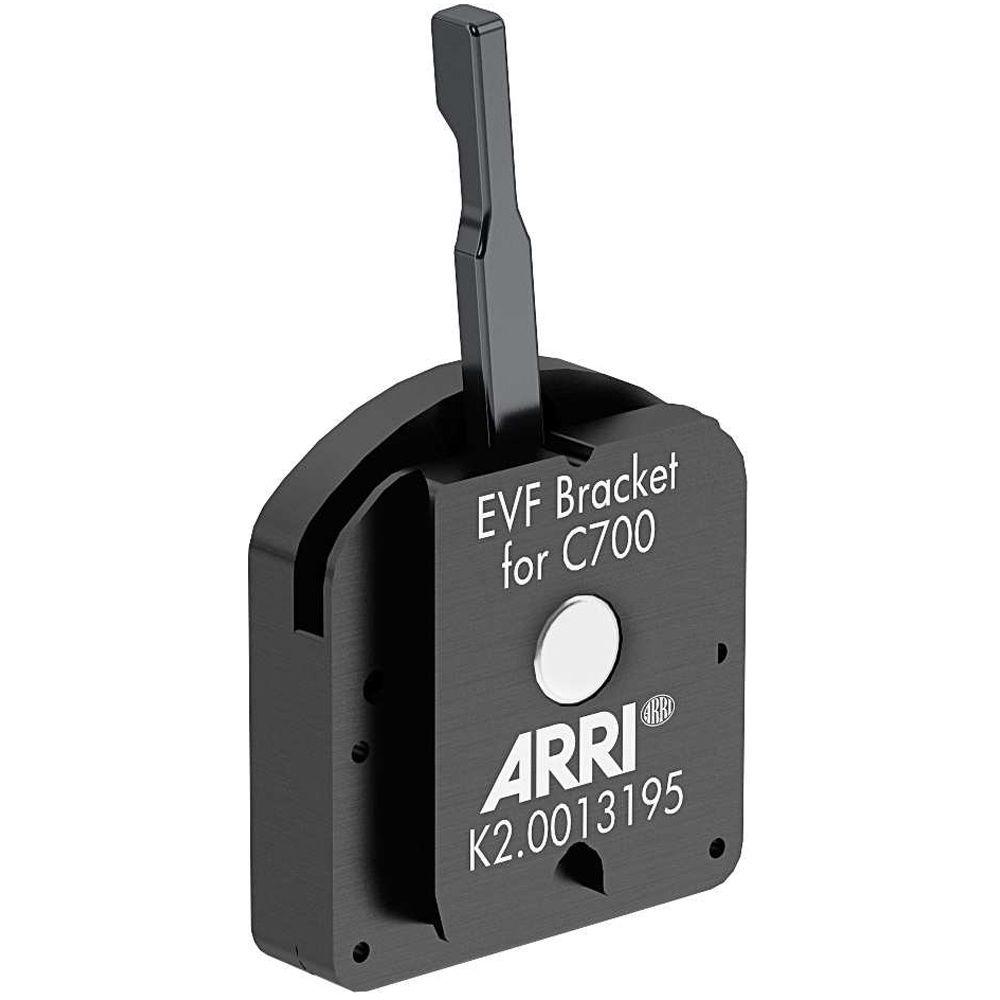

- Viewfinder Bracket for Canon C700 EVF The ARRI Viewfinder Bracket for Canon EVF provides a quick-release mounting option for your Canon C700 viewfinder. When used in conjunction with the required ARRI MVB-1 Bracket (not included), the combination enables you to configure the EVF in a more ergonomic position.
- For original Canon EOS C700 electronic viewfinder
- Provides a quick-release option for the Canon C700 EVF when used with the required MVB-1 bracket (not included)
- Enables more ergonomic positioning of the EVF

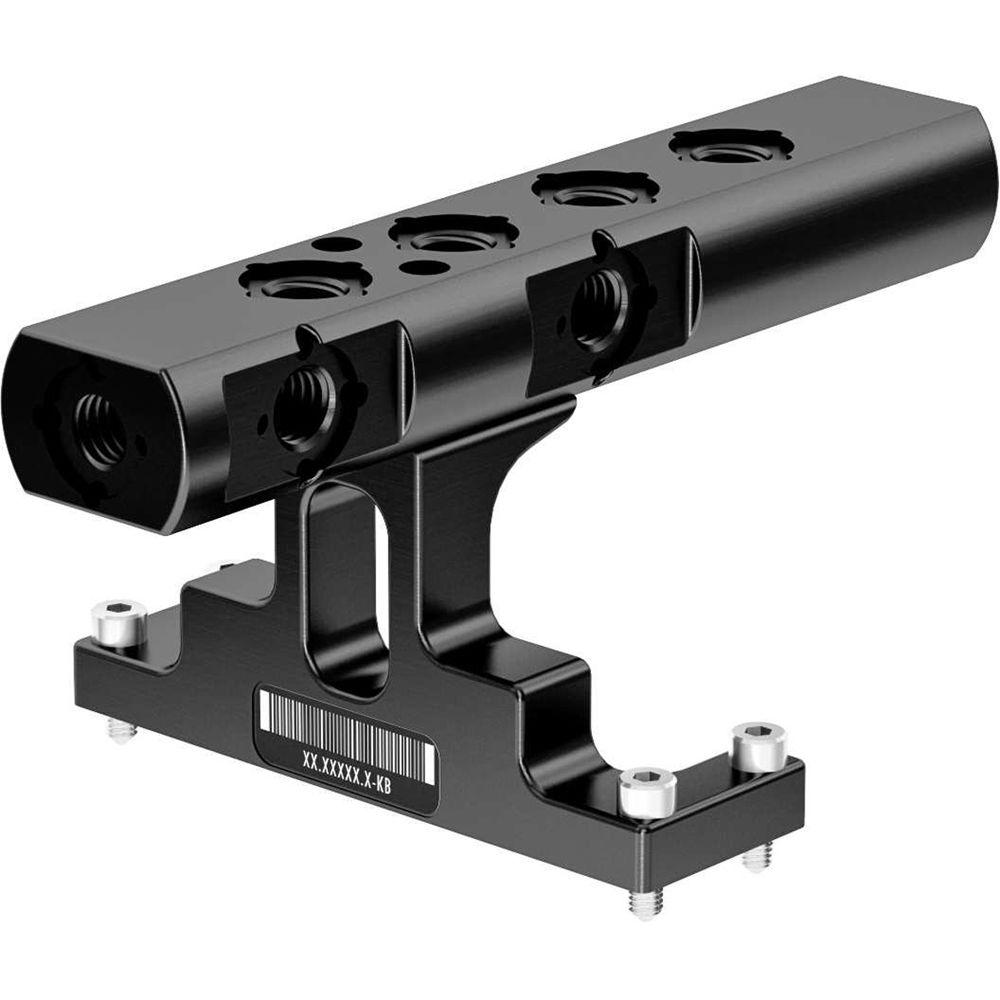

- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems
In the Box Bundle Items Support Plate for Canon C700 crwrbryqzsdaxxrs 15mm Lightweight Support Rods (Pair, 9") Top Plate with Rod Support for Canon EOS C700 Viewfinder Bracket for Canon C700 EVF CCH-2 Center Camera Handle

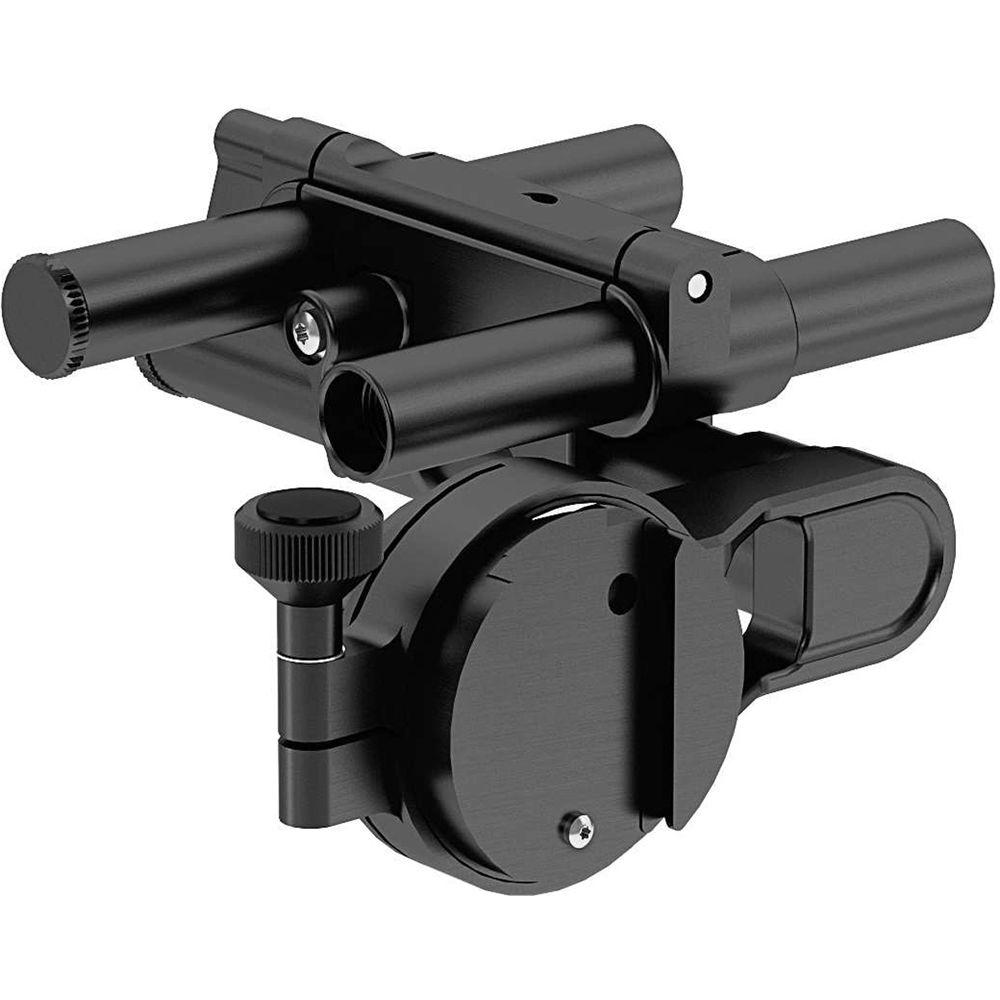

Also Includes - Mini Viewfinder Bracket MVB-1
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Pro Support Set for Canon EOS C700 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Support Plate for Canon C700
| Dimensions (WxLxD) | 5.5 x 10.6 x 2.4" (140 x 270 x 60 mm) | | Weight | 2.4 lb (1.1 kg) | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - Top Plate with Rod Support for Canon EOS C700
| Dimensions | 4.7 x 9.1 x 1.2" (120 x 230 x 30 mm) | | Weight | 11.6 oz (330 g) | - Viewfinder Bracket for Canon C700 EVF
| Dimensions (WxLxD) | 1.6 x 2.8 x 0.8" (40 x 70 x 20 mm) | | Weight | 1.7 oz (49 g) | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" |
