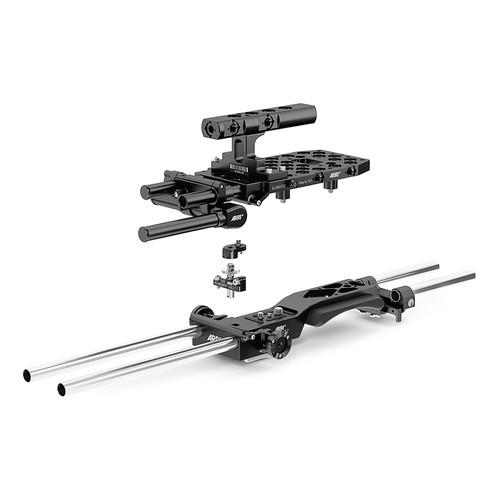

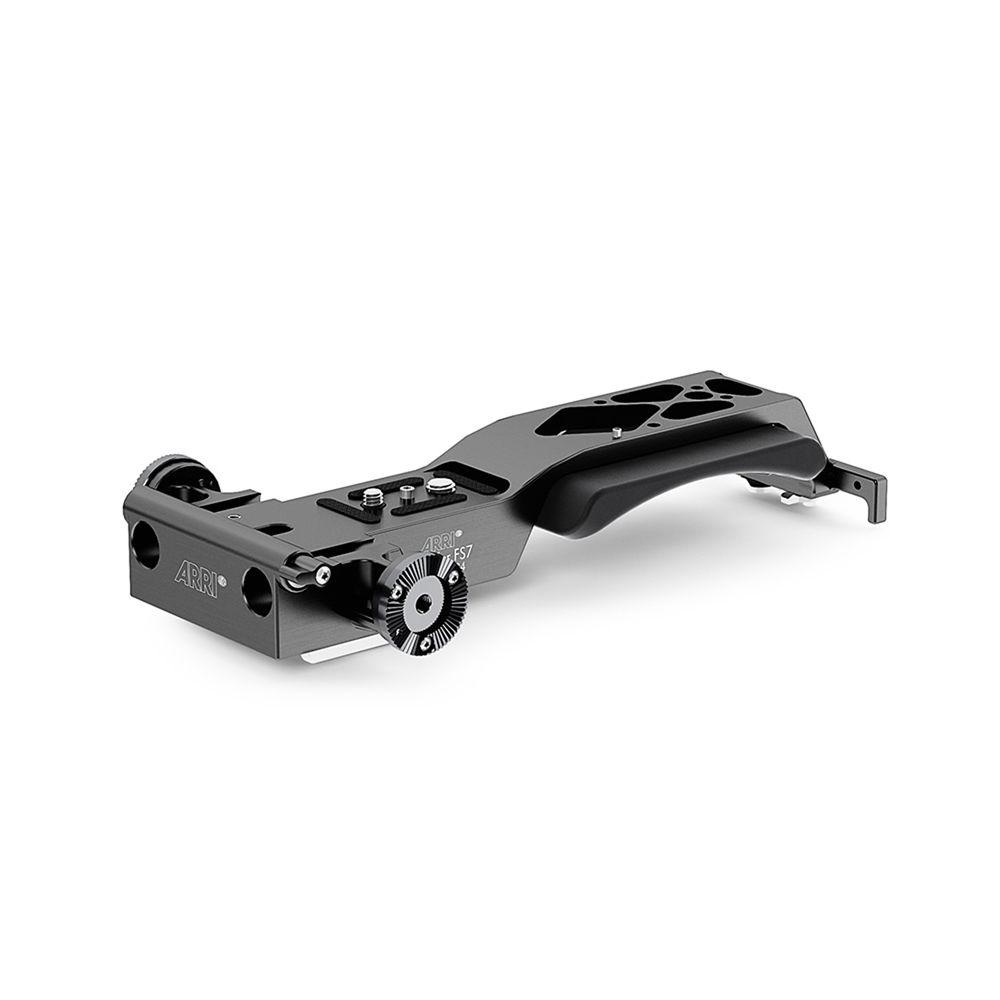

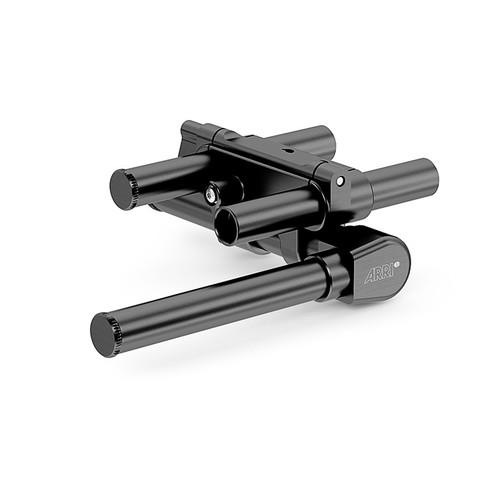

Product description The ARRI Pro Set for Sony PXW-FS7/FS72 provides a range of components designed to support and add accessories to your FS7 or FS7M2 HD camera. This set includes an adapter base plate with an integrated 15mm rod bracket, a built-in shoulder pad, a detachable 15mm rod console, two pairs of 15mm rods, a lens adapter support, a top cheese plate, a CCH2 carrying handle, and a viewfinder bracket. The flexible adapter plate is compatible with bridge plates like the ARRI BP-8 and BP-9, and with VCT-style tripod adapters. Extended rosettes on the plate will accommodate the original Sony handgrip or any rosette-based grip. For handheld operating comfort, a contoured shoulder pad is integrated into the adapter plate.This set's two pairs of 15mm rods, the adapter plate's built-in rod holders, and the included 15mm rod console provide front and rear support for 15mm rod-based accessories. The included LAS-1 lens adapter support offers a sturdy foundation for pillar-style PL, EF, and other lens adapters. The top plate and the CCH2 handle include 3/8"-16 threaded accessory mounts, and the top plate has a measuring tape stud lining up with the camera's "film plane." For increased viewing comfort, use the viewfinder bracket to ergonomically position the Sony EVF. - Adapter Plate for Sony FS7/FS7M2 The Sony FS7/FS7M2 Adapter Plate from ARRI is specifically designed to work with PXW-FS7 and FS7M2 HD video cameras. For quick and easy mounting to a head, the bottom of this plate is compatible with both studio bridge plates and VCT-style tripod adapters. The adapter plate's built-in rod holder supports a pair of lightweight 15mm rods (not included), enabling you to flesh out your camera rig with rod-mounted accessories. The rear of the plate features a contoured shoulder pad for more comfortable handheld operating.Extended rosettes are provided on both the right and left sides of the plate for attaching the original Sony handgrip or other rosette-based grip or accessory. An optional 15mm rear rod console (not included) offers additional support for larger rod-based accessories such as transmitters, monitors, batteries, etc.
Features - Compatible with both studio-style bridge plates and VCT plates for quick, easy mounting to a head or other support
- Enables the addition of 15mm rod-mounted accessories to your Sony FS7/FS7M2 rig
- Extended-width rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Integrated padded shoulder rest increases handheld-operating comfort

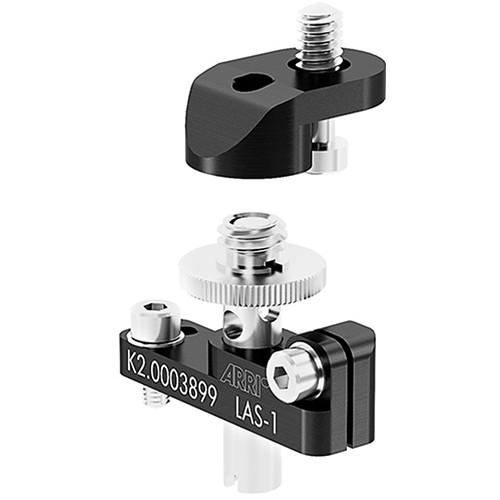

- LAS-1 Lens Adapter Support The LAS-1 Lens Adapter Support from ARRI provides sturdy support for many third-party, pillar-style lens mount adapters. The LAS-1 Support is compatible with PL, EF, and other lens adapters, as well as certain optical adapters like the Metabones Speed Boosters. The two pieces of this support are connected via a thumbscrew coupling, enabling quick removal from your baseplate when desired.
- Provides additional support for many third-party, pillar-style PL, EF, and other lens mount adapters
- Also compatible with some optical lens adapters, such as Metabones Speed Boosters
- Two-piece design with a thumbscrew coupling for quick removal from your baseplate

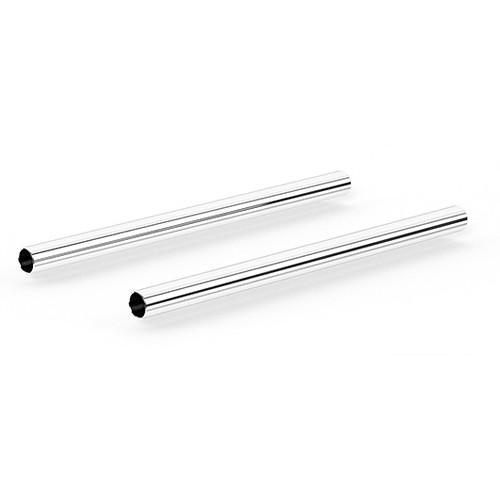

- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

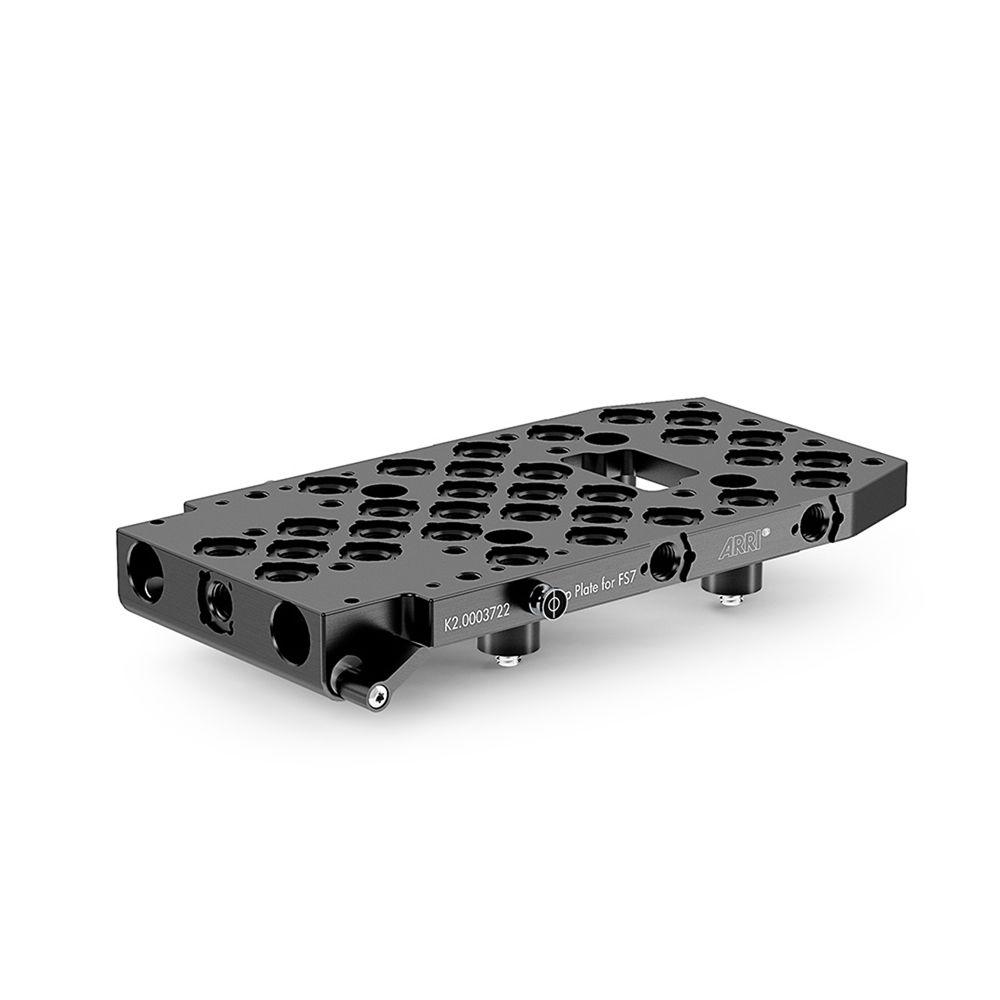

- Top Plate for Sony PXW-FS7 Use the Sony PXW-FS7 Top Plate from ARRI when you're looking to trick out your camera to best suit your needs. This plate provides multiple accessory mounts for your camera, and features a built-in support for a pair of 15mm LWS rods. The cheese plate adds 1/4"-20 and 3/8"-16 mounting threads on the top of the camera and is compatible with ARRI CCH-1 and CCH-2 handles.
Features - Cheese plate style form is compatible with ARRI CCH-1 and CCH-2 handles
- Plate features a built-in support for a pair of 15mm support rods (rods not included)
- Provides multiple 3/8"-16 & 1/4"-20 threaded accessory-mounting points

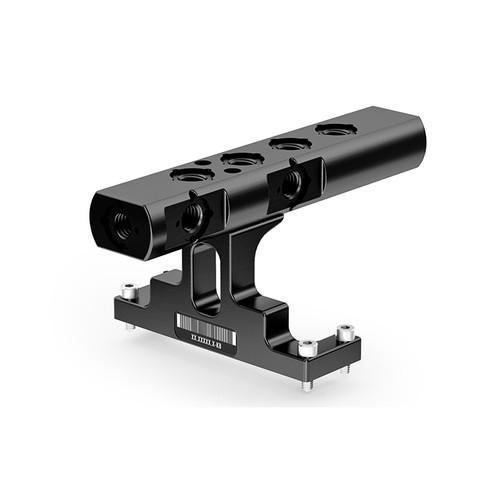

- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems
- Viewfinder Bracket for Sony PXW-FS7/FS72 The ARRI Viewfinder Bracket for Sony PXW-FS7/FS72 is designed to provide a greater range of adjustment for the Sony PXW-FS7 or FS72 viewfinder. Used in conjunction with the ARRI Top Plate for the FS7 (sold separately), the bracket is supported by the Top Plate's built-in 15mm rod console. This sturdy bracket enables you to configure the EVF in a more ergonomic position.
- Provides a greater range of EVF adjustment for Sony FS7 and FS72 cameras
- Sturdy support fits into the ARRI Top Plate for FS7 (plate not included)

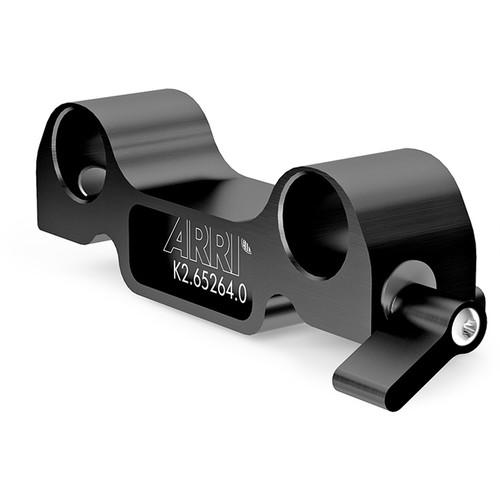

- 15mm LWS Rod Console The ARRI 15mm LWS Rod Console adds 15mm rod support to your camera rig. This component can be mounted to several ARRI support accessories such as baseplates, top plates and cheese plates. The console can be useful when you want to add extra support for long rods when using a heavy lens or accessory, or to provide rod support in a second location on your camera rig.
- Adds 15mm rod support for heavier lenses or accessories, or in an additional camera rig location
- Can be used for front, rear, or top rod support
- Compatible with several ARRI support systems

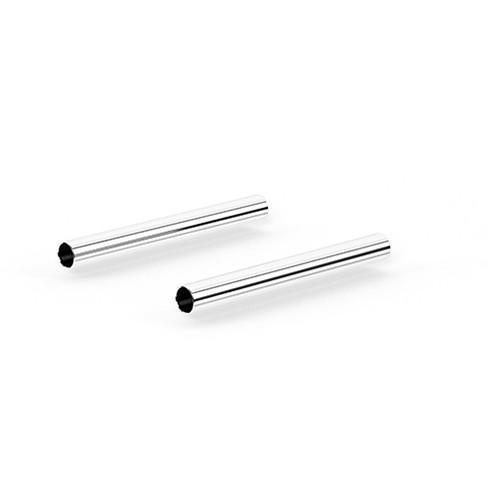

- 15mm Lightweight Support Rods (Pair, 5.5") This pair of 5.5" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
In the Box Bundle Items Adapter Plate for Sony FS7/FS7M2 wteqauys LAS-1 Lens Adapter Support 15mm Lightweight Support Rods (Pair, 9") wteqauys Top Plate for Sony PXW-FS7 CCH-2 Center Camera Handle wteqauys Viewfinder Bracket for Sony PXW-FS7/FS72 15mm LWS Rod Console 15mm Lightweight Support Rods (Pair, 5.5") Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Pro Support Set for Sony PXW-FS7 FS72 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Adapter Plate for Sony FS7/FS7M2
| Rod Compatibility | 15 mm | | Dimensions (WxLxD) | 5.5 x 10.2 x 2" (14.0 x 26.0 x 5.0 cm) | | Weight | 1.4 lb (644 g) | | | | Box Dimensions (LxWxH) | 9.7 x 5.7 x 1.8" | - LAS-1 Lens Adapter Support
| Dimensions (WxHxD) | 2 x 2.8 x 1.6" (50 x 70 x 40 mm) | | Weight | 1.1 oz (30 g) | | | | Box Dimensions (LxWxH) | 3.6 x 3.5 x 0.6" | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - Top Plate for Sony PXW-FS7
| Dimensions | 4.7 x 7.9 x 1.6" (120 x 200 x 40 mm) | | Weight | 14 oz (400 g) | | | | Box Dimensions (LxWxH) | 7.7 x 4.3 x 1.2" | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - Viewfinder Bracket for Sony PXW-FS7/FS72
| Dimensions (WxLxD) | 5.5 x 7.1 x 2" (140 x 180 x 50 mm) | | Weight | 1.4 lb (640 g) | | | | Box Dimensions (LxWxH) | 8.3 x 6.1 x 1.7" | - 15mm LWS Rod Console
| Dimensions | 1.6 x 3.9 x 1.6" (40 x 100 x 40 mm) | | Weight | 3.3 oz (94 g) | | | | Box Dimensions (LxWxH) | 4.1 x 3.5 x 1.2" | - 15mm Lightweight Support Rods (Pair, 5.5")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 5.5" / 14.0 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 7.15 x 1.45 x 0.75" |
