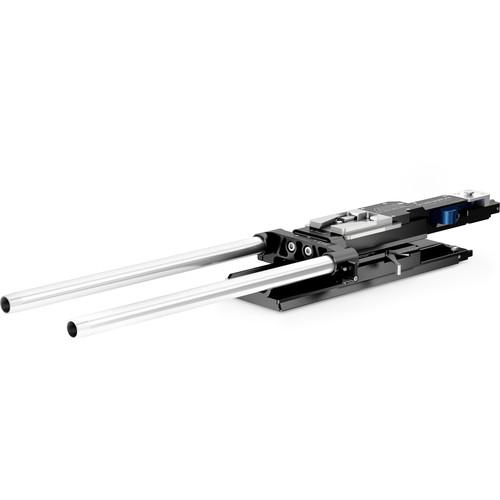

Product description The ARRI Quick Release HD Plate Set 19mm combines VCT-style support and 19mm studio-standard accessory mounting for your ARRI AMIRA or ENG-style camera. This set comprises a QR-HD Cine Base Plate, a Broadcast Bridge Plate Sled, a 12" dovetail Bottom Plate, a 19mm Support Rod Holder, and a pair of 13.4" 19mm Support Rods. - Bottom Dovetail Plate (12") This 12" Bottom Dovetail Plate from ARRI is used with a sliding bridge plate or sled to balance your camera rig. To prevent the bridge plate or sled from sliding off, the Dovetail Plate features a spring-loaded post on one end and a stationary stop on the other. The bottom of the plate incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick release plate or other support.
- Use with a sliding bridge plate or sled to balance your camera rig (plate or sled not included)
- Includes a spring-loaded post on one end, and a stationary stop on the other to prevent the bridge plate or sled from sliding off
- Bottom of dovetail includes 3/8"-16 threaded holes for mounting to a tripod quick release plate or other support
- 19mm Support Rod Holder Part of ARRI's line of broadcast-style components, the 19mm Support Rod Holder enables you to add a pair of 19mm rods to your camera rig.The Rod Holder features adjustable rod centering, suiting it for use with most pro digital cameras. The holder is compatible with most ARRI cameras and third-party cameras rigged with ARRI PCA (professional camera accessories).
- Adds 19mm rod support for a lens bracket or other accessories
- Adjustable rod centering fits most pro digital cameras
- Compatible with most ARRI cameras and third-party cameras
- 19mm Lightweight Rods (Pair, 13") This pair of 13" ARRI Lightweight Support Rods feature a lightweight steel construction, designed to reduce your rig's weight. Use them with any 19mm-based accessory or bridgeplate.
- Hollow, lightweight steel construction with non-threaded ends
- Compatible with any 19mm-based accessory or bridgeplate
- Quick Release Digi Cine Base Plate
- Bridge Plate Sled
In the Box Bundle Items Quick Release Digi Cine Base Plate ubratsceuqabfxvqfcfsdvbwuuxffz Bridge Plate Sled Bottom Dovetail Plate (12") 19mm Support Rod Holder 19mm Lightweight Rods (Pair, 13") Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Quick Release HD Plate Set 19mm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quick Release Digi Cine Base Plate
| | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 4.3" | - Bottom Dovetail Plate (12")
| Dimensions (WxLxD) | 3.9 x 11.8 x 1" (100 x 300 x 25 mm) | | Weight | 1.3 lb (578 g) | | | | Box Dimensions (LxWxH) | 11.9 x 4.2 x 1.6" | - 19mm Support Rod Holder
| Dimensions | 6.1 x 1.6 x 1.4" / 155 x 40 x 35 mm | | Weight | 7.8 oz / 221 g | - 19mm Lightweight Rods (Pair, 13")
| Material of Construction | Steel | | Rod Diameter | 0.7" (19 mm) | | Rod Length | 13.4" (34.0 cm) | | Weight | 10.5 oz (297 g) | | | | Box Dimensions (LxWxH) | 13.5 x 1.6 x 0.6" |
