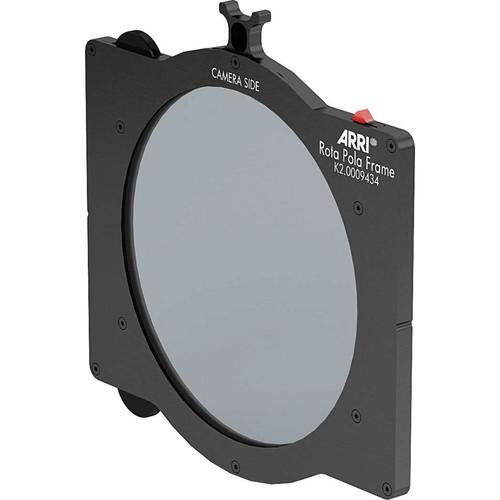

User Manual for ARRI Rota Pola Frame Click to enlarge the picture
Contents of the user manual for the ARRI Rota Pola Frame
- Product category: Polarizing ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Polarizing
|
User manual for the ARRI Rota Pola Frame contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI Rota Pola Frame helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
Constructed from Water White glass for increased clarity as well as color fidelity, this filter is mounted within an aluminum-alloy filter tray for use in matte boxes that can accommodate ARRI F4 filter frames. To adjust the intensity of the polarization effect, an external dial on the filter tray allows for the independent rotation of the circular polarizer. Once the desired effect has been achieved, the filter tray's integrated lock can then be used to ensure that the position of the polarizer filter remains unchanged. - Compatible with matte boxes that can accommodate ARRI F4 filter trays.
- Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
- Clears up haze in distant landscapes and provides more saturated, vivid colors.
- Strongest effect when used at a 90° angle from the sun.
- 2.3x filter factor reduces exposure by +1.2 stops.
- Constructed from Water White glass for clarity and mounted within an aluminum-alloy filter tray.
- External dial on filter tray allows for the rotation of the polarizer filter to adjust the intensity of the polarization effect.
- Filter tray's integrated lock can be used to ensure that the position of the polarizer filter and its effect remains unchanged.
In the Box ARRI Rota Pola Frame Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Rota Pola Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI K2.0009434 Specs | Filter Type | Circular Polarizer | | Filter Factor | 2.3 (1.2 Stop) | | Shape | Rectangle | | Rotating | Yes | | Filter Material | Glass | | Coatings | None | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.9 x 8.2 x 1.9" |
