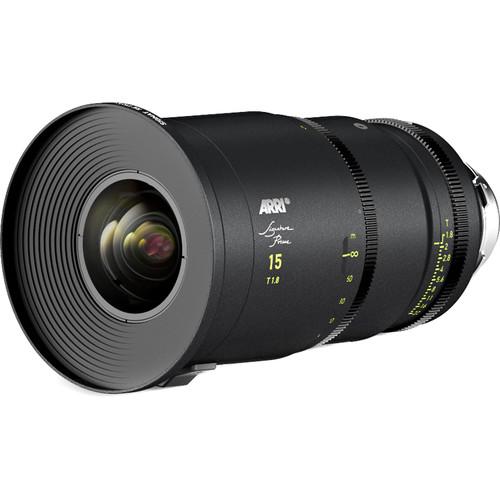

User Manual for ARRI Signature Prime 15mm T1.8 Lens Click to enlarge the picture
Contents of the user manual for the ARRI Signature Prime 15mm T1.8 Lens
- Product category: Digital Cine Lenses ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Lenses
|
User manual for the ARRI Signature Prime 15mm T1.8 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The 15mm ARRI Signature Prime T1.8 (Feet) is a wide-angle lens in an array of large-format primes featuring organic images, attractive bokeh, and a fast T1.8 aperture for achieving shallow depth of field. This prime lens gently softens the large-format look, and produces pleasant, natural skin tones. Focus falls off smoothly, highlighting your subject against its background frame. This LPL-mount lens features ARRI LDS-2 lens-data compatibility for speedy lens setups, and high lens metadata rates. Designed for use with full-frame, large-format sensors, the versatile ARRI Signature Primes also cover Super 35. Dedicated LF Open Gate, and Super 35 Open Gate magnetic format masks enable you to switch between formats, and are included with the lens. Stockings, nets, and voile can be used for diffusion when mounted in the Signature Prime's rear net holder. Eleven iris blades produce smooth, rounded bokeh effects, and a telecentric design minimizes breathing. The LDS-2 lens data system is backwards-compatible with ARRI's LDS-1, and communicates with Cooke's /i Technology. Constructed with magnesium housings and aluminum gear rings, each Signature Prime is lightweight, water-resistant, and features focus marks in feet. Anti-reflective coatings, light baffles, and light traps help to minimize any internal barrel flare. Should a stunt go awry, or your camera rig be otherwise damaged, the front and rear lens elements of the lens are easily replaceable at an ARRI service center. Features -
- The LPL mount transfers lens data via LDS-2, and is compatible with ARRI LDS-1, and Cooke /i Technology
- Smooth focus fall-off, and a fast, maximum T1.8 aperture for shallow depth of field
- Lightweight, compact form factor with magnesium and aluminum construction
- One of a range of focal lengths from 12 to 280mm
- 114mm front diameter across most lenses in the available set
- An 11-blade iris produces smooth, round bokeh
- Anti-reflective coatings, light baffles, and light traps minimize internal flare
In the Box ARRI Signature Prime 15mm T1.8 Lens (Feet) LF Open Gate Mask Super 35 Open Gate Mask Rear Net Holder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Signature Prime 15mm T1.8 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Signature Prime 15mm T1.8 (ft) Specs | Focal Length | 15mm | | Lens Mount | ARRI LPL | | Format | Full Frame | | Image Circle | 44.7 mm | | Maximum T-Stop | T1.8 | | Minimum T-Stop | T22 | | Diagonal Angle of View | ARRI LF Open Gate: 112.3° | | Horizontal Angle of View | ARRI LF Open Gate: 101.5° | | Minimum Focus Distance from Image Plane | 13.78" / 0.35 m | | Iris Blades | 11 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Filter Thread | None | | Focus Scales | Imperial | | Electronic Communication | Yes | | Tripod Mounting Thread | 3/8"-16 |
