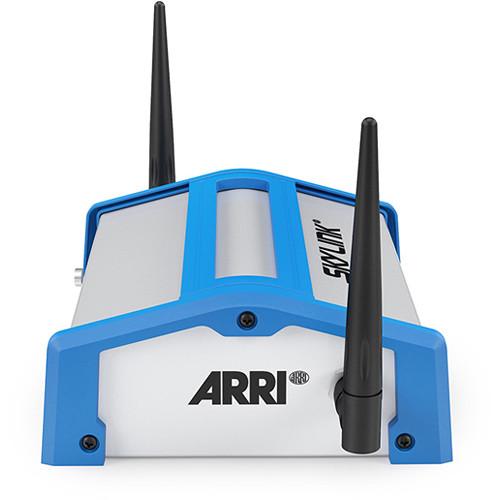

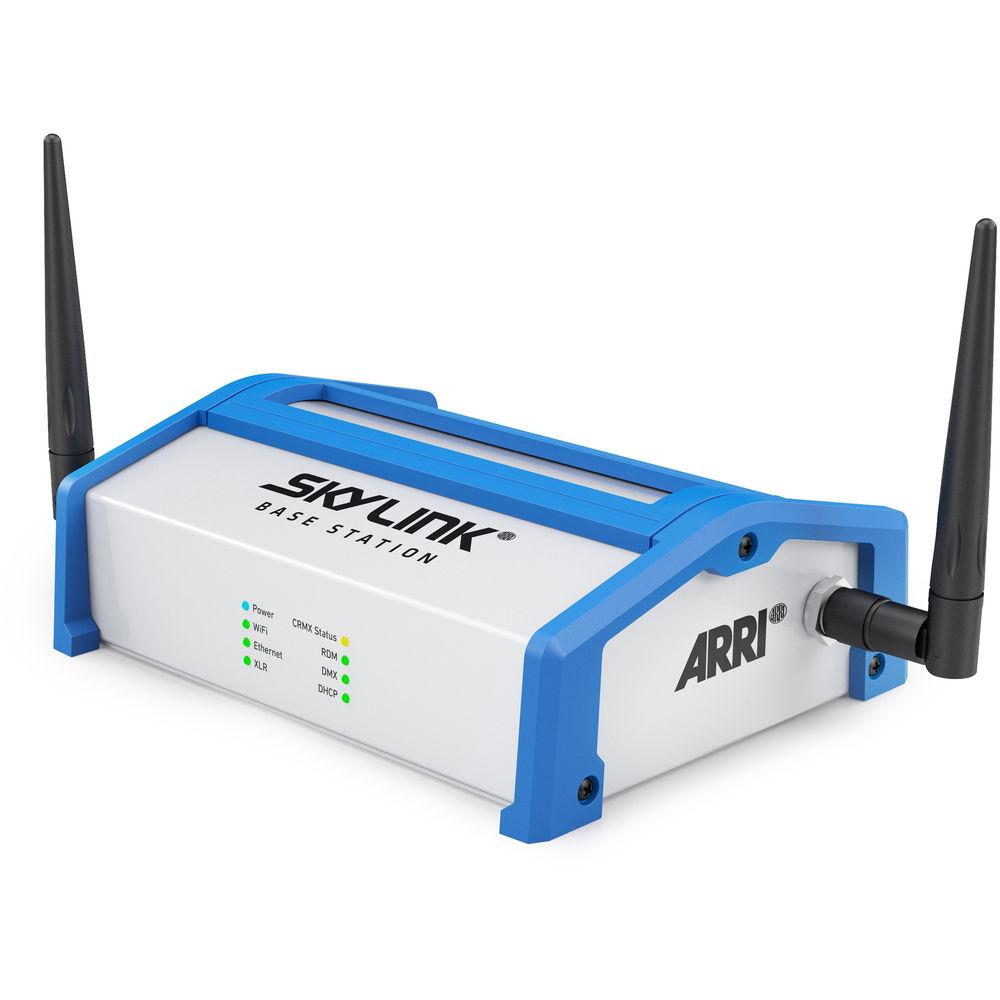

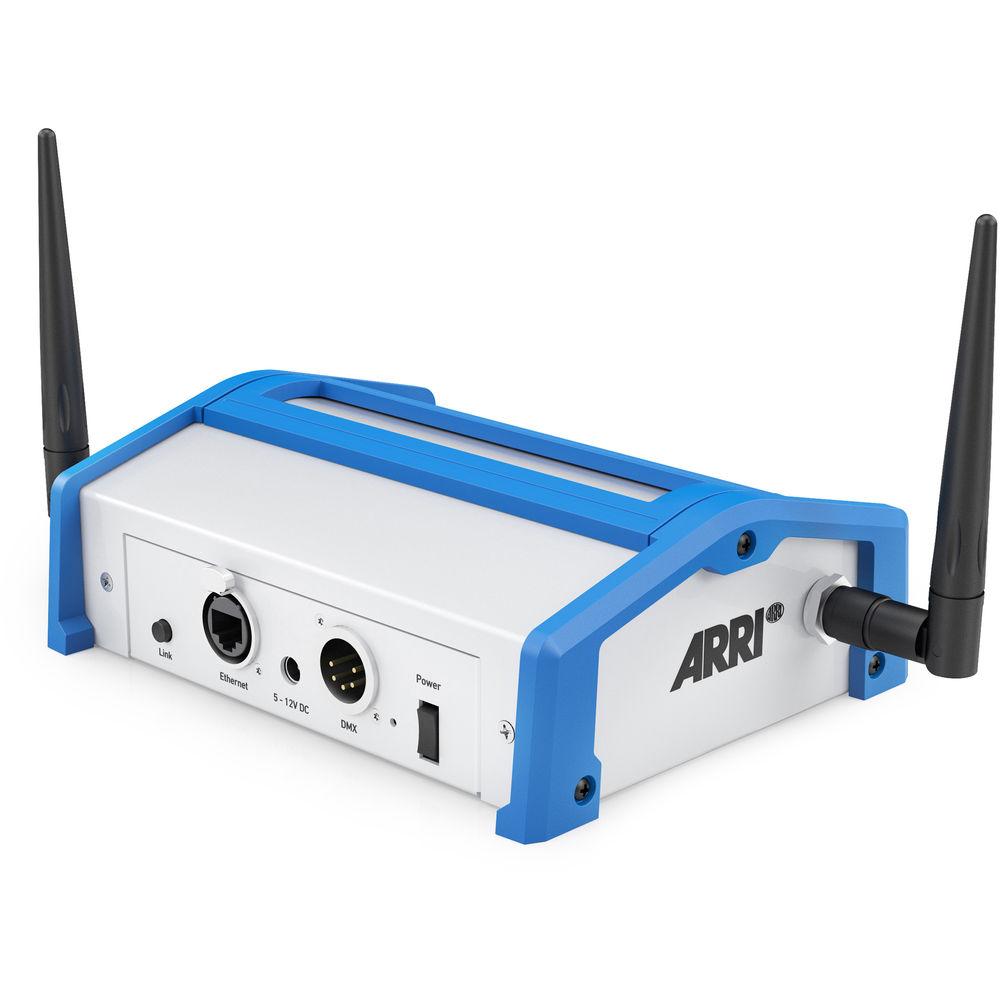

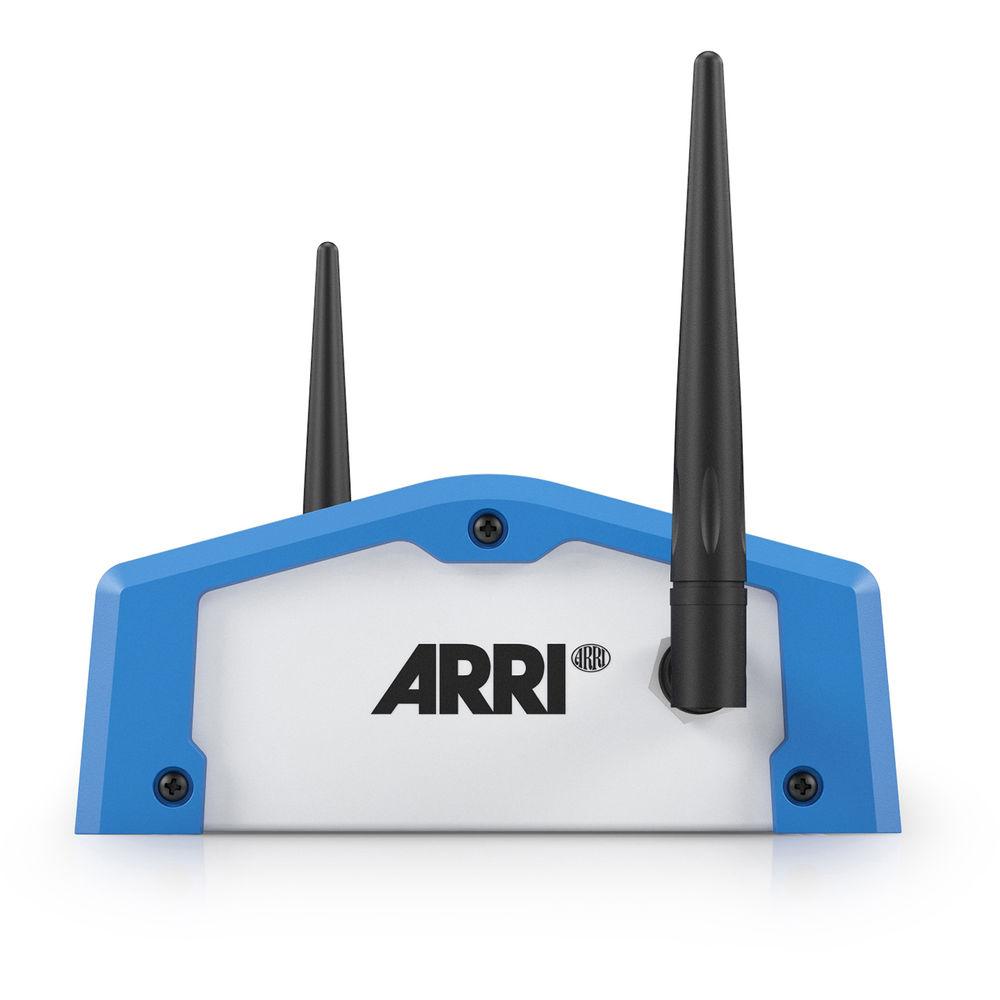

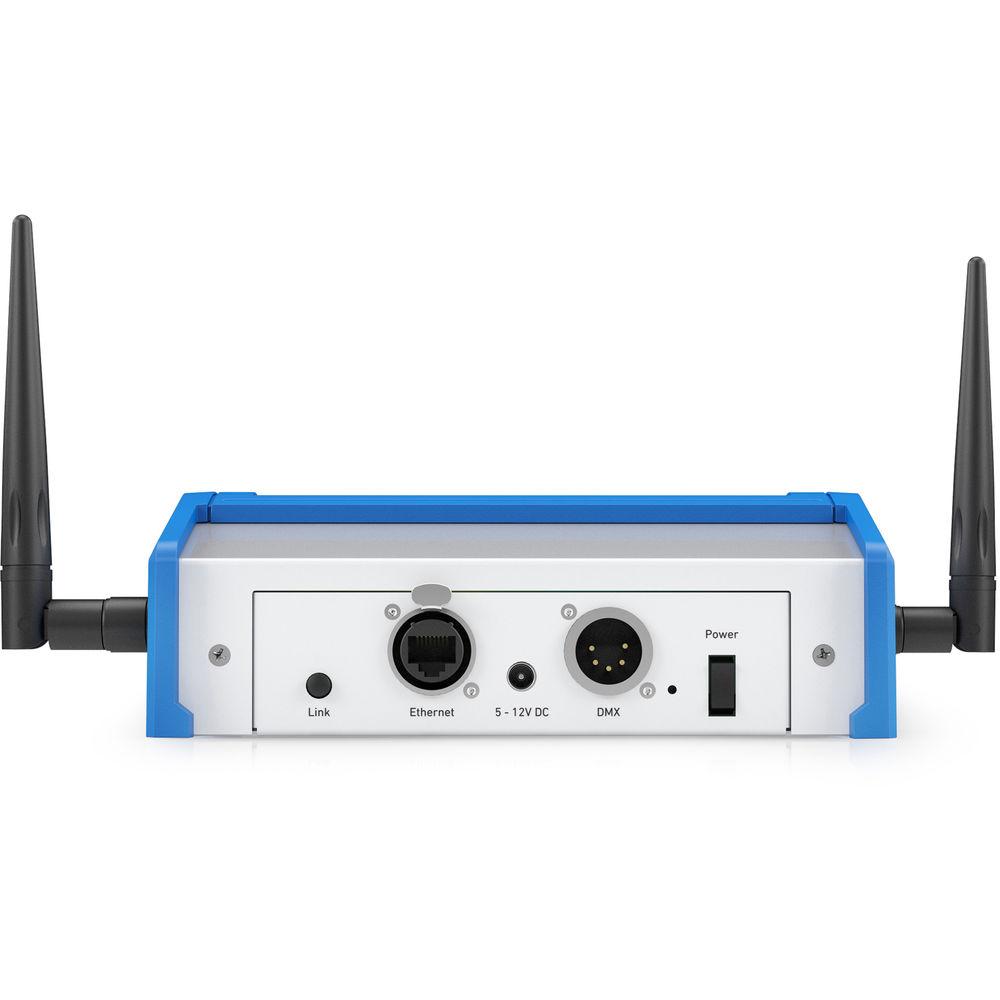

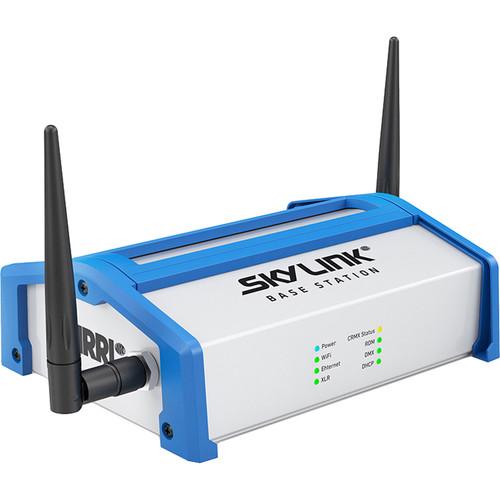

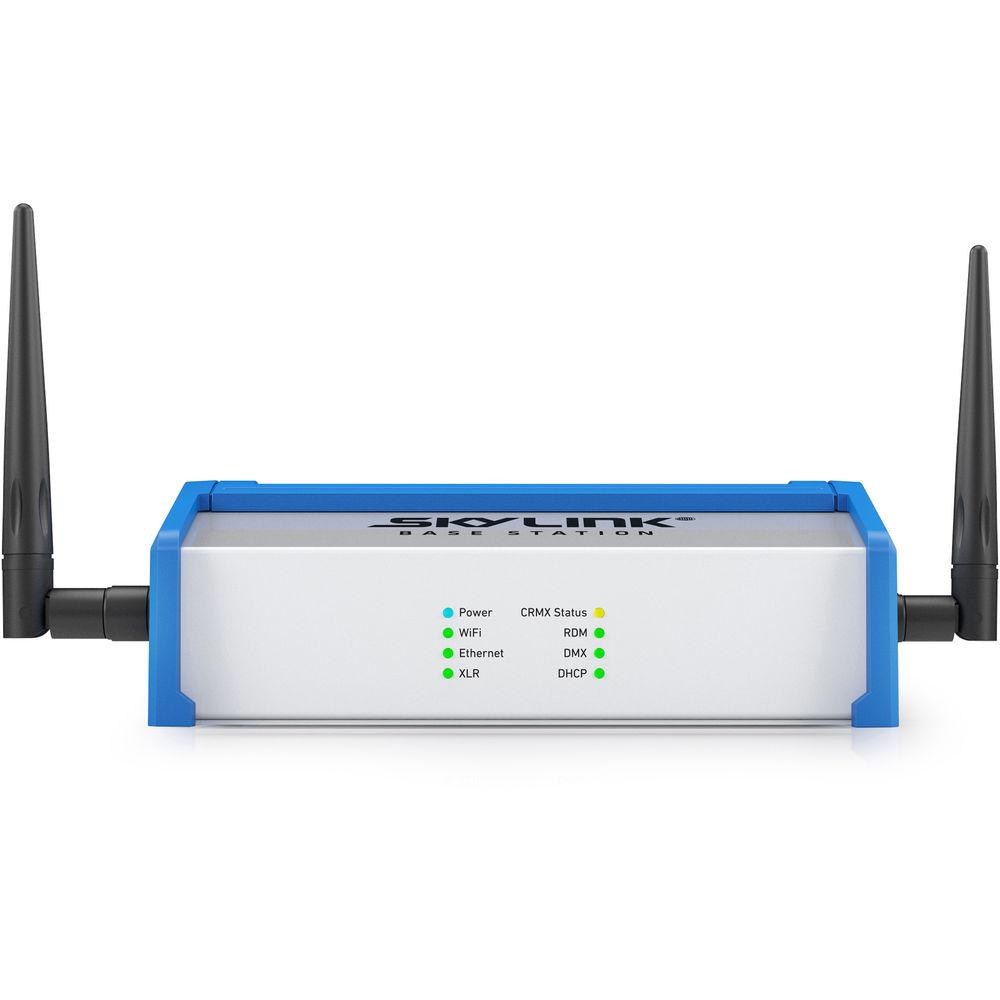

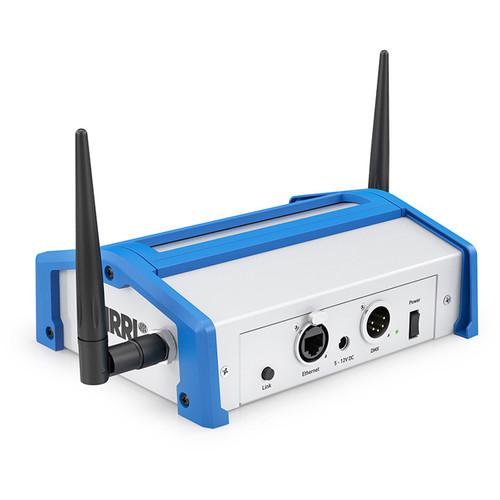

Product description Don't worry about wiring DMX cables to each of your SkyPanel fixtures. The SkyLink Base Station from ARRI enables wireless DMX and RDM communication with SkyPanels and enables direct control over the lights from an application for tablets and PCs. The base station is equipped with both a LumenRadio CRMX transmitter and a Wi-Fi chip that permits communication between a networked computer and numerous receivers. The LumenRadio CRMX chip features standard DMX512 support as well as Remote Device Management, or RDM. This is a two-way communication protocol that enables precise and accurate control of numerous parameters from a remote device. The Base Station also features an impressive range of up to 1640' for CRMX and 246' for Wi-Fi. It can support one universe with up to 512 channels and features a 5-pin XLR connection for DMX. An EtherCON Ethernet connection is present as well for networking.The SkyLink Base Station comes in a blue/silver housing and comes with a universal 100-240 VAC power supply with Edison plug. In the Box ARRI SkyLink Base Station (Blue/Silver, Edison) 2 x Antenna for SkyLink Base Station xeutbaqbdrvuxbbxyrawessutcebvvubws Power Supply for SkyLink Base Station Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI SkyLink Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Skylink Specs | Wireless Protocols | LumenRadio CRMX
Wi-Fi | | Frequency | 2.4 GHz | | Range | LumenRadio CRMX: 1640' / 500 m
Wi-Fi: 246' / 75 m | | DMX | DMX512
RDM
Art-Net
sACN | | Channels | 1 universe with 512 channels | | DMX Connectors | 5-pin XLR female | | Antenna | 2x2 dBi RPTNC | | Connectivity | Ethernet: EtherCON RJ45 female
Wi-Fi | | Power Requirements | Device Input Voltage: 5 - 12 VDC | | Power Connector | 2.5 x 5.5 mm DC barrel | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 12 VDC | | IP Rating | IP20 | | Certifications | CE
CB
ENEC
cNRTLus
PSE | | Operating Conditions | Temperature: -4 to 122°F / -20 to 50°C | | Dimensions | 10.7 x 6.0 x 5.4" / 27.2 x 15.2 x 13.6 cm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 9.6 x 6.4 x 5.3" |
