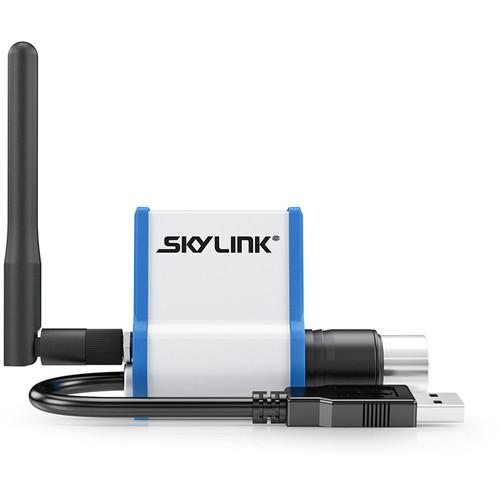

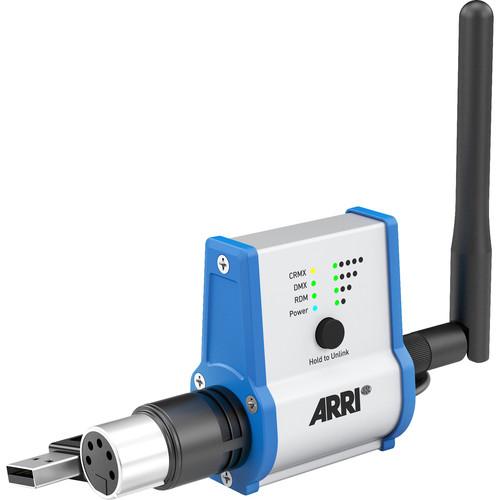

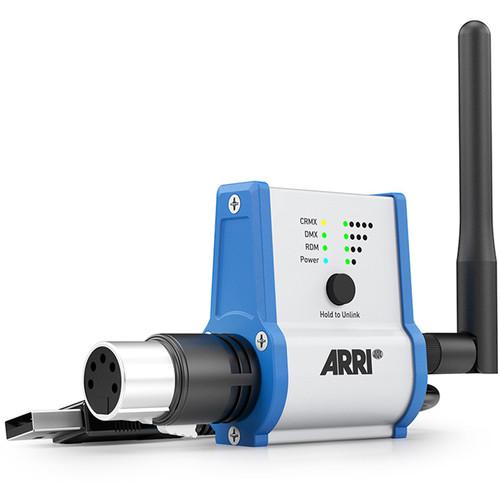

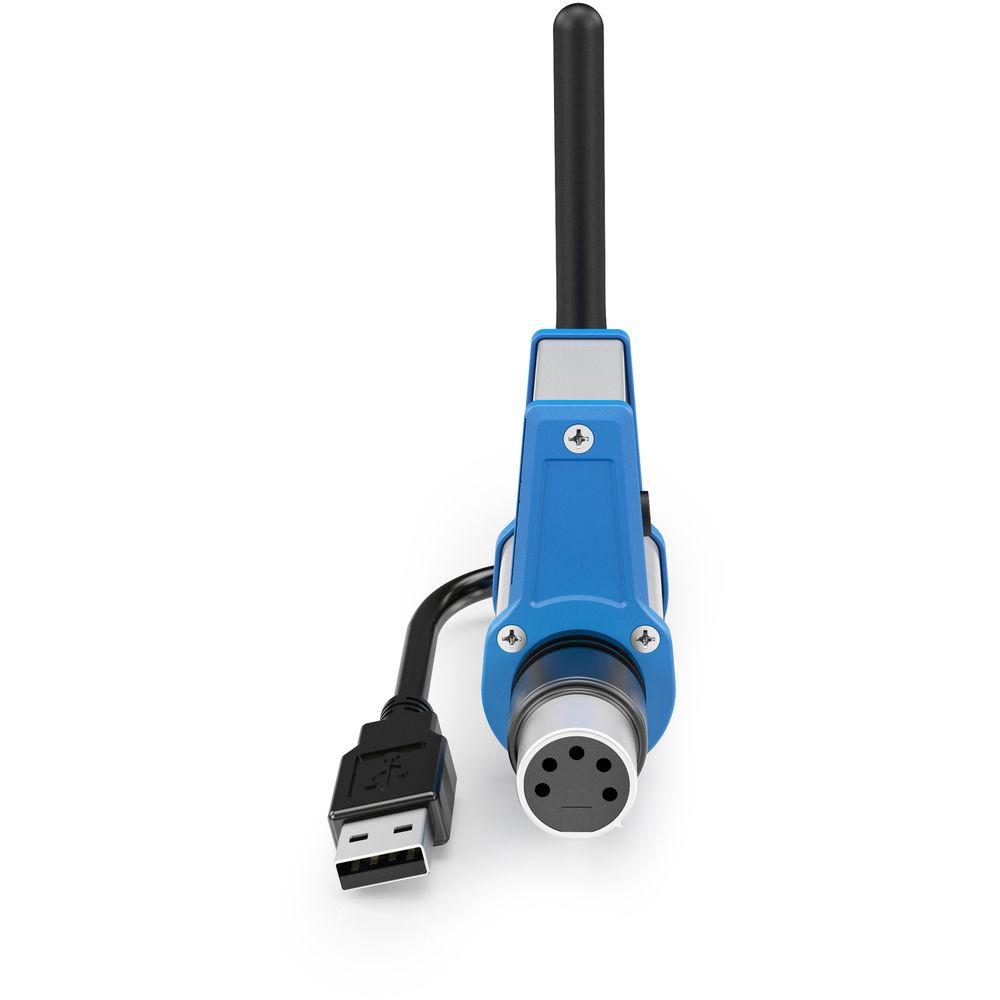

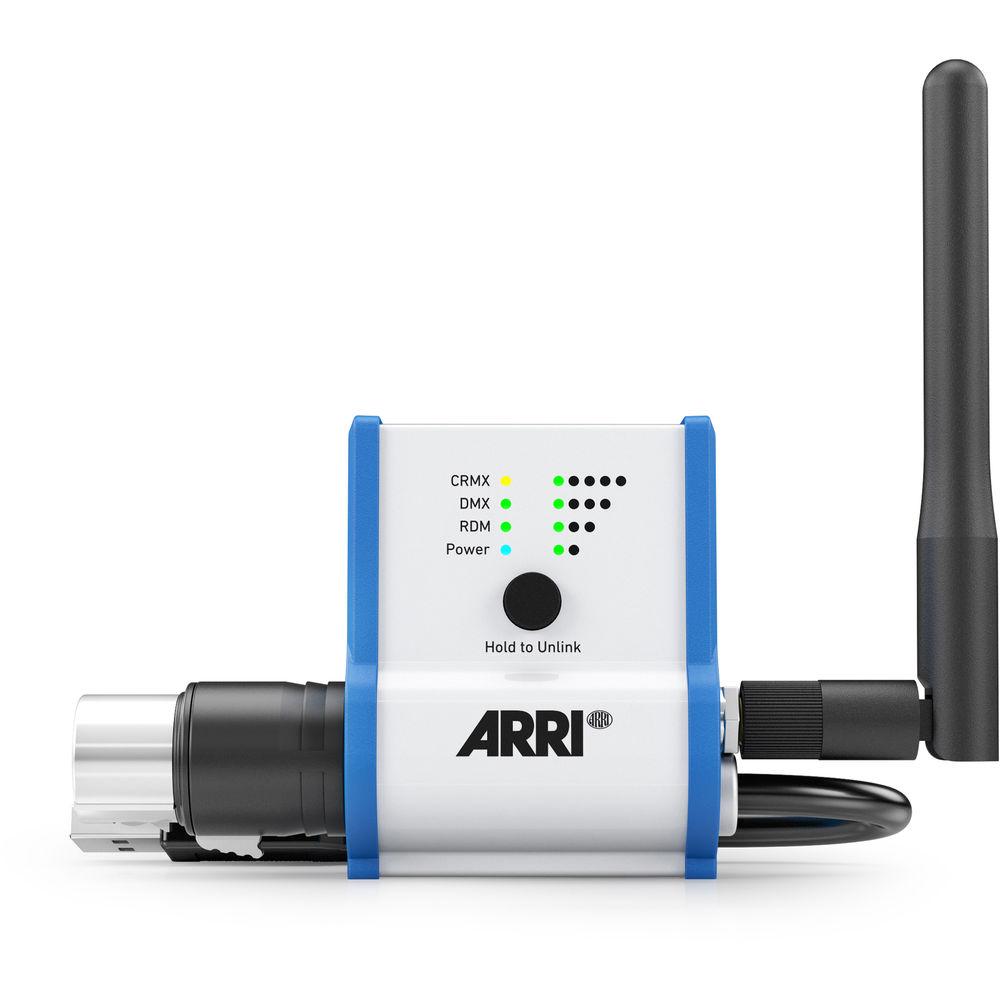

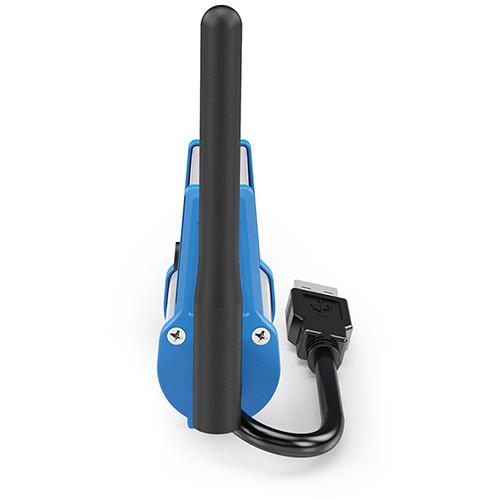

User Manual for ARRI SkyLink Receiver Click to enlarge the picture
Contents of the user manual for the ARRI SkyLink Receiver
- Product category: DMX Devices ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI DMX Devices
 |
User manual for the ARRI SkyLink Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description By using a SkyLink Receiver from ARRI you can quickly and easily upgrade all your existing SkyLink fixtures to support the LumenRadio CRMX wireless DMX protocol, including remote control via the SkyLink Base Station. This compact device attaches directly to the rear of the light using a 5-pin XLR connector, where it provides wireless DMX512 and RDM communication from ranges up to 1640' away. It is also very simple to install, as it features an integrated USB cable to receive power directly from the fixture instead of requiring a separate power supply. In the Box ARRI SkyLink Receiver (Blue/Silver) Antenna for SkyLink Receiver xeutbaqbdrvuxbbxyrawessutcebvvubws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI SkyLink Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Skylink Specs | Wireless Protocols | LumenRadio CRMX | | Frequency | 2.4 GHz | | Range | LumenRadio CRMX: 1640' / 500 m | | DMX | DMX512
RDM | | DMX Connectors | 5-pin XLR female | | Antenna | 2 dBi RP-SMA | | Power Requirements | Device Input Voltage: 5 VDC | | Power Connector | Male USB Type-A | | IP Rating | IP20 | | Certifications | CE
CB
ENEC
cNRTLus
FCC
PSE | | Operating Conditions | Temperature: -4 to 122°F / -20 to 50°C | | Dimensions | 4.0 x 1.1 x 4.4" / 10.2 x 2.7 x 11.3 cm | | Weight | 0.25 lb / 0.8 kg | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.1 x 4.3 x 1.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
