Product description

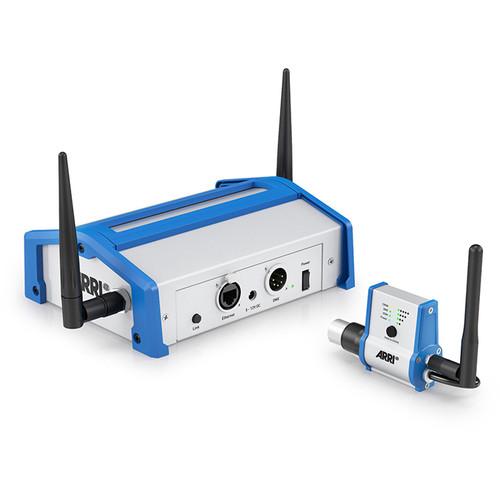

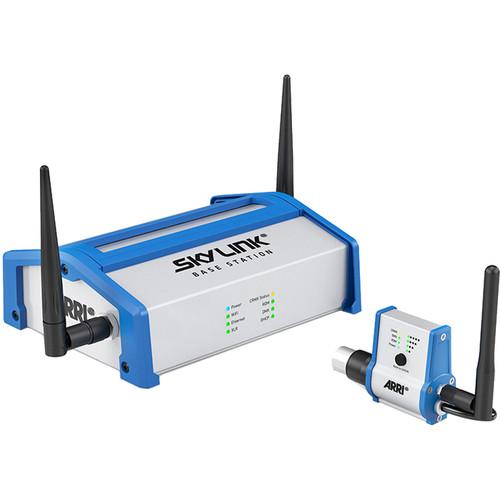

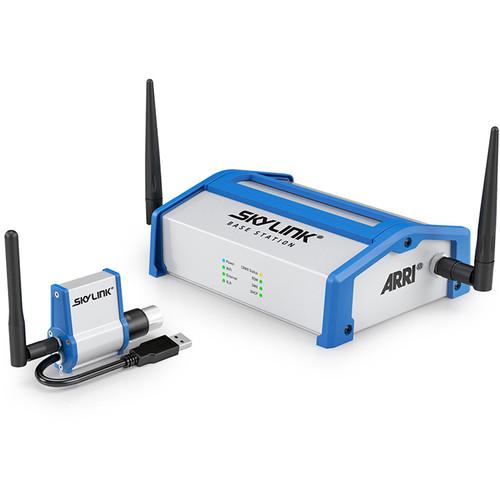

• SkyLink Base Station (Blue/Silver, Edison) Don't worry about wiring DMX cables to each of your SkyPanel fixtures. The SkyLink Base Station from ARRI enables wireless DMX and RDM communication with SkyPanels and enables direct control over the lights from an application for tablets and PCs. The base station is equipped with both a LumenRadio CRMX transmitter and a Wi-Fi chip that permits communication between a networked computer and numerous receivers. The LumenRadio CRMX chip features standard DMX512 support as well as Remote Device Management, or RDM. This is a two-way communication protocol that enables precise and accurate control of numerous parameters from a remote device. The Base Station also features an impressive range of up to 1640' for CRMX and 246' for Wi-Fi. It can support one universe with up to 512 channels and features a 5-pin XLR connection for DMX. An EtherCON Ethernet connection is present as well for networking.The SkyLink Base Station comes in a blue/silver housing and comes with a universal 100-240 VAC power supply with Edison plug.

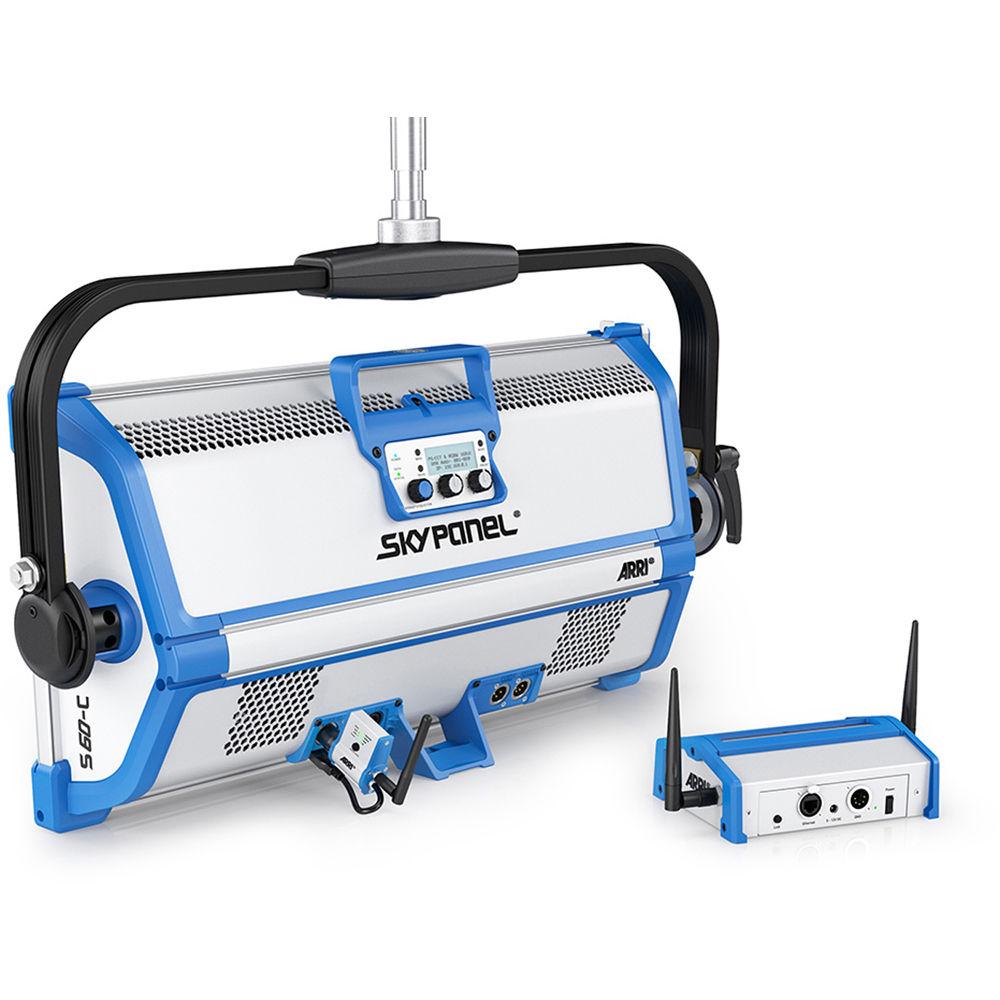

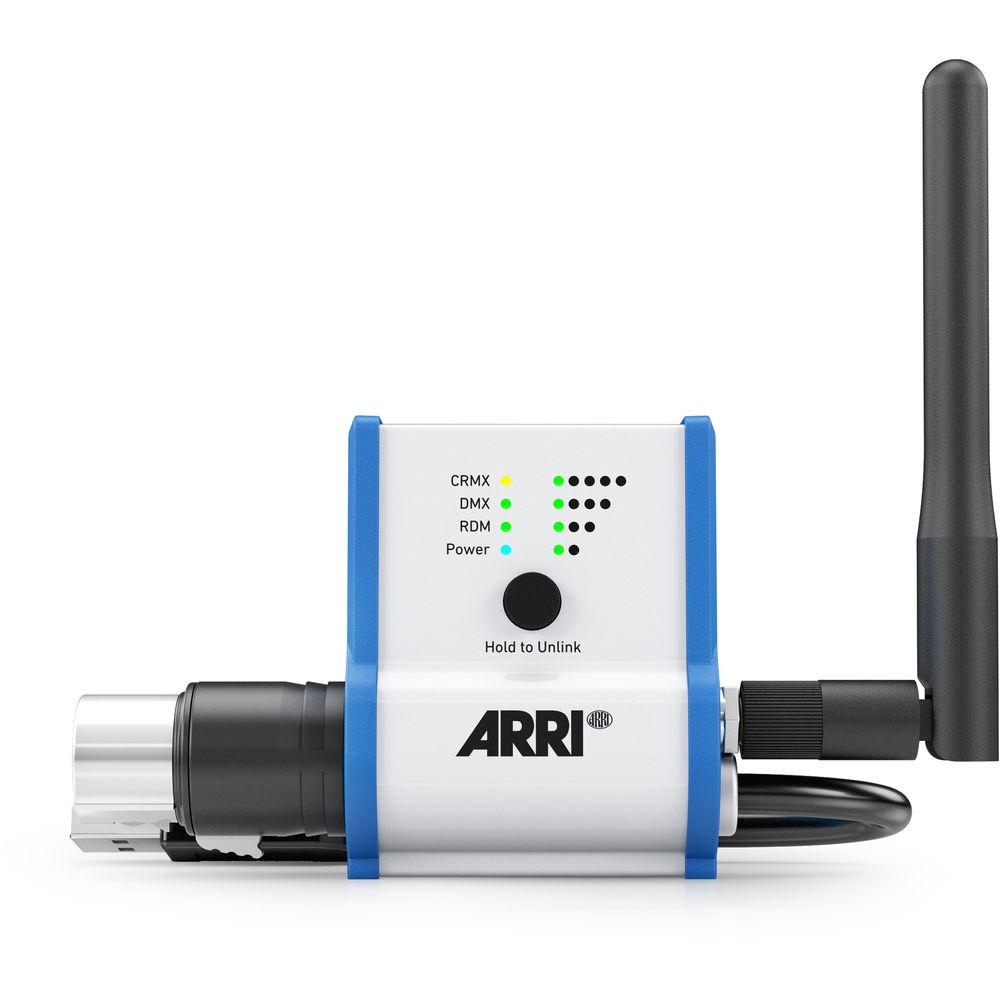

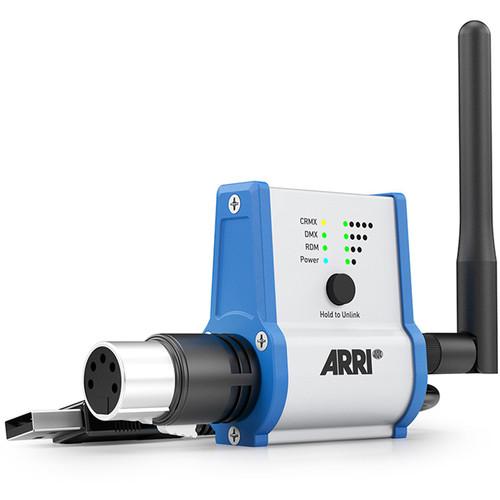

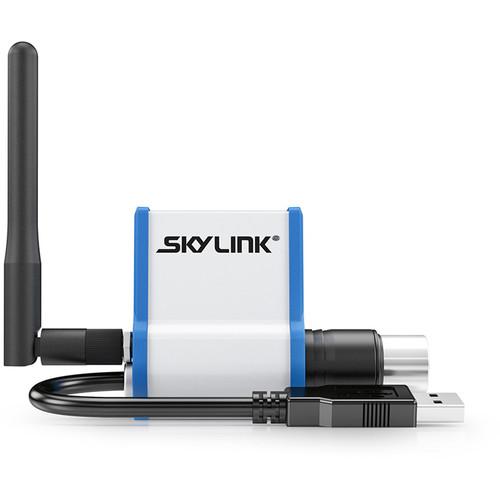

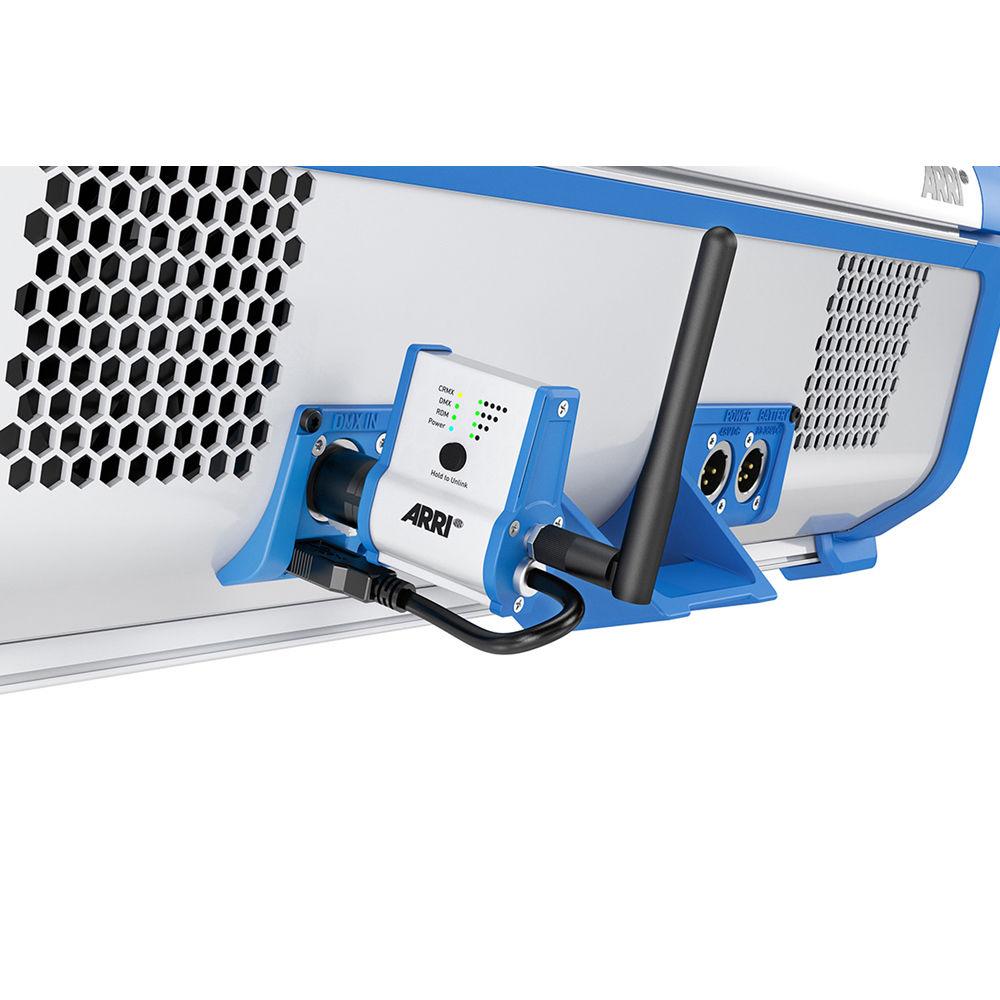

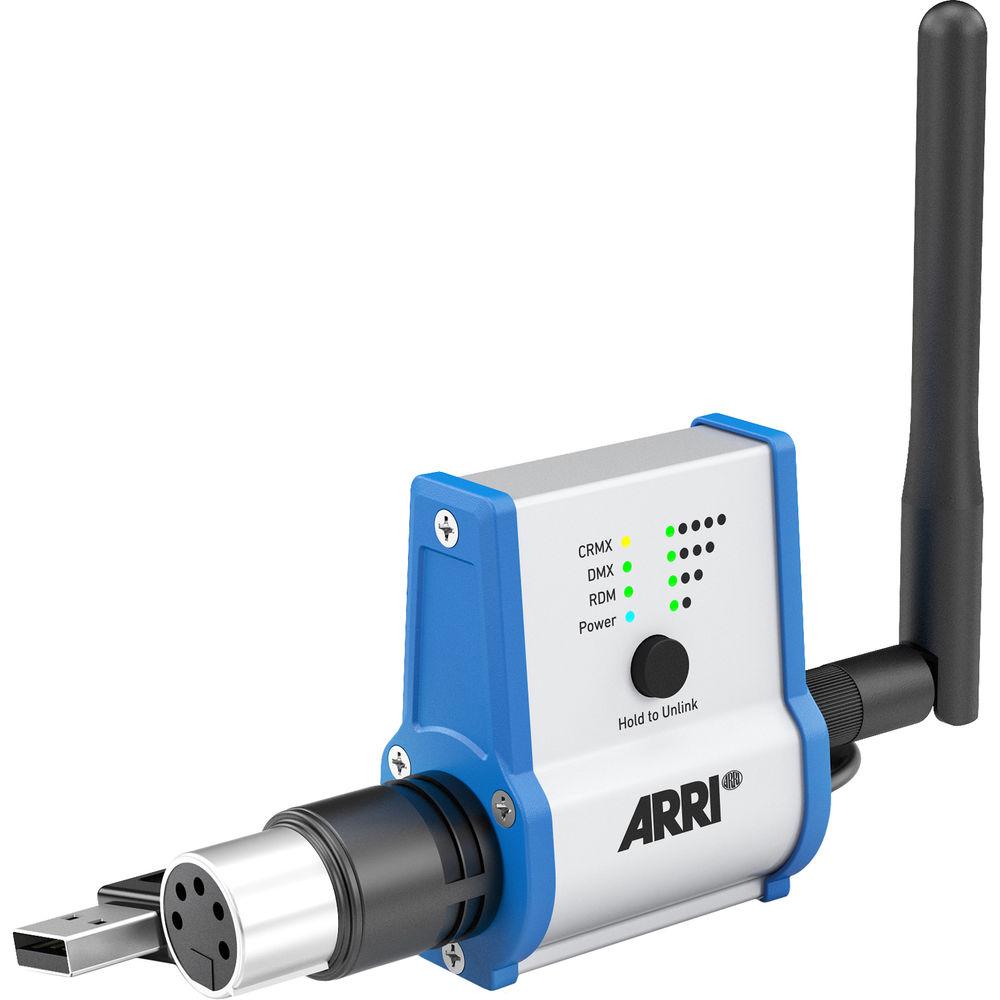

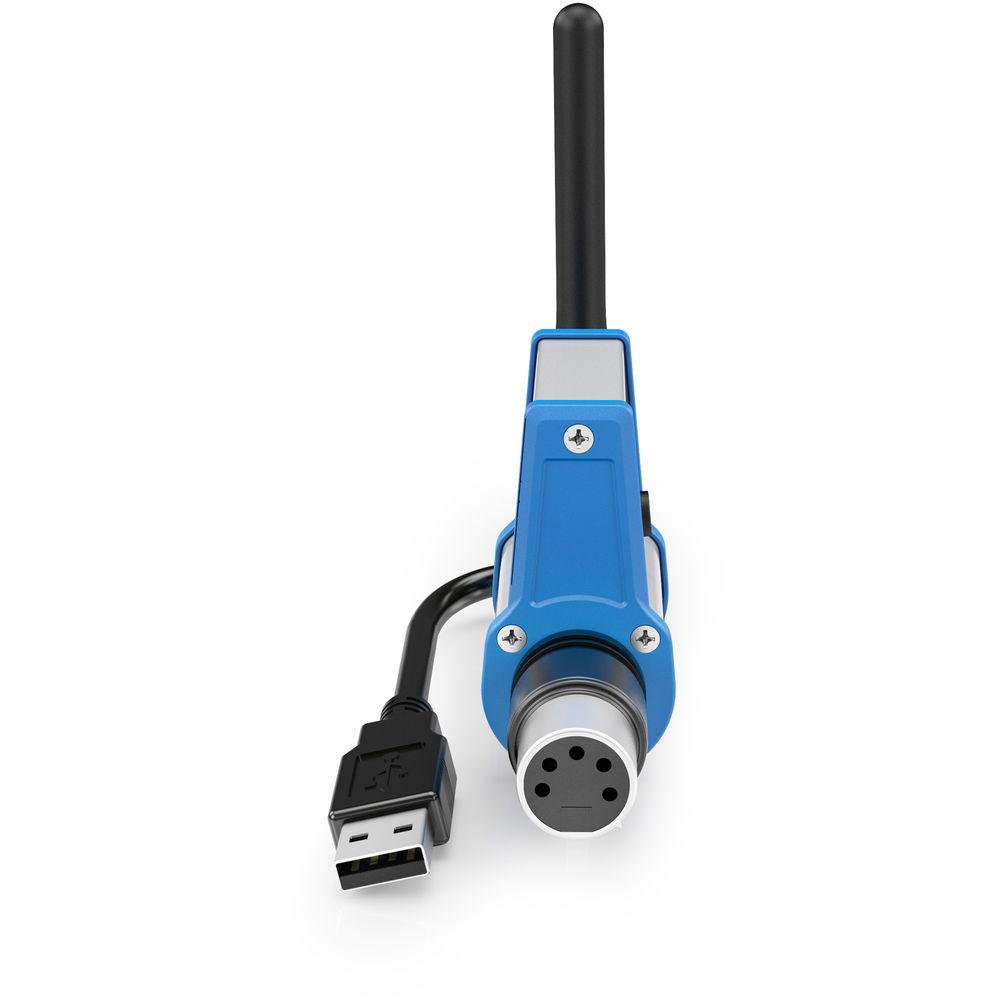

• SkyLink Receiver (Blue/Silver) By using a SkyLink Receiver from ARRI you can quickly and easily upgrade all your existing SkyLink fixtures to support the LumenRadio CRMX wireless DMX protocol, including remote control via the SkyLink Base Station. This compact device attaches directly to the rear of the light using a 5-pin XLR connector, where it provides wireless DMX512 and RDM communication from ranges up to 1640' away. It is also very simple to install, as it features an integrated USB cable to receive power directly from the fixture instead of requiring a separate power supply.

2 x
• Antenna for SkyLink Base Station

• Power Supply for SkyLink Base Station

• Limited 2-Year Warranty

• Antenna for SkyLink Receiver

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SkyLink Base Station (Blue/Silver, Edison)

  Wireless Protocols	LumenRadio CRMX Wi-Fi
  Frequency	2.4 GHz
  Range	LumenRadio CRMX: 1640' / 500 m Wi-Fi: 246' / 75 m
  DMX	DMX512 RDM Art-Net sACN
  Channels	1 universe with 512 channels
  DMX Connectors	5-pin XLR female
  Antenna	2x2 dBi RPTNC
  Connectivity	Ethernet: EtherCON RJ45 female Wi-Fi
  Power Requirements	Device Input Voltage: 5 - 12 VDC
  Power Connector	2.5 x 5.5 mm DC barrel
  Power Supply	Input: 100-240 VAC, 50/60 Hz Output: 12 VDC
  IP Rating	IP20
  Certifications	CE CB ENEC cNRTLus PSE
  Operating Conditions	Temperature: -4 to 122°F / -20 to 50°C
  Dimensions	10.7 x 6.0 x 5.4" / 27.2 x 15.2 x 13.6 cm
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	9.6 x 6.4 x 5.3"

• SkyLink Receiver (Blue/Silver)

  Wireless Protocols	LumenRadio CRMX
  Frequency	2.4 GHz
  Range	LumenRadio CRMX: 1640' / 500 m
  DMX	DMX512 RDM
  DMX Connectors	5-pin XLR female
  Antenna	2 dBi RP-SMA
  Power Requirements	Device Input Voltage: 5 VDC
  Power Connector	Male USB Type-A
  IP Rating	IP20
  Certifications	CE CB ENEC cNRTLus FCC PSE
  Operating Conditions	Temperature: -4 to 122°F / -20 to 50°C
  Dimensions	4.0 x 1.1 x 4.4" / 10.2 x 2.7 x 11.3 cm
  Weight	0.25 lb / 0.8 kg

  Box Dimensions (LxWxH)	6.1 x 4.3 x 1.7"
