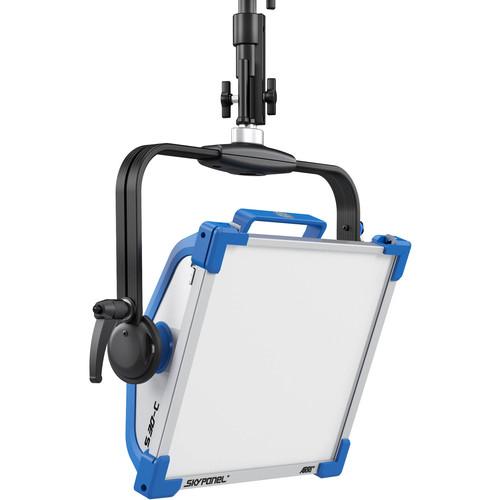

ARRI SkyPanel S30-C LED Softlight

User Manual for ARRI SkyPanel S30-C LED Softlight

• Product category: LED Lights ARRI
• Brand: ARRI
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ARRI LED Lights

Product description

Fully Tuneable, Precise Color Rendering
• Incorporating features of ARRI's successful L-Series LED Fresnels, the SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel "C" (Color) versions are fully tuneable, meaning that correlated color temperature is adjustable between 2800K and 10,000K, with accurate color rendition over the entire range. Full plus and minusgreen correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible. Applications for this controllability range from quickly adjusting the CCT to set the mood of a scene, to selecting the chroma green output for green screen color keying. Each LED light engine is computer calibrated in order to ensure unit-to-unit and batch-to-batch consistency, as well as accurate color temperatures.

True Soft Light Beam Quality
• Soft lights are known for their smooth quality of light and even, uniform beam field. SkyPanel's combination of a precise selection of diffusion panels, LED mixing chamber and large surface area allow for the light output to wrap around objects, eliminating sharp shadows and making for an ideal beauty light. The beam field is homogeneous in both color and intensity.

Natural Shadow Rendition
• Mixing calibrated red, green, blue and white LEDs into one homogeneous beam of soft light, the SkyPanel produces not just impressive light quality, but excellent shadows rendering as well. The soft shadows cut cleanly without exhibiting multiple edges or color fringing.

Versatility Built In
• • While the SkyPanel was designed to be used primarily as a soft light to illuminate people, various built-in features make it extremely adaptable to other uses. The diffuser panels on the front of the lamp head are interchangeable, so going from the Heavy to the Lite diffusion panel can be done in a matter of seconds.
  • With the onboard battery input, SkyPanel can be run off industry-standard batteries. The S30 can be operated at full power on battery power.
  • The SkyPanel also makes an effective space light outputting a large downward-directed pool of color controllable soft light through an optional silk cylinder.

Built to Last
• Made in Germany to the high standards for which all ARRI products are known, SkyPanel is constructed from resilient materials and assembled by hand with great care. The combination of an aluminum core with fiberglass-reinforced thermoplastics results in a solid fixture that can withstand heavy daily use on busy film sets. The easily-services electronics have been designed to last beyond a minimum of 25,000, up to a maximum of 50,000 hours while the LED light engine even allows for re-calibration.

Highly Controllable
• The SkyPanel user interface is designed for ease of use with a wide range of controls available to the user. Three simple knobs adjust the color temperature, green/magenta balance, light intensity and hue and saturation instantly. In addition to the on-board controls, all functions can be remotely adjusted via DMX or LAN connections.

Photometrics
• At 16.4' / 5 m and 3200K

  • With Standard Diffusion: 217 lux/ 20 fc
  • With Lite Diffusion: 235 lux/ 22 fc
  • With Heavy Diffusion: 180 lux/ 17 fc
  • With Intensifier: 282 lux/ 26 fc

  At 16.4' / 5 m and 5600K

  • With Standard Diffusion: 222 lux/ 21 fc
  • With Lite Diffusion: 240 lux/ 22 fc
  • With Heavy Diffusion: 185 lux/ 17 fc
  • With Intensifier: 289 lux/ 27 fc

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

ARRI S30-C Specs

Yoke Material	Aluminum
Yoke Type	Yoke/Bracket
Tilt	180 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 08 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
