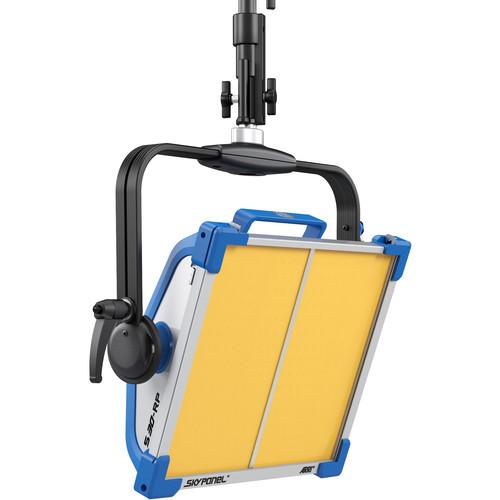

User Manual for ARRI SkyPanel S30-RP Daylight LED Remote Phosphor Softlight Click to enlarge the picture
Contents of the user manual for the ARRI SkyPanel S30-RP Daylight LED Remote
- Product category: LED Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI LED Lights
|
User manual for the ARRI SkyPanel S30-RP Daylight LED Remote contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description ARRI continues to broaden their LED line and reaffirm their commitment to accurate color rendering with the introduction of the blue/silver SkyPanel S30-RP Daylight LED Remote Phosphor Softlight. Supported by a manual aluminum yoke, the panel's surface area measures 14 x 11.8", making it an ideal portable, on-the-go light source for mobile applications. Output is controlled via interchangeable phosphor panels to achieve a specific Kelvin temperature instead of adding phosphors to blue LEDs. The powerful native LEDs then excite the phosphor panel that's mounted like a filter in front of the fixture. This method not only uses less electronics resulting in a lower price point, but delivers a color rendition that approaches current definitions of "perfection" and is 10% brighter than its color tuneable S30-C counterpart, which has an output equivalent to a 1,000W tungsten softlight. Both versions of the light draw only 240W.
This rendition of the light ships with a 5,600K panel with an impressively high CRI of 94, but optional 2,700K, 3,200K, 4,300K and 6,500K phosphor panels with CRIs of 93, 94, 97 and 98 respectively are available, as well as a Chroma Green panel. Dimming from 0-100% can be adjusted locally with the SkyPanel's onboard controller or remotely via DMX or over a LAN. Besides inputs and outputs appropriate to these functions, The light has a USB-A port for downloading firmware upgrades from a thumb drive, PC or Mac.
The SkyPanel S30-RP can be used worldwide, thanks to its included 90-250 VAC power supply but it can also use optional 23-36 VDC batteries when mains power is unavailable. Besides the power supply, the light comes with a combo baby/junior (5/8" | 1-1/8") pin and a standard diffuser. This version of the light comes with a 9.8'-long Edison DC power cable. - Remote Phosphor Panels for Precise Color Rendering and High CRIs
- These high-quality phosphors deliver outstanding color rendition and outstanding light output. The remote phosphor versions of the SkyPanel are roughly 10% brighter than the color tuneable versions and have a lower price point due to less complex electronics. Different color temperature panels are available, including 2,700K, 3,200K, 4,300K, 5,600K, 6,500K, and Chroma Green.
- True Soft Light Beam Quality
- Soft lights are known for their smooth quality of light and even, uniform beam field. SkyPanel's combination of a precise selection of diffusion panels, LED mixing chamber and large surface area allow for the light output to wrap around objects, eliminating sharp shadows and making for an ideal beauty light. The beam field is homogeneous in both color and intensity.
- Natural Shadow Rendition
- The SkyPanel produces not just impressive light quality, but excellent shadow rendering as well. The soft shadows cut cleanly without exhibiting multiple edges or color fringing.
- Versatility Built In
-
- While the SkyPanel was designed to be used primarily as a soft light to illuminate people, various built-in features make it extremely adaptable to other uses.
- With the onboard battery input, SkyPanel can be run off industry-standard batteries. The S30 can be operated at full power on battery power.
- The SkyPanel also makes an effective space light outputting a large downward-directed pool of color controllable soft light through an optional silk cylinder.
- Built to Last
- Made in Germany to the high standards for which all ARRI products are known, SkyPanel is constructed from resilient materials and assembled by hand with great care. The combination of an aluminum core with fiberglass-reinforced thermoplastics results in a solid fixture that can withstand heavy daily use on busy film sets. The easily-services electronics have been designed to last beyond a minimum of 25,000, up to a maximum of 50,000 hours while the LED light engine even allows for re-calibration.
- Highly Controllable
- The SkyPanel user interface is designed for ease of use with a wide range of controls available to the user. In addition to the on-board controls, all functions can be remotely adjusted via DMX or LAN connections.
In the Box ARRI SkyPanel S30-RP Daylight LED Remote Phosphor Softlight (Blue/Silver, Edison) 5,600K Remote Phosphor Panel Power Supply Unit Power Supply Unit Rail Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI SkyPanel S30-RP Daylight LED Remote Phosphor Softlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI S30-RP Specs | | | Beam Angle | 110° | | Color Temperature | 5600K ± 200K (with 200K Shift over Lifetime) | | Color Accuracy Standard | CRI 94 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Expected Lamp Life | 50,000 Hours (L70) | | Rectangular Panel Size | 14 x 11.8" / 35.5 x 30.0 cm | | Fixture Dimensions | 15.6 x 13.5 x 5.2" / 39.7 x 34.2 x 13.3 cm
20.0 x 22.0 x 5.2" / 50.7 x 55.9 x 13.3 cm (Including Yoke) | | Fixture Weight | 17.2 lb / 7.8 kg | | | | Power Input Connector | 3-Pin XLR, 4-Pin XLR | | DMX Connector | 5-Pin XLR, EtherCON | | Service Connector | USB Type-A | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Tilt | 180
