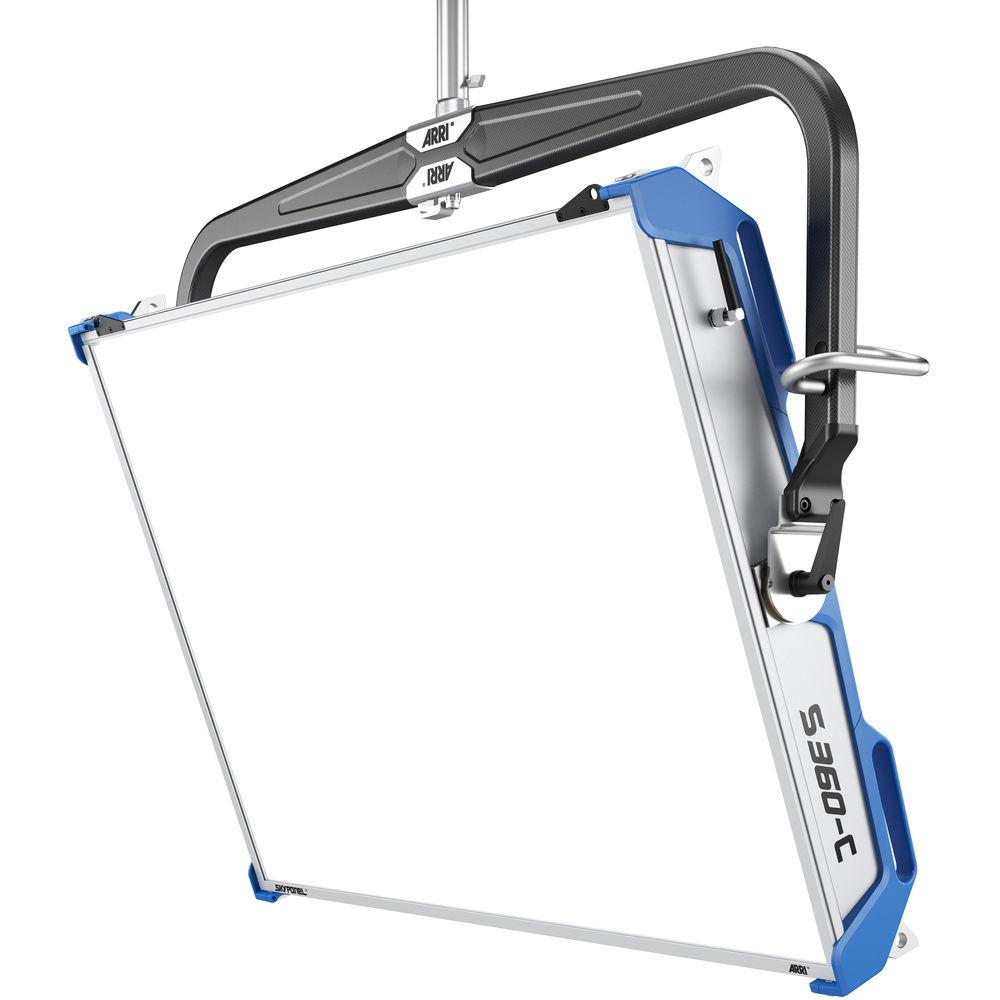

User Manual for ARRI SkyPanel S360-C LED Softlight Click to enlarge the picture
Contents of the user manual for the ARRI SkyPanel S360-C LED Softlight
- Product category: LED Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI LED Lights
 |
User manual for the ARRI SkyPanel S360-C LED Softlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

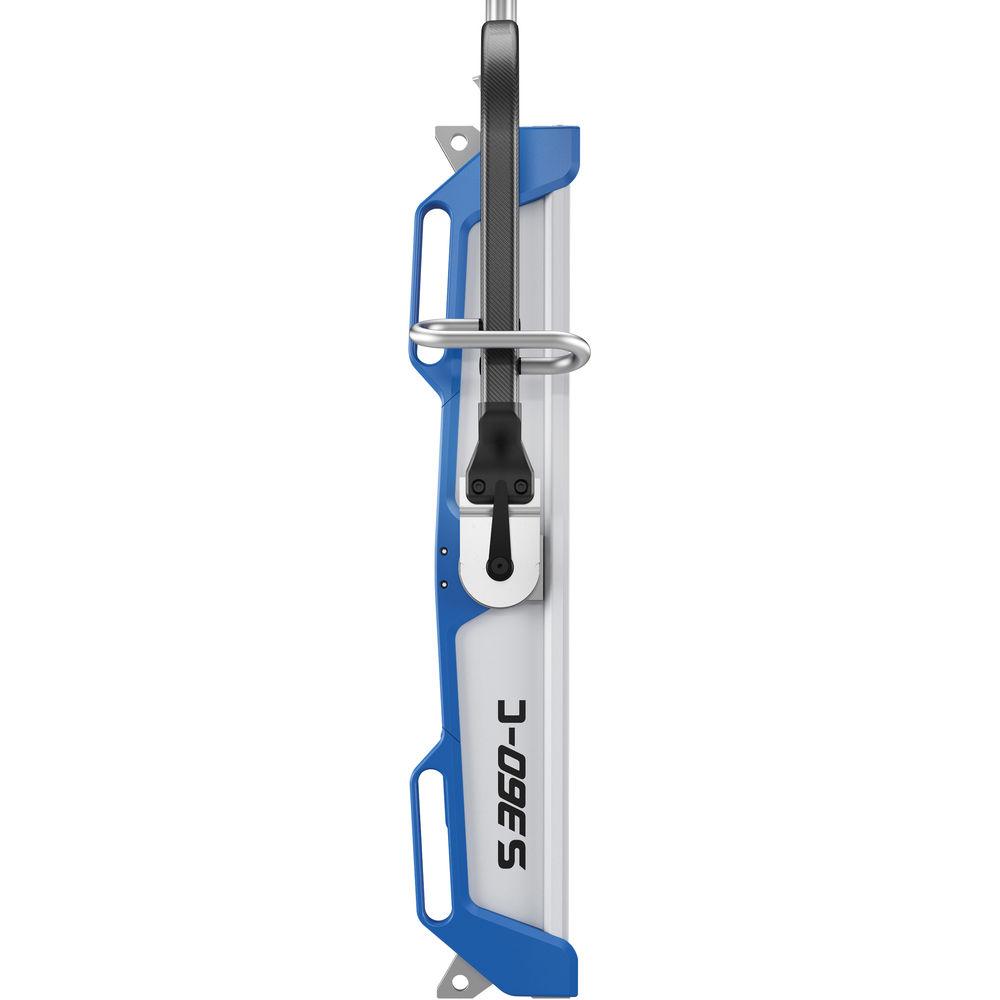

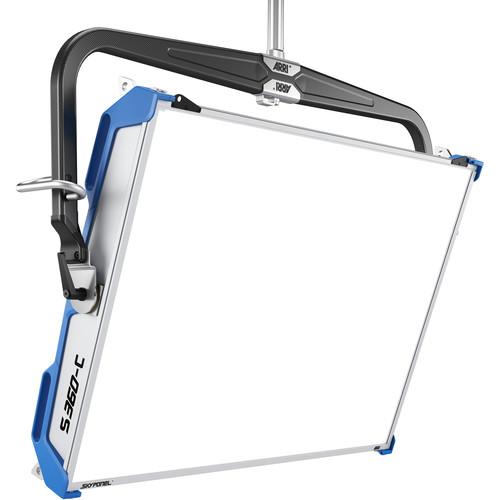

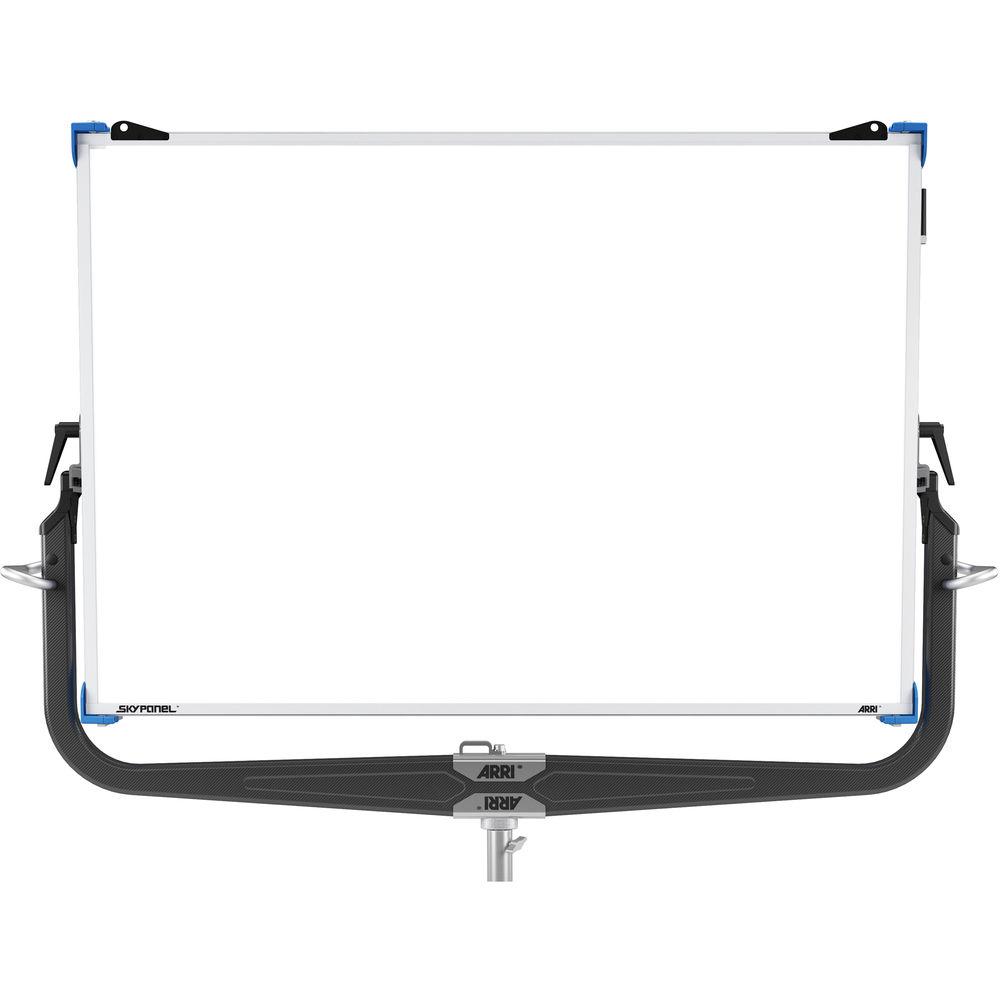

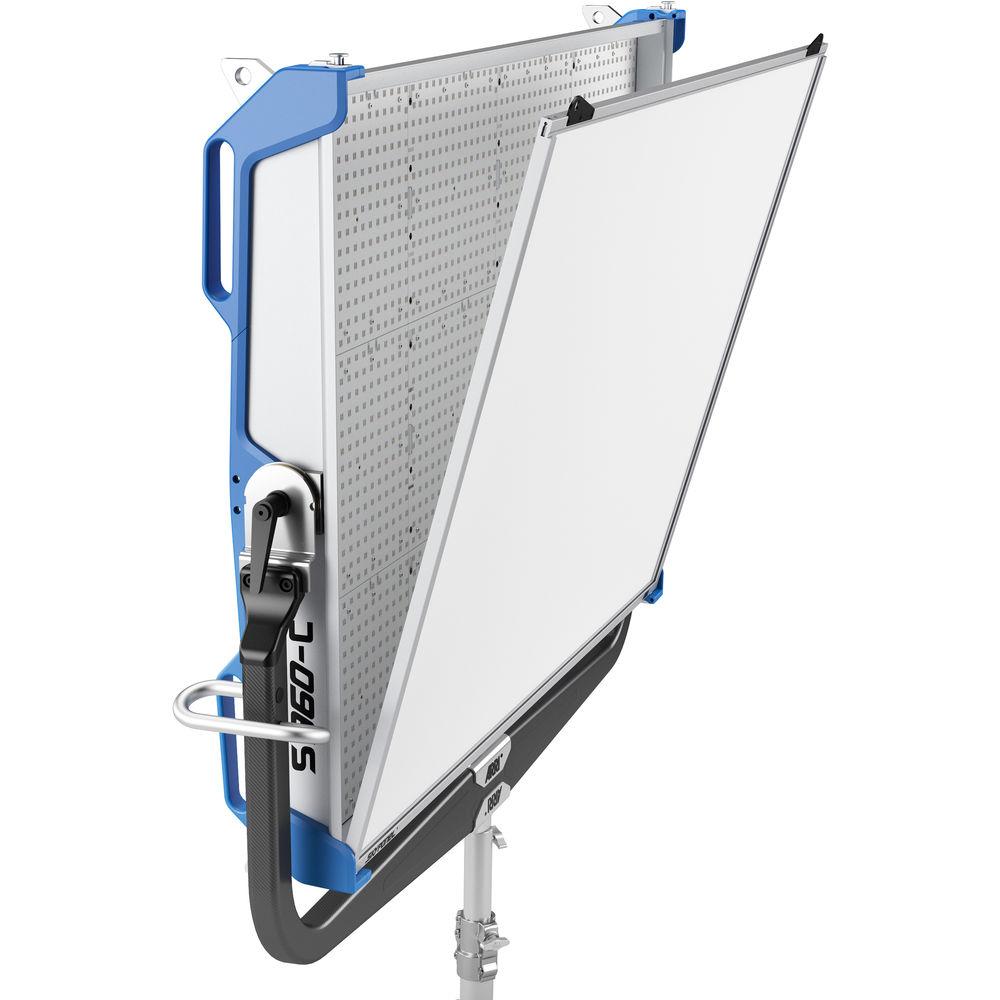

Product description ARRI continues to enlarge their LED line with the introduction of the massive SkyPanel S360-C LED Softlight. Supported by a weight-reducing carbon fiber yoke, the panel surface area measures 34.4 x 50.4". It employs interchangeable thermoplastic diffusers that range from Lite to Heavy to soften the light and wrap its output around your subject. There's also an Intensifier that boosts the output for long-throw use. A Standard medium diffuser is included with the light. The SkyPanel outputs the approximate equivalent of an 8000W tungsten soft light while drawing a maximum of only 1500W.

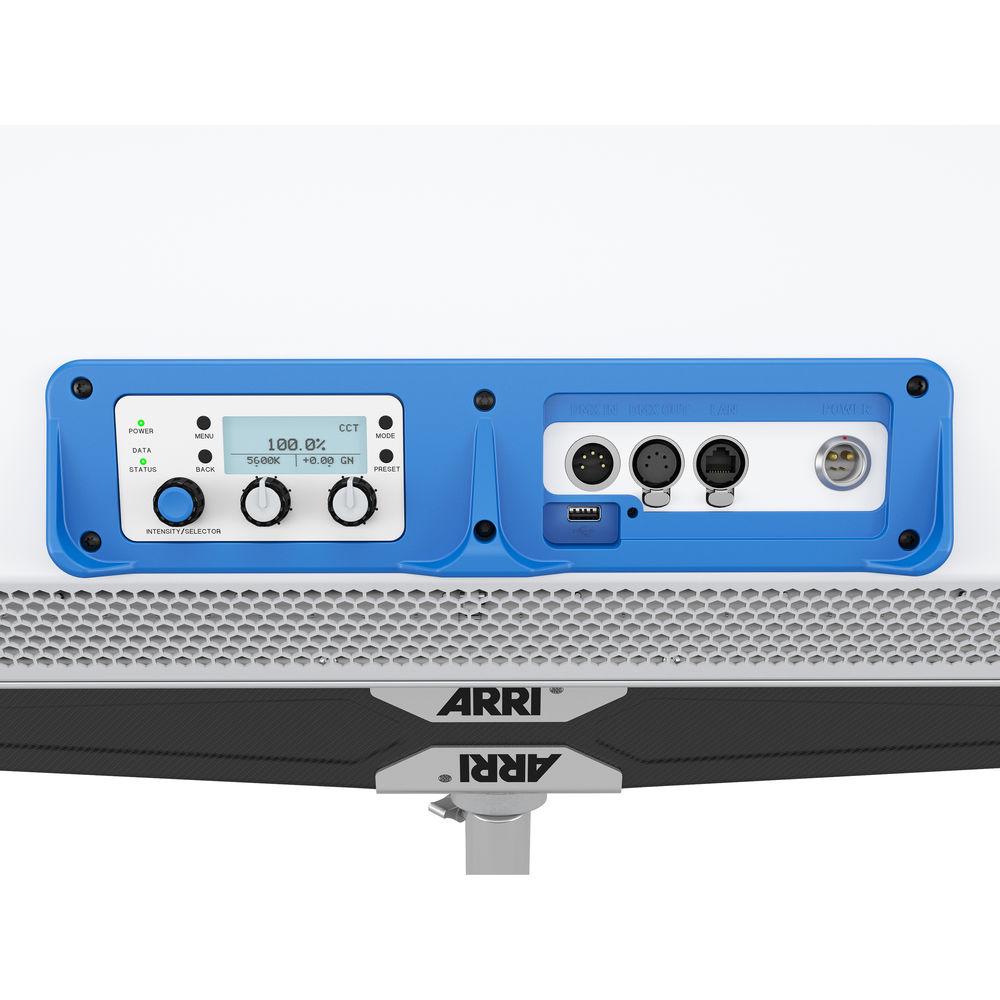

Using technology originally designed for the L7-C Fresnel, the SkyPanel S360-C is fully color tunable, allowing output of warm 2800K to icy blue 10,000K light, and it also uses the full RGB+W color gamut with hue and saturation control for fine adjustments. Plus and minus 1/8 green-magenta adjustment is also possible, so if you're lighting for blue or green screen, you can simply dial in your chosen color. This wide degree of control is responsible for a very high CRI of 95 and a TLCI rating of 90. All of these functions, as well as 0-100% dimming, can be adjusted locally with the SkyPanel's onboard controller, with an optional wired remote, standard DMX, or wireless DMX and RDM via onboard LumenRadio. Besides inputs and outputs appropriate to these functions, the light also has USB-A and Ethernet connections for DMX setup, fixture status and control, and firmware upgrades from a flash drive, Windows or Mac.
The SkyPanel S360-C can be used worldwide, thanks to its included 100-240 VAC power supply. Besides the power supply, the light comes with a Junior (1-1/8") pin and an intensifier. This version of the light has a manual carbon fiber yoke and comes with an Edison power cord. - Impressive Aperture
- Soft lights are all about size, the larger the aperture the better. With the S360-C, the surface area is over 5.8 times larger than the S60 and produces flattering soft light in a wide 105
|
Upload User Manual
Have you got an user manual for the ARRI SkyPanel S360-C LED Softlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI S360-C Specs | | | Light Source | RGB+W LED | | Color Reproduction | CRI: 95
TLCI: 90 | | Aperture | 50.4 x 34.4" / 128 x 87 cm | | Color Temperature | 2800-10000K | | Beam Angle | 105° | | Dimming | 0-100% | | Control | On-board controller
DMX
RDM | | DMX Interface | 5-pin XLR input
5-pin XLR output
LumenRadio CRMX | | Software Interface | EtherCON
USB Type-A | | Mounting | Yoke with 28 mm junior pin | | Power Connector | Male 4-pin metal locking (30 A) | | Power Requirements | 54 VDC | | Power Consumption | Maximum: 1600 W
Nominal: 1500 W | | Operating Conditions | Temperature: -4 to 113°F / -20 to 45°C | | Certifications | CE
CB
ENEC
cNRTLus
FCC
PSE | | Dimensions | 48.7 x 62.8 x 8.0" / 123.7 x 159.4 x 20.3 cm | | Weight | 90.4 lb / 41 kg | | | | Controls | On/off switch | | Input Connection | powerCON (32 A) | | Output Connection | Female 4-pin metal locking (30 A) | | AC Input Range | 100-240 VAC, 50/60 Hz | | Power Output | 54 VDC | | Mounting | Super clamp adapter | | Protection Class | I | | IP Rating | IP20 | | Certifications | CE
CB
ENEC
cNRTLus
PSE | | Dimensions | 17.7 x 9.4 x 8.1" / 45.1 x 24.0 x 20.6 cm | | Weight | 24.7 lb / 11.2 kg | | | | Package Weight | 202.5 lb | | Box Dimensions (LxWxH) | 74.5 x 42.0 x 21.0" |
