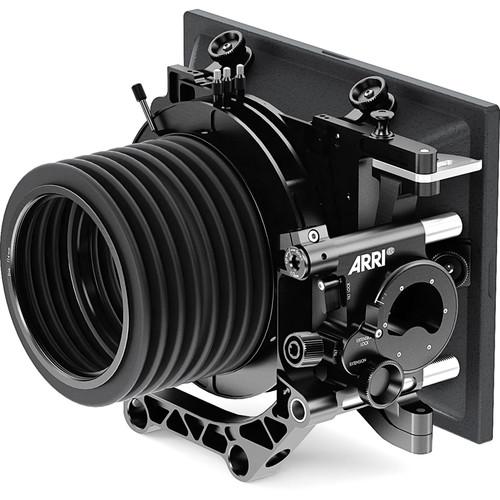

User Manual for ARRI SMB-2 Matte Box Tilt Set Click to enlarge the picture
Contents of the user manual for the ARRI SMB-2 Matte Box Tilt Set
- Product category: Matte Boxes & Sunshades ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Matte Boxes & Sunshades
|
User manual for the ARRI SMB-2 Matte Box Tilt Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description ARRI'S SMB-2 Matte Box Tilt Set includes the modular components needed to hold up to three 4 x 5.65" filters in a tilting configuration. The SMB-2 is designed for use with most primes and smaller zoom lenses. This SMB-2 Tilt set consists of the SMB-2 Tilt matte box, a 138/114mm bellows ring, a two-filter stage, a one-filter stage, and the 19mm Studio Arm. The SMB-2's modular design features stackable filter stages, a removable sunshade with captive screws, and rotatable stages with a rear, geared frame drive. The included bellows filter ring adapts to the tilt movement and accepts one 138mm round filter such as a polarizer. The swing-away front provides easy access to your lens without having to slide the matte box off the rods.Three horizontal filter frames are included, one of which is geared for use with the gear mechanism on either the one- or two-filter stages. The gear function enables your AC to smoothly adjust a graduated filter as needed during a shot, such as when panning across a horizon or between areas with varying exposure levels. The SMB-2 will accommodate ARRI Master and Ultra Primes as wide as 14mm as well as the Alura series zooms.Accessories such as a top flag, side flags, and matte sets are available separately. An anamorphic sunshade and corresponding mattes and flags can also be purchased separately. - 4" x 5.65" SMB-2 Tilt Studio Matte Box The SMB-2 Tilt Matte Box Module from ARRI is composed of a 4:3 sunshade, a tilting extension module, and an R2 ring–compatible back plate. A mounting arm is not included nor are any filter stages or tilting filter ring. The SMB-2 has a modular design, and is ready to accept stackable 4" x 5.65" filter stages, either the 19mm or 15mm rod mounting arm, and other separately available components as you wish. The SMB-2's swing-away design provides easy access to your lens without having to slide the matte box off the rods. The tilt feature of this SMB-2 version may be used to disperse filter reflections from car headlights, streetlamps, and other sources. The SMB-2's back plate is sized to accept a 138mm tilting filter ring, an R2 adapter or other reflex prevention ring (available separately). When shooting with an ALEXA in 2.8K format and using up to a 3-filter stage, the SMB-2 will accommodate lenses as wide as the 14mm ARRI Master/Ultra Primes, and the ALURA series zooms. The SMB-2's removable 4:3 aspect-ratio sunshade may be swapped out with a 2:1 ratio version for anamorphic capture (available separately). The sunshades handily feature captive screws so you won't find yourself searching for tiny black screws in a dim studio after you've removed the shade for any reason.
Features - Covers lenses as wide as the 14mm ARRI Master and 14mm Ultra Primes, and the ALURA zoom series
- Basic SMB-2 matte box with 4:3 sunshade, extension module, and back plate
- Tilting module for eliminating filter reflections
- Ready to accept filter stages and other accessories of your choice (available separately)
- Swing-away design enables access to your lens without the need to remove the matte box from its rod mount (available separately)
- SMB-2 Two-Filter Stage with 2 Filter Frames The SMB-2 Two-Filter Stage from ARRI includes two filter frames: one geared and one non-geared. This stackable stage features a rear gearing mechanism for use with one geared filter tray. It also has integrated filter/tray catchers to prevent the trays from sliding through bottom of the stage when the side locks are loosened. The stage's two 4 x 5.65" filter frames may be rotated as a pair.
Features - Stackable filter stage is compatible with the ARRI SMB-2 studio matte box
- One geared and one non-geared 4 x 5.65" filter frame included
- Filter frames may be rotated as a pair
- Integrated tray catchers prevent each filter/tray from dropping through the stage when its side lock is loosened
- SMB-2 One-Filter Stage with 1 Filter Frame The SMB-2 One-Filter Stage from ARRI includes one geared filter frame. This stackable stage features a rear gearing mechanism for use with one geared filter tray. It also has an integrated filter/tray catcher to prevent the tray from sliding through bottom of the stage when the side lock is loosened. The stage's one 4 x 5.65" filter frame is rotatable.
Features - Stackable filter stage is compatible with the ARRI SMB-2 studio matte box
- One geared 4 x 5.65" filter frame is included
- Filter frame is rotatable
- Integrated tray catcher prevents the filter/tray from dropping through the stage when its side lock is loosened
- 19mm Studio Arm for SMB-2 Matte Box The 19mm Studio Arm for SMB-2 is a mounting component of the ARRI SMB-2 Studio Matte Box. This bracket attaches to the SMB-2 via its set of integrated rods. A large, knurled thumbscrew is used to fasten the bracket onto a pair of 19mm rods (not included). Vertical adjustments can be made with a 0.3mm Allen key.
Features - Provides 19mm rod mounting support for the SMB-2 Studio Matte Box
- Slides onto 19mm rods, fastens via large thumbscrew
- Vertical adjustment using 0.3mm Allen key
- R2 Tilting Filter Ring for SMB-2 (114mm) This R2 Tilting Filter Ring for SMB-2 from ARRI is a 138-114mm bellows ring that follows the tilt movement of the SMB-2 Matte Box. The ring reduces the opening of the matte box back plate to accommodate lenses with a 114mm outer diameter. The included threaded ring supports the mounting of a 138mm round filter such as a polarizer.
Features - Bellows design follows the movement of the SMB-2 tilt module
- Adapts back plate of SMB-2 to accommodate lenses with 114mm front barrel diameter
- Accepts one 138mm round filter
In the Box Bundle Items 4" x 5.65" SMB-2 Tilt Studio Matte Box xeybzydbwxwsyy SMB-2 Two-Filter Stage with 2 Filter Frames - F2 4 x 5.65" Horizontal Filter Frame (Non-Geared)
- F2 4 x 5.65" Horizontal Filter Frame (Geared)
SMB-2 One-Filter Stage with 1 Filter Frame - F2 4 x 5.65" Horizontal Filter Frame (Geared)
19mm Studio Arm for SMB-2 Matte Box R2 Tilting Filter Ring for SMB-2 (114mm) Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI SMB-2 Matte Box Tilt Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4" x 5.65" SMB-2 Tilt Studio Matte Box
| Lens Fit and Mount | Maximum Front Diameter: 4.5" (114 mm)
Mount: Not included | | Type | Swing-away | | Filter Type | 4 x 5.65" (stages not included) | | Dimensions (HxDxW) | 8.7 x 6.7 x 13.4" (220 x 170 x 340 mm) | | Weight | 3.04 lb (1379 g) | - SMB-2 Two-Filter Stage with 2 Filter Frames
| Dimensions (H x D x W) | 8.7 x 1.2 x 8.3" (220 x 30 x 210 mm) | | Weight | 11.9 oz (336 g) | - SMB-2 One-Filter Stage with 1 Filter Frame
| Dimensions (H x D x W) | 8.7 x .8 x 8.3" (220 x 20 x 210 mm) | | Weight | 8.1 oz (230 g) | - 19mm Studio Arm for SMB-2 Matte Box
| Dimensions | 7.9 x 5.1 x 10.2" (200 x 130 x 260 mm) | | Weight | 1.1 lb (487 g) | - R2 Tilting Filter Ring for SMB-2 (114mm)
| Step-Down | 5.4 to 4.5" (138 to 114 mm) | | Dimensions (Ø x D) | 6.3 x 4.7" (160 x 120 mm) | | Weight | 1 lb (458 g) |
