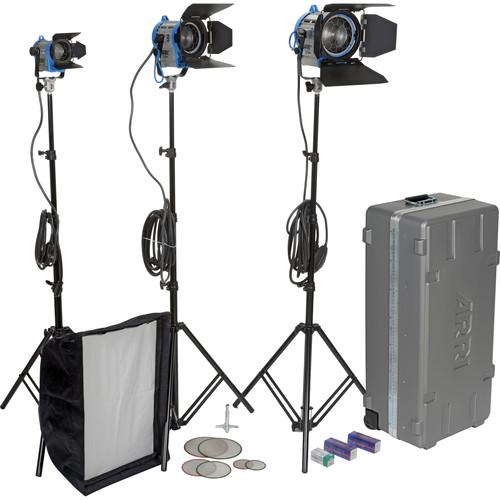

User Manual for ARRI Softbank D1 Three-Light Kit Click to enlarge the picture
Contents of the user manual for the ARRI Softbank D1 Three-Light Kit
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI Softbank D1 Three-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description Less is more--sometimes. The Arri Softbank D1 Three-Light Kit was designed with modern, light-sensitive digital media in mind, so you can accomplish even more than you might think with the 1100 total watts in this package. Three of Arri's most popular Fresnel lights form the core of this complete lighting outfit: the Arri 150W is a small Fresnel with great performance and rugged construction, with a 2" (50 mm) Fresnel lens; the very efficient 300W Plus Fresnel uses a 3.2" (80 mm) low expansion, borosilicate Fresnel lens to produce a soft, even field of light. The 650W Fresnel features the same lens, reflector, housing and power cord as the 300W Fresnel, producing (of course) more light. A Chimera 16 x 22" softbox is included (perfect for interviews and soft light in tight spaces), as well as barndoors, filter frames, light stands, bulbs, a ceiling scissor clamp and a hard compact wheeled carrying case for storage and transport. This kit is equipped for 120V AC operation. It will also function with 220-240 AC Voltage, with the appropriate bulb and plug adapter, available separately. Fixtures - Light Spread
- Each Fresnel fixture produces a soft, even field of light
- Lenses
-

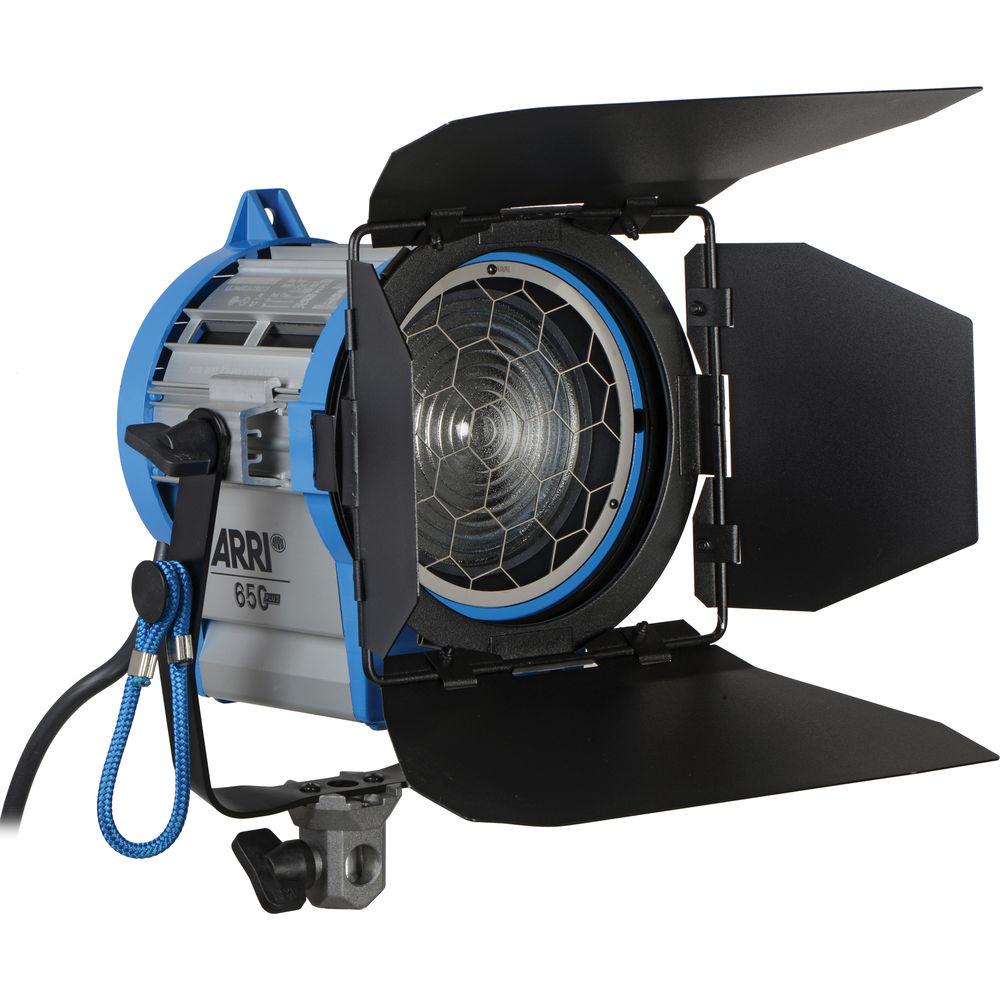

- The Arri 650 has a 4.3" (110 mm) low expansion, borosilicate Fresnel lens

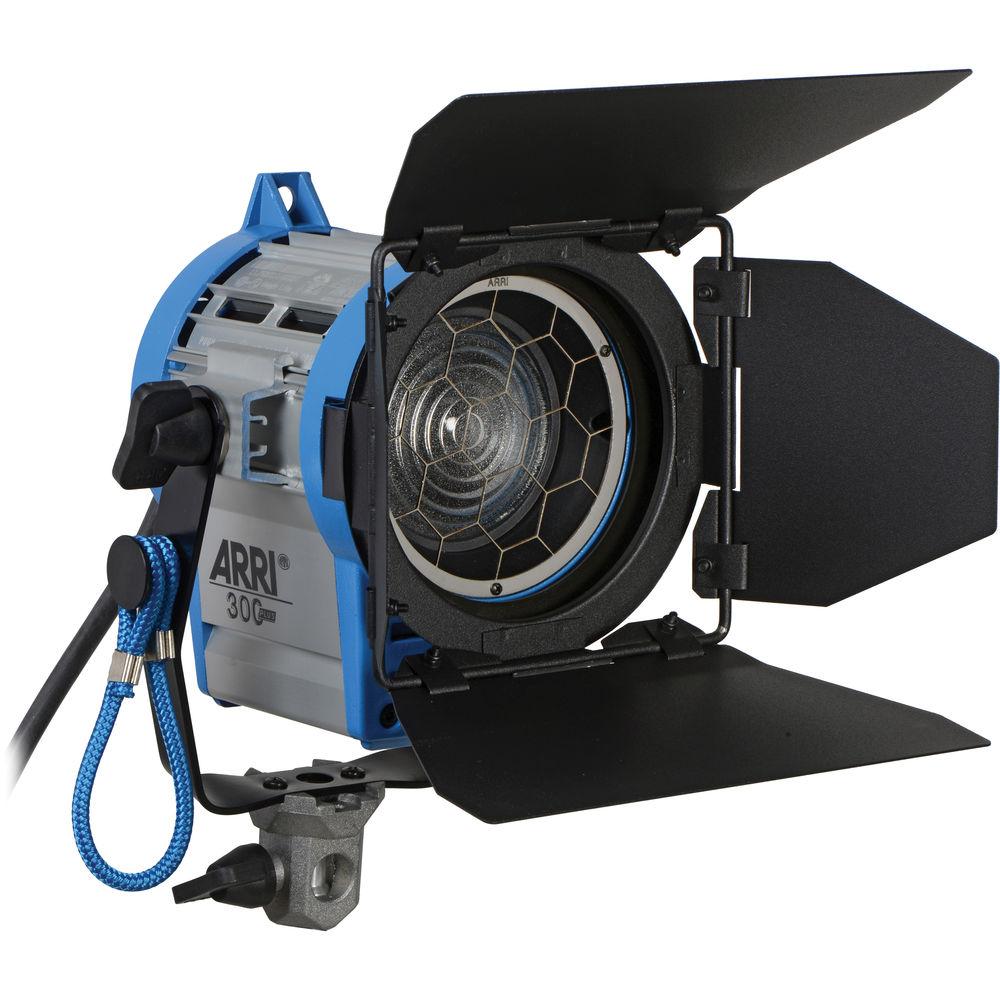

- The Arri 300 Plus has a similar lens, measuring 3.2" (80 mm)

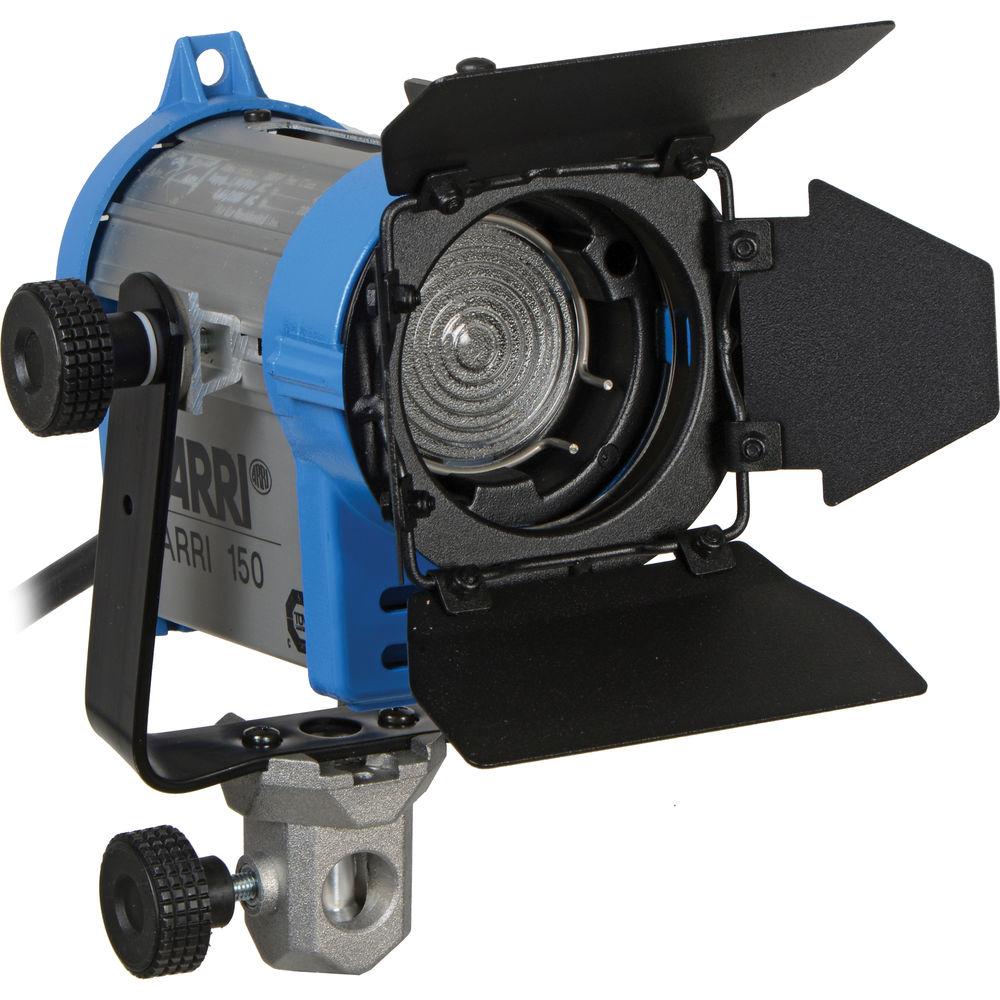

- The Fresnel 150 has a 2" (50 mm) Fresnel lens
- Ventilated Housings
- Ribbed for cooler operation, the fixture ribs act like heat sinks to help disperse any heat build-up
- Aluminum Reflectors
- Spherical, specular, high purity reflectors insure even light
Light Shapers - 16 x 22" Softbox with Adapter
- Chimera softbox provides varying degrees of softness, with its removable front diffuser

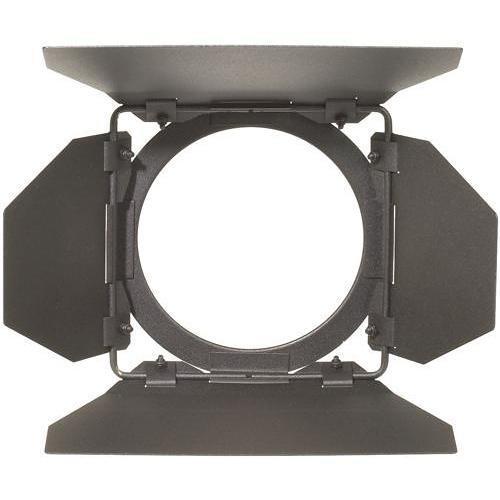

- Barndoors, Scrims, and Filter Frames
- Enable adjustments of the fixture's light spread, intensity and color
Support and Storage - Drop-Ceiling Clamp
-
- For mounting a 300 Fresnel from a drop ceiling frame
- It features a standard 5/8" (baby) mounting stud
- Compact Kit Case
-
- Vacuum Molded ABS Plastic Case
- Butterfly Latches and Reinforced Piano Hinge
- Spring-loaded Side and Top Handles

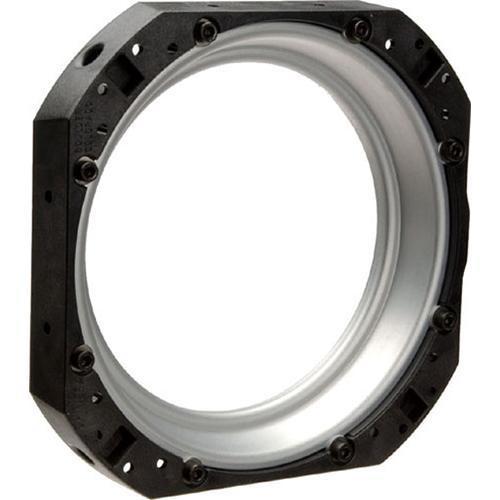

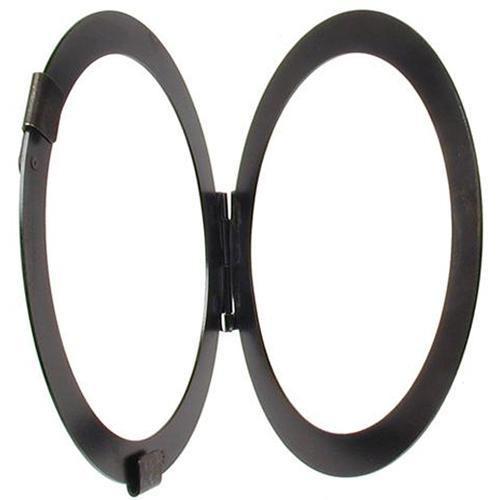

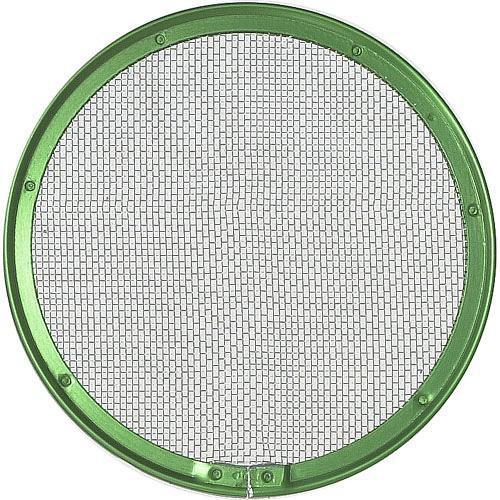

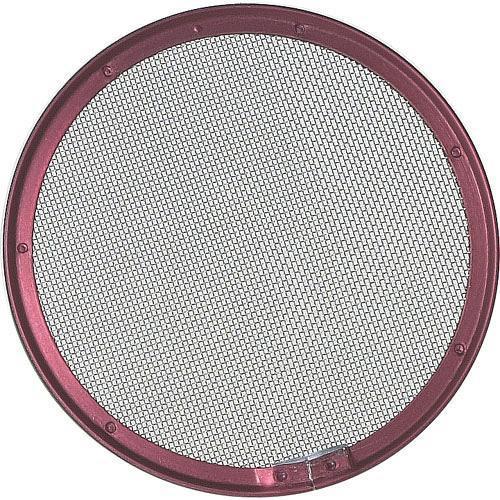

In the Box ARRI Softbank D1 Three-Light Kit 150-Watt Tungsten Fresnel Light (120 VAC) uycyvbszxdbbcrvtbtuzetbdtabrxe 4-Leaf Barndoor Set for ARRI 150W Fresnel Filter Frame for Plus 300, HMI 125W Fresnels Full Single Scrim for 150W Fresnel (3") Full Double Scrim for 150W Fresnel (3") ESP Lamp - 150 Watts/120 Volts 300 Plus Tungsten Fresnel (Silver/Blue) 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR Filter Frame for 150 Watt Fresnel Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") FKW Lamp - 300 Watts/120 Volts 650W Plus Tungsten Fresnel (120-240 VAC) 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR Filter Frame for 650W Fresnel, 200W HMI Fresnel Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" Speed Ring for 650W Fresnel Video Pro Bank XS (16 x 22") by Chimera FRK Lamp - 650 Watts/120 Volts Ceiling Scissor Clamp with 5/8" Stud 3 x AS-01 Lightweight Light Stand 8.5' 571194W 3-Light Case with Wheels One-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Softbank D1 Three-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005645 Specs | Rating | Fresnel 150: 150W
Fresnel 300: 300W
Fresnel 650: 650W | | Socket (Lampholder) | GY9.5 | | Lens (Condenser) | Fresnel 150: 2" (50 mm)
Fresnel 300: 3.2" (80 mm)
Fresnel 650: 4.3" (110 mm)
all with low expansion borosilicate Fresnel lenses | | Reflector (Mirror) | Spherical, specular, high purity aluminum | | Mounting | 5/8" (16mm) stand mount | | Yoke | Fits on standard 5/8" stand or mounting stud | | Cable | Fresnel 150: 15' (4.6 mm)
Fresnel 300, 650: 25' (7.6 m) with in-line switch | | Focusing | Worm-gear driven | | Weight | Fresnel 150: 2.3 lbs (1 kg)
Fresnel 300: 6.5 lbs (2.9 kg)
Fresnel 650: 7.2 lbs (3.3 kg) | | Dimensions | Fresnel 150: 5.25 x 7.75 x 6.1" (13.3 x 19.7 x 15.6 cm)
Fresnel 300: 7.1 x 10 x 6.3" (18 x 25.4 x 16 cm)
Fresnel 650: 9 x 12 x 7.5" (23 x 30.5 x 19 cm)
Kit in Case: 32.5 x 17 x 10.75" (82.5 x 43.2 x 27.3 cm) | | Kit Weight | 44 lbs (20 kg) | | | | Package Weight | 53.8 lb | | Box Dimensions (LxWxH) | 34.0 x 18.0 x 12.5" |
