User Manual for ARRI Softbank D2 Three-Light Kit Click to enlarge the picture
Contents of the user manual for the ARRI Softbank D2 Three-Light Kit
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI Softbank D2 Three-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

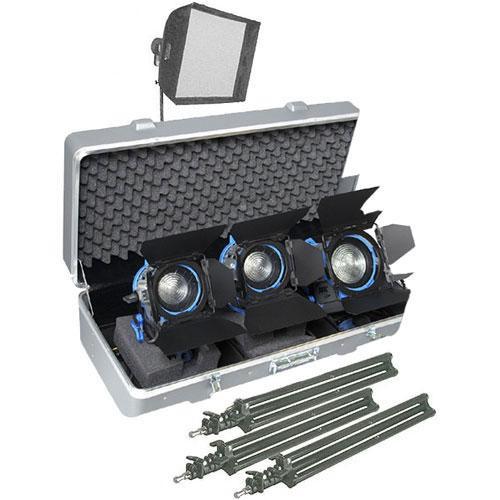

Product description Less is more, sometimes. The ARRI Softbank D2 Three-Light Kit was designed with modern, light-sensitive digital media in mind, so you can accomplish even more than you might think with the 1250 total watts in this package. Two of ARRI's most popular Fresnel lights form the core of this complete lighting outfit: two of the very efficient 300W Plus Fresnels each use a 3.2" (80 mm) low expansion, borosilicate Fresnel lens to produce a soft, even field of light. The 650W Fresnel features a 4.3" (110mm) lens with the same reflector, housing, and power cord as the 300W Fresnel, producing (of course) more light. A Chimera 16 x 22" softbox is included (perfect for interviews and soft light in tight spaces), as well as barndoors, filter frames, light stands, bulbs, a ceiling scissor clamp to hang a fixture from a drop ceiling, and a hard compact wheeled carrying case for storage and transport. This kit is equipped for 220 VAC operation. Fixtures - Light Spread
- Fresnel fixtures produce a soft, even field of light
- Lenses
-

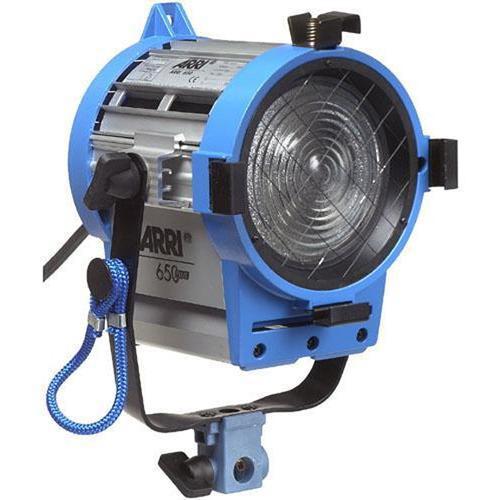

- The ARRI 650 has a 4.3" (110mm) low expansion, borosilicate Fresnel lens

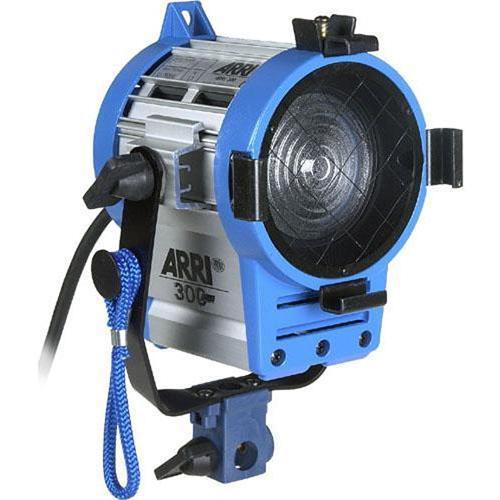

- The ARRI 300 Plus has a similar lens, measuring 3.2" (80mm)
- Ventilated Housings
- Ribbed for cooler operation, the fixture ribs act like heat sinks to help disperse any heat build-up
- Aluminum Reflectors
- Spherical, specular, high purity reflectors

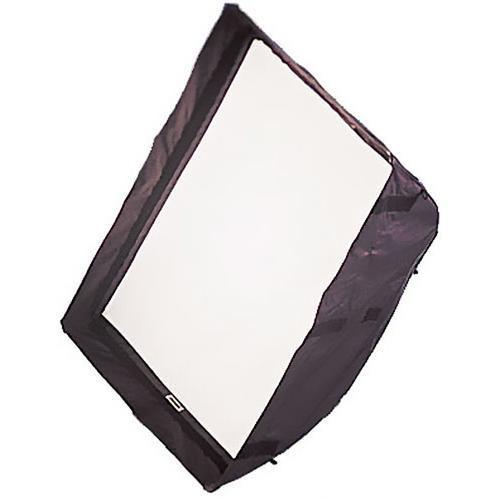

Light Shapers - 16 x 22" Softbox with Adapter
- Chimera Video Pro Softbox provides varying degrees of softness with a removable front diffuser

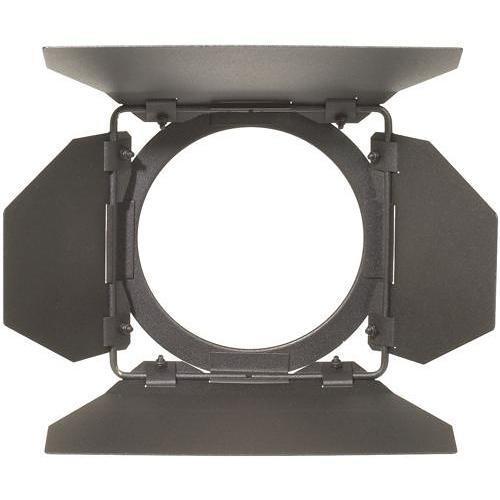

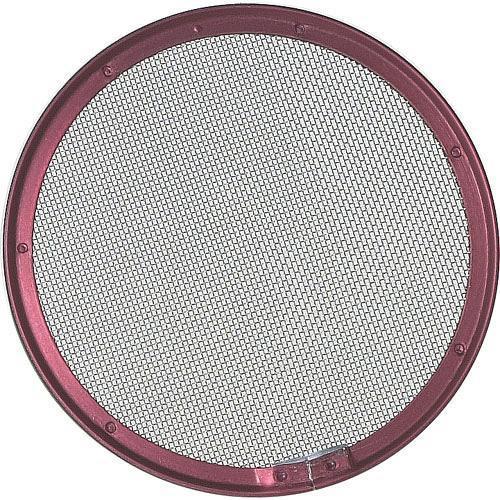

- Barndoors, Scrims, and Filter Frames
- Enable adjustments of the fixture's light spread, intensity, and color

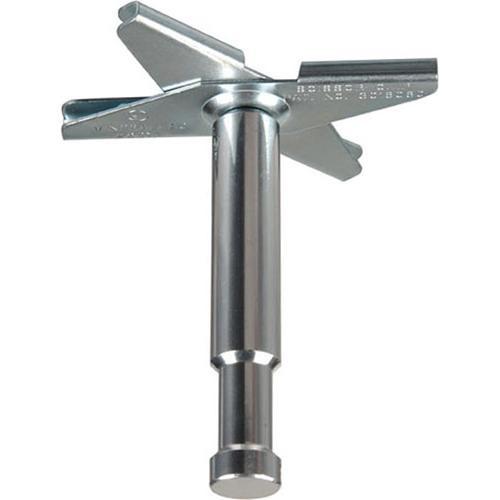

Support and Storage - Drop-Ceiling Clamp
-
- For mounting a 300 Fresnel from a drop ceiling frame
- It features a standard 5/8" (baby) mounting stud
- Compact WheeledKit Case
-
- Vacuum-molded ABS plastic case
- Butterfly latches and reinforced piano hinge
- Spring-loaded side and top handles
In the Box ARRI Softbank D2 Three-Light Kit 2 x 300 Plus Tungsten Fresnel (Silver/Blue) vxdctbsedyee 2 x 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR 2 x Filter Frame for Plus 300, HMI 125W Fresnels 2 x Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") 2 x Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" 2 x 300W 220V Lamp 3 x AS-01 Lightweight Light Stand 8.5' 650W Plus Tungsten Fresnel (120-240 VAC) 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR Filter Frame for 650W Fresnel, 200W HMI Fresnel Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") vxdctbsedyee Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" Video Pro Bank XS (16 x 22") by Chimera Speed Ring for 650W Fresnel 650W Lamp 220V Ceiling Scissor Clamp with 5/8" Stud 571194W 3-Light Case with Wheels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Softbank D2 Three-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005612 Specs | Rating | Each Fresnel 300: 300 W
Fresnel 650: 650 W | | Socket (Lampholder) | GY9.5 | | Lens (Condenser) | Each Fresnel 300: 3.2" / 80 mm
Fresnel 650: 4.3" / 110 mm | | Reflector (Mirror) | Spherical, specular, high purity aluminum | | Mounting | Baby 5/8" (16 mm) stand mount | | Yoke | Attaches to any 5/8" (16 mm) stud | | Cable | 25' (7.6 m) cable with in line switch, 120 V Edison plug | | Focusing | Worm-gear driven | | Weight | Each Fresnel 300: 6.5 lb / 2.9 kg
Fresnel 650: 7.2 lb / 3.3 kg | | Dimensions | Each Fresnel 300: 7.1 x 10 x 6.3" / 18 x 25.4 x 16 cm
Fresnel 650: 9 x 12 x 7.5" / 23 x 30.5 x 19 cm | | Kit Weight | 55.4 lb / 25.2 kg | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 34.3 x 18.1 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
