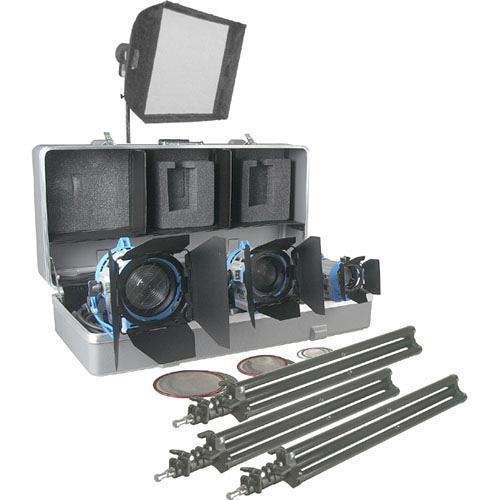

Product description Less is more--sometimes. The Arri Softbank D3 Three-Light Kit was designed with modern, light-sensitive digital media in mind, so you can accomplish even more than you might think with the 950 total watts in this package. Two of Arri's most popular Fresnel lights form the core of this complete lighting outfit: the Arri 150W (two included) is a small Fresnel with great performance and rugged construction, with a 2" (50 mm) low expansion, borosilicate Fresnel lens producing a soft, even field of light. The 650W Fresnel features a 4.3" (110 mm) lens, also providing an even field of light with (of course) more light. A Chimera 16 x 22" softbox is included (perfect for interviews and soft light in tight spaces), as well as barndoors, filter frames, light stands, bulbs, a ceiling scissor clamp to hang a fixture from a drop ceiling, and a hard compact wheeled carrying case for storage and transport. This kit is equipped for 220V AC operation. Fixtures - Light Spread
- Fresnel fixtures produce a soft, even field of light
- Lenses
-

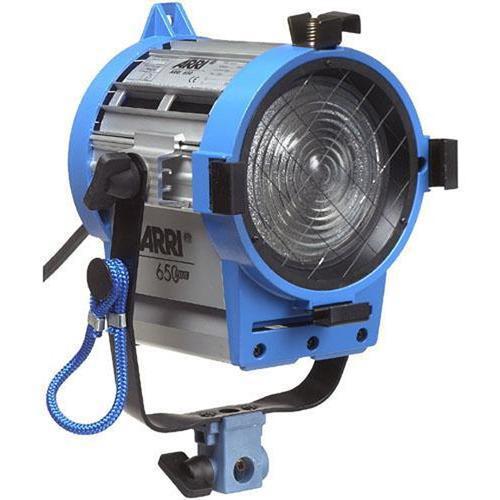

- The Arri 650 has a 4.3" (110 mm) low expansion, borosilicate Fresnel lens

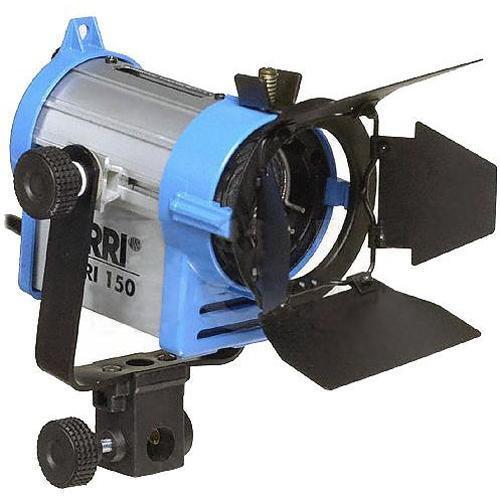

- The Arri 150 has a similar lens, measuring 2" (50 mm)
- Ventilated Housings
- Ribbed for cooler operation, the fixture ribs act like heat sinks to help disperse any heat build-up
- Aluminum Reflectors
- Spherical, specular, high purity reflectors
Light Shapers - 16 x 22" Softbox with Adapter
- Chimera Video Pro Softbox provides varying degrees of softness, with a removable front diffuser

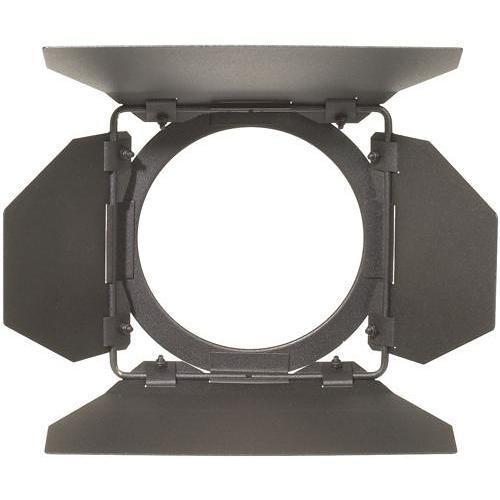

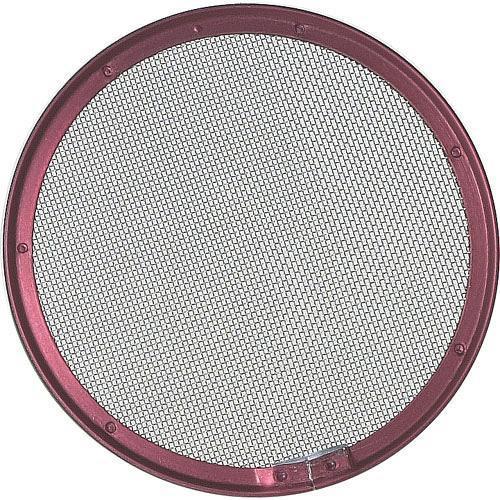

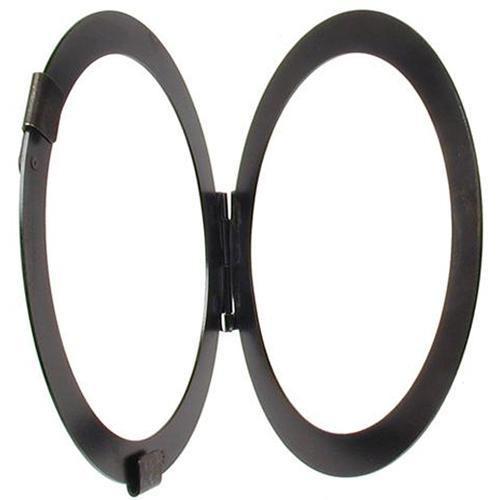

- Barndoors, Scrims, and Filter Frames
- Enable adjustments of the fixture's light spread, intensity and color

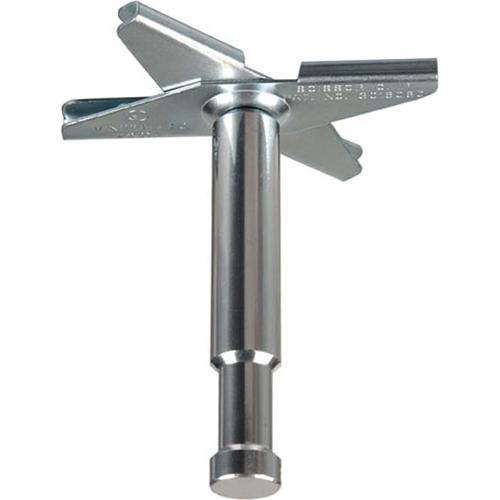

Support and Storage - Drop-Ceiling Clamp
-
- For mounting a fixture from a drop ceiling frame
- It features a standard 5/8" (baby) mounting stud
- Compact Wheeled Kit Case
-
- Vacuum Molded ABS Plastic Case
- Butterfly Latches and Reinforced Piano Hinge
- Spring-loaded Side and Top Handles

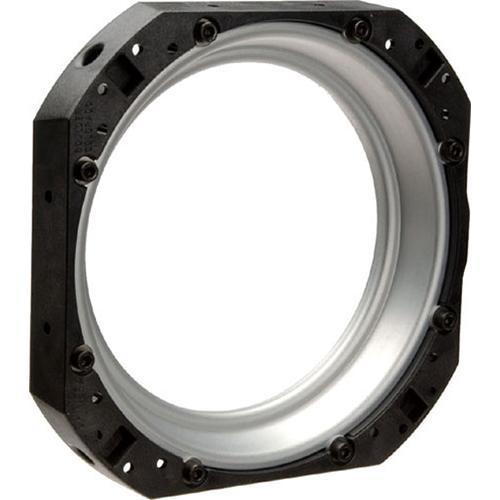

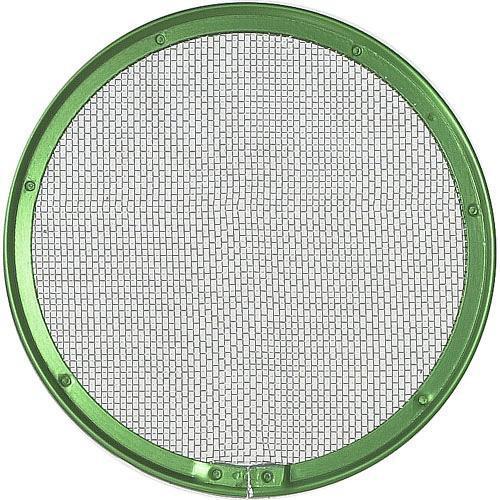

In the Box ARRI Softbank D3 Three-Light Kit 2 x 150-Watt Tungsten Fresnel Light (120 VAC) fttsevzdfzuzufwdafsbsazbtcb 2 x 4-Leaf Barndoor Set for ARRI 150W Fresnel 2 x Filter Frame for 150 Watt Fresnel 2 x Full Single Scrim for 150W Fresnel (3") 2 x Full Double Scrim for 150W Fresnel (3") 2 x ESP Lamp - 150 Watts/120 Volts 650W Plus Tungsten Fresnel (120-240 VAC) 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR Filter Frame for 650W Fresnel, 200W HMI Fresnel fttsevzdfzuzufwdafsbsazbtcb Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" Speed Ring for 650W Fresnel Video Pro Bank XS (16 x 22") by Chimera fttsevzdfzuzufwdafsbsazbtcb FRK Lamp - 650 Watts/120 Volts Ceiling Scissor Clamp with 5/8" Stud 3 x AS-01 Lightweight Light Stand 8.5' 571194W 3-Light Case with Wheels One-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Softbank D3 Three-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005614 Specs | Rating | Each Fresnel 150: 150W
Fresnel 650: 650W | | Socket (Lampholder) | GY9.5 | | Lens (Condenser) | Each Fresnel 150: 2" (50 mm)
Fresnel 650: 4.3" (110 mm) | | Reflector (Mirror) | Spherical, specular, high purity aluminum | | Mounting | Baby 5/8" (16 mm) stand mount | | Yoke | Attaches to any 5/8" (16 mm) stud | | Cable | 25' (7.6 m) cable with in line switch, 120V Edison plug | | Focusing | Worm-gear driven | | Weight | Each Fresnel 150: 2.3 lbs (1 kg)
Fresnel 650: 7.2 lbs (3.3 kg) | | Dimensions | Each Fresnel 150: 5.25 x 7.75 x 6.1" (13.3 x 19.7 x 15.6 cm)
Fresnel 650: 9 x 12 x 7.5" (23 x 30.5 x 19 cm) | | Kit Weight | 44 lbs (20 kg) |
