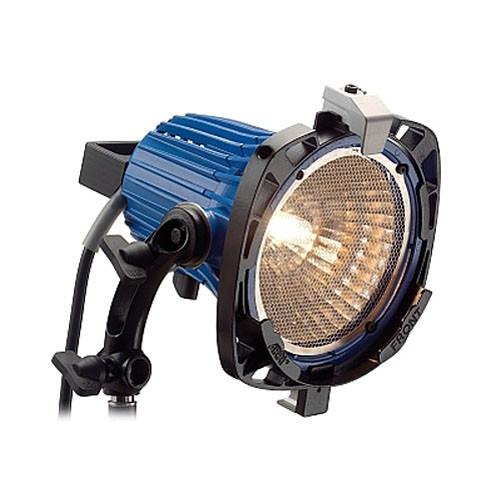

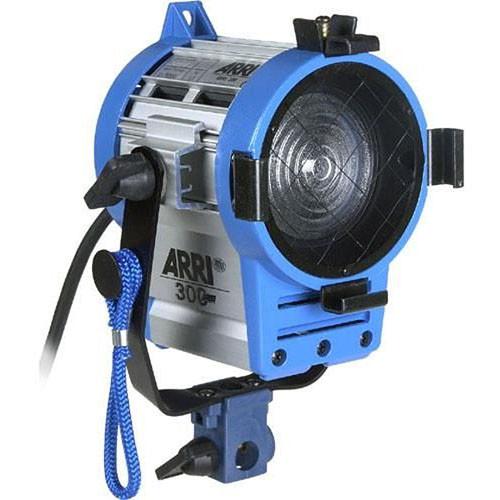

Product description This 120 VAC ARRI Softbank III Plus 4-Light Kit includes barndoors, filter frames scrims, a softbox, light stands, 120 VAC bulbs, an accessory kit, and a heavy duty wheeled case.The ARRI 300W Plus Fresnel is designed to gather as much light as possible and direct it through the 3.2" (81.2 mm) low expansion, borosilicate Fresnel lens producing a soft, even field of light. The beam spread is 15-55° The 650W Fresnel features the same lens, reflector, housing and power cord as the 300W Fresnel. The beam angle in the flood position is 54° and a narrow 13° in the spot position. The ARRILITE 750 Plus from ARRI is an enhanced version of the tried-and-true ARRILITE open-face line. ARRI started with the basic design of the ARRILITE 800 and optimized the reflector to increase output 21% using a 750W HPL lamp which employs a compact filament that concentrates and augments light while increasing efficiency. The result is almost double the output. A redesigned one-arm stirrup instead of a yoke facilitates greater movement while the dedicated accessory holder allows use of Chimera softboxes without a speed ring. - Soft Light
- The 24 x 32" Chimera Video Pro softbox provides soft, flattering light for talent and pleasing catch lights for reflective objects.
- Light Shapers

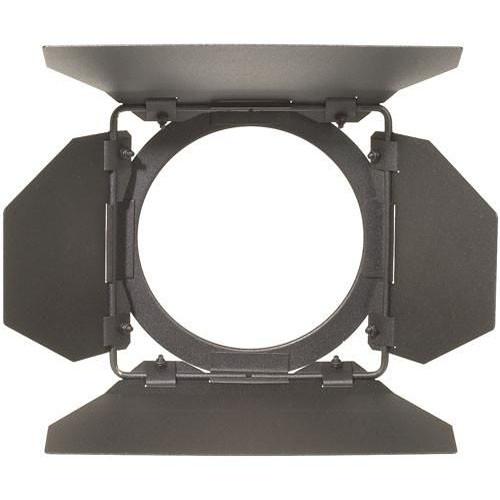

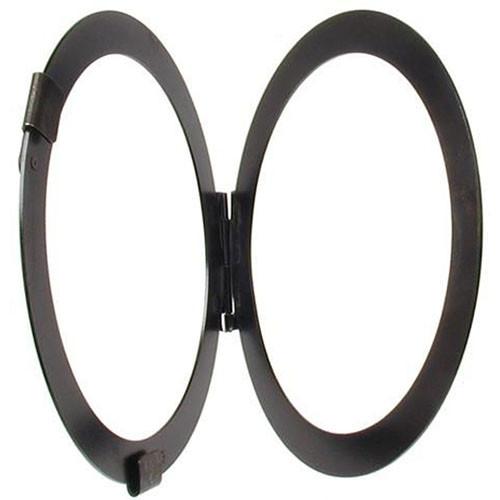

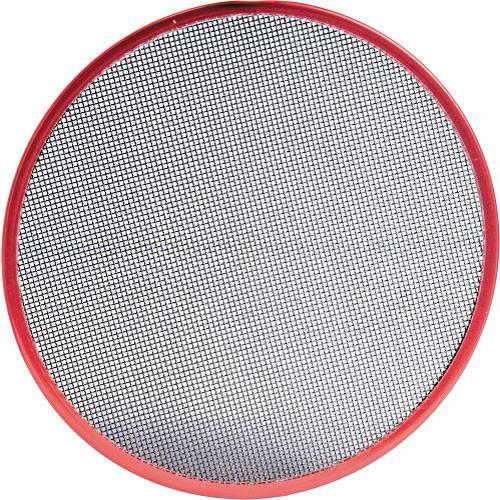

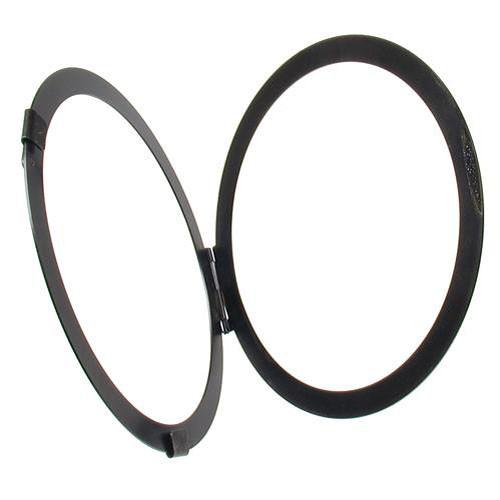

- Use the barndoors and scrims to alter the shape and intensity of the lights. The included filter frames are ideal for color effects filters or diffusion.
- Light Spread
- ARRI lights are renowned for even beam spread, high efficiency, and superior spot-to-flood ratio.
- Accessory Kit
- Includes a bag, clothes pins, bulb storage case, 3-outlet extension cord, and heat-resistant gloves.

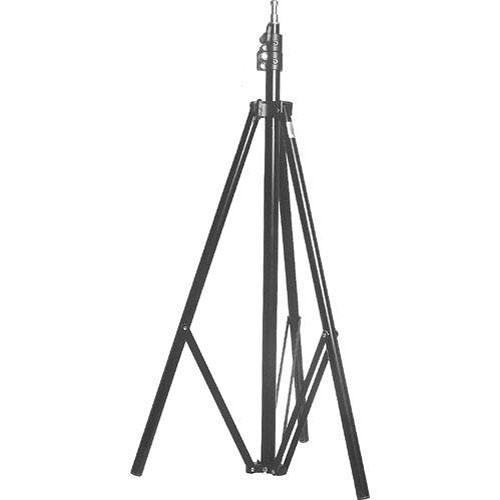

- Light Stands
- Offer lightweight, yet sturdy support to a height of 8.6' (2.6m)
- Wheeled, Heavy Duty Case
- The case employs a hard plastic shell, aluminum trim and latches, and a piano hinge. It features interior dividers and wheels for easy storage and transport.

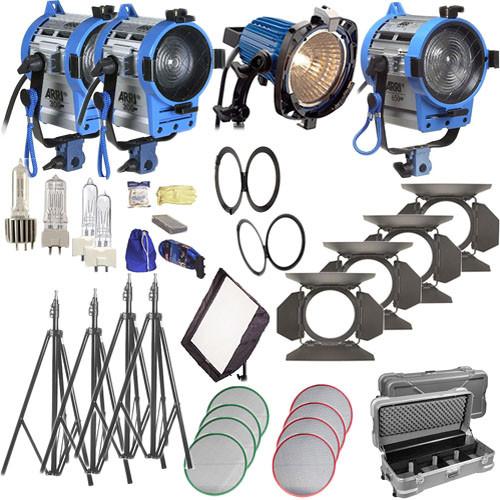

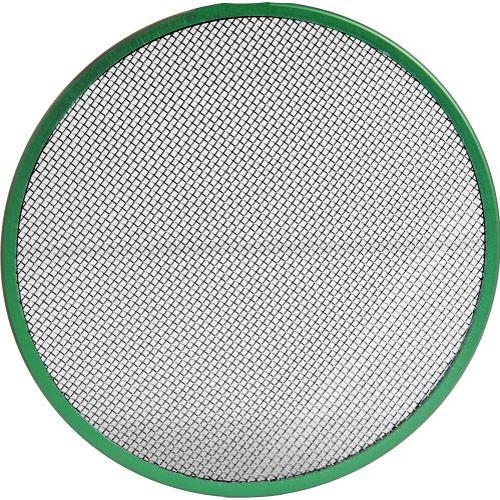

In the Box ARRI Softbank III Plus 4-Light Kit (120 VAC) 2 x 300 Plus Tungsten Fresnel (Silver/Blue) 2 x 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR 2 x Filter Frame for Plus 300, HMI 125W Fresnels 2 x Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") 2 x Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") 2 x FKW LAMP (300w/120v) 650W Plus Tungsten Fresnel (120-240 VAC) 2 x 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR Filter Frame for 650W Fresnel, 200W HMI Fresnel 2 x Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") wdddaeyazfuqasetus 2 x Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" FRK Lamp - 650 Watts/120 Volts ARRILITE 750 Plus Chimera Video Pro Plus 1 Bank (Small) 750W HPL Lamp (120V) 4 x AS-2 Lightweight Light Stand (8.5') Accessory Pack for Fresnel Lights 571197 Heavy-duty Location Case Limited 1-Year Warranty (Not Including Lamps) Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Softbank III Plus 4-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005665 Specs | Rating | Fresnel 300: 300 W
Each Fresnel 650: 650 W
ARRILITE 750 Plus: 750 W | | Socket (Lampholder) | Fresnel 300 and 650: GY9.5
ARRILITE 750 Plus: G 9.5 | | Lens (Condenser) | 300 Fresnel: 3.2" / 81.2 mm
650 Fresnel: 4.3" / 110 mm
ARRILITE 750 Plus: Open face (not applicable) | | Mounting | 5/8" / 16 mm stand mount | | Dimensions | Kit in case: approximately 40 x 19 x 13.5" / 102 x 48 x 34 cm | | Kit Weight | Approximately 83 lb / 37.6 kg | | | | Package Weight | 86.8 lb | | Box Dimensions (LxWxH) | 41.0 x 21.0 x 15.0" |
