User Manual for ARRI Softbank IV Plus 5 Light Kit Click to enlarge the picture
Contents of the user manual for the ARRI Softbank IV Plus 5 Light
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI Softbank IV Plus 5 Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

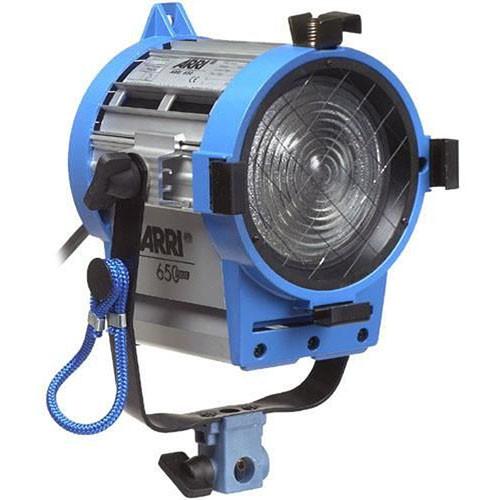

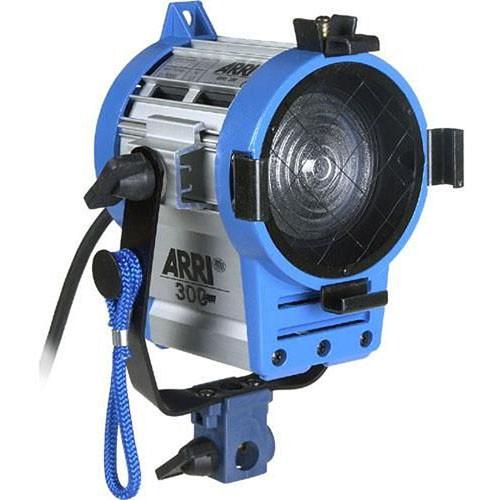

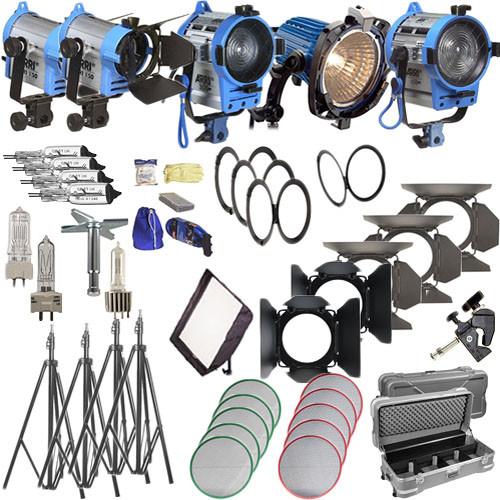

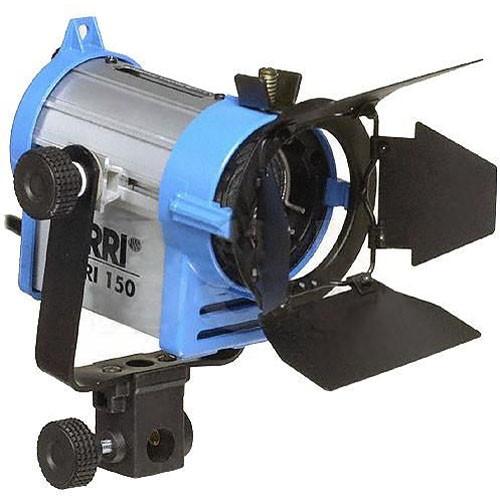

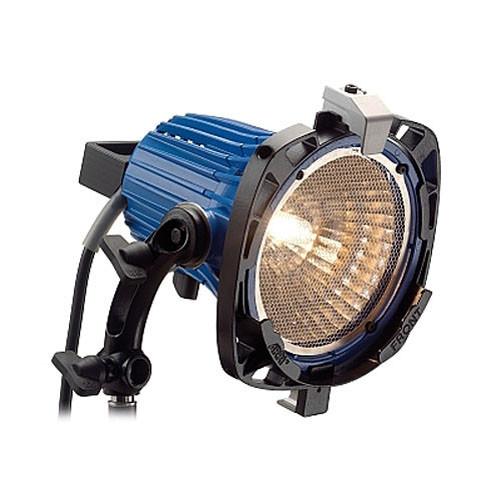

Product description This ARRI Softbank IV Plus 5 Light Kit includes barndoors, filter frames scrims, a softbox, clamps, light stands, bulbs, accessory kit, and a heavy duty wheeled case.The ARRI 150W Fresnel is a compact, lightweight fixture with great performance, tough construction and a 2" (50.8 mm) Fresnel lens. Superior optical performance and ARRI's die cast aluminum housing make this the perfect small unit for hair light, edge light, or eye light. The ARRI 300W Plus Fresnel is designed to gather as much light as possible and direct it through the 3.2" (81.2 mm) low expansion, borosilicate Fresnel lens producing a soft, even field of light. The beam spread is 15-55°.The 650W Fresnel features the same lens, reflector, housing, and power cord as the 300W Fresnel. The beam angle in the flood position is 54°, and a narrow 13° in the spot position. The ARRILITE 750 Plus from ARRI is an enhanced version of the tried-and-true ARRILITE open face line. ARRI started with the basic design of the ARRILITE 800 and optimized the reflector to increase output 21% using a 750W HPL lamp which employs a compact filament that concentrates and augments light while increasing efficiency. The result is almost double the output. A redesigned one-arm stirrup instead of a yoke facilitates greater movement while the dedicated accessory holder allows use of Chimera softboxes without a speed ring. - Soft Light

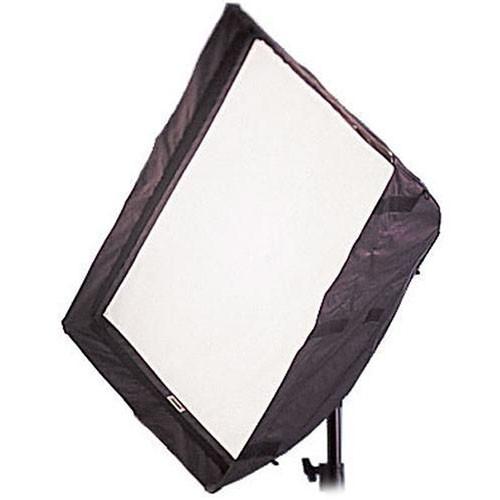

- The 24 x 32" Chimera Video Pro softbox provides soft, flattering light for talent and pleasing catch lights for reflective objects.
- Light Shapers

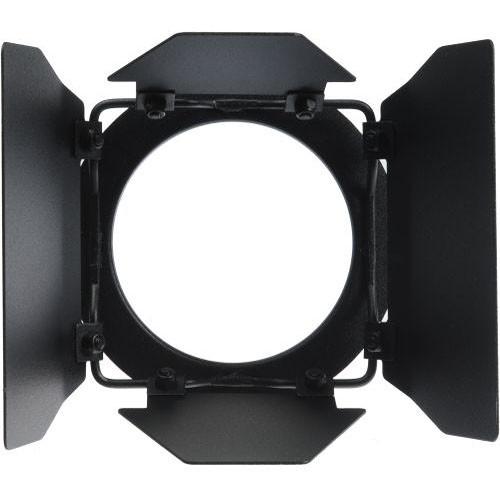

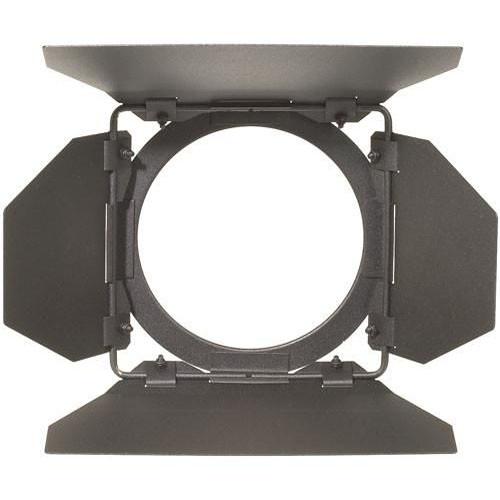

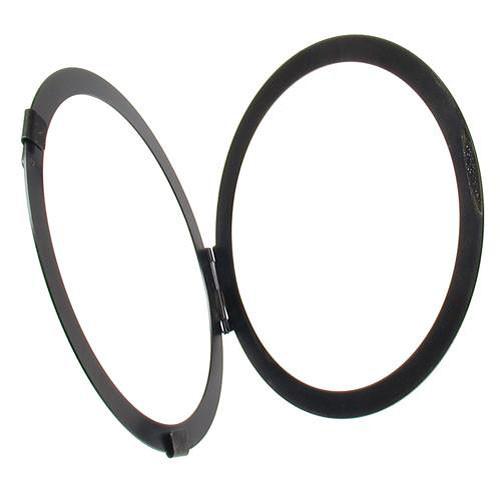

- Use the barndoors and scrims to alter the shape and intensity of the lights. The included filter frames are ideal for color effects filters or diffusion.
- Light Spread
- ARRI lights are renowned for even beam spread, high efficiency and superior spot-to-flood ratio.
- Accessory Kit
- Includes a bag, clothes pins, bulb storage case, 3-outlet extension cord, and heat-resistant gloves.
- Light Stands

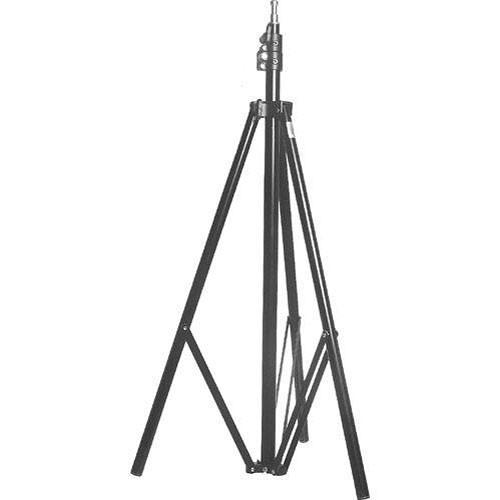

- Offer lightweight, yet sturdy support to a height of 8.6' (2.6 m).
- Wheeled, Heavy Duty Case
- The case employs a hard plastic shell, aluminum trim, latches, and a piano hinge. It features interior dividers and wheels for easy storage and transport.
In the Box ARRI Softbank IV Plus 5 Light Kit (220-240 VAC) 2 x A1248 Lamp for Arri 150W Fresnel (220V) 2 x 4-Leaf Barndoor Set for ARRI 150W Fresnel 2 x Filter Frame for 150 Watt Fresnel 2 x A1248 Lamp for Arri 150W Fresnel (220V) 2 x Full Single Scrim for 150W Fresnel (3") 2 x Full Double Scrim for 150W Fresnel (3") 300 Plus Tungsten Fresnel (Silver/Blue) CP81 Lamp - 300 watts/220 volts 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR Filter Frame for Plus 300, HMI 125W Fresnels Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") 650W Plus Tungsten Fresnel (120-240 VAC) 2 x 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR Filter Frame for 650W Fresnel, 200W HMI Fresnel CP89 Lamp (650W/220V) 2 x Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") 2 x Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" Super Clamp With 5/8" Stud 4 x AS-2 Lightweight Light Stand (8.5') ARRILITE 750 Plus 750W HPL LAMP 230 VAC Chimera Video Pro Plus 1 Bank (Small) 571197 Heavy-duty Location Case Accessory Pack for Fresnel Lights Ceiling Scissor Clamp with 5/8" Stud Limited 1-Year Warranty (Not Including Lamps) Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Softbank IV Plus 5 Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005629 Specs | Rating | 150 Fresnel: 150W
300 Fresnel: 300W
650 Fresnel: 650W
ARRILITE 750 Plus: 750W | | Socket (Lampholder) | 150, 300, 650 Fresnels: 150W, 300W and 650W: GY9.5
ARRILITE 750 Plus: G 9.5 | | Lens (Condenser) | 150 Fresnel: 2" / 50.8 mm
300 Fresnel: 3.2" / 81.2 mm
650 Fresnel: 4.3" / 110 mm
ARRILITE 750 Plus: Open face (not applicable) | | Mounting | 5/8" / 16 mm stand mount | | Dimensions | Kit in Case: approximately 40 x 19 x 13.5" / 102 x 48 x 34 cm | | Kit Weight | Approximately 88 lb / 40 kg | | | | Package Weight | 87.8 lb | | Box Dimensions (LxWxH) | 40.0 x 21.0 x 15.0" |
