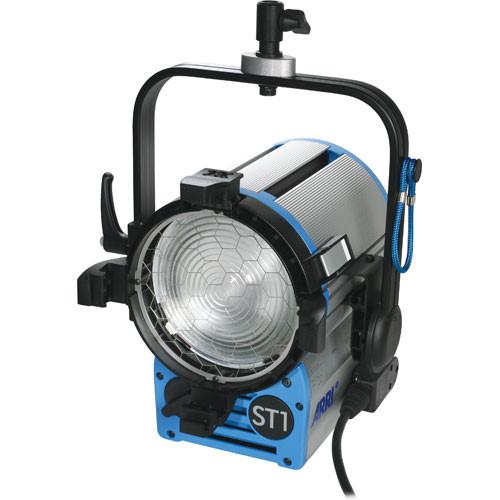

User Manual for ARRI ST1 1,000W Studio Fresnel Click to enlarge the picture
Contents of the user manual for the ARRI ST1 1,000W Studio Fresnel
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI ST1 1,000W Studio Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description This hanging version of the ARRI ST1 1,000W Studio Fresnel is part of the True Blue Series of tungsten Fresnel lighting fixtures that represents a major update of this well-known industry standard. Feedback from respected lighting professionals combined with advances in technology enable Arri to present a selection of Fresnels with over 30 new improvements for studio and location lighting. Reduced weight, compact size and maximum light output are the most obvious improvements. Arri's patented cross-cooling system, which encourages a stream of air to pass around the Fresnel lens and into the lamphead from the front, has reduced the lamp housing temperature of True Blue units by 25% and the lens temperature by 17%.When fitted with a 1000 watt bulb (available separately), this fixture will provide a 13°, 3' (0.9 m) wide beam of 532 fc from a distance of 13.2' (4 m) at full spot. At full flood, it will throw a 94.5 fc beam 57°, (4.3 m) wide from the same distance. - Manual Control
- Tilt, focus and pan are manually controlled directly at the fixture
- Improved Maintenance
-
- Simplified access to internal components
- Smooth lamp housing surfaces are now easier to clean
- Stegmaier Connector
- Rotatable cable outlet reduces strain on cable-to-fixture connection as you aim the fixture, or change from stand mount to hanging mount-use
In the Box ARRI ST1 1,000W Studio Fresnel (Hanging, 120-230VAC) Mega Swivel Pipe Clamp with Bolt fcwuuvevuryezsua Power Cable (36") Limited 1- Year Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ST1 1,000W Studio Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI ST1 Specs | Rating | 1000 W | | Socket (Lampholder) | G22 Single End, Bi Post | | Lens (Condenser) | 7" (17.5 cm) Low expansion borosilicate | | Reflector (Mirror) | Spherical specular high purity aluminum | | Mounting | Included pipe clamp | | Yoke | Tubular twin fork | | Cable | 36" (0.9 m) Cable, no switch, bare leads | | Focusing | Front and rear mount knobs | | Power Requirements | 100-240 VAC | | Dimensions | 13.1 x 21.9 x 12.4" (33.3 x 55.5 x 31.5 cm) (WxHxD) including yoke | | Weight | 15.4 lbs (7 kg) | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 15.0" |
