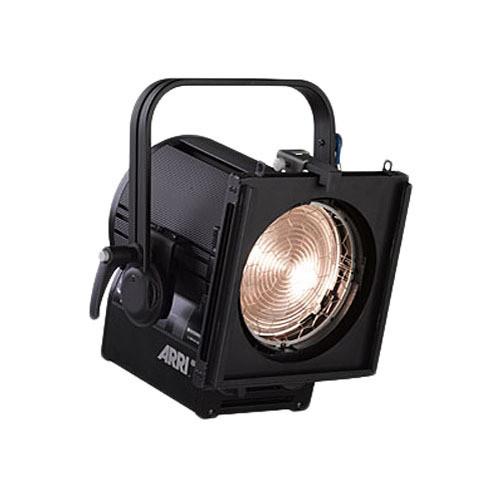

User Manual for ARRI ST1 1000W 7" Studio Fresnel Click to enlarge the picture
Contents of the user manual for the ARRI ST1 1000W 7" Studio Fresnel
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI ST1 1000W 7" Studio Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description Continuing the evolution of a tungsten studio lighting workhorse, the ARRI ST1 1000W Fresnel offers advancements including an efficient new cross-cooling system, a sliding stirrup for easy center-of-gravity adjustment, stainless steel friction disc tilt lock for rigid lock-off, barndoors made of a special alloy with a high strength-to-weight ratio and effective tightening function, and improved weather protection.
- New, highly effective cross-cooling system, in addition to conventional cooling
- Sliding stirrup for center-of-gravity adjustment
- Tilt lock has stainless steel friction disc for rigid lock-off
- Application-oriented top latches for location or studio use
- Adjustable accessory brackets for 2-scrim and 4-scrim position
- Stainless steel lens protection for maximized light transmission and high temperature stability
- Barndoors made of special alloy with high strength-to-weight ratio and effective tightening function
- More shared parts, very fast access to all interior workings with three torx drivers only, for improved maintenance
- Improved Weather Protection / IP23: safe indoor and outdoor use
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ST1 1000W 7" Studio Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI ST1 Specs | Lens Diameter | 6.9" (175 mm) low expansion borosilicate Fresnel lens | | Socket (Lampholder) | G22 | | Reflector (Mirror) | Spherical specular high purity aluminum | | Mounting | 1 1/8" (28mm) spigot | | Cable | 5' (1.5 m) | | Weight | 14.33 lbs (6.5 kg) manual, 17.63 lbs (8 kg) pole operation | | Dimensions | 15.7 x 14.3 x 12.8" (39.8 x 36.2 x 32.5 cm) | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 18.5 x 16.0 x 16.0" |
