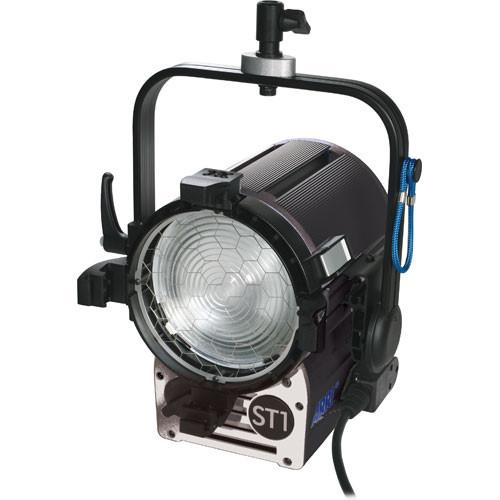

User Manual for ARRI ST1 Studio 1Kw Fresnel, Hanging, Black - Manual Control Click to enlarge the picture
Contents of the user manual for the ARRI ST1 Studio 1Kw Fresnel, Hanging,
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI ST1 Studio 1Kw Fresnel, Hanging, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The Arri ST Series of tungsten Fresnel lighting fixtures represents a major update of this well-known industry standard. Feedback from respected lighting professionals combined with advances in technology enable Arri to present a selection of Fresnels with over 30 new improvements for studio and location lighting. Reduced weight, compact size and maximum light output are the most obvious improvements. Arri's patented cross-cooling system, which encourages a stream of air to pass around the Fresnel lens and into the lamphead from the front, has reduced the lamp housing temperature of this black Fresnel by 25% and the lens temperature by 17%.When fitted with a 1000 watt bulb (available separately), this fixture will provide a 13°, 3' (0.9 m) wide beam of 532 fc from a distance of 13.2' (4 m) at full spot. At full flood, it will throw a 94.5 fc beam 57°, (4.3 m) wide from the same distance. - Manual Control
- Tilt, focus and pan are manually controlled directly at the fixture
- Improved Maintenance
-
- Simplified access to internal components
- Smooth lamp housing surfaces are now easier to clean
In the Box ARRI ST1 Studio 1Kw Fresnel, Hanging, Black - Manual Control (120-230VAC) Power Cable, Bare Leads (36") Mega Swivel Pipe Clamp with Bolt tvxfxfyuwf One Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ST1 Studio 1Kw Fresnel, Hanging, Black - Manual Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI ST1 Specs | Rating | 1000 Watts, 120-230VAC | | Socket (Lampholder) | G22 Single End, Bi Post | | Lens (Condenser) | 7" (17.5cm) Low expansion borosilicate | | Reflector (Mirror) | Spherical specular high purity aluminum | | Mounting | Included pipe Clamp | | Yoke | Tubular twin fork | | Cable | 36'(0.9 m), no switch, bare leads (36") | | Focusing | Front and rear mount knobs | | Weight | 16.5 lbs (7.5kg) | | Dimensions | 13.1 x 21.9 x 12.4" (33.3 x 55.5 x 31.5cm) (WxHxD) including yoke | | | | Package Weight | 20.08 lb | | Box Dimensions (LxWxH) | 18.5 x 16.0 x 16.0" |
