Product description

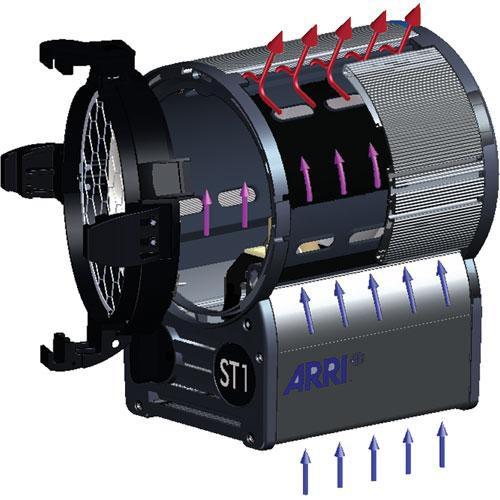

The Arri ST Series of tungsten Fresnel lighting fixtures represents a major update of this well-known industry standard. Feedback from respected lighting professionals combined with advances in technology enable Arri to present a selection of Fresnels with over 30 new improvements for studio and location lighting. Reduced weight, compact size and maximum light output are the most obvious improvements. Arri's patented cross-cooling system, which encourages a stream of air to pass around the Fresnel lens and into the lamphead from the front, has reduced the lamp housing temperature of this black 1Kw Fresnel by 25% and the lens temperature by 17%.When fitted with a 1000 watt bulb (available separately), this fixture will provide a 13°, 3' (0.9 m) wide beam of 532 fc from a distance of 13.2' (4 m) at full spot. At full flood, it will throw a 94.5 fc beam 57°, (4.3 m) wide from the same distance.
    Manual Control
  • Tilt, focus and pan are manually controlled directly at the fixture
    Improved Maintenance
  • Simplified access to internal components
  • Smooth lamp housing surfaces are now easier to clean
In the Box ARRI ST1 Studio 1Kw Fresnel, Stand Mount - Black (120-230VAC)
  • Cable with Inline Switch (22')
  • One Year Manufacturer's Warranty
  • Note: Bulb not included Table of Contents




    Upload User Manual

    Have you got an user manual for the ARRI ST1 Studio 1Kw Fresnel, Stand Mount - Black in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    ARRI ST1 Specs

    Rating 1000 Watts, 120-230 VAC
    Socket (Lampholder) G22 Single End, Bi-Post
    Lens (Condenser) 7" (17.5 cm) low expansion borosilicate
    Reflector (Mirror) Spherical specular high purity aluminum
    Mounting 1-1/8" (28 mm) Junior
    Yoke Tubular twin fork
    Cable 22' (6.7 m) with inline switch
    Focusing Front and rear mount knobs
    Weight 15.4 lbs (7 kg)
    Dimensions 13.1 x 21.9 x 12.4" (33.3 x 55.5 x 31.5 cm) (WxHxD) including yoke
    Package Weight 20.55 lb
    Box Dimensions (LxWxH) 18.5 x 16.0 x 15.0"
