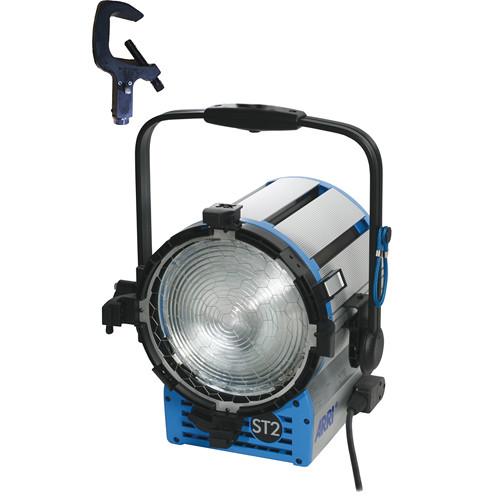

Product description The Arri ST2 True Blue Series of tungsten lighting fixtures updates a well-known industry standard. Feedback from respected lighting professionals combined with great advances in technology enable Arri to present a selection of Fresnels with over 30 new improvements for studio lighting. The tilt lock has been improved by using a stainless steel friction disc that locks tight. This eliminates the danger of the fixture suddenly tilting downward when heavy, front-mounted barndoors or softboxes are in use. In addition, a stirrup center adjustment allows the head to slide until its center of gravity is either at or near the tilt lock. This assures a better balance and easier adjustments. When fitted with a 2000 watt bulb (available separately) this fixture will provide a 982 fc beam 3' (0.9 m) in diameter from 19.8' (6 m) at full spot. From the same distance it will throw a 106 fc beam 21.1' (6.4 m) in diameter at full flood. - Stronger, Lighter
-
- Pressure die cast and extruded aluminum components have reduced the overall weight of True Blue fixtures without any sacrifice in quality or durability
- Many components now offer greater strength and resistance to corrosion
- Redesigned Stirrup
-
- Stirrup mounting slides and can be adjusted to counterbalance all accessories
- Extruded aluminum is stronger, lighter and less bulky but still permits full fixture rotation
- Soft contour makes it comfortable to carry
- The stainless steel friction disc locks the lamphead securely even with the largest Chimera or other accessories
- Easy Maintenance
-
- Routine maintenance and repair are easier with fast, simple access to all internal components
- Cleaning is made effortless with smooth lamp housing surfaces
- Safe
-
- Meets IP23 standard -- suitable for indoor use or outdoor use providing a degree of protection against falling rain (up to a 60° angle from vertical)
- CE declaration and independently assessed TUV certification

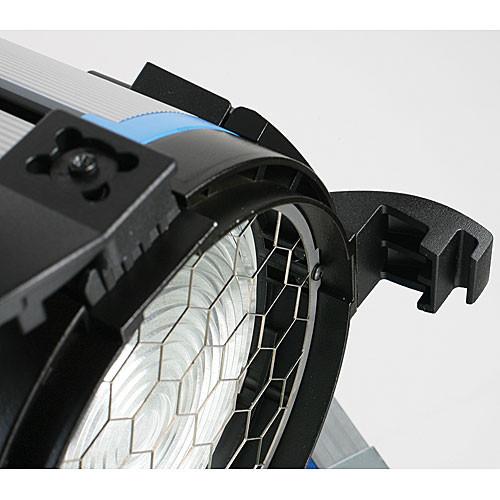

- The laser cut hexagonal safety mesh maximizes light transmission and is tough enough to withstand location abuse
In the Box ARRI ST2 Studio Fresnel - 2000 Watts, Hanging (120-240VAC) Power Cable, No Switch, Bare Leads (36") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ST2 Studio Fresnel - 2000 Watts, Hanging in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

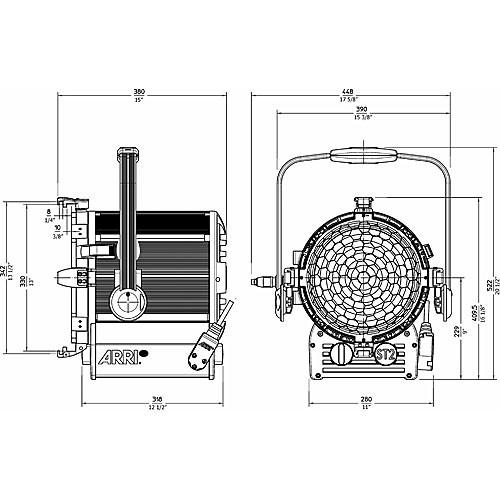

Technical parametersARRI ST2 Specs | Power | 2000 watts, 120-240VAC | | Socket (Lampholder) | G38 Bi Pin | | Lens (Condenser) | 10" (250mm) low expansion borosilicate Fresnel lens | | Reflector (Mirror) | Spherical specular high purity aluminum | | Mounting | Included clamp | | Yoke | Tubular | | Cable | 36" (0.9 m), No switch, bare leads | | Focusing | Front and rear mounted knobs | | Weight | 23.3 lbs (10.6kg) | | Dimensions | 26.1 x 11 x 15" (66.3 x 28 x 38cm) (HxWxD) including yoke and mount | | | | Package Weight | 30.5 lb | | Box Dimensions (LxWxH) | 22.2 x 20.5 x 19.5" |
