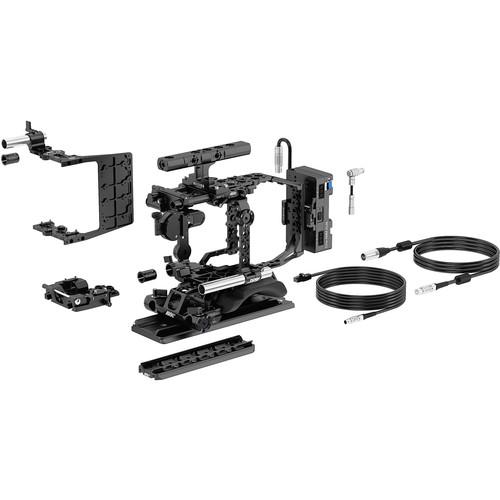

Product description The Gold mount ARRI Studio 19mm Set for ALEXA Mini provides a comprehensive selection of 19mm rod-based accessory components. Items in the bundle include a bridge plate and dovetail, various accessory mounting brackets, a center handle with an extension block, an EXT to 3-pin LEMO RS adapter, and both power and Ethernet cables. A power distribution box enables the use of long-lasting Gold mount block batteries. Use these accessories to configure your ALEXA Mini for various setups such as handheld, gimbal, and stabilizer use.Two MAP-2 adapter plates, two RMB-3 rod-mounting brackets, and two 19mm rods of different lengths enable you to save time by leaving your ALEXA Mini and its accessories ready for either top- or bottom-mounting. A pair of 15mm bushings are included for using the set components with your own 15mm LWS rods (available separately). - Gold Mount Power Splitting Box Mk II Provided by third party: The Power Splitting box is a proven battery solution featuring various industry standard accessory power connectors, as well as a 8-pin Lemo connector for battery input aimed at cables such the ARRI KC-50. A console can be attached to mount the Splitting box to standard 15mm LWS rods.

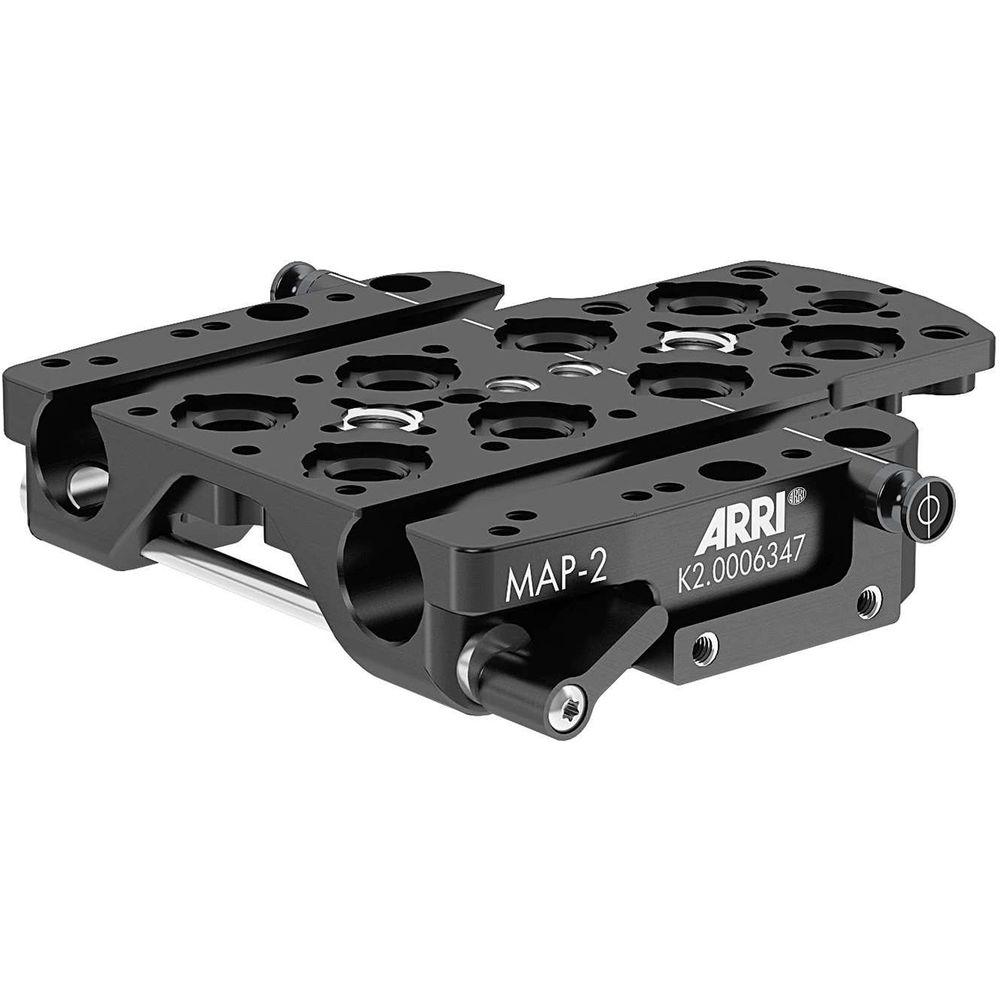

- MAP-2 Adapter Plate for ALEXA Mini (15mm) The MAP-2 Adapter Plate for ALEXA Mini from ARRI supports a pair of 15mm LWS rods, and mounts to the bottom or top of the camera. Use this adapter to flesh out your ALEXA Mini rig with rod-mounted accessories. The MAP-2 adapter plate is compatible with studio bridgeplates when used with the separately available BPA-4 adapter. Tape measure studs on both sides of the plate aid in measuring precise focus distances.

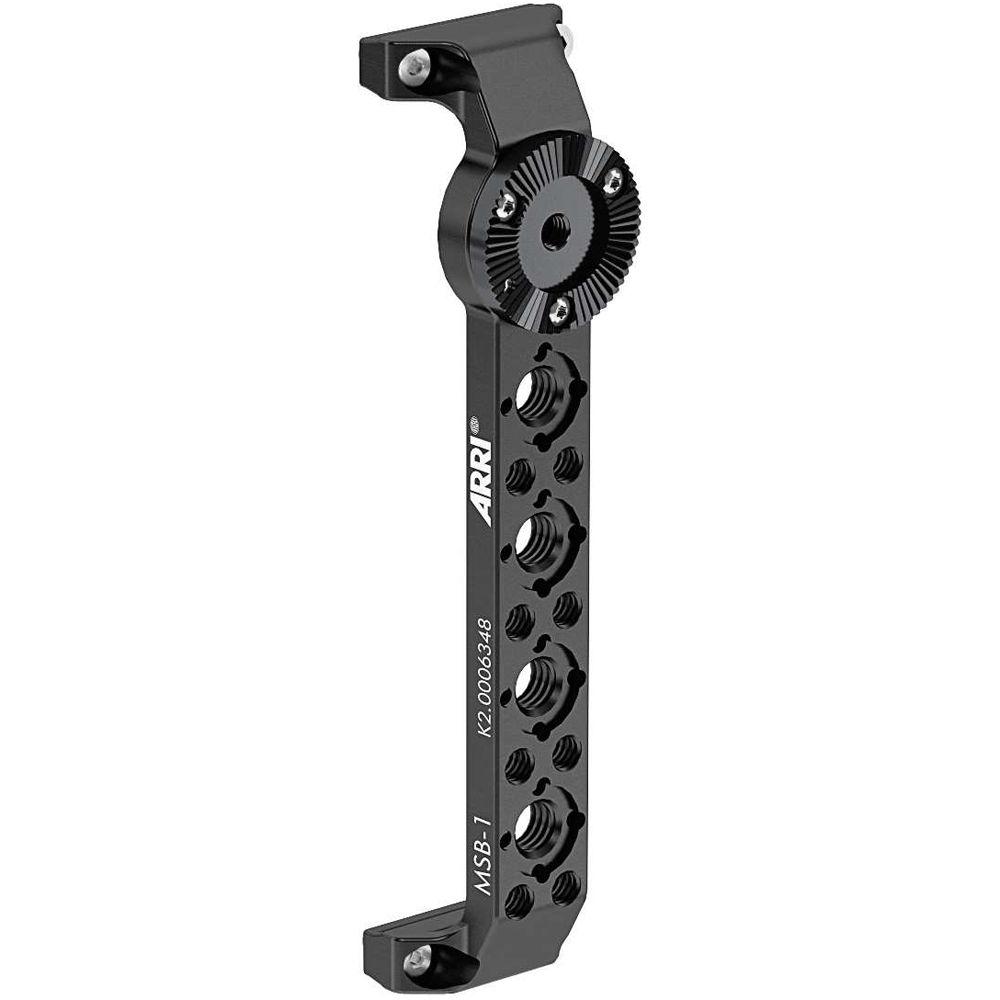

- MSB-1 Side Bracket for ALEXA Mini The ARRI MSB-1 Side Bracket helps to cradle and protect the ALEXA Mini camera body, providing 3/8"-16 and 1/4"-20 threads for mounting accessories. An integrated rosette enables the mounting of a separately available handgrip or handle. Use this bracket alone, or as a modular part of the ARRI ALEXA Mini cage.
Features - Adds 3/8"-16 and 1/4"-20 accessory mounting points
- Integrated rosette for mounting a handgrip or handle
- Use alone, or as an ARRI ALEXA Mini cage component

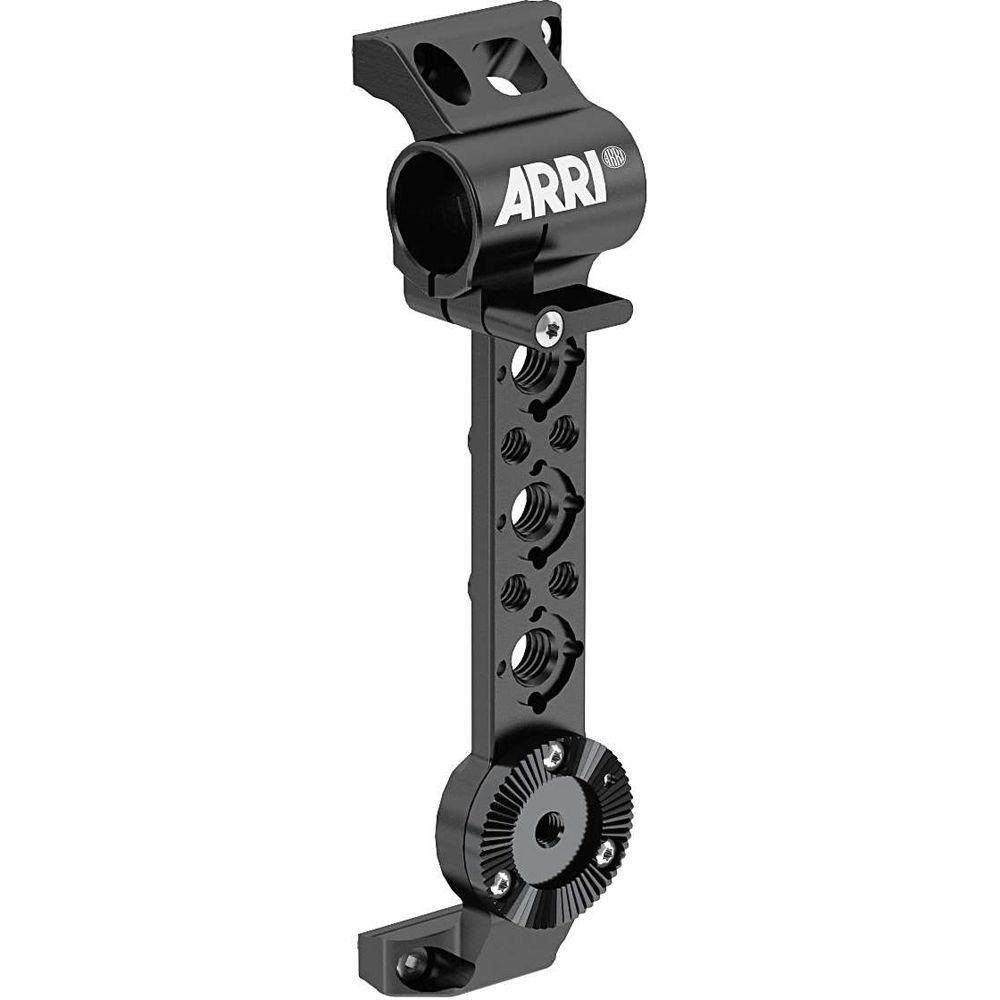

- Mini Side Bracket MSB-2 for ALEXA Mini The ARRI Mini Side Bracket MSB-2 offers support for a lens motor in configurations that require lightweight baseplates with no rod support, such as lightweight stabilizer systems or drones.

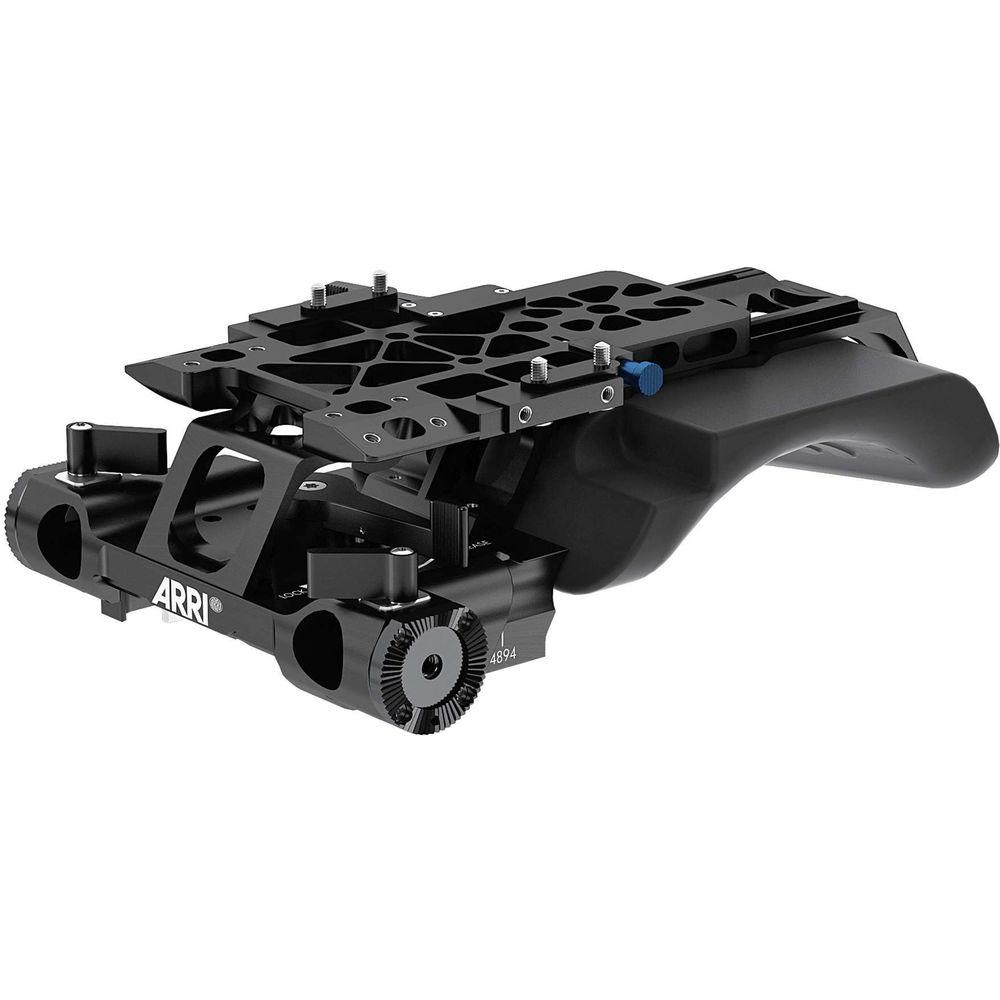

- Compact Bridge Plate CBP-1 19mm for ALEXA Mini The ARRI Compact Bridge Plate CBP-1 19mm provides a lightweight option for mounting 19mm Studio-standard accessories to your ALEXA Mini camera. A sliding balance mechanism and quick release system offer the adjustability of a studio bridge plate at a reduced weight.Features include right and left rosettes, front 19mm Studio rod support, and a built-in, contoured shoulder pad. Use the CBP-1 19mm bridge plate to mount camera accessories onto a pair of separately available rods or onto the ARRI-standard rosettes.
Features - A quick release system enables you to mount or detach the camera without sliding out the balance assembly
- Add 19mm Studio rod-mounted accessories in front of your ARRI ALEXA Mini
- Rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Integrated, contoured shoulder pad increases comfort while operating handheld

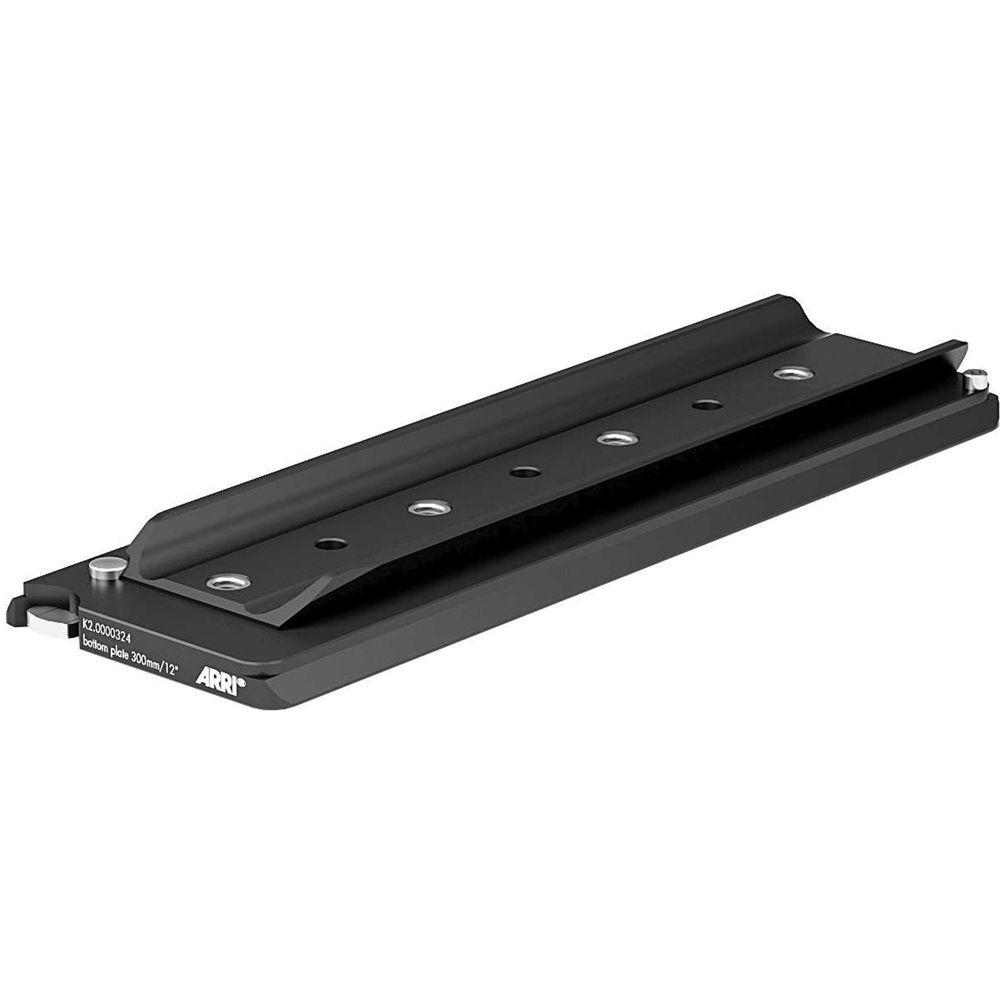

- Bottom Dovetail Plate (12") This 12" Bottom Dovetail Plate from ARRI is used with a sliding bridge plate or sled to balance your camera rig. To prevent the bridge plate or sled from sliding off, the Dovetail Plate features a spring-loaded post on one end and a stationary stop on the other. The bottom of the plate incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick release plate or other support.
- Use with a sliding bridge plate or sled to balance your camera rig (plate or sled not included)
- Includes a spring-loaded post on one end, and a stationary stop on the other to prevent the bridge plate or sled from sliding off
- Bottom of dovetail includes 3/8"-16 threaded holes for mounting to a tripod quick release plate or other support

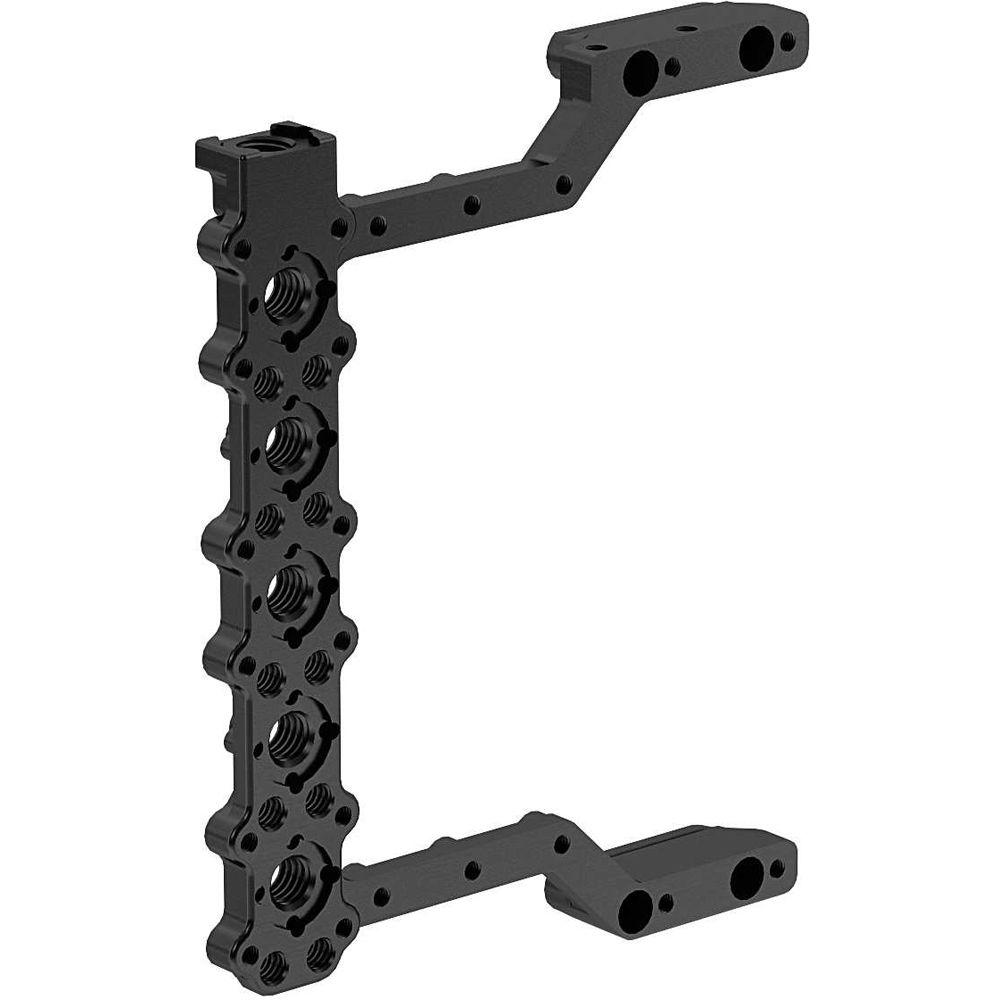

- Rear Accessory Bracket RAB-1 The ARRI Rear Accessory Bracket RAB-1 is designed to mount accessories like battery plates or power-splitting boxes to the ALEXA Mini camera body. This curved bracket screws onto the camera providing a rib-like structure on which to attach a power solution. Use the RAB-1 bracket with the separately available RAB-1 Clamp to attach an ARRI Power Splitting Box, or a BAP-1 Battery Adapter Plate.

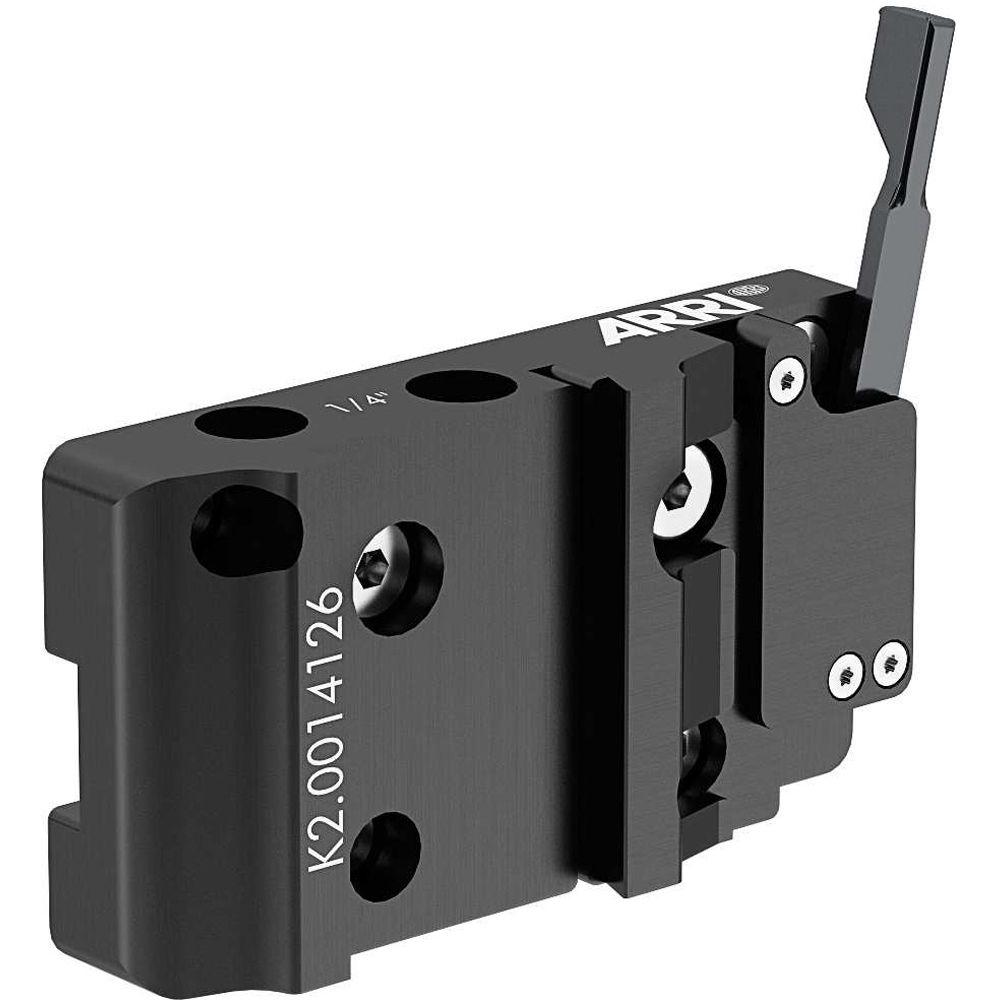

- RAB-1 Clamp The ARRI RAB-1 Clamp is used to mount an ARRI battery plate or power-splitting box to the separately available RAB-1 Rear Accessory Bracket for the ALEXA Mini camera body. This clamp features a slide-in design with a thumb-lever release.

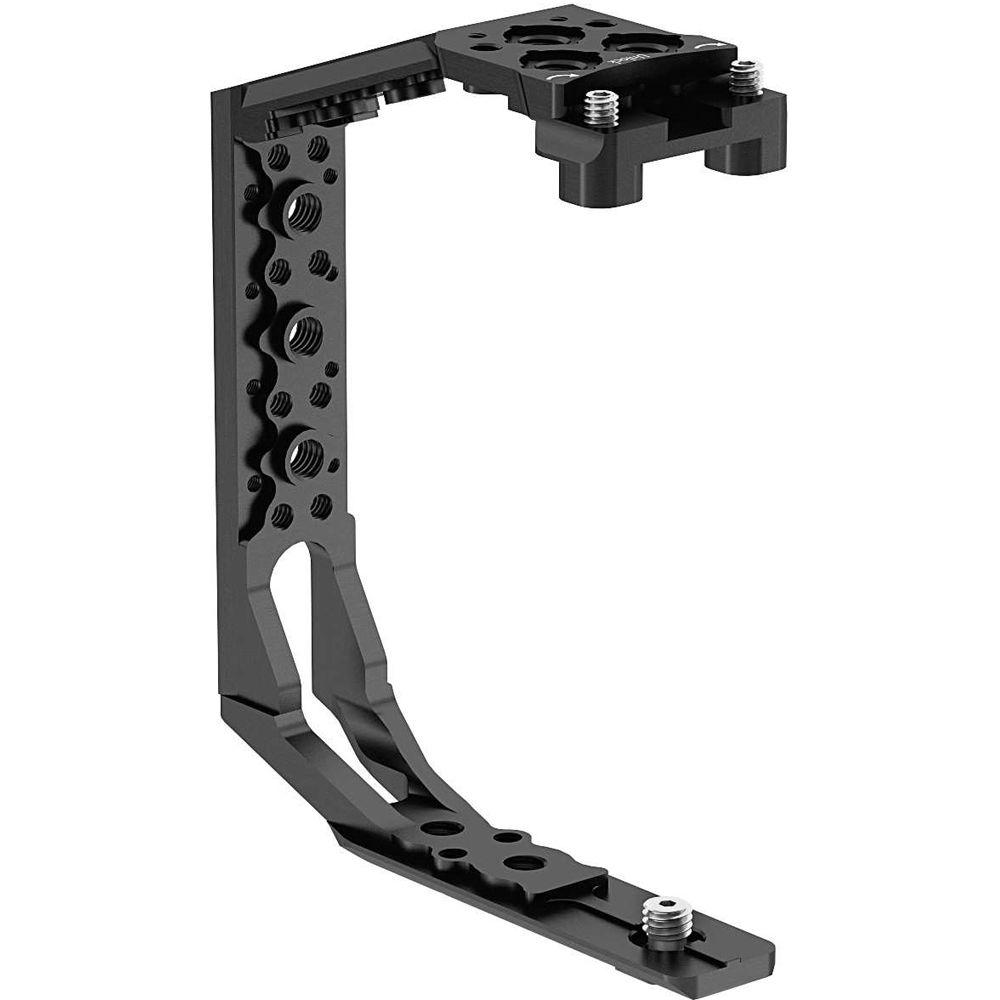

- SAB-1 Side Accessory Bracket for ALEXA Mini The ARRI SAB-1 Side Accessory Bracket fits onto an ALEXA Mini adapter plate, providing multiple points for attaching accessories to the camera (adapter plate available separately). In addition to 3/8"-16 and 1/4"-20 threaded holes, the SAB-1 provides interfaces for attaching the RMB-3 Rod Mounting bracket and MSB-1 Mini Side Brackets. The SAB-1 Bracket can be mounted to an MAP-1 or MAP-2 ALEXA Mini Adapter Plate, the Mini Broadcast Plate, or the CBP-1 Compact Bridgeplate.
Features - Attaches to the ARRI ALEXA Mini via an adapter plate (available separately)
- Provides multiple 3/8"-16 and 1/4"-20 accessory mounting points
- Can be used to mount the RMB-3 Rod Mounting Bracket and MSB-1 ALEXA Mini Side Brackets
- Attaches to an MAP-1 or MAP-2 ALEXA Mini Adapter Plate, the Mini Broadcast Plate, or the CBP-1 Compact Bridgeplate (all available separately)
- Rod Mounting Bracket (RMB-3) Use the Rod Mounting Bracket (RMB-3) from ARRI to support a single, standard 19mm rod for mounting a lens motor, lightweight EVF bracket, etc. to your camera or cage rig. When used with a separately available insert, the RMB-3 can be used to support a 15mm rod. A mounted rod is easily secured using the thumb lever on this screw-in bracket.
- Rod Compatibility
- 19mm
15mm (with separately available insert K2.66255.0) - Single Support Rod (3.5", 19mm) The lightweight ARRI Single Support Rod (3.5", 19mm) is designed to support a lens motor driving an Ultra or Master Prime lens mounted in the ARRI SAM-3 Stabilizer Adapter Mount. This stainless steel rod may also be used for any rig where space constrictions dictate the use of a shorter 19mm rod.
- Single Support Rod (5.9", 19mm) The lightweight ARRI Single Support Rod (5.9", 19mm) is designed to support a lens motor driving an Ultra or Master Prime lens mounted in the ARRI SAM-3 Stabilizer Adapter Mount. This stainless steel rod may also be used for any rig where space constrictions dictate the use of a shorter 19mm rod.

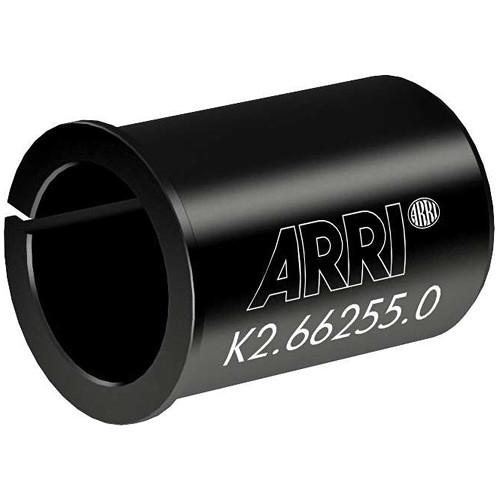

- 15mm Reduction Insert for 19mm Rod The ARRI 15mm Reduction Insert is used to adapt a 19mm rod bracket to accept standard 15mm rods. This insert works with any 19mm rod mount.
- Lightweight Adapter Plate for ALEXA Mini MAP-1 Use the Lightweight Adapter Plate for ALEXA Mini MAP-1 from ARRI to attach accessories, and/or brackets to the camera body. In addition to 3/8"-16 and 1/4"-20 threaded holes, the MAP-1 Plate provides interfaces for attaching the MSB-1 Mini Side Bracket, and the RMB-3 Rod Mounting Bracket.
- MVB-1 Viewfinder Mounting Bracket for ALEXA Mini Use the ARRI MVB-1 Viewfinder Mounting Bracket to mount the MVF-1 electronic viewfinder to an ALEXA Mini camera. This bracket provides adjustable positioning of the EVF via 15mm LWS rods and the viewfinder mount. The separately available MAP-2 adapter plate is required for 15mm rod support on the ALEXA Mini.
- Compatible Cameras
- ALEXA Mini
- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems
- Handle Extension Block (HEB-1) Attach the ARRI Handle Extension Block (HEB-1) to the CCH-1 Center Camera Handle to add length, and three 3/8"-16 threaded mounts to the carrying handle. This extension may also be screwed to any standard UNC 3/8"-16 threaded mount, and can be used with both ARRI and third-party cage rigs.
- ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6') Use the ALEXA Mini/AMIRA Straight Power Cable from ARRI to connect the camera to a battery with a 3-pin XLR connector.
- ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') The ARRI ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') is designed with a 10-pin LEMO connector on one end, and an RJ45 connector on the other. Use this cable to link your ALEXA to the Ethernet for updates, camera remote control, or service functions.
- EXT-RS Adapter Use the ARRI EXT-RS Adapter to convert the ALEXA Mini's external sync port into a 3-pin RS connection. This right-angle to straight adapter can be used with a compatible accessory to provide RUN/STOP capability.
- Battery Adapter Plate BAP-2 The ARRI Battery Adapter Plate BAP-2 is designed for use with an IDX or Gold mount battery adapter plate on an ALEXA Mini. This accessory places the battery to the side of the camera body, minimizing the length of the camera to suit stabilizer, drone, and other compact rig setups.
- Side-Mount Design
- Minimizes the overall length of the camera rig for use with drones, stabilizers, or other compact setups
- Stabilizer Plate for CBP The ARRI Stabilizer Plate for CBP enables the Compact Bridge Plate to convert into a Stabilizer Adapter Mount for the ALEXA Mini (SAM-2). Compatible with third-party, standard 60mm dovetails, this plate serves as the bottom half of a camera-balancing bridge plate system.
In the Box Bundle Items Gold Mount Power Splitting Box Mk II vcvwtsfsvuat 2 x MAP-2 Adapter Plate for ALEXA Mini (15mm) MSB-1 Side Bracket for ALEXA Mini Mini Side Bracket MSB-2 for ALEXA Mini Compact Bridge Plate CBP-1 19mm for ALEXA Mini Bottom Dovetail Plate (12") Rear Accessory Bracket RAB-1 RAB-1 Clamp SAB-1 Side Accessory Bracket for ALEXA Mini 2 x Rod Mounting Bracket (RMB-3) Single Support Rod (3.5", 19mm) Single Support Rod (5.9", 19mm) vcvwtsfsvuat 2 x 15mm Reduction Insert for 19mm Rod Lightweight Adapter Plate for ALEXA Mini MAP-1 vcvwtsfsvuat MVB-1 Viewfinder Mounting Bracket for ALEXA Mini CCH-2 Center Camera Handle Handle Extension Block (HEB-1) ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6') ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') EXT-RS Adapter Battery Adapter Plate BAP-2 Stabilizer Plate for CBP Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Studio 19mm Set for ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Gold Mount Power Splitting Box Mk II
| | | Accessory Type | Power distribution battery plate | | | | Intended For | Camcorder, camcorder battery | | | | Box Dimensions (LxWxH) | 6.7 x 4.2 x 3.7" | - MAP-2 Adapter Plate for ALEXA Mini (15mm)
| Dimensions | 4.7 x 4.7 x 1.2" (120 x 120 x 30 mm) | | Weight | 8.4 oz (238 g) | | | | Box Dimensions (LxWxH) | 5.5 x 5.2 x 0.8" | - MSB-1 Side Bracket for ALEXA Mini
| Accessory Mounting | 3/8"-16 and 1/4"-20 threads
1 x ARRI rosette | | Dimensions | 1.6 x 6.3 x 1.2" / 40 x 160 x 30 mm | | Weight | 3.6 oz / 101 g | | | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 1.1" | - Mini Side Bracket MSB-2 for ALEXA Mini
| | | Box Dimensions (LxWxH) | 6.3 x 3.1 x 0.4" | - Compact Bridge Plate CBP-1 19mm for ALEXA Mini
| Rod Standard | 19 mm Studio | | Dimensions and Weight | Not specified by the manufacturer | - Bottom Dovetail Plate (12")
| Dimensions (WxLxD) | 3.9 x 11.8 x 1" (100 x 300 x 25 mm) | | Weight | 1.3 lb (578 g) | | | | Box Dimensions (LxWxH) | 11.9 x 4.2 x 1.6" | - Rear Accessory Bracket RAB-1
| Accessory Mounting Threads | 3/8"-16, 1/4"-20 | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.4 x 6.0 x 1.5" | - RAB-1 Clamp
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.5 x 2.2 x 0.9" | - SAB-1 Side Accessory Bracket for ALEXA Mini
| Accessory Mount Threads | 3/8"-16, 1/4"-20 | | Dimensions | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.2 x 5.8 x 0.7" | - Rod Mounting Bracket (RMB-3)
| Dimensions | 1.2 x 1.6 x 1.6" / 30 x 40 x 40 mm | | Weight | 1.3 oz / 38 g | | | | Box Dimensions (LxWxH) | 4.3 x 3.6 x 0.6" | - Single Support Rod (3.5", 19mm)
| Rod Standard | 19 mm | | Material of Construction | Stainless steel | | Rod Length | 3.5" / 90 mm | | | | Box Dimensions (LxWxH) | 5.9 x 3.4 x 0.7" | - Single Support Rod (5.9", 19mm)
| Rod Standard | 19 mm | | Material of Construction | Stainless steel | | Rod Length | 5.9" / 150 mm | - 15mm Reduction Insert for 19mm Rod
| Adapter Type | 19 to 15mm | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.2 x 4.25 x 0.85" | - Lightweight Adapter Plate for ALEXA Mini MAP-1
| Accessory Mount Threads | 3/8"-16, 1/4"-20 | | Dimensions | 2 x 4.3 x 0.8" / 50 x 110 x 20 mm | | Weight | 3 oz / 84 g | | | | Box Dimensions (LxWxH) | 4.095 x 3.858 x 0.945" | - MVB-1 Viewfinder Mounting Bracket for ALEXA Mini
| Rod Standard | 15 mm LWS | | Dimensions | 5.9 x 6.3 x 2.4" / 15.0 x 16.0 x 6.0 cm | | Weight | 12.1 oz / 342 g | | | | Box Dimensions (LxWxH) | 8.8 x 5.5 x 2.3" | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - Handle Extension Block (HEB-1)
| Dimensions and Weight | Not specified by manufacturer | | Accessory Mounting Threads | 3 x 3/8"-16 | | | | Box Dimensions (LxWxH) | 4.3 x 4.3 x 1.0" | - ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6')
| Connector 1 | 3-pin XLR | | Connector 2 | 8-pin LEMO | | Length | 6.6' / 2 m | | | | Box Dimensions (LxWxH) | 8.55 x 8.4 x 2.15" | - ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8')
| Connectors | 10-pin LEMO
RJ45 | | Cable Length | 9.8' / 3 m | | | | Box Dimensions (LxWxH) | 8.2 x 5.0 x 1.4" | - EXT-RS Adapter
| Cable Connectors | 1 x 7-pin LEMO
1 x 3-pin Fischer | | Length | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 1.0" | - Battery Adapter Plate BAP-2
| Dimensions (WxHxD) | 6.3 x 6.7 x 1.2" / 160 x 170 x 30 mm | | Weight | 4.7 oz / 134 g | | | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 1.2" | - Stabilizer Plate for CBP
| Dimensions and Weight | Not specified by manufacturer |
